InfinyStack – The Intelligent Modular Storage System
Print Profile(1)
Description
🧩 Modular. Stackable. Limitless.

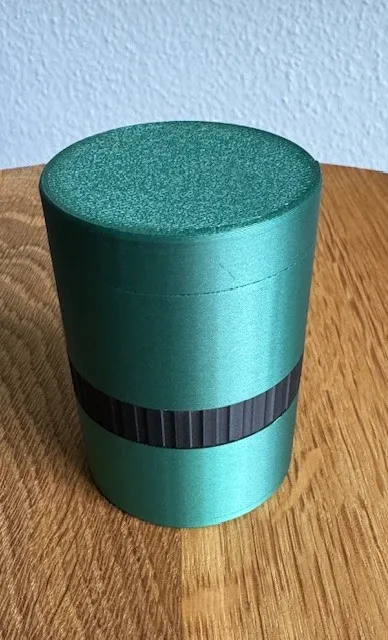

InfinyStack is a fully modular and infinitely expandable storage container system — designed to adapt to your needs. Whether for travel, organization, or everyday use, just stack and screw together what you need.
If there is any interesst in having larger containers i would be happy to provide some extra print profiles.
🔧 System Overview

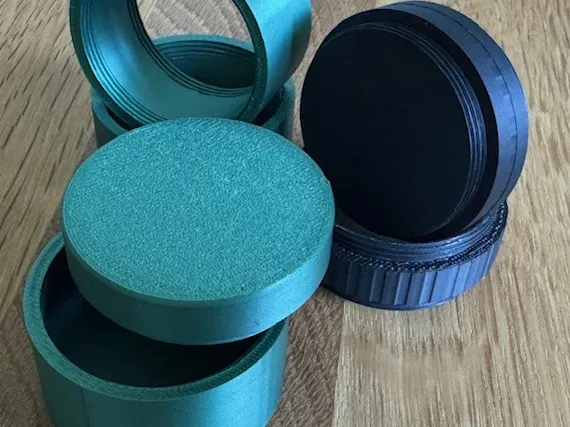

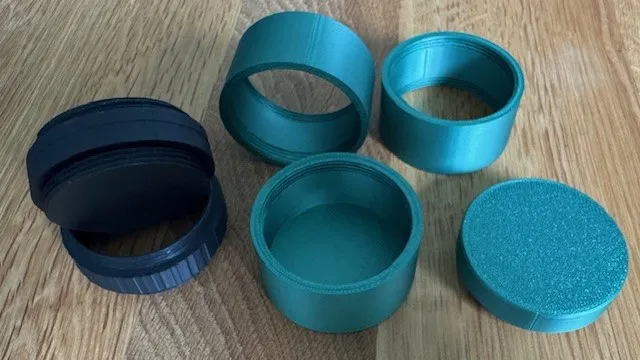

The system consists of 5 basic components, all of which screw together:

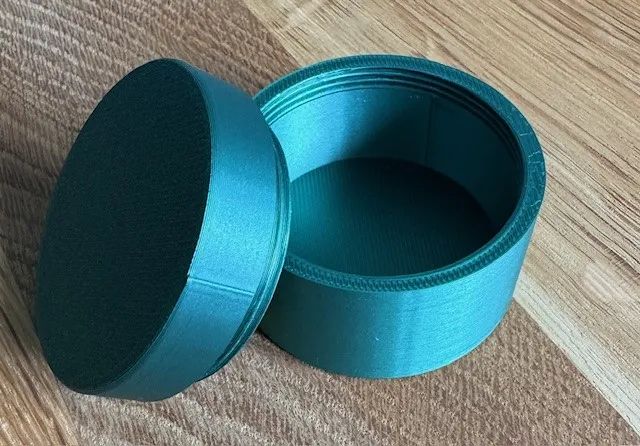

- 🟫 Base Container (~50×25 mm)
Comes with a solid bottom and a threaded top. It’s the starting point for every build. - 🟨 Lid (~50×15 mm)
A simple cap that fits on the base container or any extension module. - 🟦 Extension Module (~50×25 mm)

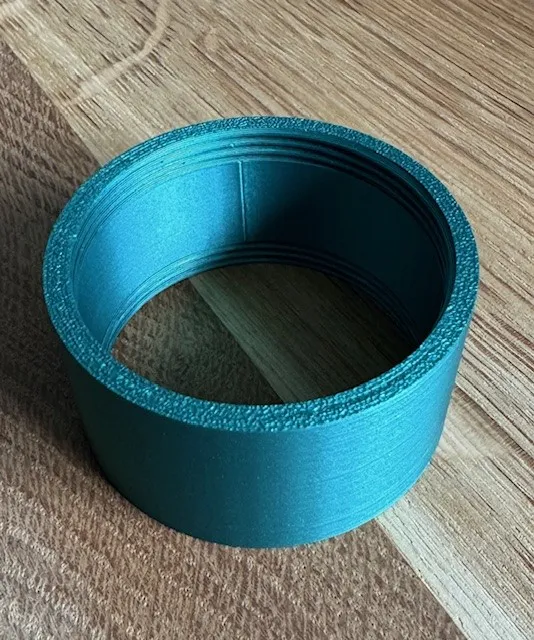

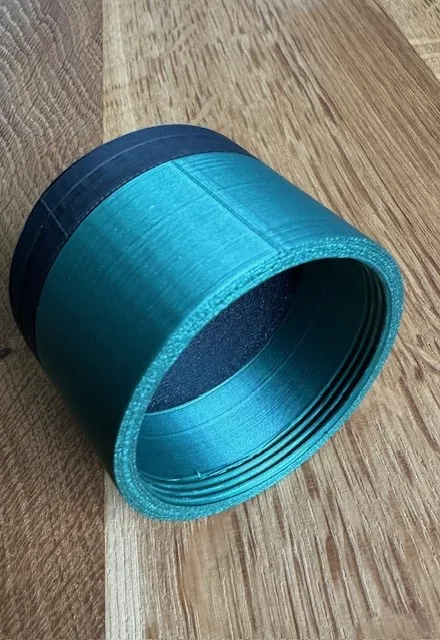

Hollow inside, threaded on both ends. Stack as many as you like using connectors to create tall compartments. - 🟫 Solid Connector (~50×20 mm)

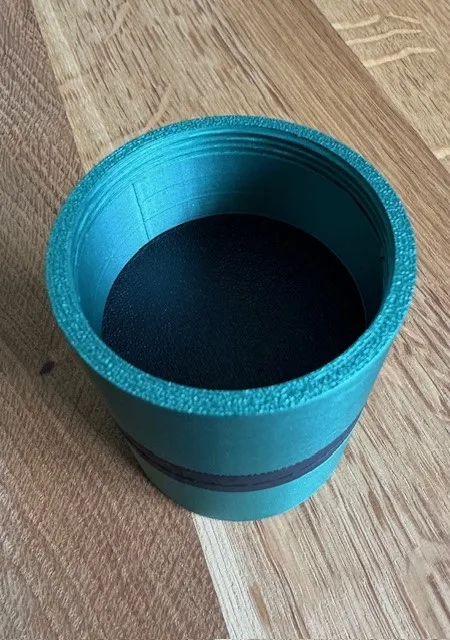

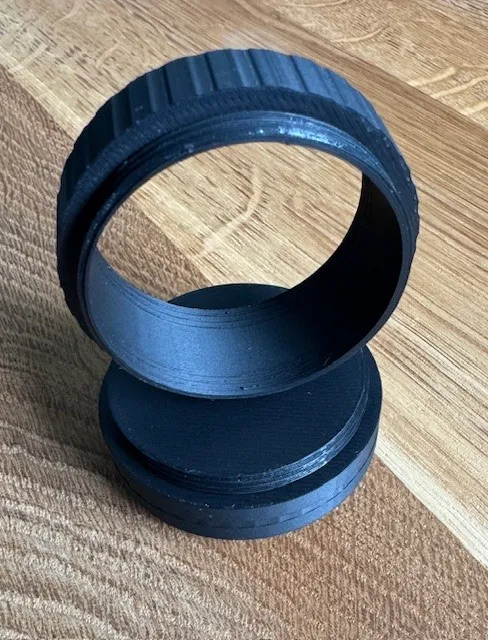

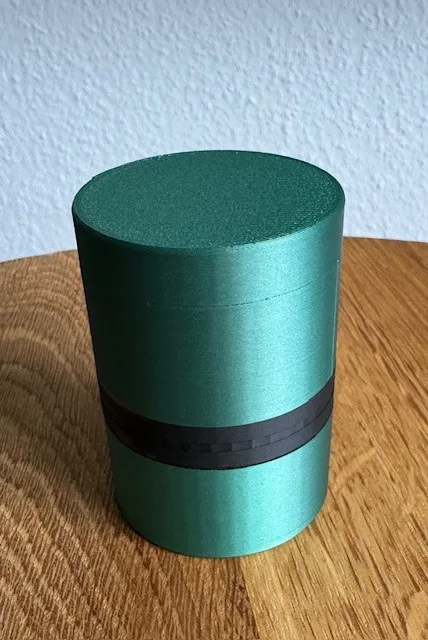

A connector with a solid section in the middle — ideal when you need a bottom between modules. Identified by a horizontal stripe. - 🟦 Hollow Connector (~50×20 mm)

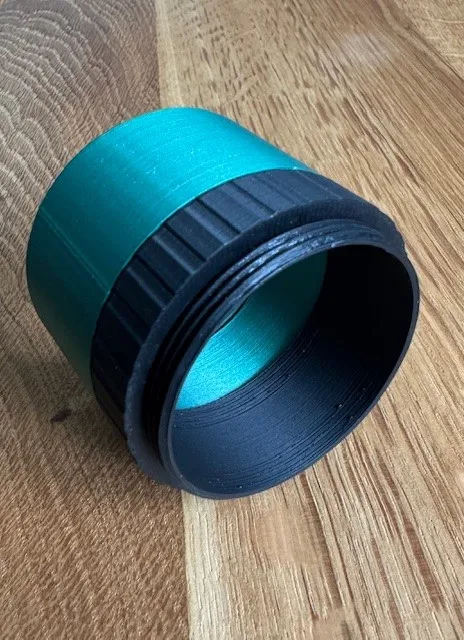

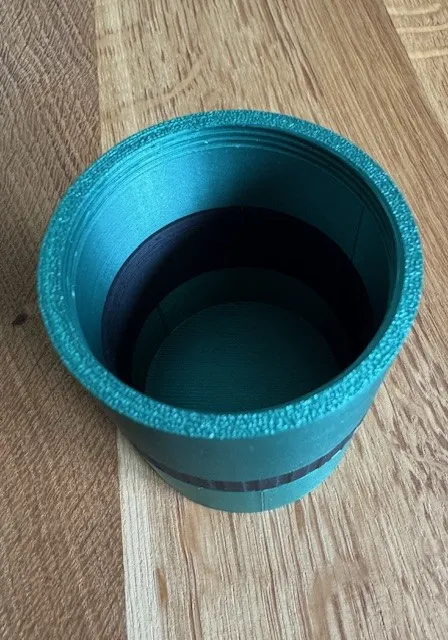

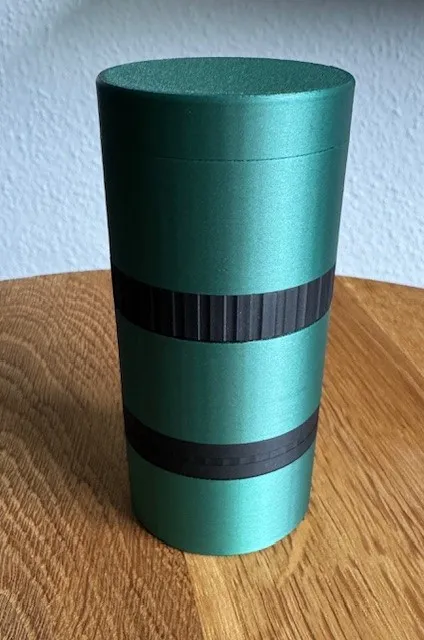

Fully open inside. Perfect for combining modules into one long compartment. Identified by vertical stripes.
🧠 Use Cases
Pack three types of pills and your toothbrush?
Easy! Use a base container, three solid connectors plus extension modules for the pills, and then add some hollow connectors, some extension modules, and a lid for your toothbrush.
Add more storage for jewelry, tools, or small items?
Just unscrew the lid and stack on more.
💡 Highlights
- Infinitely expandable
- Durable and lightweight
- Water-resistant (brief submersion test: dry inside)
- Easy to label – just add text in your slicer if needed
- Easy and fast to print
- All parts screw together — no glue needed
🖨️ Print Settings
- Layer height: 0.12 mm (best compromise between quality, time & material)
- Supports: Only needed for connectors (easily removed with pliers)
- Support blocker: Preconfigured in the extension module
- Material recommendation: PLA or better
- Color tip: Print connectors in a different color to distinguish them from other modules
🧵 Assembly
Just print your desired parts and screw them together. Done.
The system is super satisfying to use.
