Simple "One-Way" Exhaust Vent (120mm Fan Adapter)
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
132
343
10
2
191
80
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description

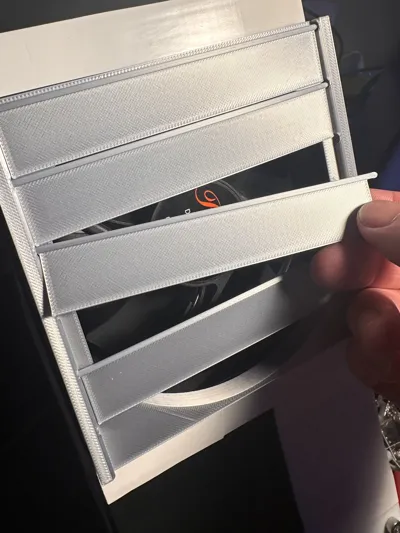

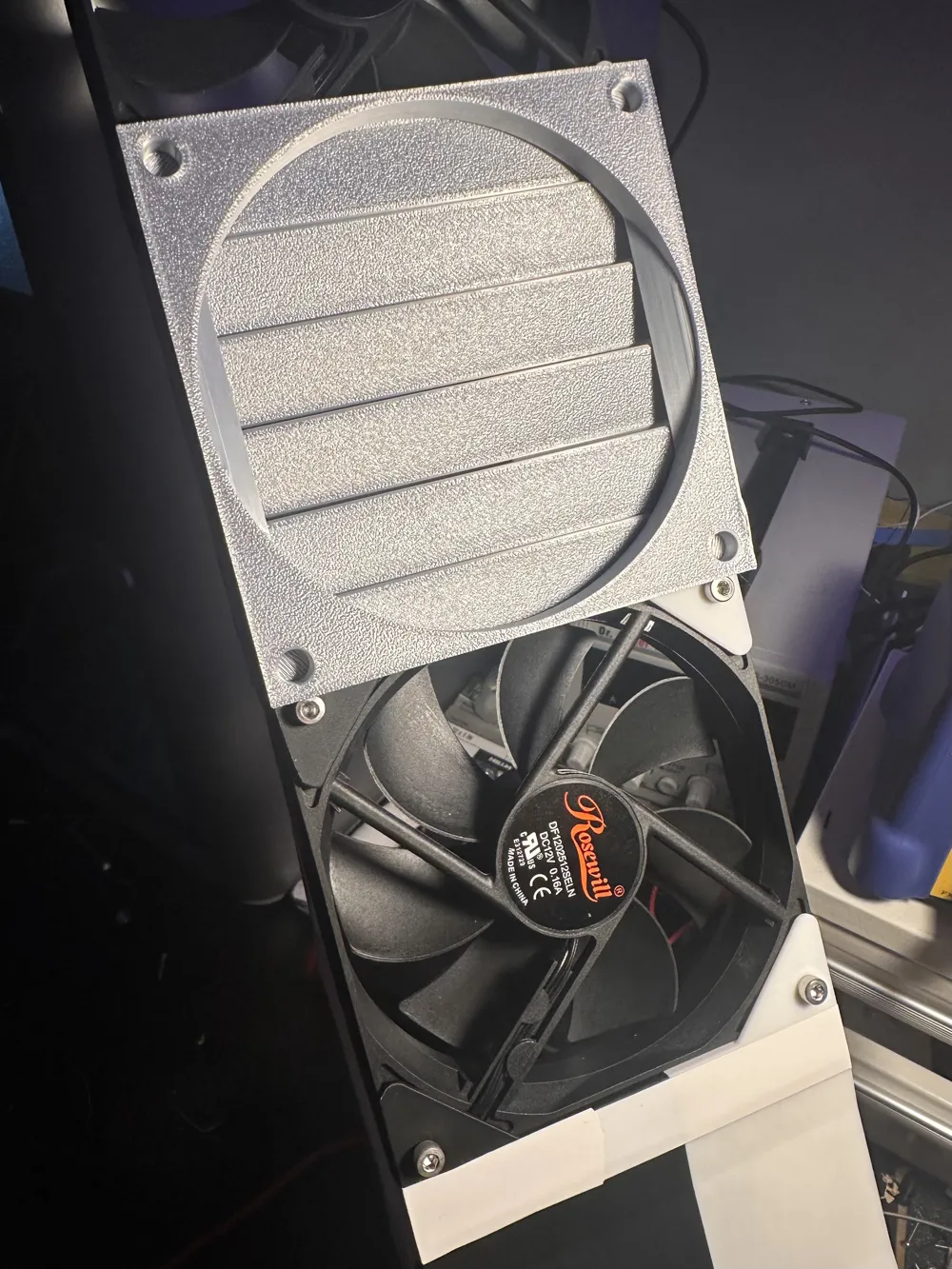

One-way vent cap for 120 mm fans. Six snap-hinged flaps swing open when the fan blows out and slap shut when a gust tries to blow in. I built it for a window exhaust panel because the wind kept backpowering the PSU hooked up to it.
Sized to press-fit over the heads of my generic M3 screws (not sure if it will work for you, but you'll figure it out). Prints strongest/safest flat, but upright should be fine even without supports; batch jobs may get questionable.
Not exactly optimized for air flow or anything, just gets the job done. No more complicated than it should be.
