KOBRA 3 MAX CHAIN

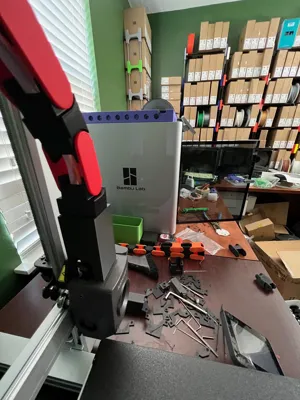

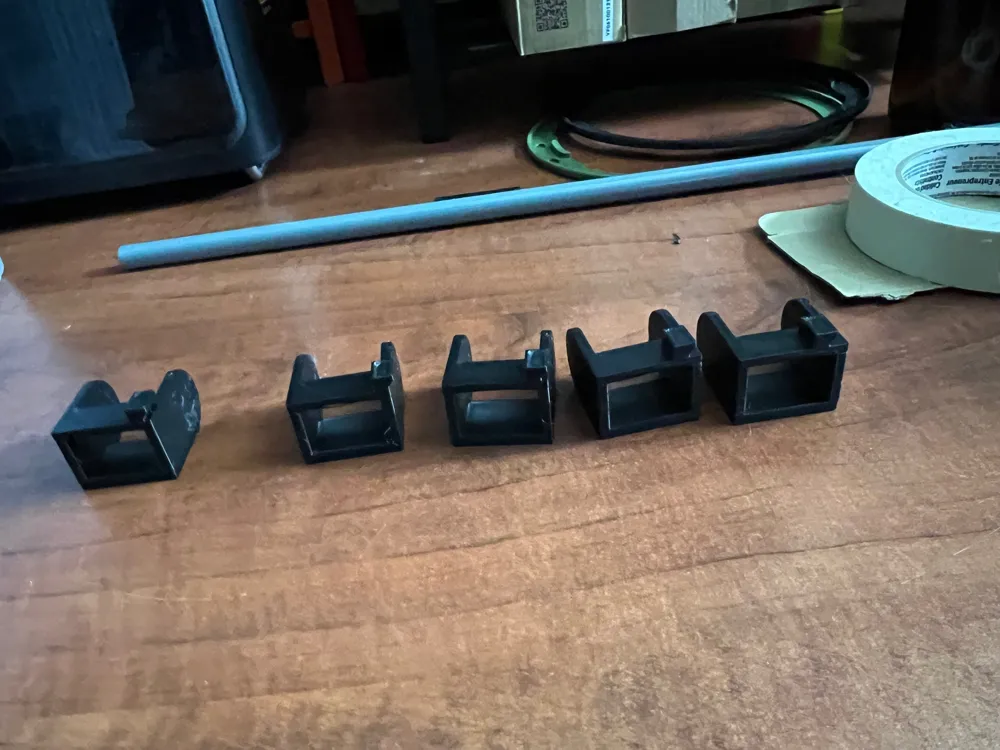

I have created a chain to route your 8 PTFE tubes and the USB cable for the hot end for your Kobra 3 MAX. As you can see in one of the pics all of my test models to come up with the finished product. It took a lot of trial an error to get it so it would flex enough but not too much. Enjoy.

Model for users that have a larger hub like the Kobra 3 Combo | 9 Position Bowden Tube Hub can print my larger version that has three modified parts to support the larger hubs.

KOBRA 3 MAX COMBO CHAIN MEGA HEAD UNIT

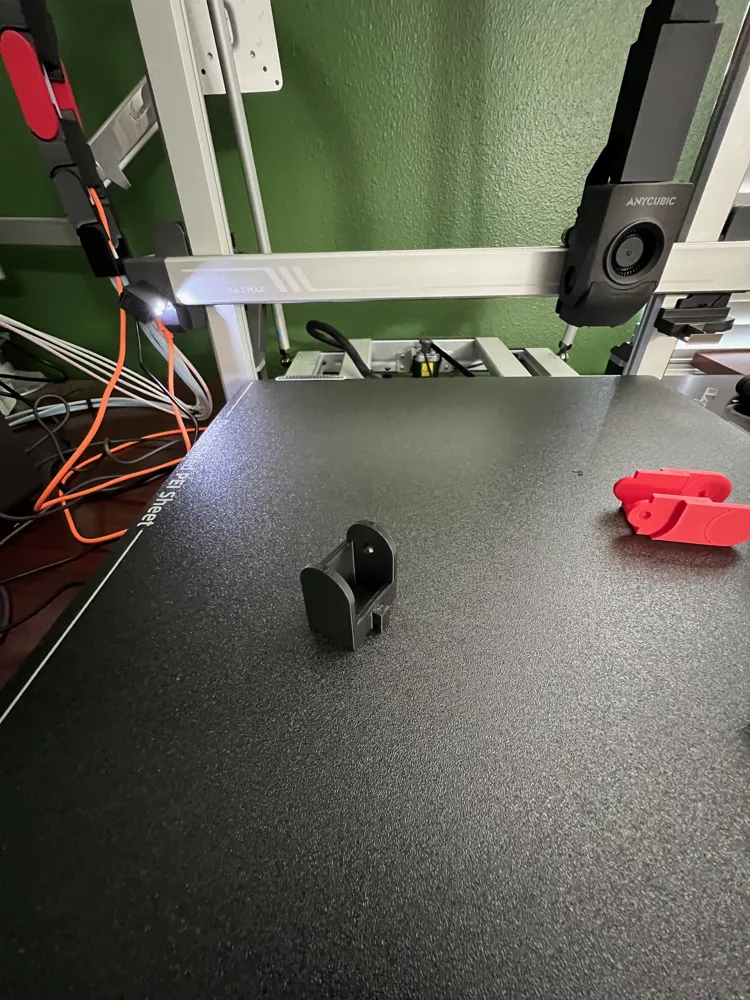

I used 10% infill for all parts except for the mount and head unit. I will be making a new Mount model to better handle the pressure. I've seen lots of pics of that part snapping.

I needed a clean way to route the 8 PTFE tubes and USB cable for my KOBRA 3 MAX. There was nothing available out there. I found a couple of cable chains for the Kobra 2 and one great design for the KOBRA 3 MAX. Only issue with the KOBRA 3 MAX chain was that it wasn't made for connecting to the 8 in 1 hub or holding that many tubes.

The original designer did not have an 8 in 1 hub to be able to make a larger version at the time. I didn't want to wait and made my version in Fusion. If you are only connecting a single PTFE tube and the USB cable. I recommend using LefevreLucie's model it is much smaller and uses less filament. But if you need to connect to ACE units this works great.

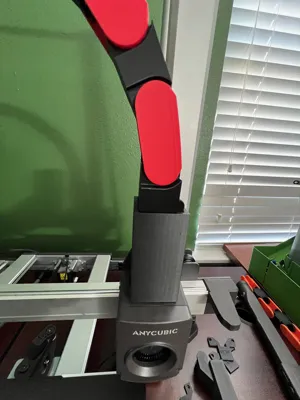

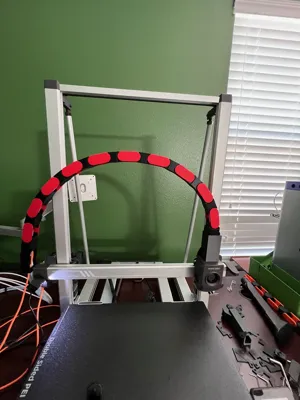

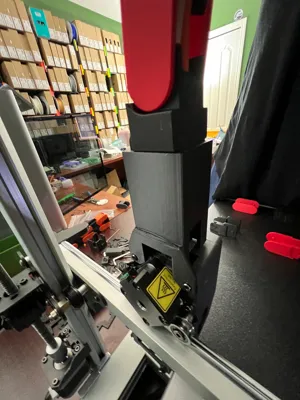

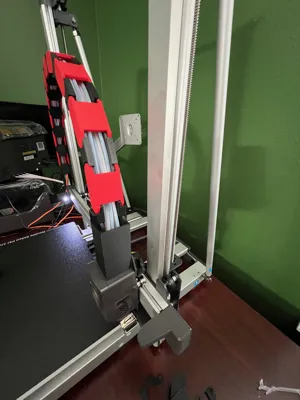

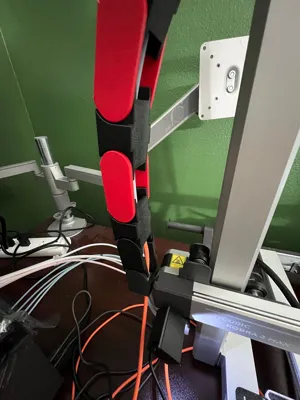

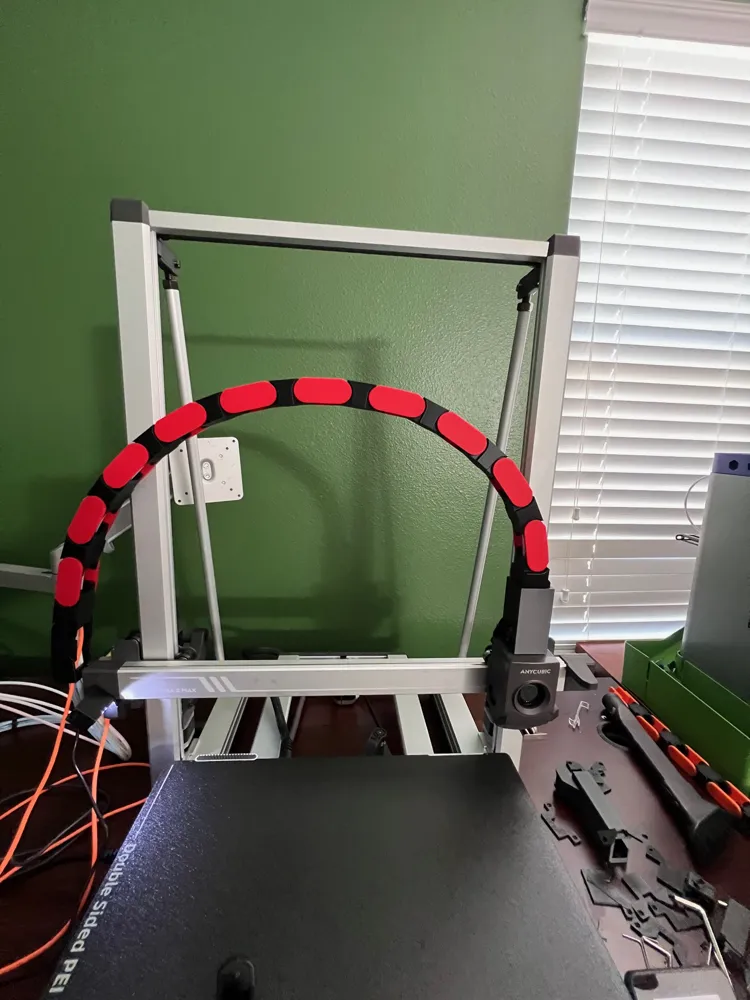

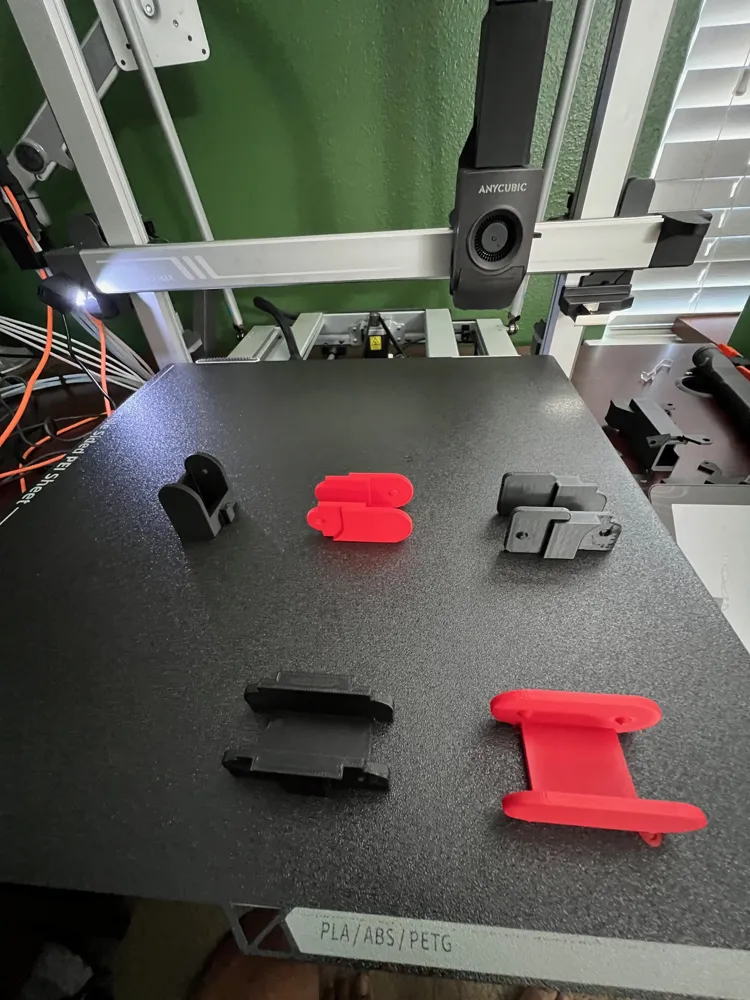

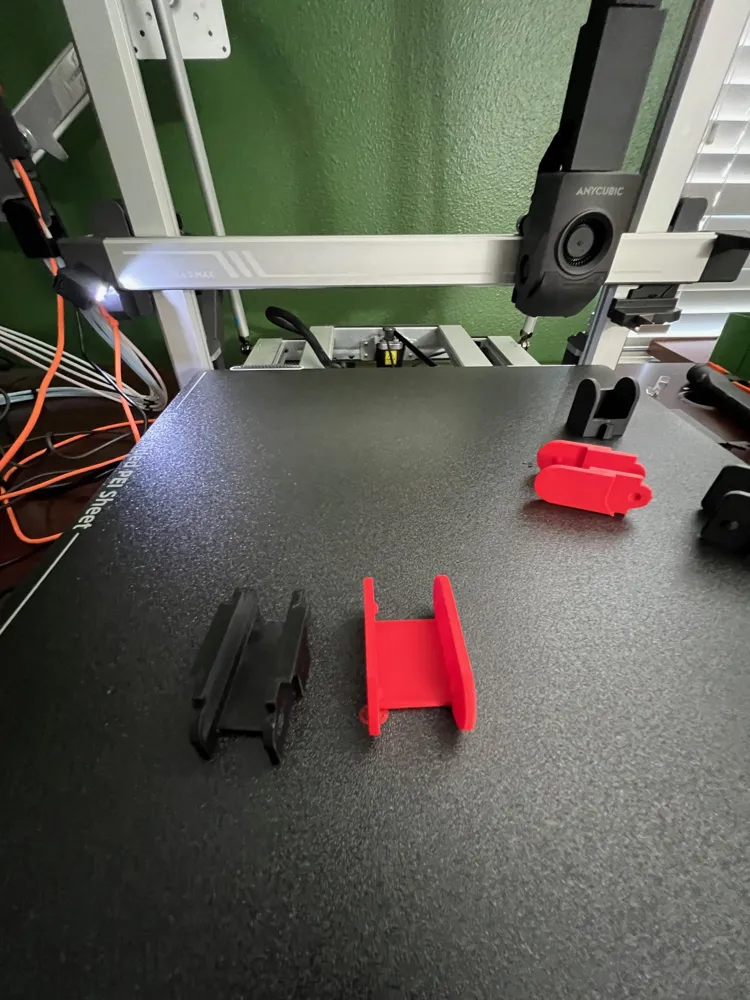

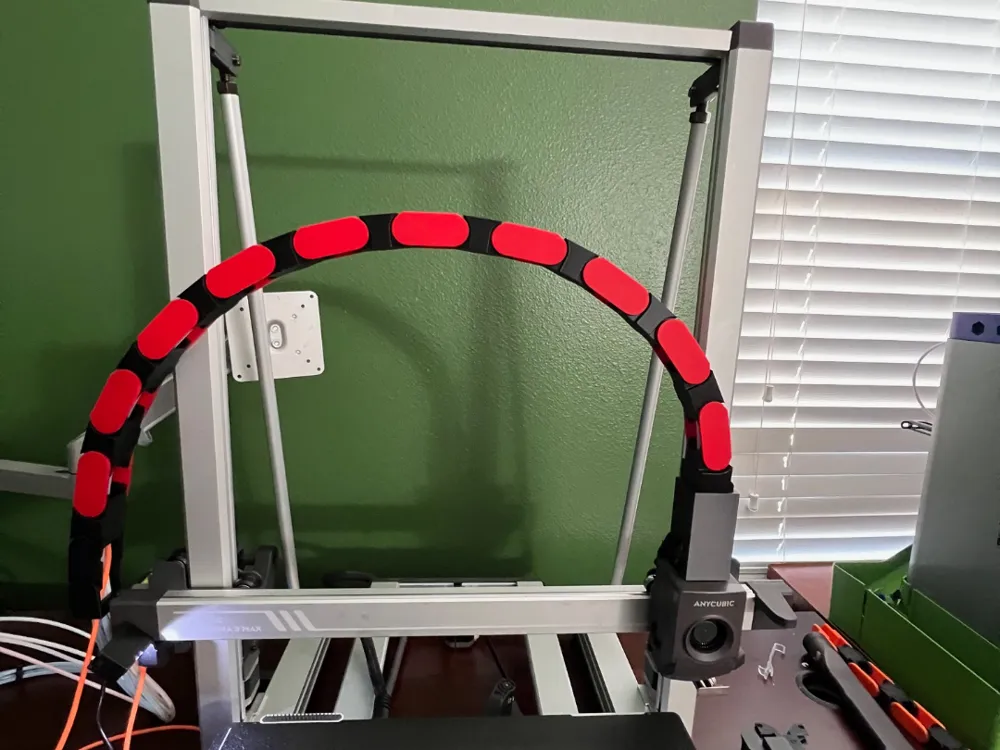

I tried to name the parts so they would make sense on how to connect them. But there was a request for better instructions. Let me know if the attached instructions are clear enough. Also look at the pictures to see it installed on my printer.
