Right-Hand Rule of Coordinate Metrology
IP Report
Print Profile(1)
0.16mm layer, 2 walls, 20% infill
Designer
53 min
1 plate
Open in Bambu Studio
Boost
6
25
0
0
26
18
Released
Description
Content has been automatically translated.
For all coordinate systems it is necessary to know the axes and if applicable their direction of rotation.

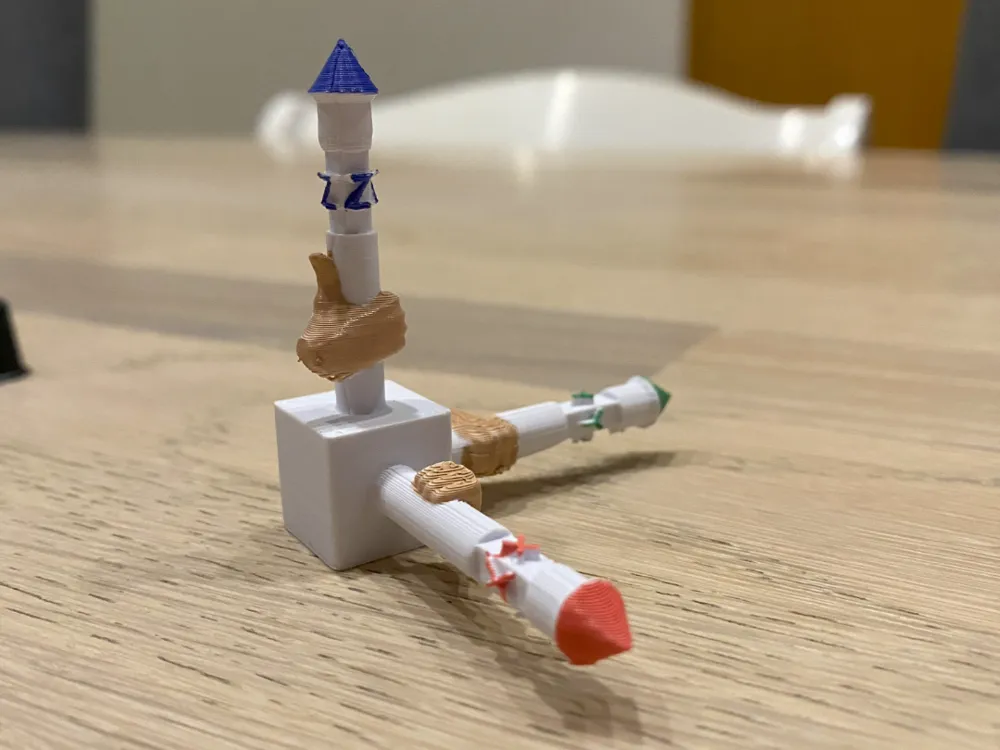

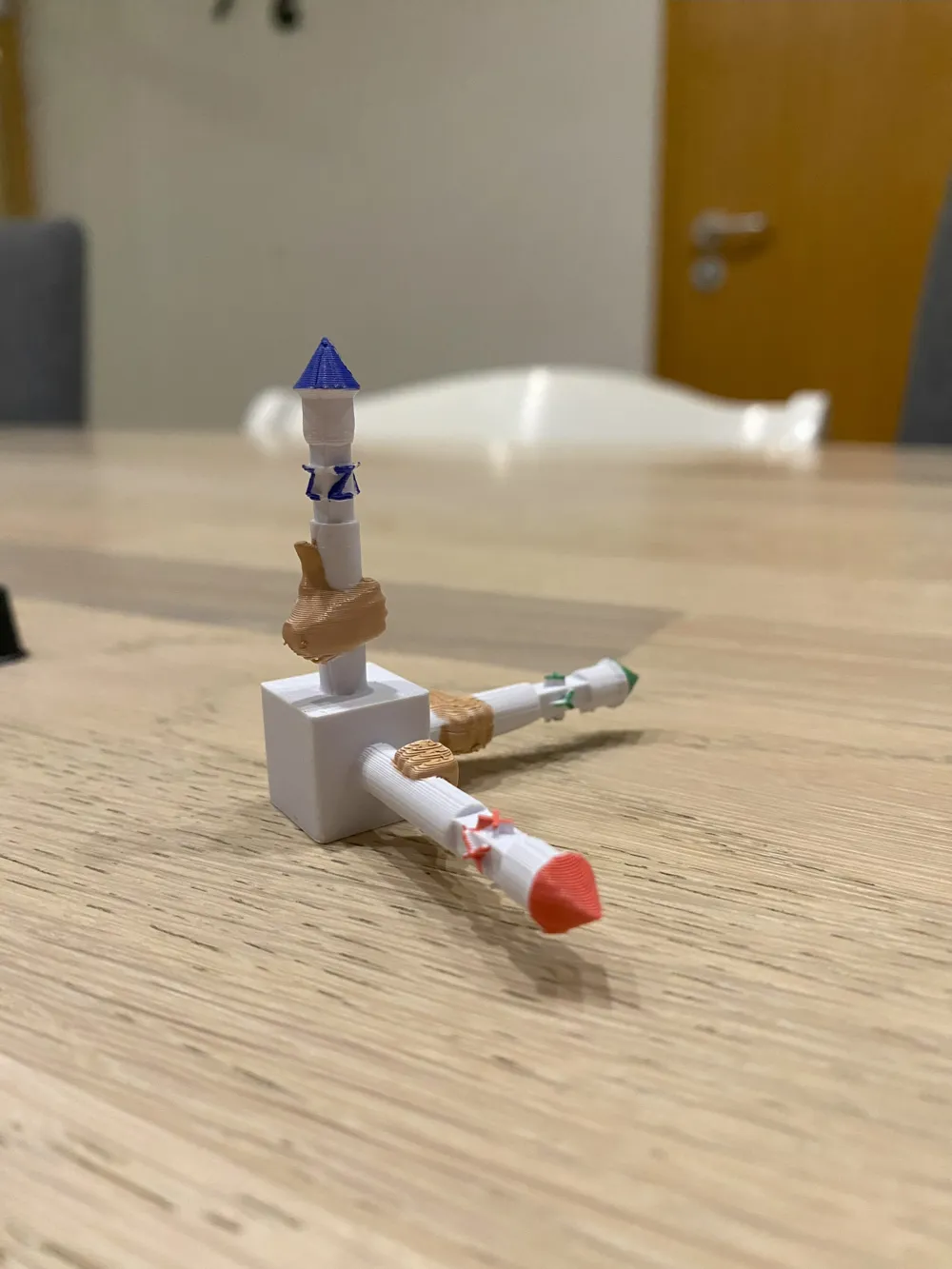

This model visually represents the “right hand” and “right thumb” rule.
The right-hand rule is needed to determine the directions of the axes and the sequence of the axes x, y, and z.
The right-thumb rule states that the positive direction of rotation of the axis always points in the direction of the thumb.
The model is monochrome and I have visually enhanced it after printing with acrylic paints.
I am working on a color printable version with pluggable axes.
