HAVOK - MOD5 (RAK Meshtastic Device)

Update 3/2/2026: Link to new version of the Havok: You are going to want this one!

https://makerworld.com/en/models/2470886-havok-6-4-mk-x#profileId-2712831

UPDATE 2/14/26: I have a new version of the Havok coming out very soon (within the next few days) the Havok Mod 6.3. Keep an eye out for it.

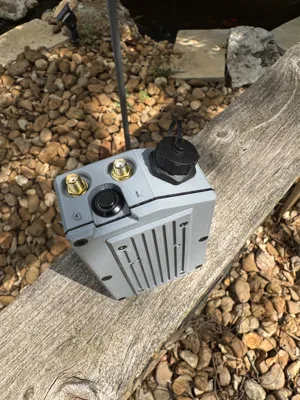

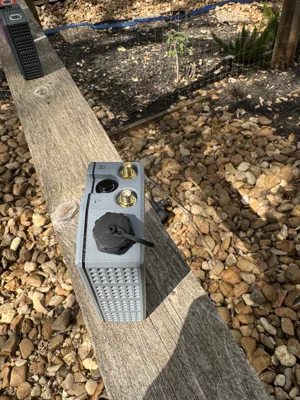

This is a water-resistant (not waterproof) RAK box.

**Please see the attached PDF for the full material list & assembly instructions.

UPDATED MOD 5: Files here and in Github https://github.com/ADXBD/HAVOK-A1900x-MOD-5

MOD 5 Changes:

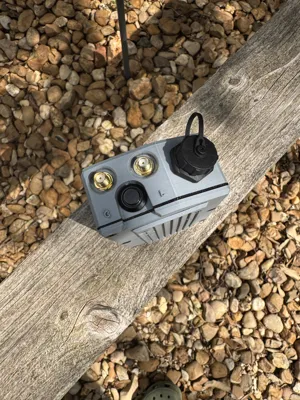

1. Sink antenna ports into body 4 mm
2. Updated the mount board so one board can be used for both 19003 and 19007
3. Add the model name inside the device
4. Move the light ports higher on the device
5. Raw model files cleaned up

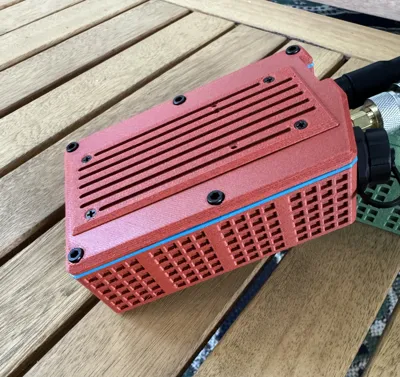

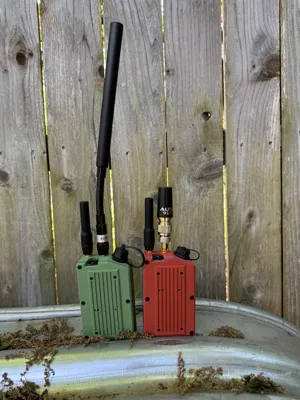

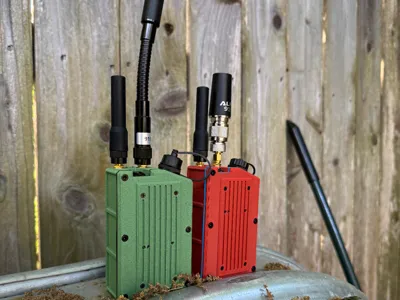

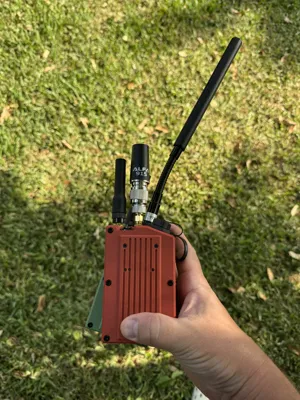

I really like this device. It's pretty sturdy and has a good feel in the hands. It does require some work to assemble, so I wouldn’t consider this a beginner build, but it's not hard by any means.

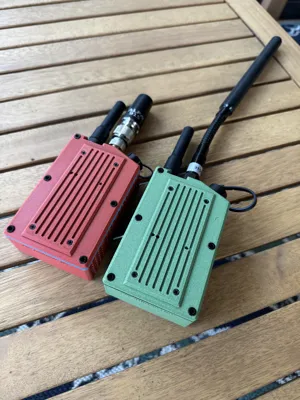

Im running a 75% infill. I have printed with PLA, PLA-CF, PETG-HF and PETG-CF. I recommend PLA-CF, In my opinion it gives the best fitment & look. If you are printing in PETG-CF I suggest having the top of the box right side up with support, I couldn’t get a good print with the top face down. PLA-CF prints great face down.

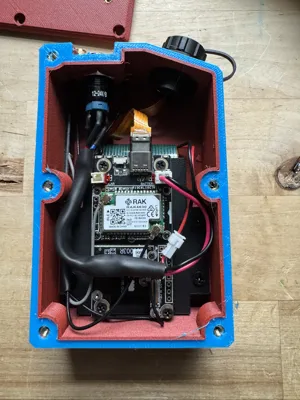

The file contains three plates: one for the 19003 board and one for the 19007 board. The third plate is the TPU gasket, which is the same for both models.

Please see the attached how to guide for assembly details.
