Under-Desk Footrest

Looking for a comfortable solution for long hours at your desk? I designed an ergonomic footrest to enhance sitting comfort and stability.

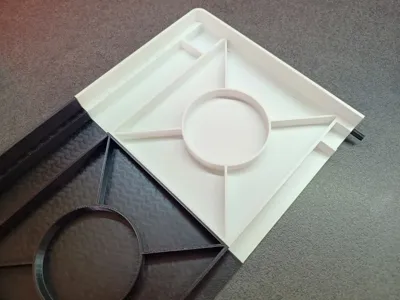

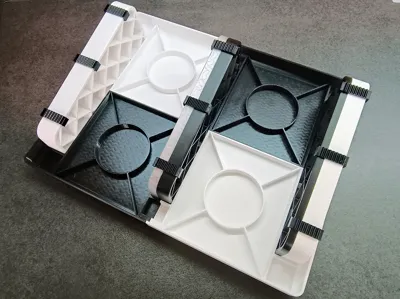

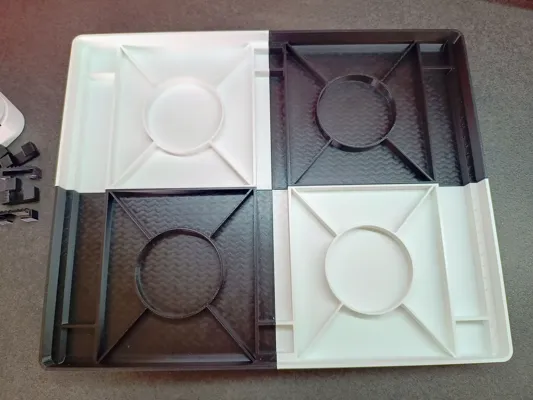

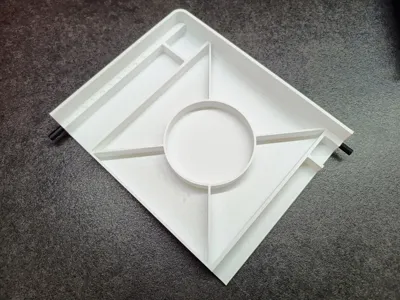

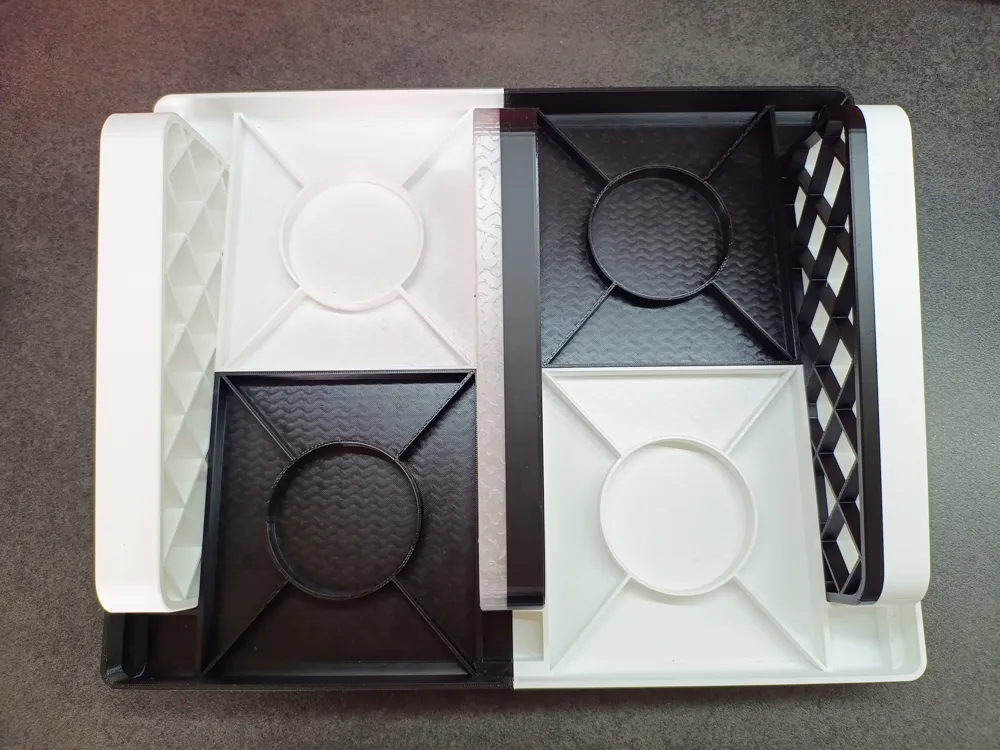

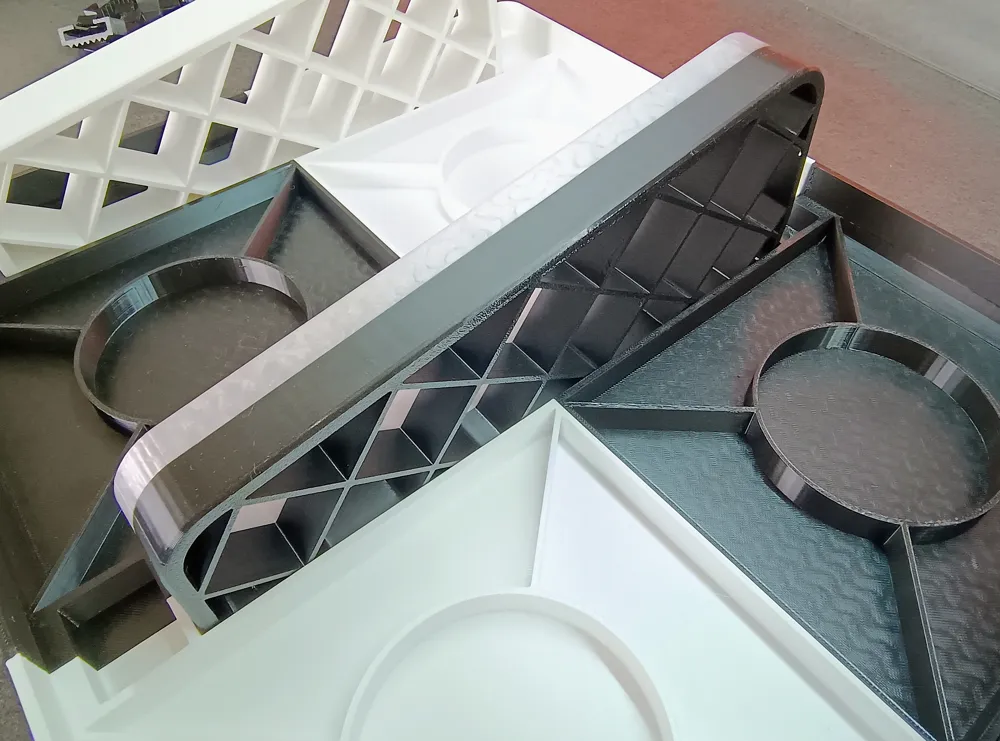

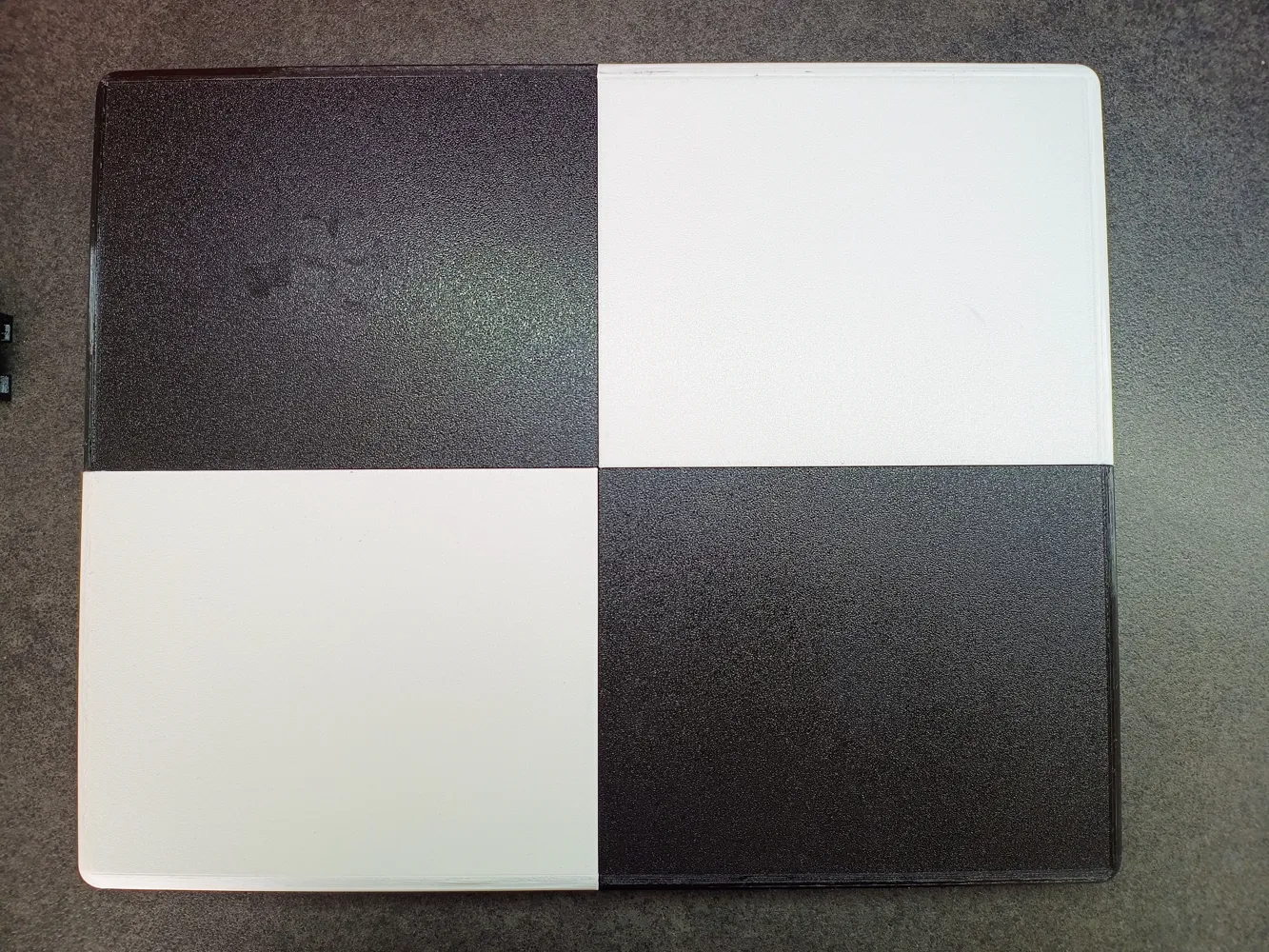

🔹 Modular Design – The footrest consists of 7 base parts, plus pins and anti-slip elements, allowing for printing even on smaller 3D printers. Once properly assembled, it creates a smooth and sturdy support surface.

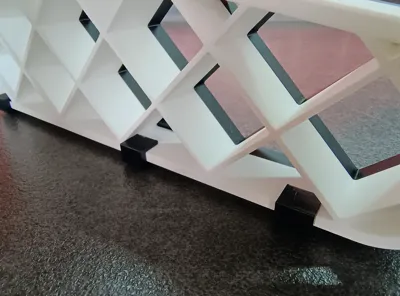

🔹 Stable Construction – The legs can be fitted with anti-slip elements, which I recommend printing in TPU for easy installation and optimal grip on the floor.

🔹 I recommend gluing the parts together to ensure maximum strength and long-term durability.

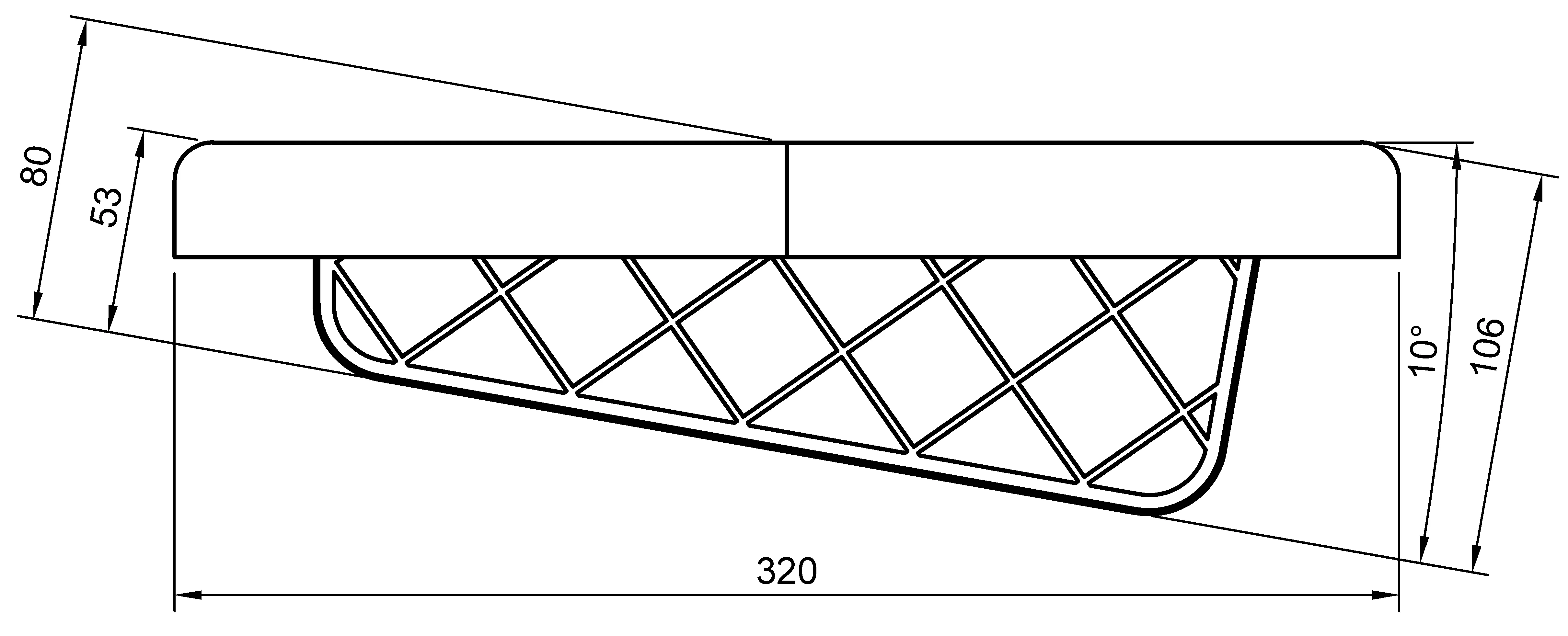

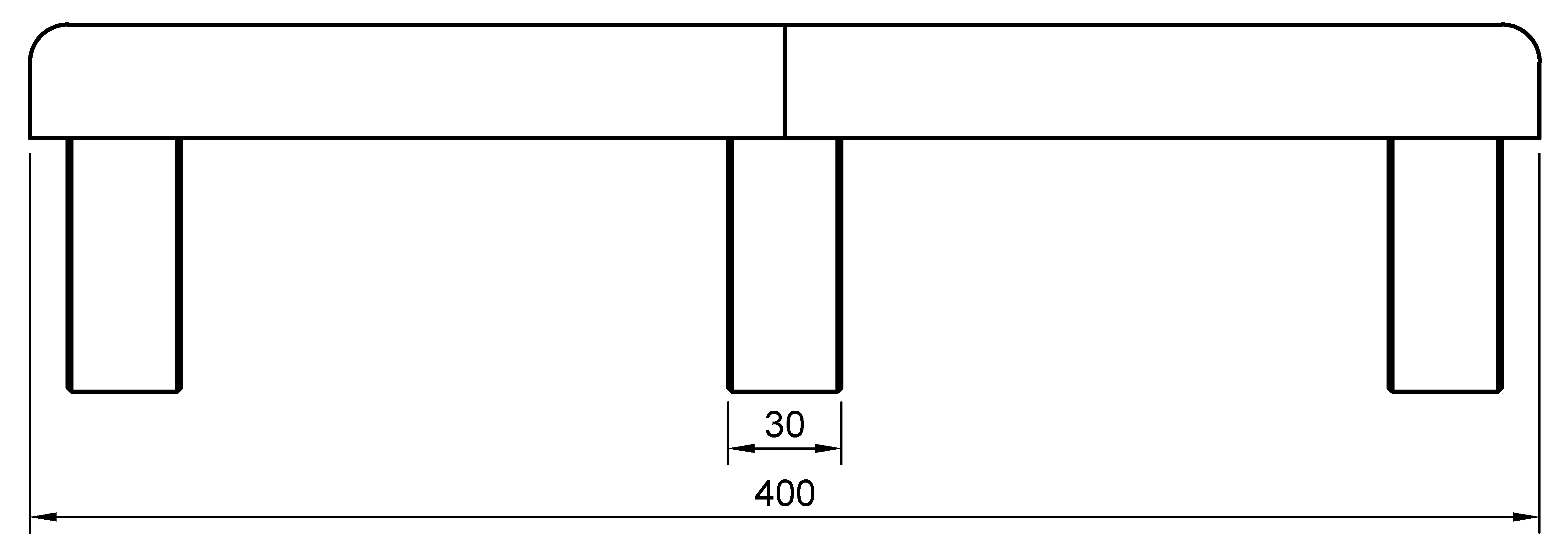

📏 Technical Specifications:

Dimensions: 400 × 320 mm

Central Height: 80 mm

Incline: 10°

🖨️ Printing Instructions:

Board 13 – print 2×

Board 24 – print 2×

Pin – print 4×

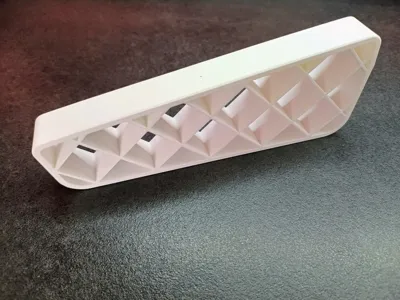

Leg – print 3×

Anti-slip – print 6× or 9× (depending on preference)

📌 Recommended Materials:

All base parts should be printed in PETG for durability, slight flexibility, and resistance to mechanical stress.

Anti-slip elements should be printed in TPU, ensuring elasticity and high adhesion for stability on the floor.

This footrest improves ergonomics and provides enhanced comfort for your feet while working or gaming. 🦶💼
