DIY Metal Detector (Spirit PI ESP32 project)
Print Profile(1)
Description
Boost Me (for free)
If you like this design then please give it a free boost. Thanks!
I built a ESP32 pulse injection metal detector based on the Spirit PI project (links below) and required appropriate hardware to:

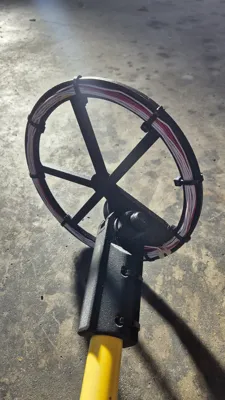

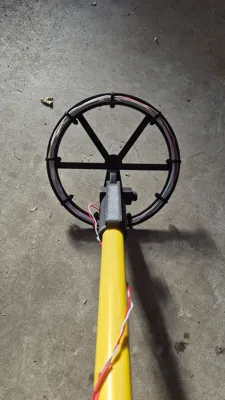

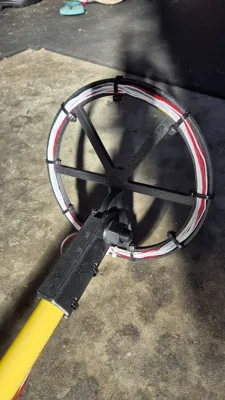

- Create a 200mm coil base with adjustable angle hinge (connects to a length of 25mm PVC pipe).

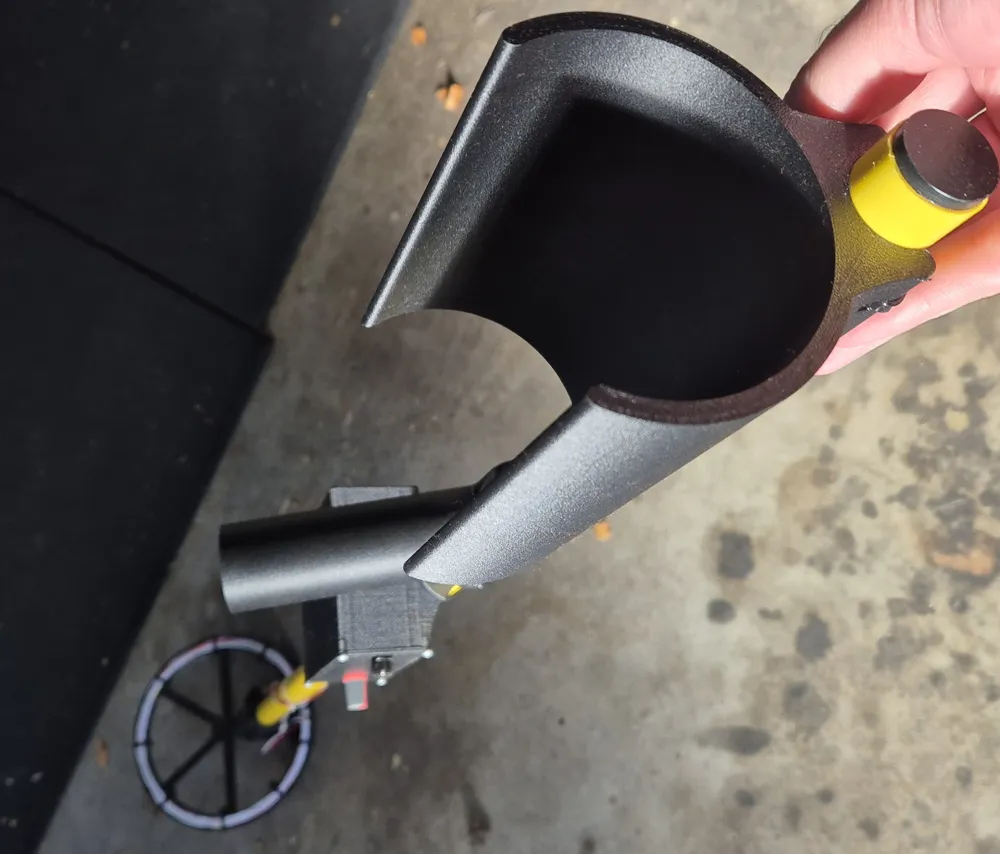

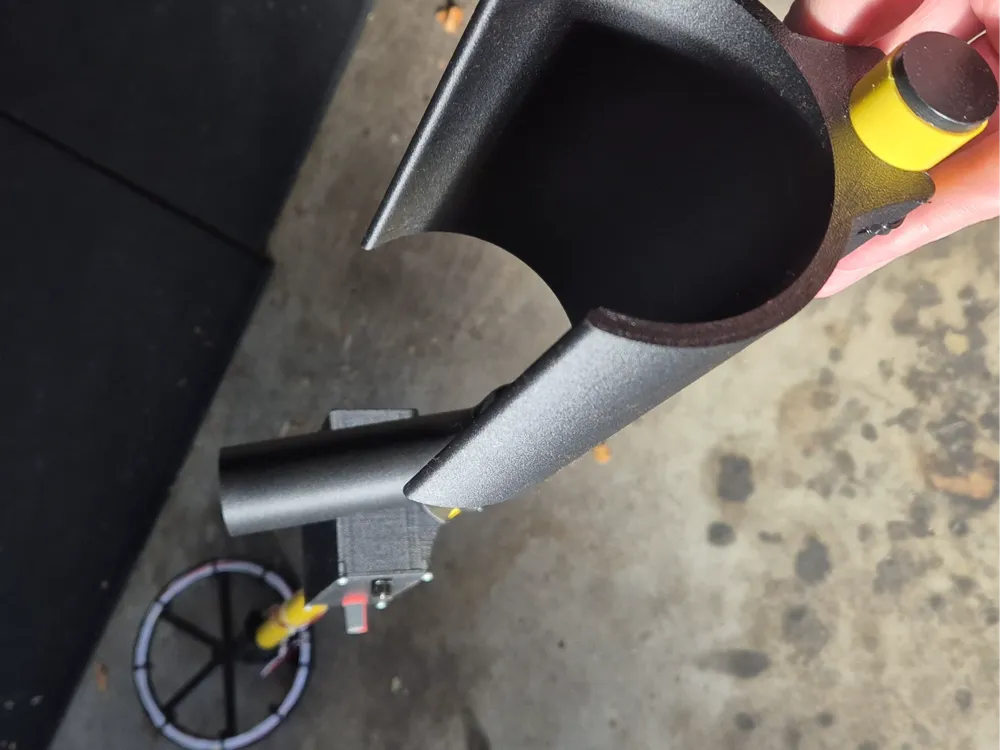

- Create a arm rest and wrist handle for easy movement.
- Create a mounting box for the electronics.

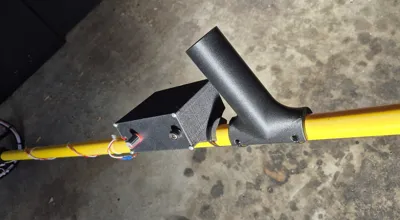

- Create a Galaxy S9 phone holder that sits on top of the mounting box (to interface with the detector).
Print with PETG-CF for good toughness and durability.
Zip ties are used to secure the components to the 25mm PVC pipe.
No battery holder as I use a 12v battery with cable to a backpack (makes the detector very light to use).

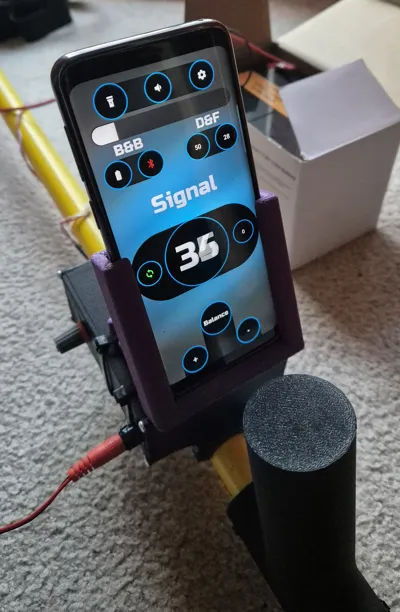

The phone holder is required as the ESP32 uses Bluetooth to control the detector from the “Spirit PI” android app.
