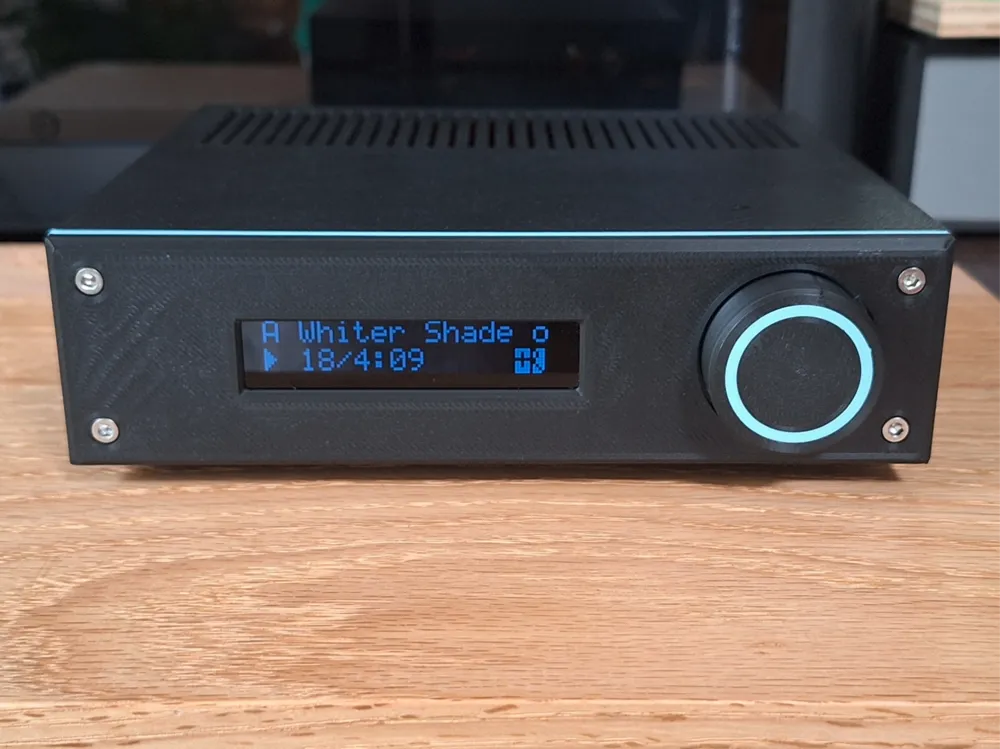

Raspberry Pi Case for MPD NO AMS NEEDED

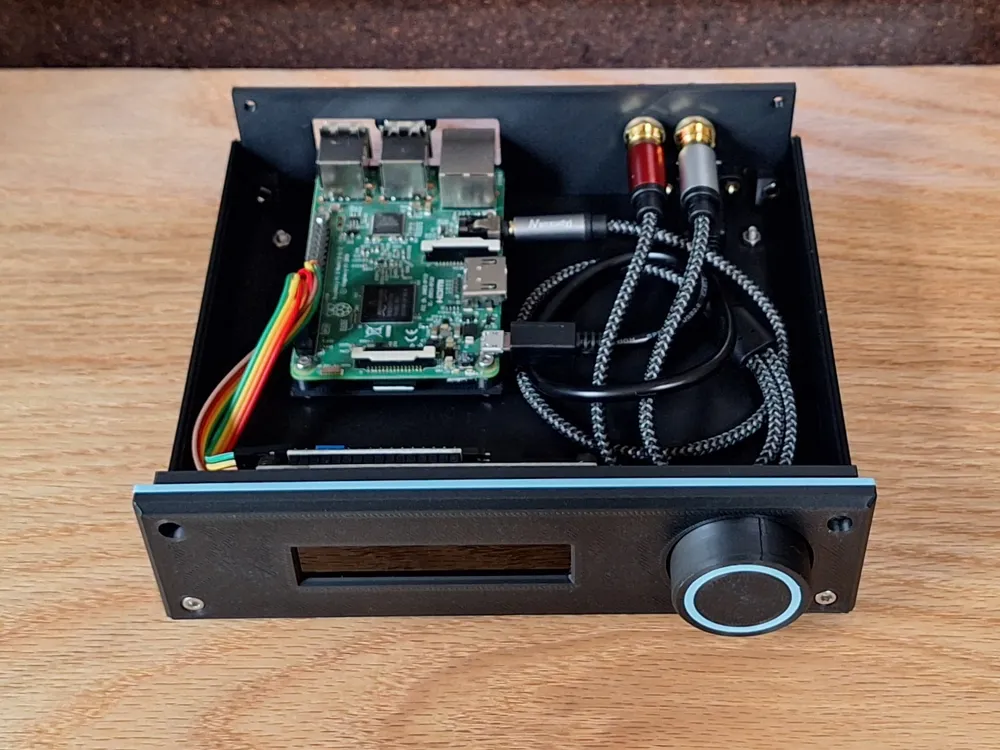

This is a case for a Raspberry Pi ( the mount plate should be able to mount a pi 3 to pi 5) and a 1602 i2c display and rotary encoder

youll need some other hardware as well and a Raspberry Pi

a USB to USB panel mount cable (I used a USB-C to micro USB since I had a 3b+ and I wanted to use USB-C, I purchased 1 from adafruit)

A set of RCA Bulkhead jacks (not needed if your using a  USB DAC, found mine on amazon)

A 3.5 to RCA if you are using the bulkhead jacks

A 1602 display

A rotary encoder

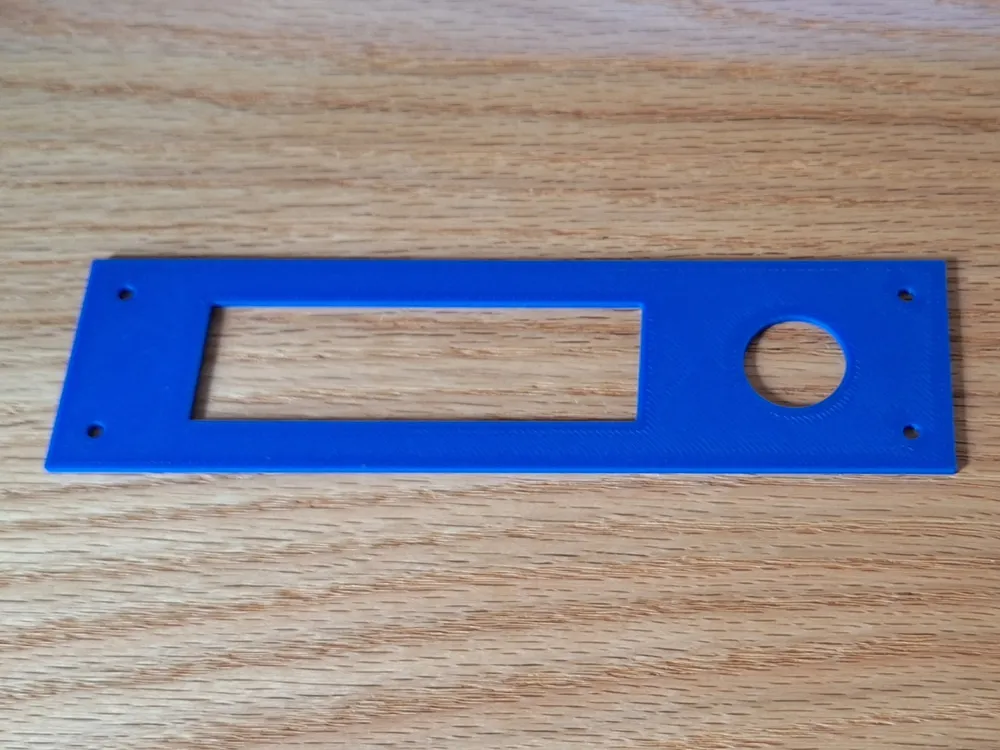

A small piece of acrylic smaller than 85mm x 30.5 (I used transparent black)

wires for the 1602 and rotary encoder

feet (optional)

m3 Nuts         qty. 12 ( 8 for the top and bottom plates and 4 for the pi mount plate)

m3 x 16          qty. 4

m3 x 8            qty. 4

m3 x 6            qty.8 (4 for the pi mount plate and 4 for the 1602)

m2.5 x 10      qty. 4 (for mounting the pi to the mount plate)

m2.5 nuts     qty. 4  (for mounting the pi to the mount plate)

m3 rubber feet and hardware to mount them (this is optional but the holes are there)

you should be able to mount the 1602 without nuts but the holes to use nuts are there

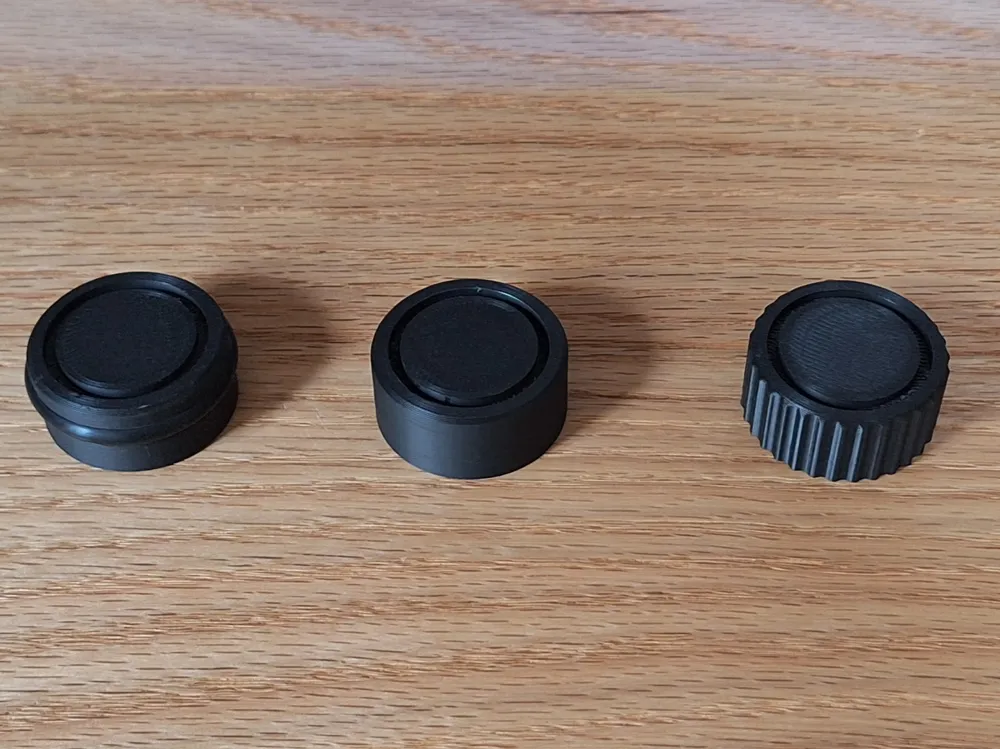

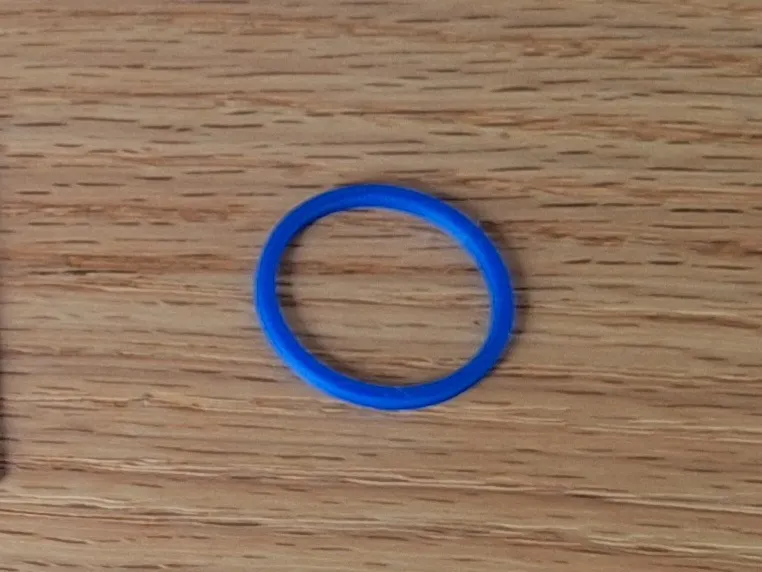

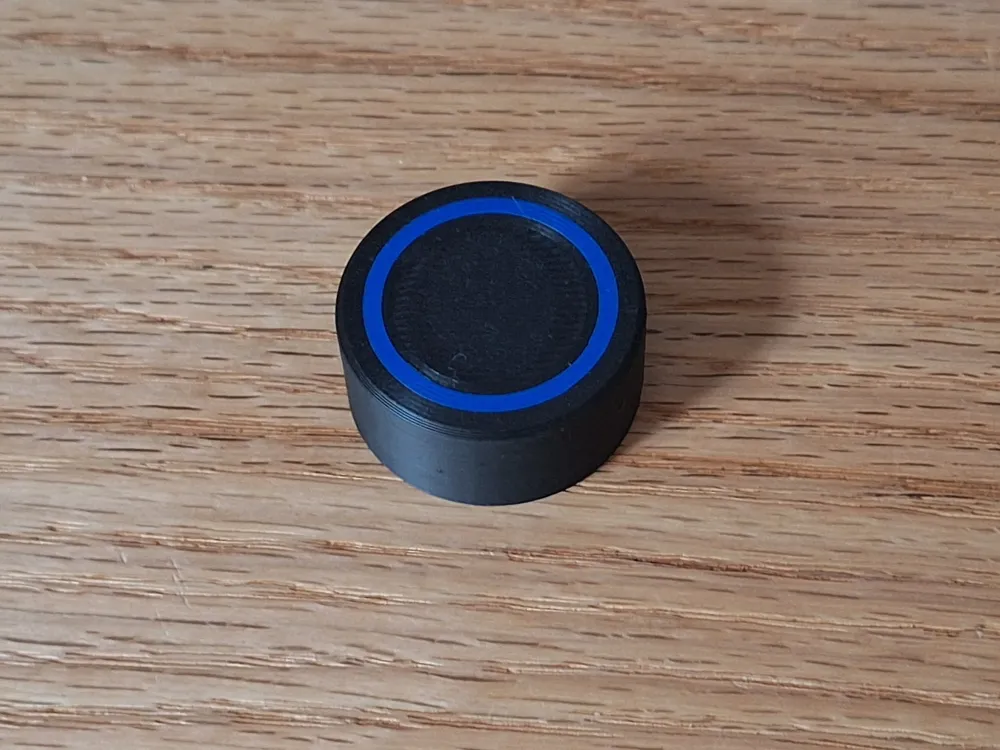

there are 3 types knob 1 can use an o-ring 34mm OD 26mm ID 4mm diam. one is textured and 1 plain.
