HAN Titan-5 M.A.X. Spare Parts Oxygen Cylinder Module

Enable your Titan-5 M.A.X. for extended space or underwater missions using the Oxygen Cylinder

All parts are directly replaceable and customizable

Assembly Instructions:

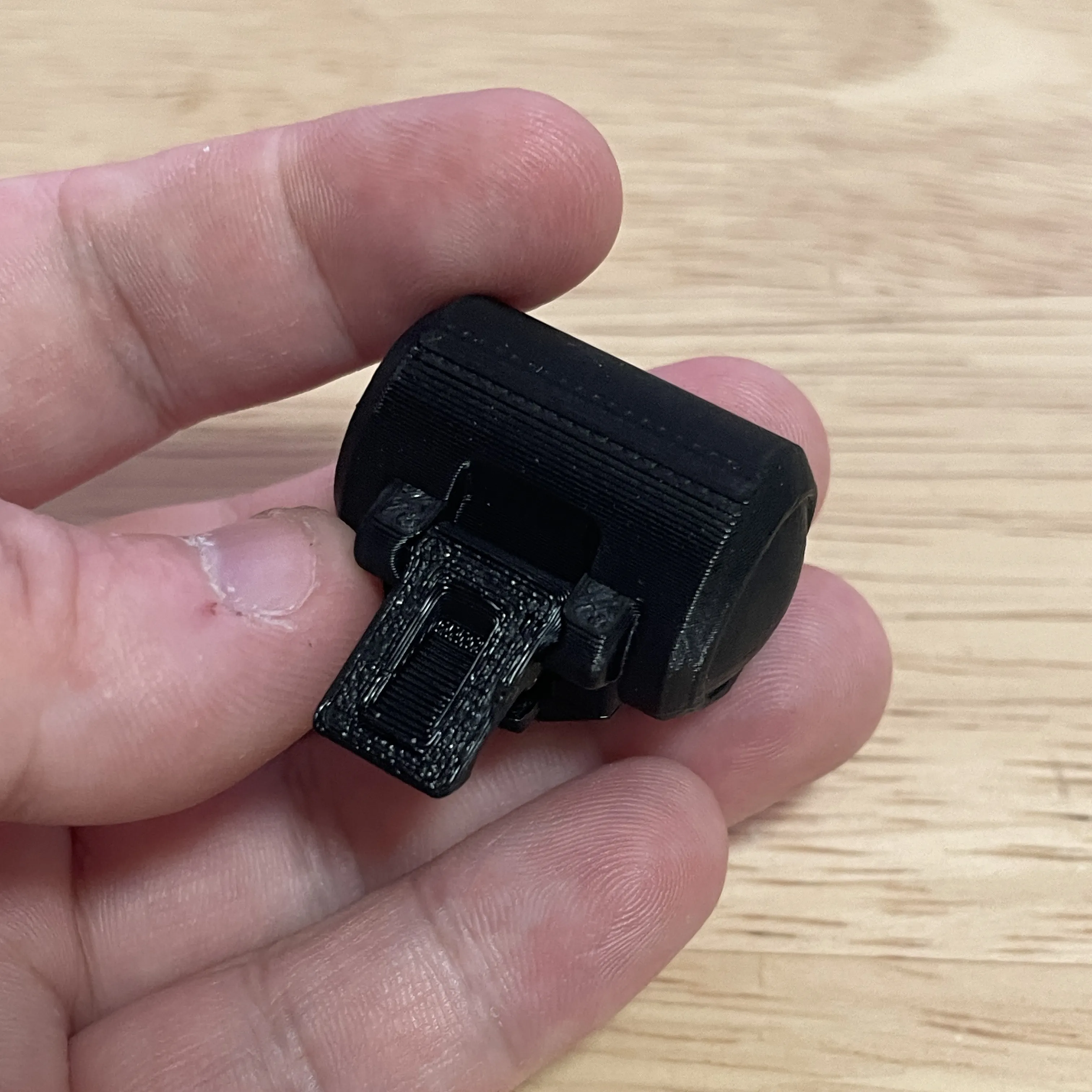

Attach the locking clasp to the Oxygen Cylinder (note the orientation)

Open the Oxygen Cylinder locking clasp upwards

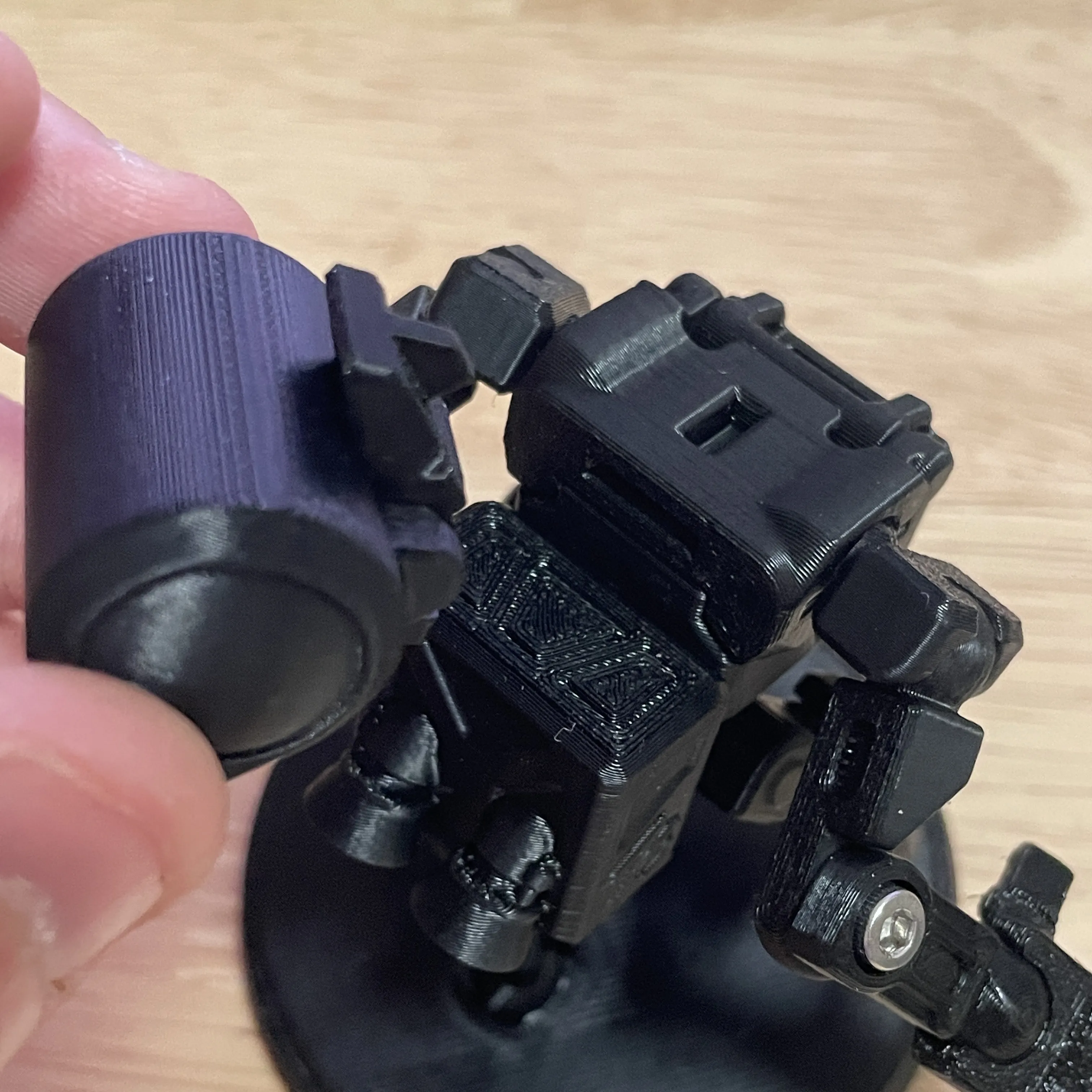

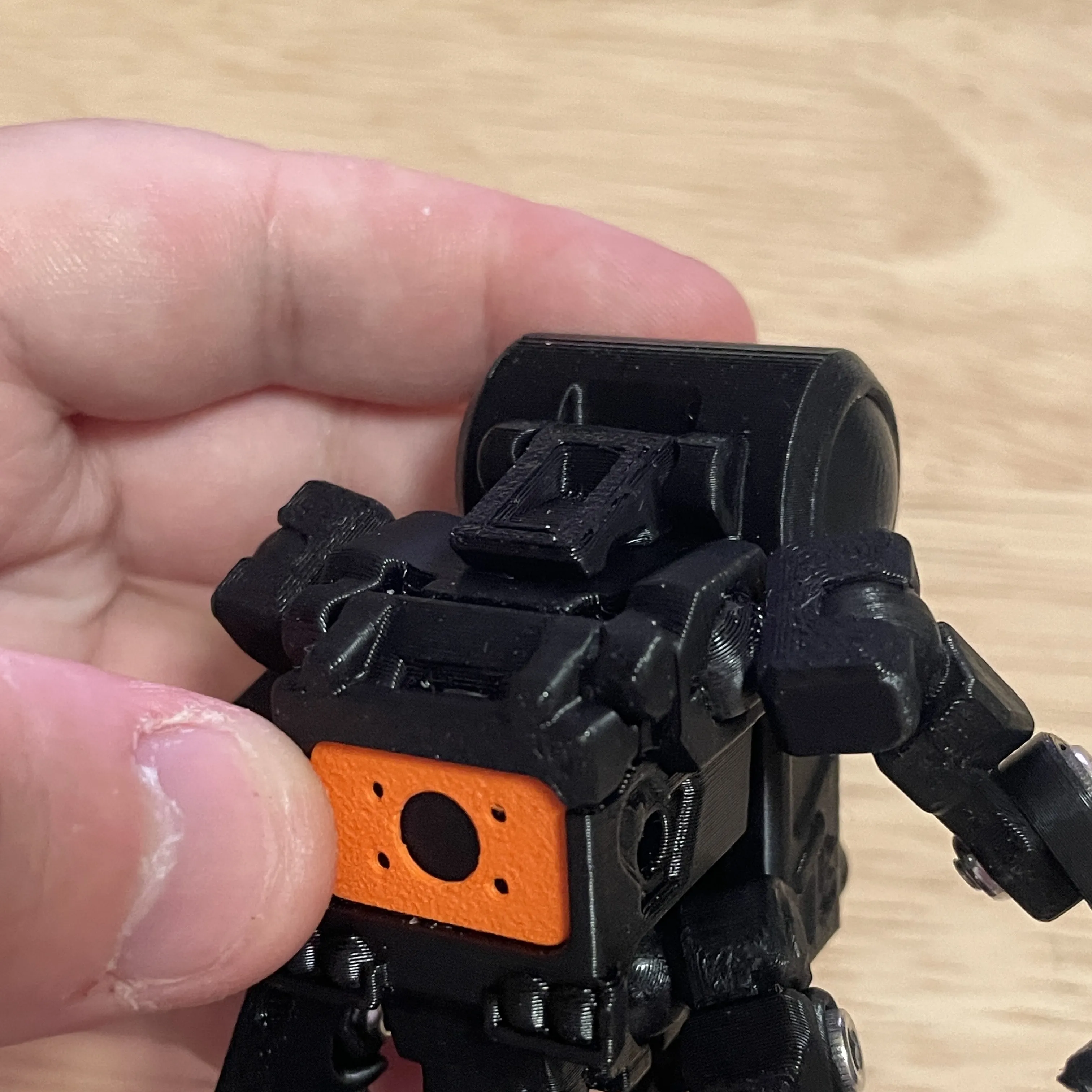

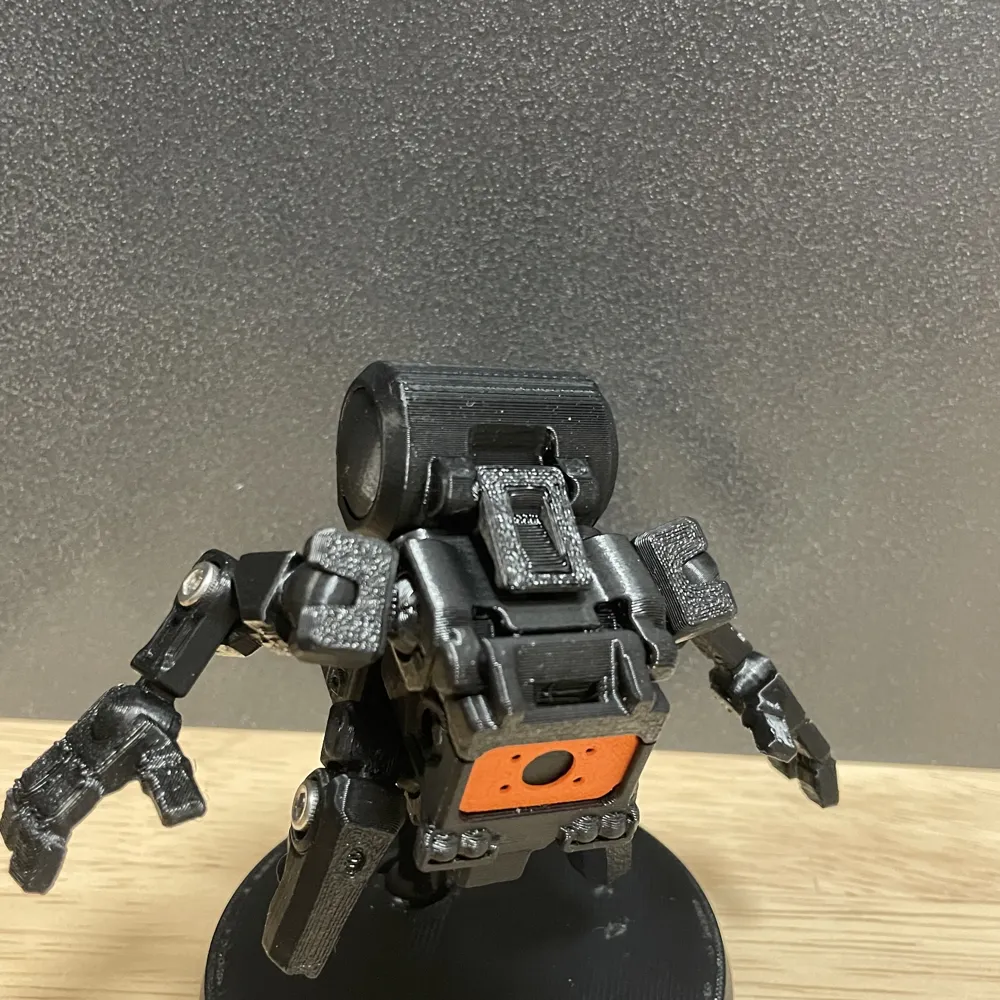

Pull down the standard backpack to reveal the docking slot, and connect the Oxygen Cylinder

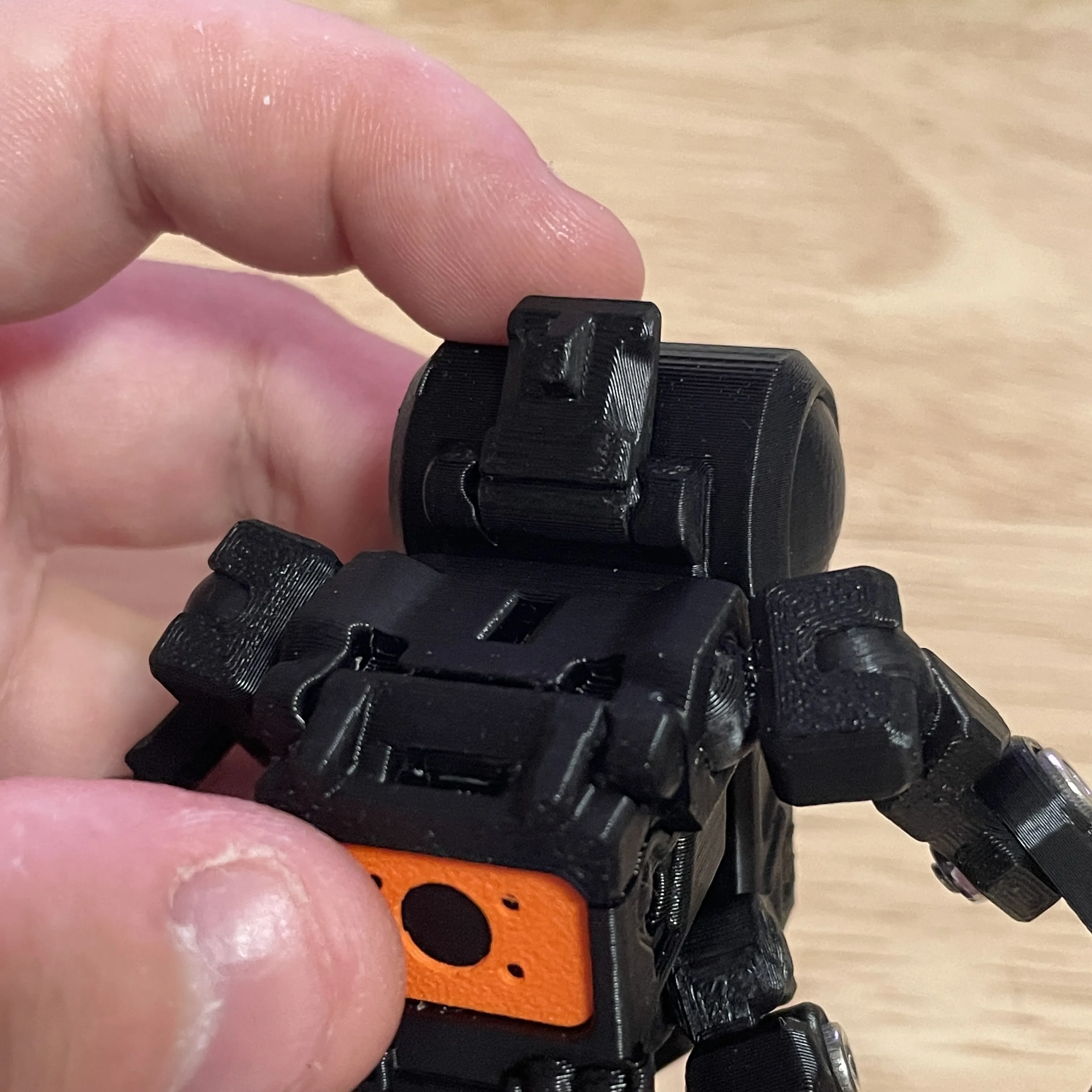

Secure the locking clasp downwards

Contents of this Page

Oxygen Cylinder Module
Locking Clasp x1

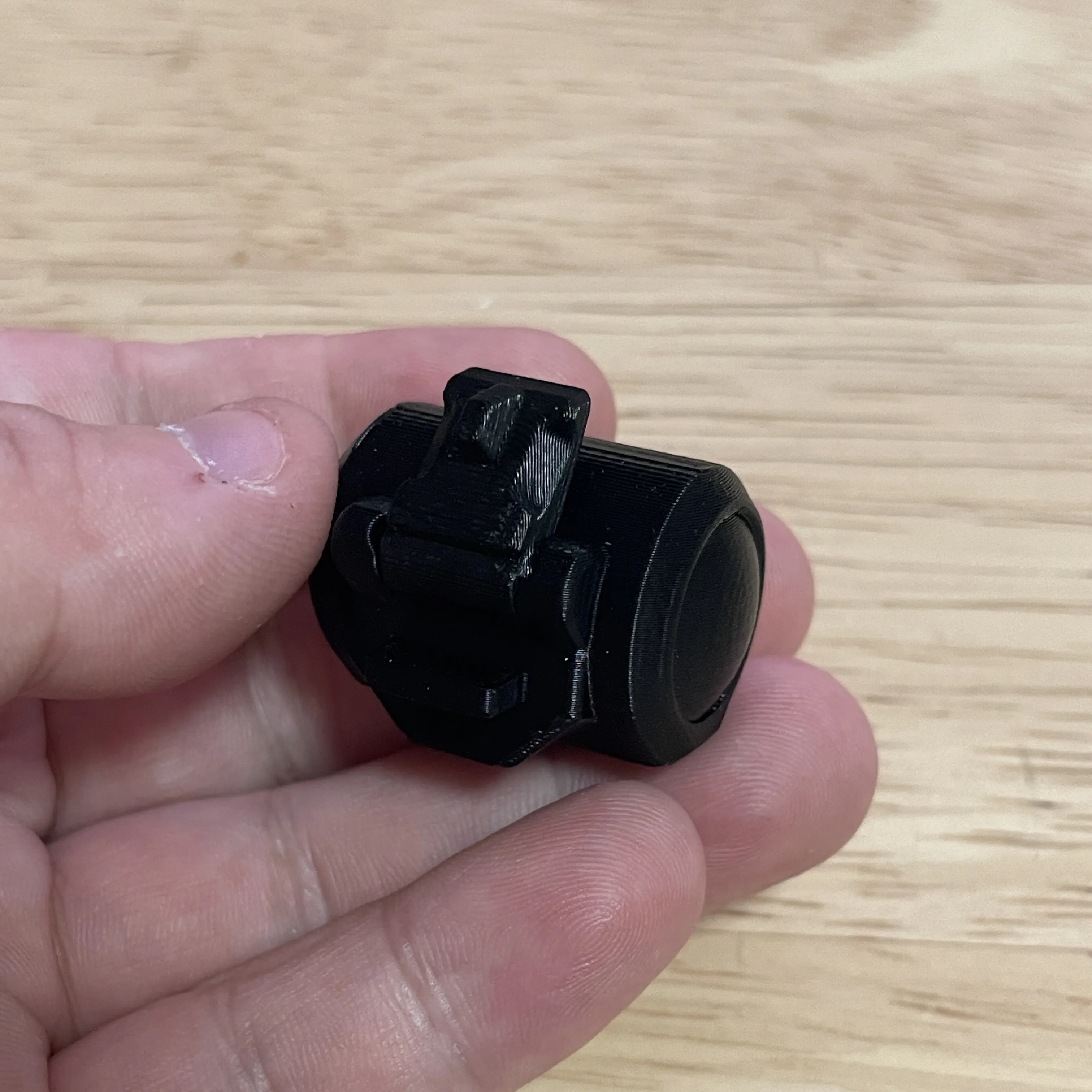

Oxygen Cylinder x1

This project is ongoing, please leave a comment if you encounter any problems, thank you 👍

Craft Your Personalized Mecha!

The Titan-5 M.A.X. is more than a collectible; it's a creative endeavor.
Choose your preferred panels, adjust the pose, and even design your own color scheme to create your unique mecha character!

Weapon Hand Poses and Blank Expressions Open-Source Plan

Weapon hand poses and blank expressions have been open-sourced, we hope everyone can design different accessories, please tag us if you share them in the future

HAN Titan-5 M.A.X. Spare Parts

Boost Me (for free)

"Do you like my models? Your support is my greatest motivation to keep moving forward! High-quality materials are quite costly, but with your help, I believe I can create even more stunning works. Thank you for your attention and support!"

🖨 Printing Suggestions and Parameters

Recommended materials: ABS, PETG, or PLA (Please use resilient materials, PETG untested, feedback appreciated if successful)
Layer Height: 0.15 mm
Infill: 20% (Linear)
Wall Count: 2 layers
Top Layers: 5 layers
Bottom Layers: 4 layers
Test Nozzle Temperature: 220°C
Test Bed Temperature: 115°C
Support Structure: Partial support for intricate details (as drawn), add a Brim(may be necessary for the locking clasp, I didn't use one during testing but the print was fine) to ensure bed adhesion if necessary

Precision Considerations:
The model features multiple articulated joints, a tolerance of 0.15~0.22mm is recommended. It is advisable to prioritize printing the hand test parts to gauge tightness (using the image below as a reference, no drooping is ideal) (adjust flow rate or shrinkage rate settings as needed)

View other HAN Titan-5 M.A.X. Spare Parts

View other popular toys

Test Filament: ABS

Finally, I wish you happy printing By HAN design
