Support for analogic plunger
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
1.8 h
1 plate
Open in Bambu Studio
Boost
3
5
2
0
16
6
Released
Description

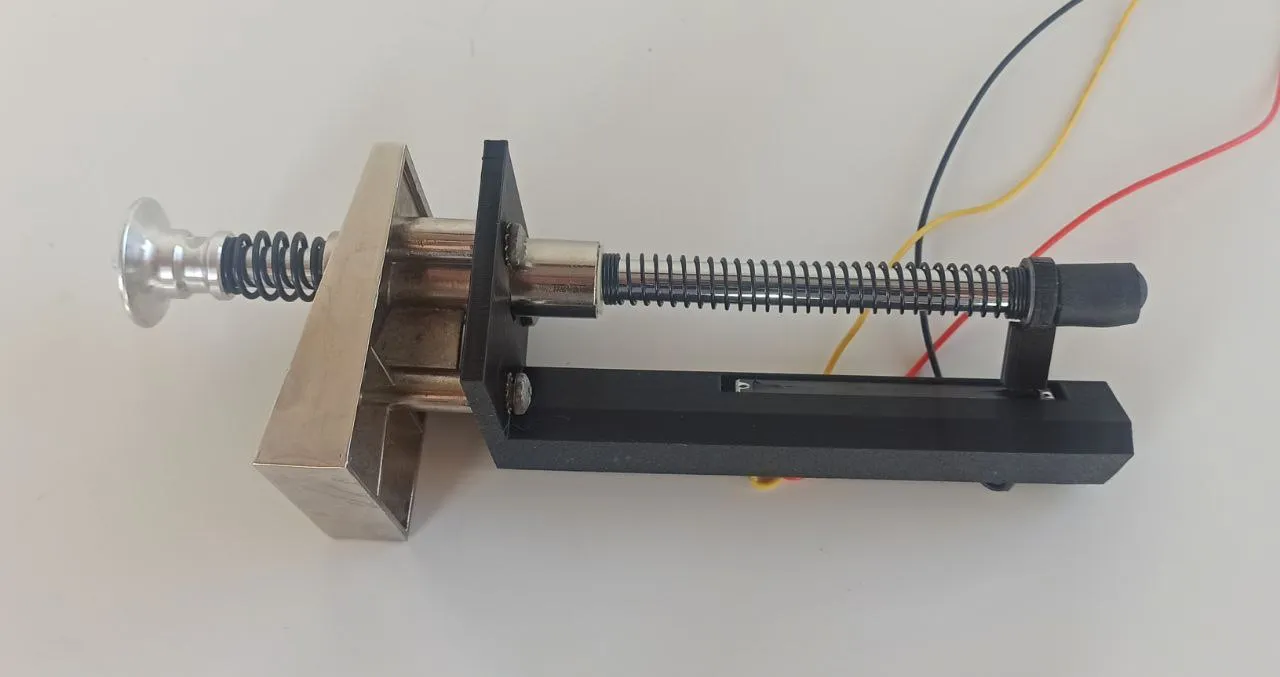

This project allow you to use a real pinball plunger as an analog input for your virtual pinball cabinet. It's a support for a 10K Ohm linear slide potentiometer I bought on Aliexpress (example link or search for 10K Ohm 75mm slide potentiometer).
I use it connected to a NXP KL25Z card with Pinscape firmware installed and it emulates the Z axis of a joypad. You need to connect the potentiometer to the card following instructions in the Pinscape wiring page, then glue it to the support and calibrate it whit the Pinscape Config Tool.
