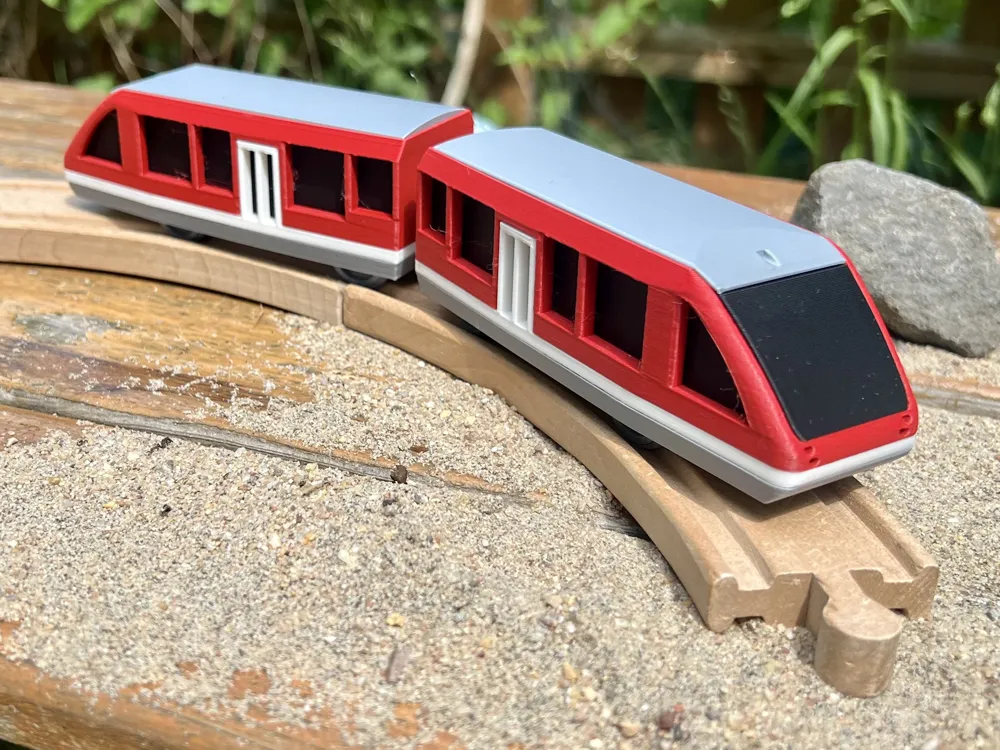

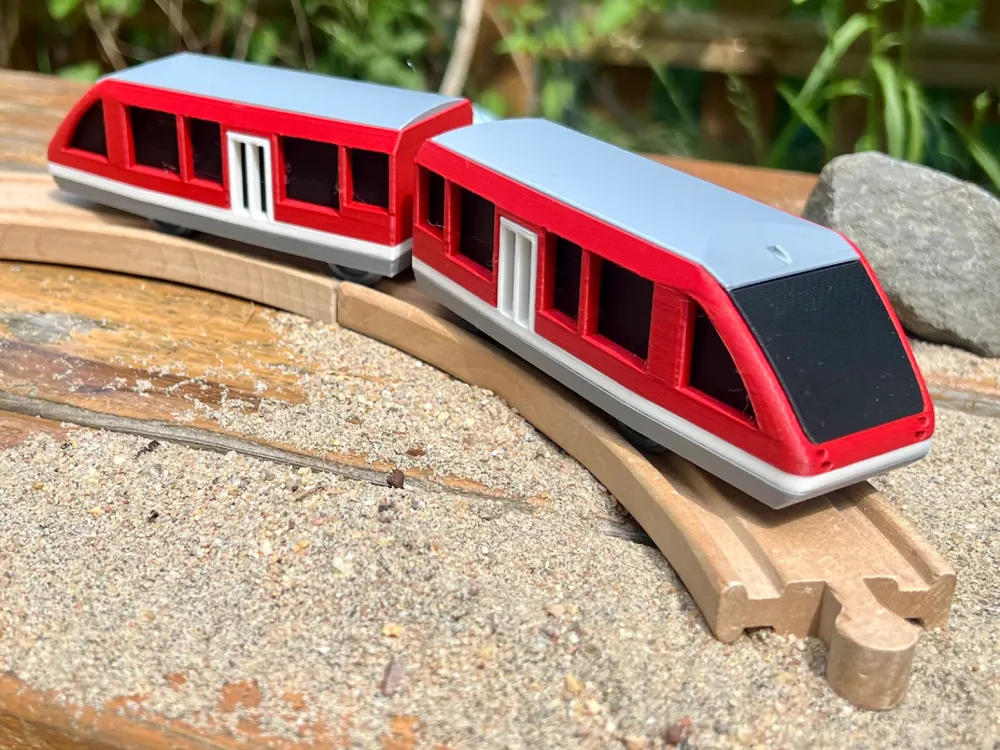

DB 648 - "Diesel Railcar" for Brio and IKEA railways

Dieseltriebwagen or diesel multipl unit for wooden railways compatible to BRIO, IKEA, etc.

Required parts (per wagon):

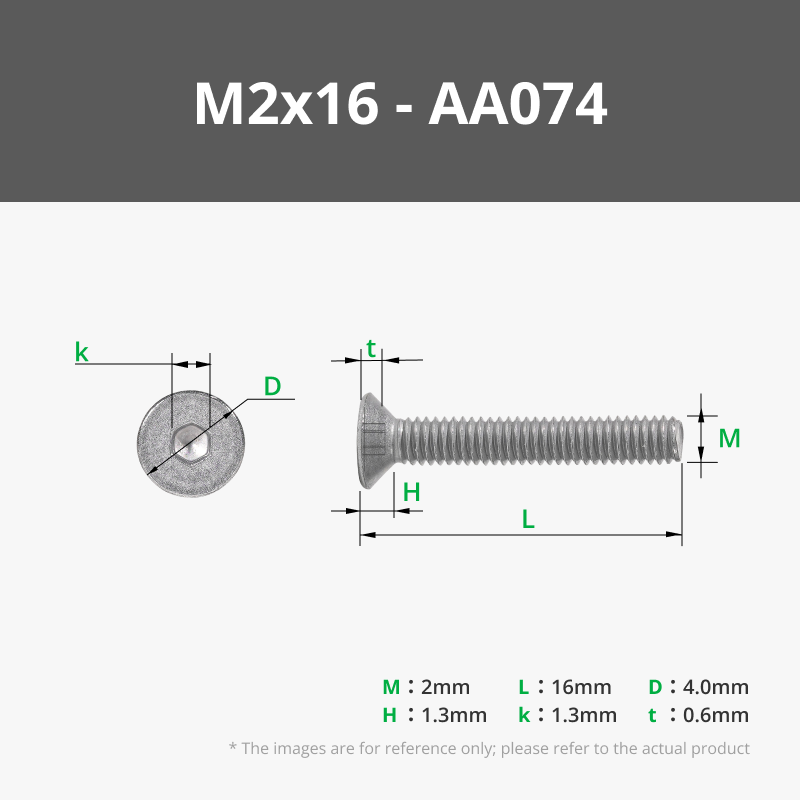

3x M2x16mm (total 6x)

1x M2x10mm (total 2x)

1x Ø 6mm x 3mm magnet (total 2x)

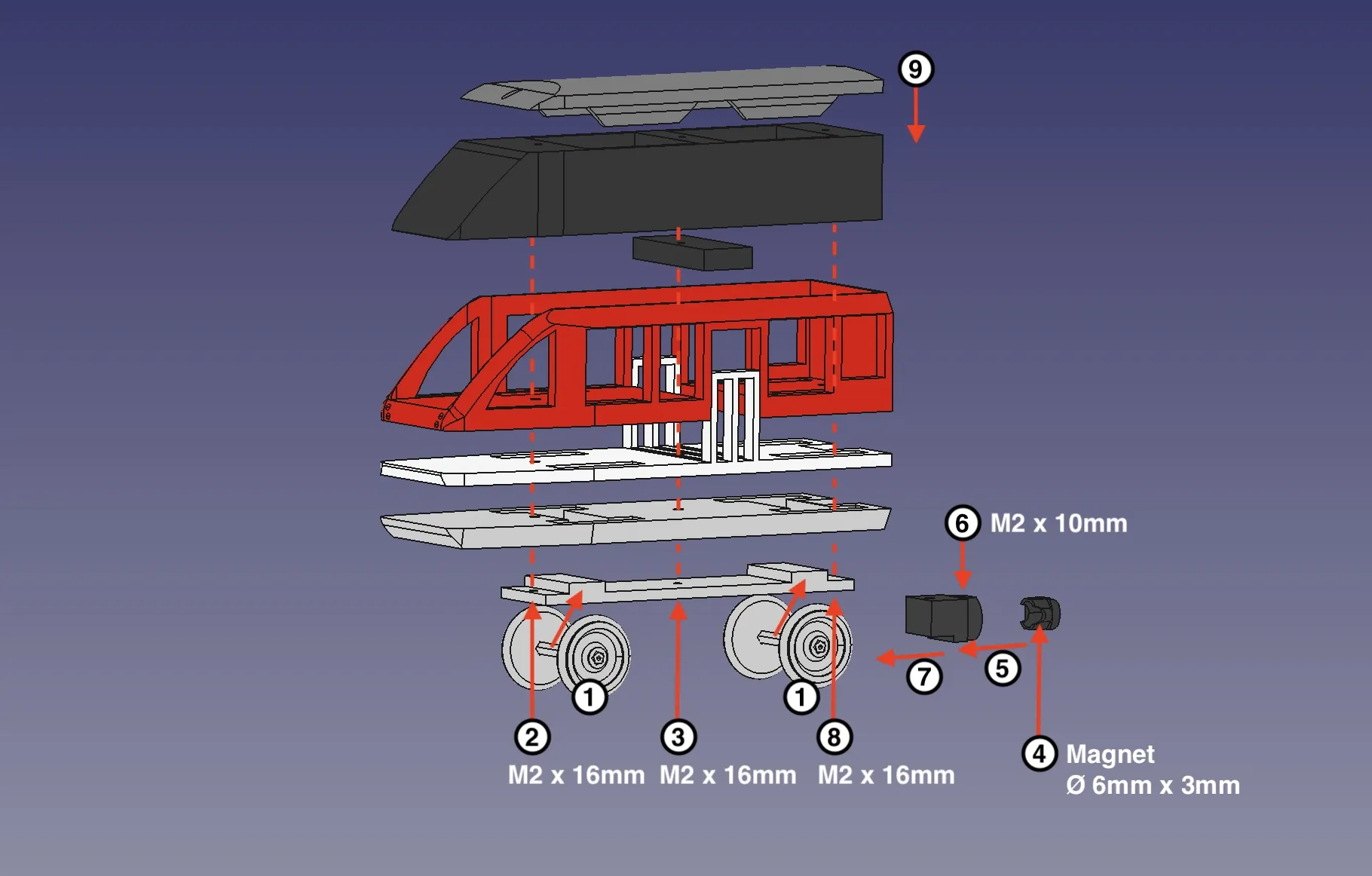

Building instructions

1. Assemble 4 wheels at two axis at the bottom plate
2. screw M2x16mm in the front most screw hole
3. screw M2x16mm in the middle screw hole
4. Add magnet into the magnet-cap
5. mount magnet cap in the coupling block
6. fix with M2x10mm screw
7. Plug the coupling block into the other parts
8. screw M2x16mm in the back most screw hole
9. Mount the roof

Disclaimer:

✖ NO Sharing without ATTRIBUTION

✖ NO Remix Culture allowed

✖ NO Commercial Use

✖ NO Free Cultural Works

✖ Does NOT meet Open Definition

I decided to choose a closed license, but make models free available for everyone. Why did I made this decision? For my models I'm investigating a massive time effort in my private time. It is my decision to spent my time for this purpose and it is also my decision to have full control, how I share models with the community. As soon I would open my designs to remix it, share it, etc. others would make use of my effort to high-light themselves without having the control from my side anymore. This happens for example at YouTube for some influencers who are stealing the show. For me it is not about to be influencer or to make a show out of it. I'm also not ok others are doing that for me without any tribute for my effort! Please keep me informed if anybody is selling my models, which is not allowed from my side!
