[Battlefield 2042] NVK-P125 Water Gun
Print Profile(1)
Bill of Materials
- 4*0.4*10mm弹簧 x 1:
Description
A water gun crafted to emulate the NVK-P125 from Battlefield 2042
Reminder: Some parts in this model are large; please clean and apply adhesive to the build plate before printing
This model only requires the water pump from the kit (310 water pump); other components can be printed fromhttps://makerworld.com/en/models/1386531-h-90-electric-water-gun?from=search#profileId-1435994orhttps://makerworld.com/en/models/896448-t-10-water-toy-gun?from=search
Demonstration
Assembly instructions:

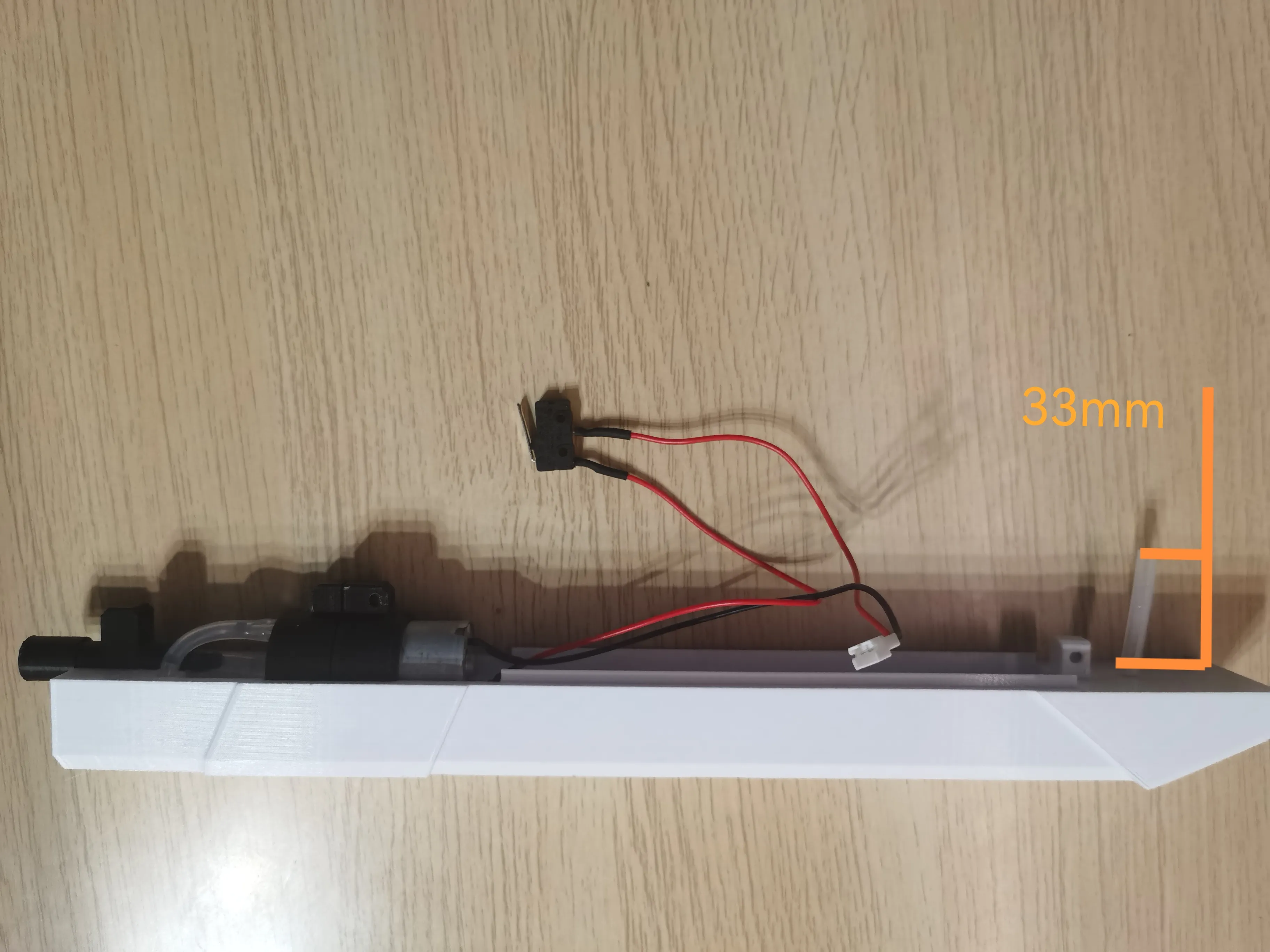

1: As shown below, install the pipes and parts, trim the microswitch to the indicated length, and leave the rear water pipe 33mm long
2: Install the trigger using two screws
3: Install the microswitch, securing it with two filament wires
4: Assemble the upper and lower gun bodies using five screws
5: Insert the spring into the slot on the gun body where the magazine catch will be installed, then insert the magazine catch, push it all the way in, and secure it with a screw (a small amount of lubricant can be applied)
For further inquiries, please consult the comments section
Thank you for your support
