Hummer H3 7" Headlight bracket
Print Profile(1)
Description

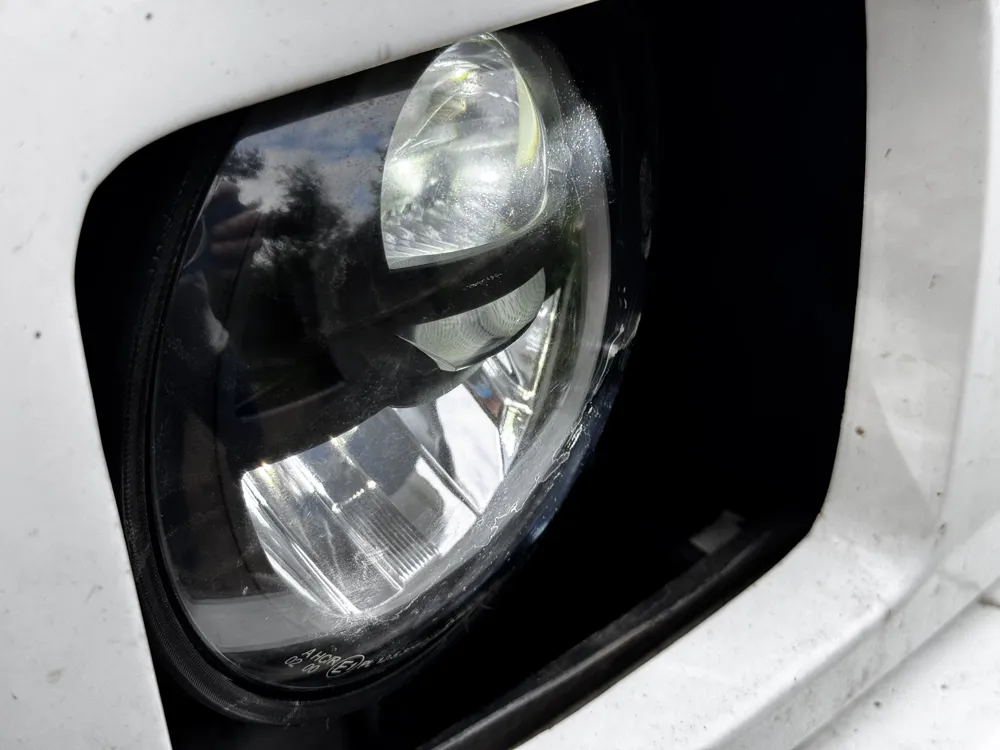

I needed to replace my original hummer H3 headlights with something that actually works.

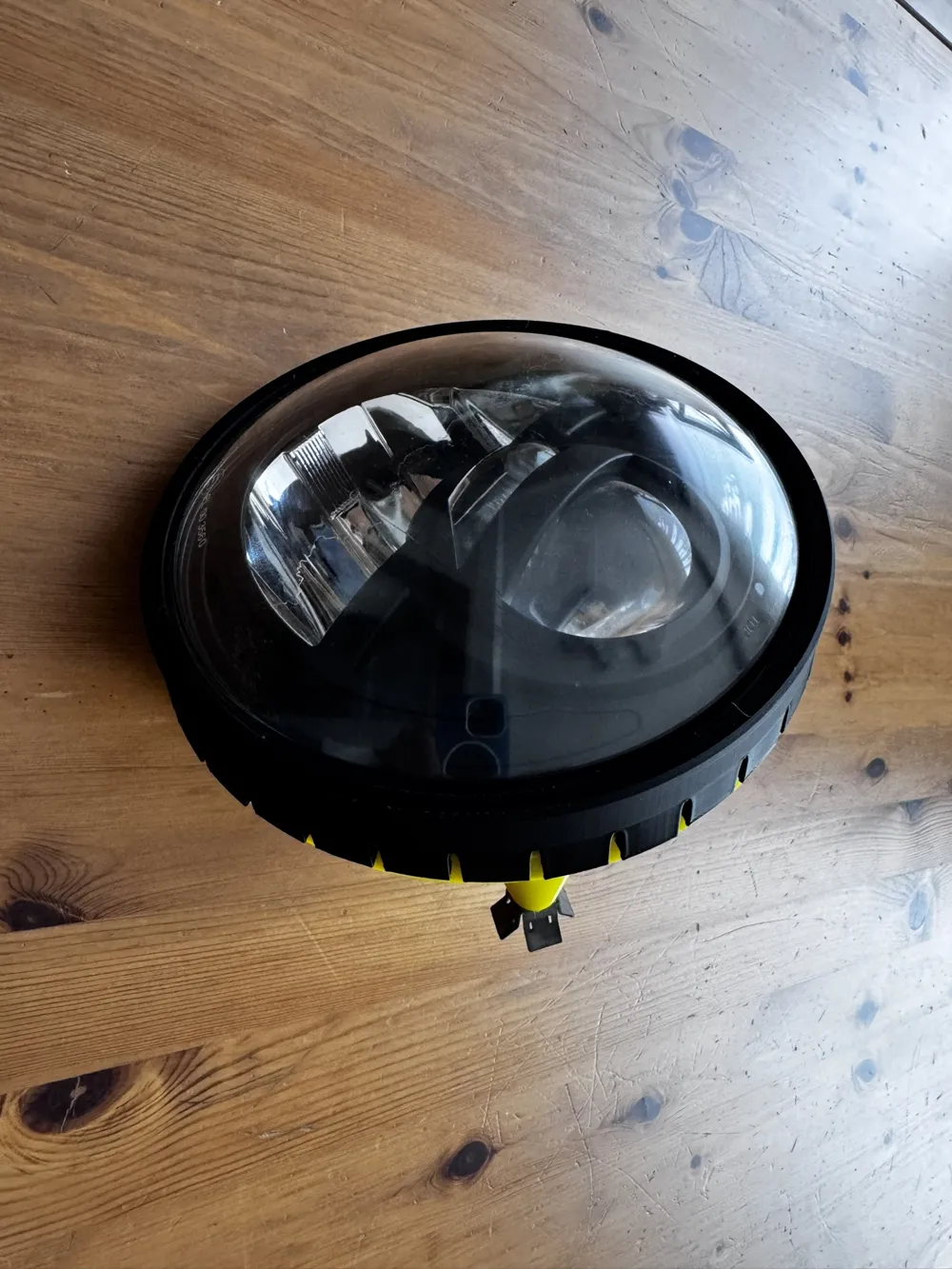

I already had a pair of standard 7" NCC Nolden Full LED Bi-LED Hi-Lo Head Lights.

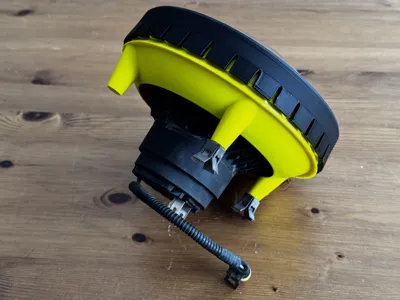

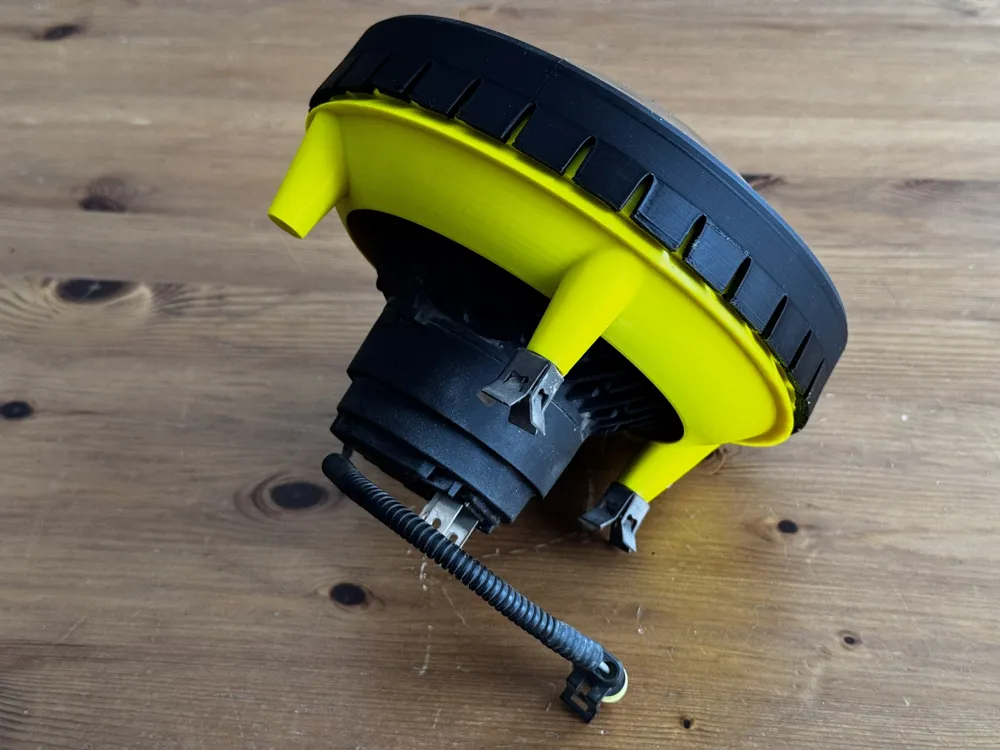

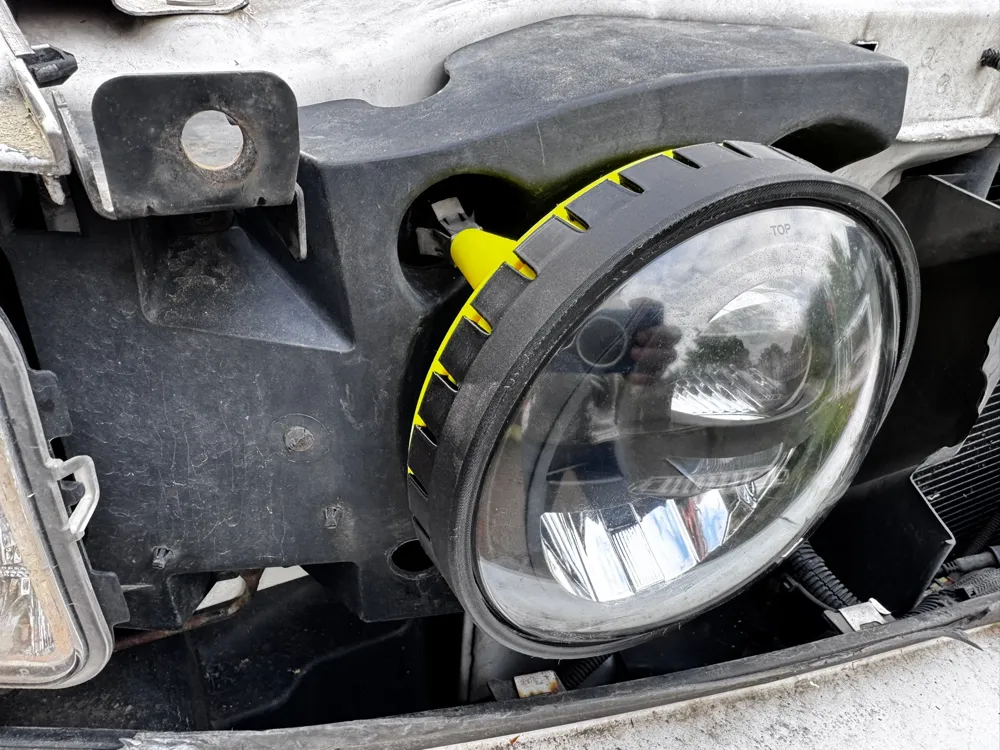

Brackets are designed to be fitted with original screws so apart from this model you will only need a pair of 7" headlights.
I've printed mine from PETG and it works like charm.
Keep in mind that in order to make standard 7" headlights work in Hummer H3, you will need two things:
- Polarity converter which changes + - - to - + +
- H13 → H4 harness

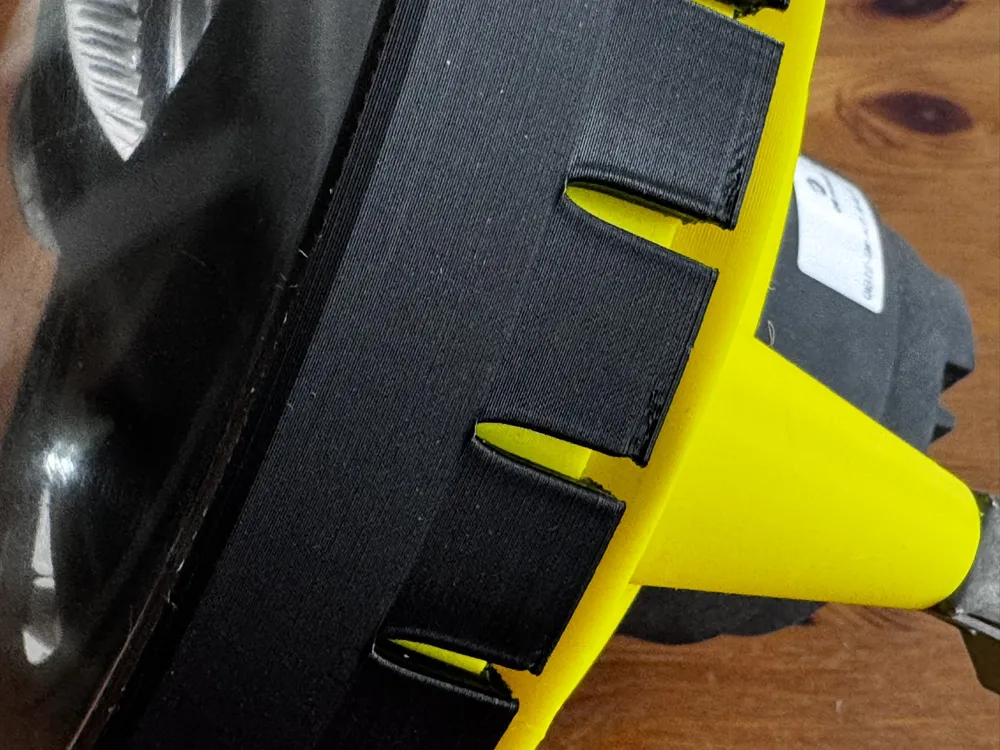

This design doesn't require any additional retainer ring and the ring. To make sure that once the ring is placed to hold the headlight in the bracket it will stay that way I decided to make the ring almost impossible to remove after installation. If you need to remove just print a new one and break the tabs holding old one to the bracket.
Let me know if you like it.
I'm planning a second version which will include shreds to fill the gap. Let me know if you want that.
