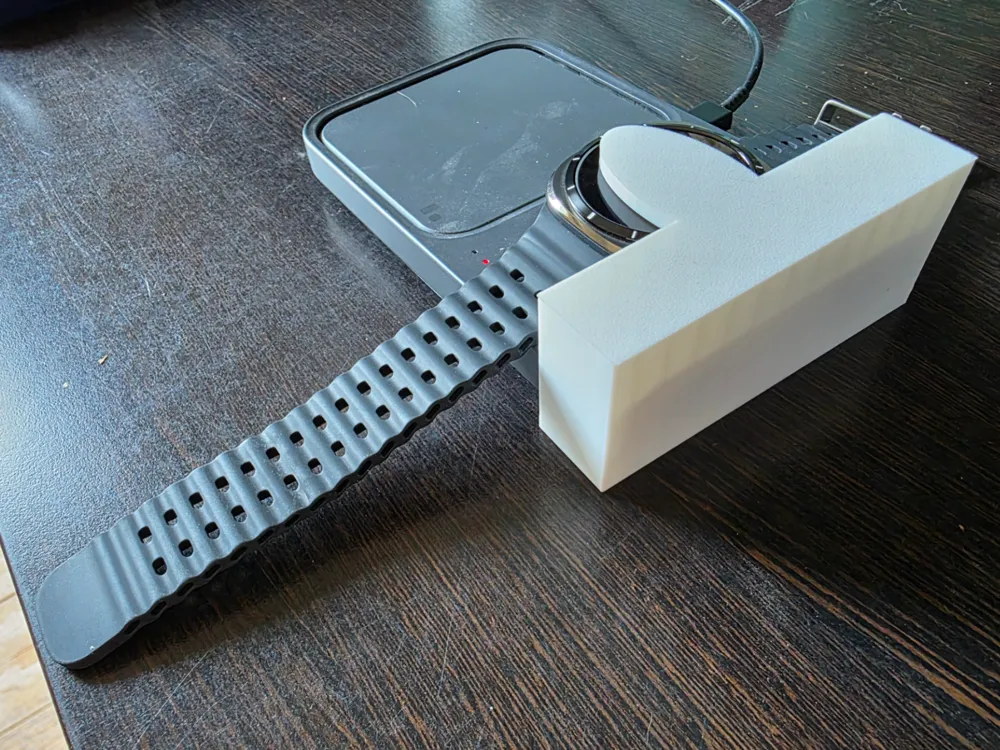

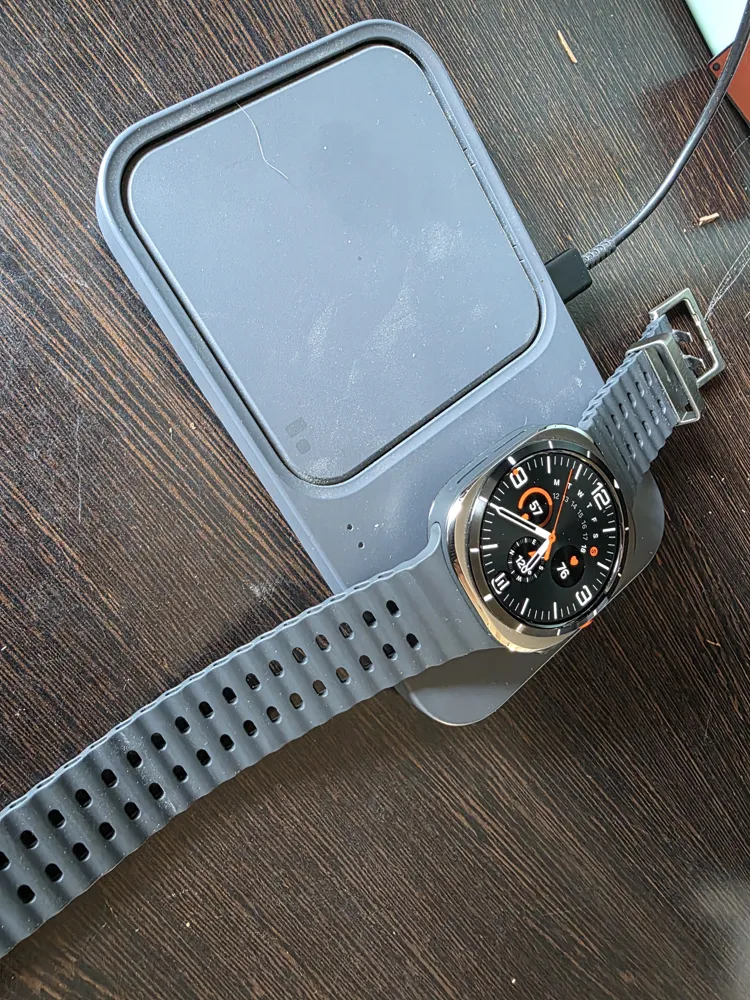

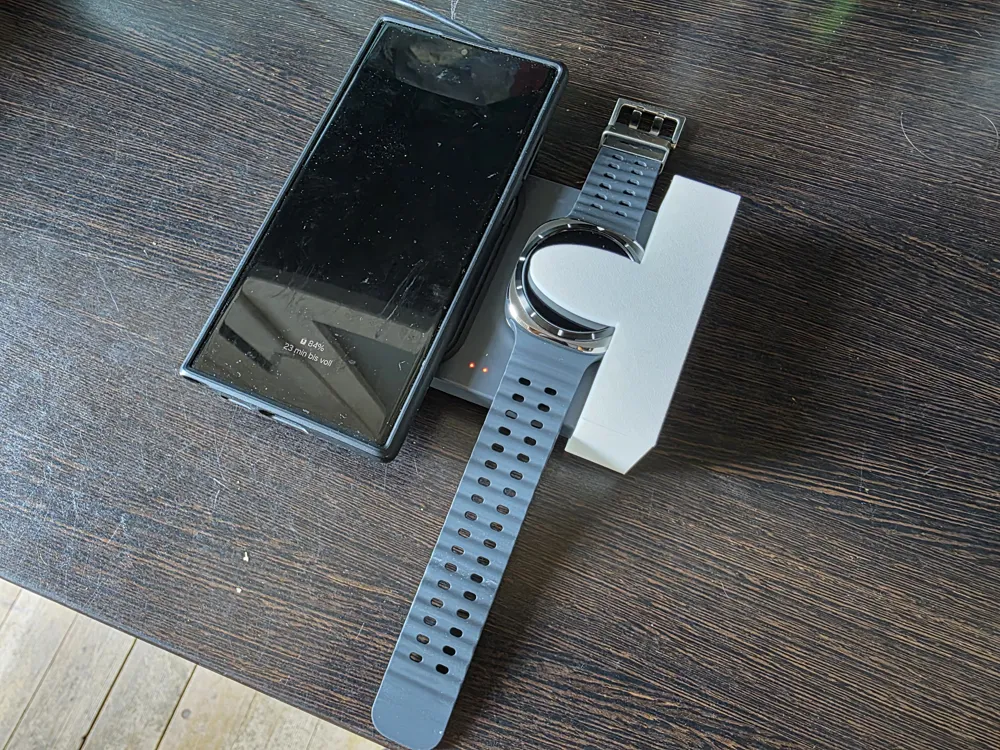

I was reusing my old Samsung Duo Charger with a newly acquired Watch 7. Since the new wristbands are more stiff then those of my previous watch, they raised the watch from the desk surface high enough to interrupt charging. I designed this clamp to avoid having to balance random stuff on my charging watch in order to be able to charge.

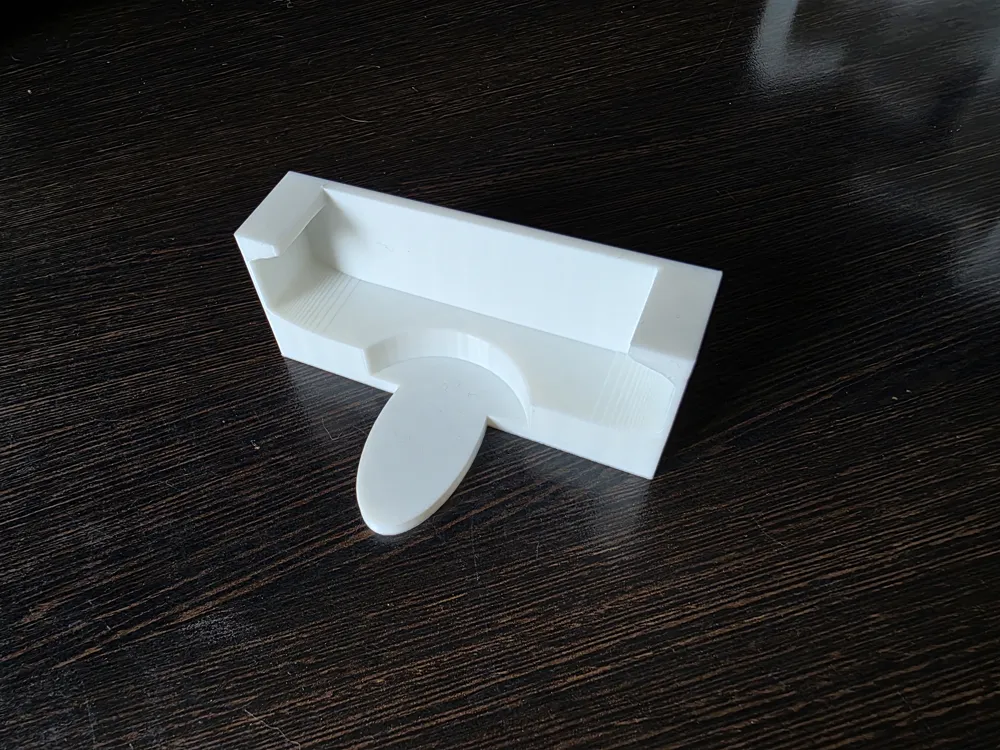

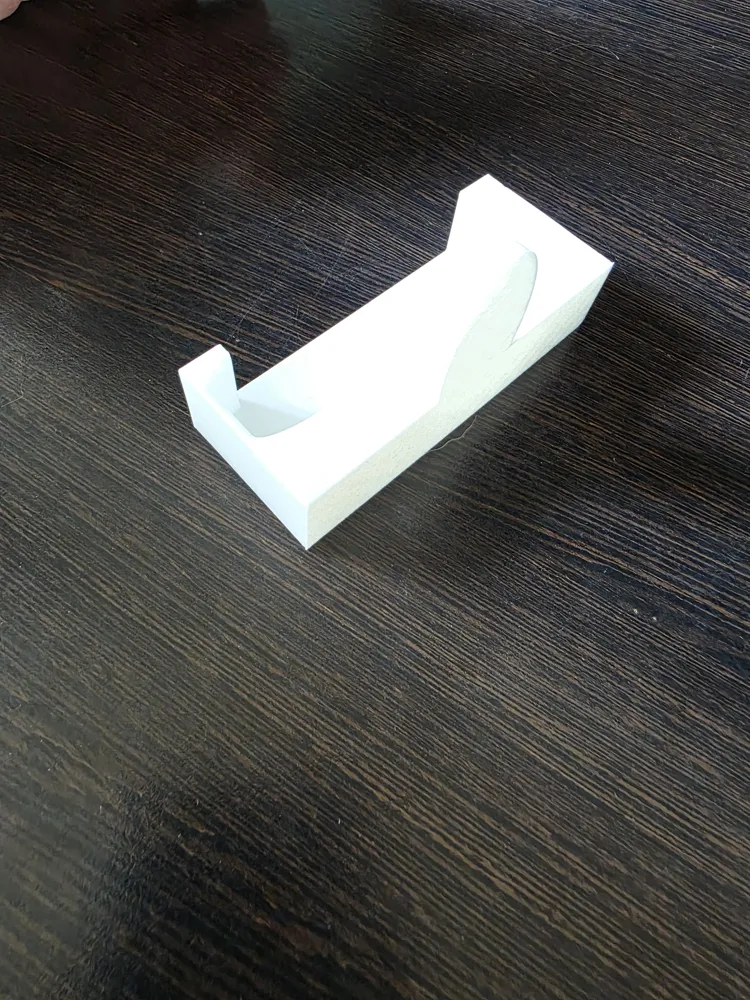

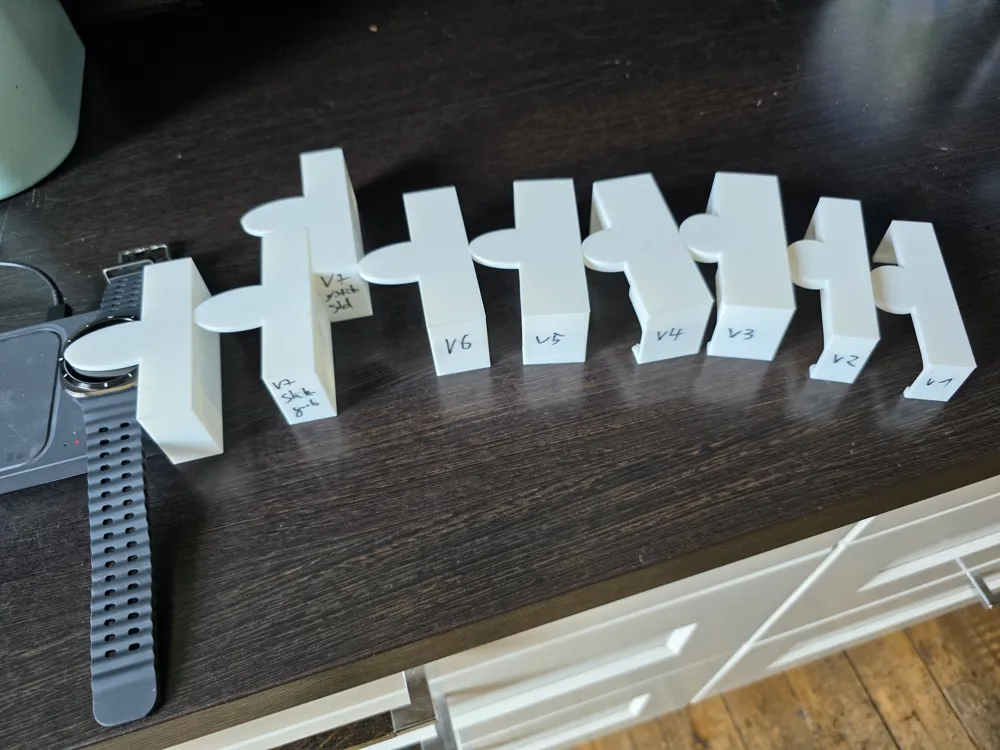

You can see the iterations I went through in one of the pictures. The clamp is printed upside down. If you have trouble with the overhang, maybe activate supports, though the last two versions were me trying to be able to print this without support.



This is my very first 3D design. Feedback is very welcome!
