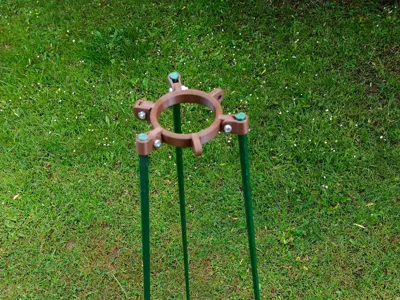

Adjustable and removable plant support, protection against birds , for 8.7 mm diameter poles.

Based on users' comments on the original model, I have recreated this model. The support now has thicker grooves, can be split in half and extended if necessary.

These supports can also be used to cover the plants with bird netting

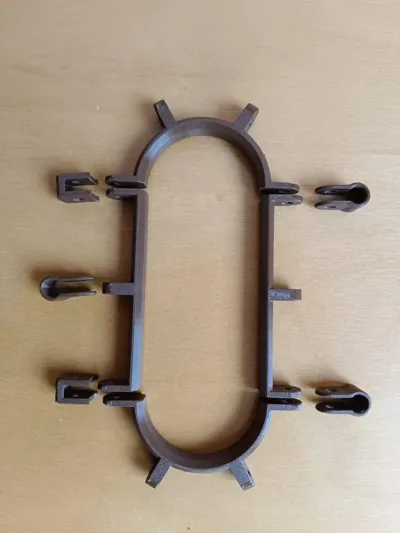

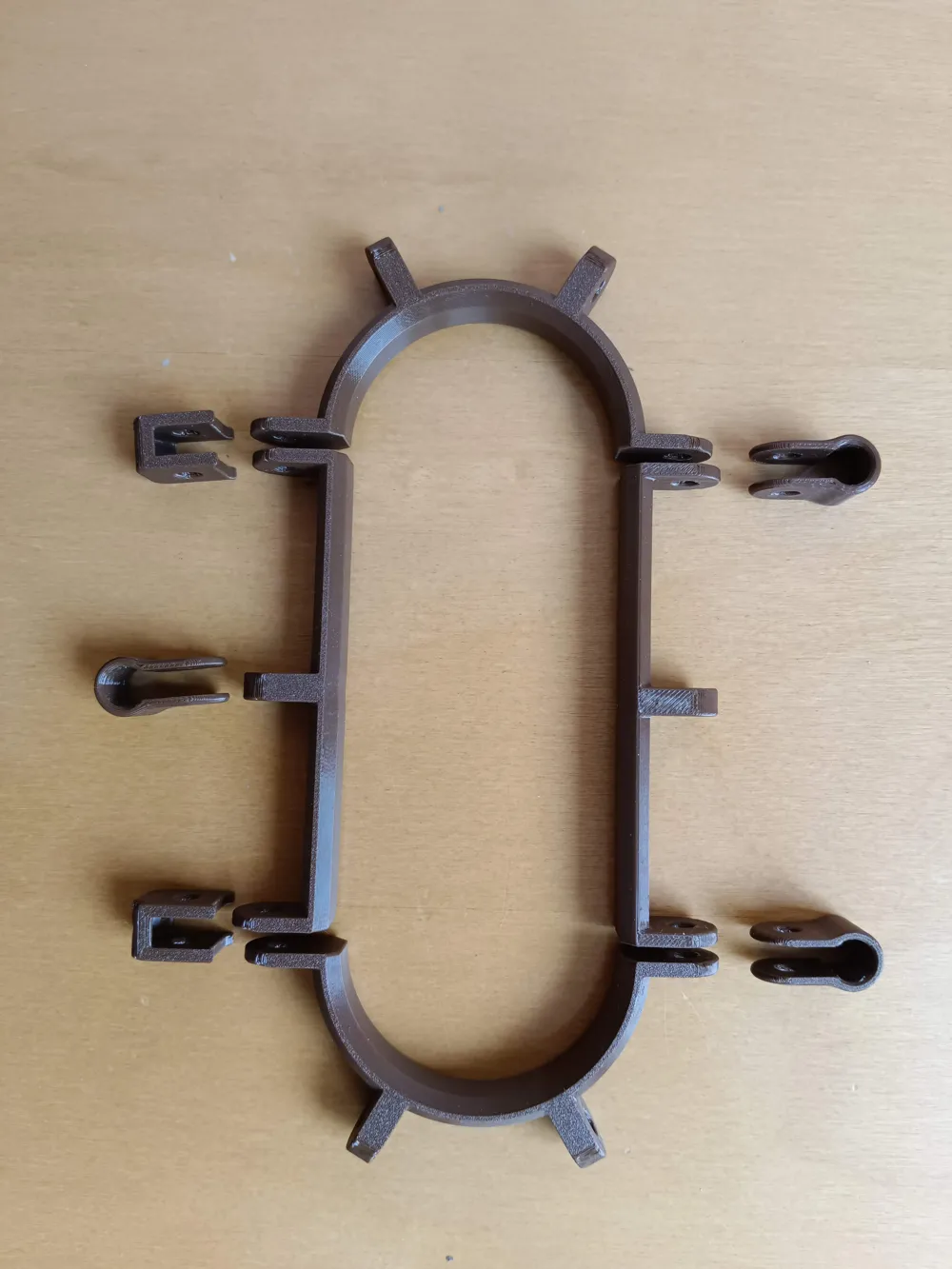

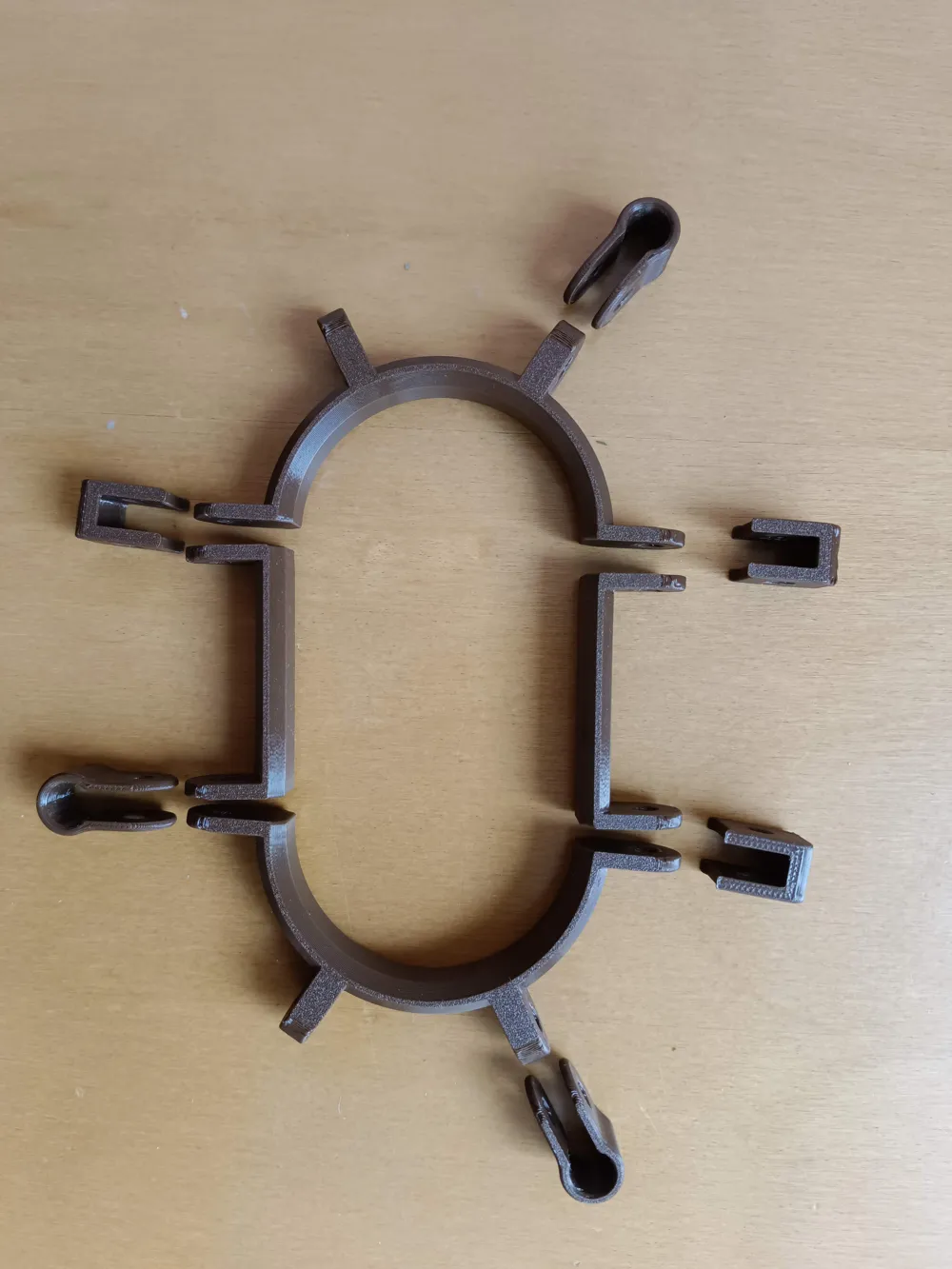

The bar clamp is designed to be partially self-locking. When installing, always slide the clamp out and position it as needed (it can be placed anywhere on the bar). The center piece is designed to hold up to 6 bars (it has 6 grooves). However, you can now add an extension to the center piece to add 2 or 4 more slots. However, in the case of an unoccupied connection slot, it is now necessary to close the slot with a coupler (no coupler is required for a regular slot). Alternatively, the empty slots can be used to connect to another centre piece to create a large system for growing plants etc.

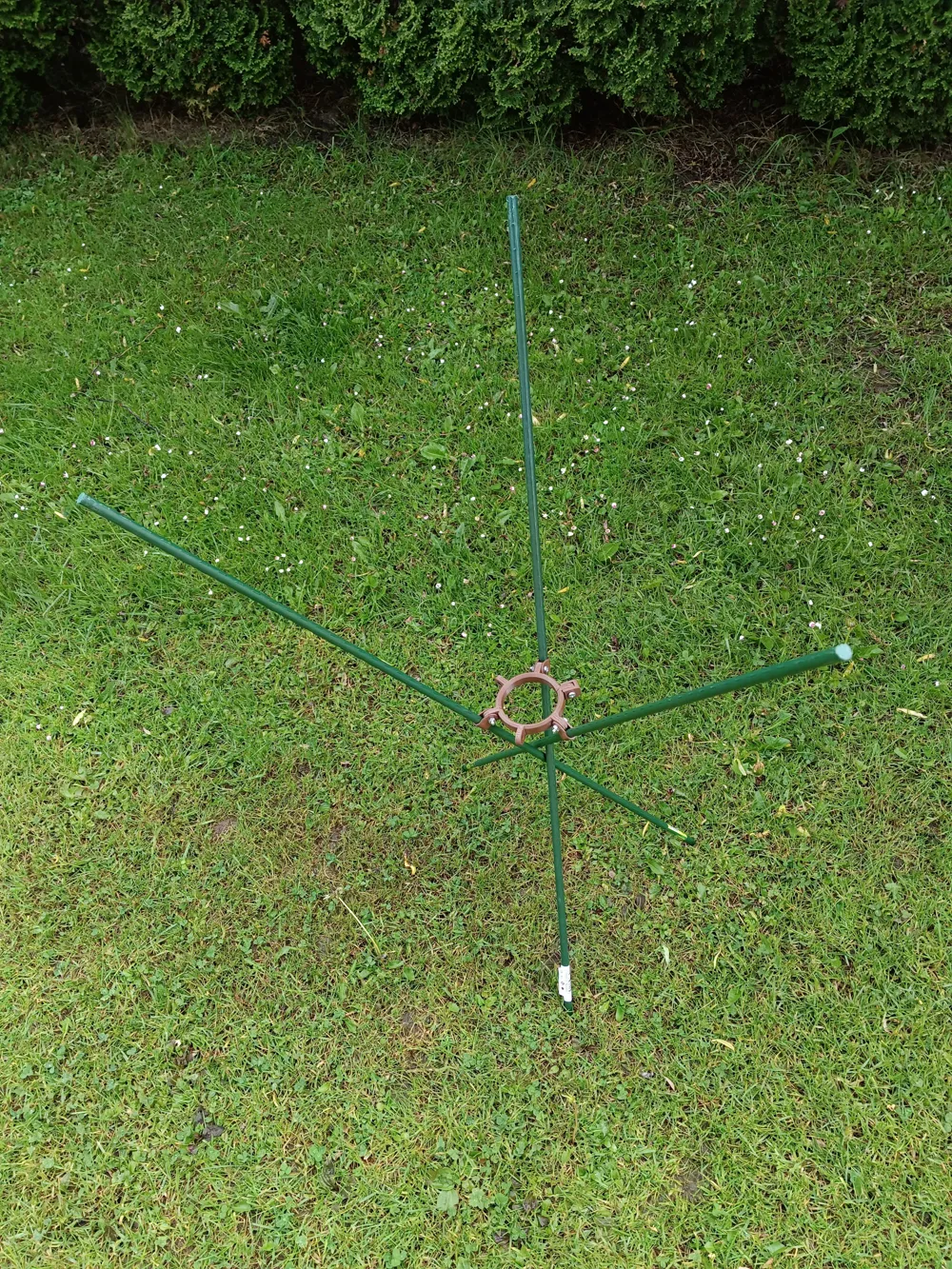

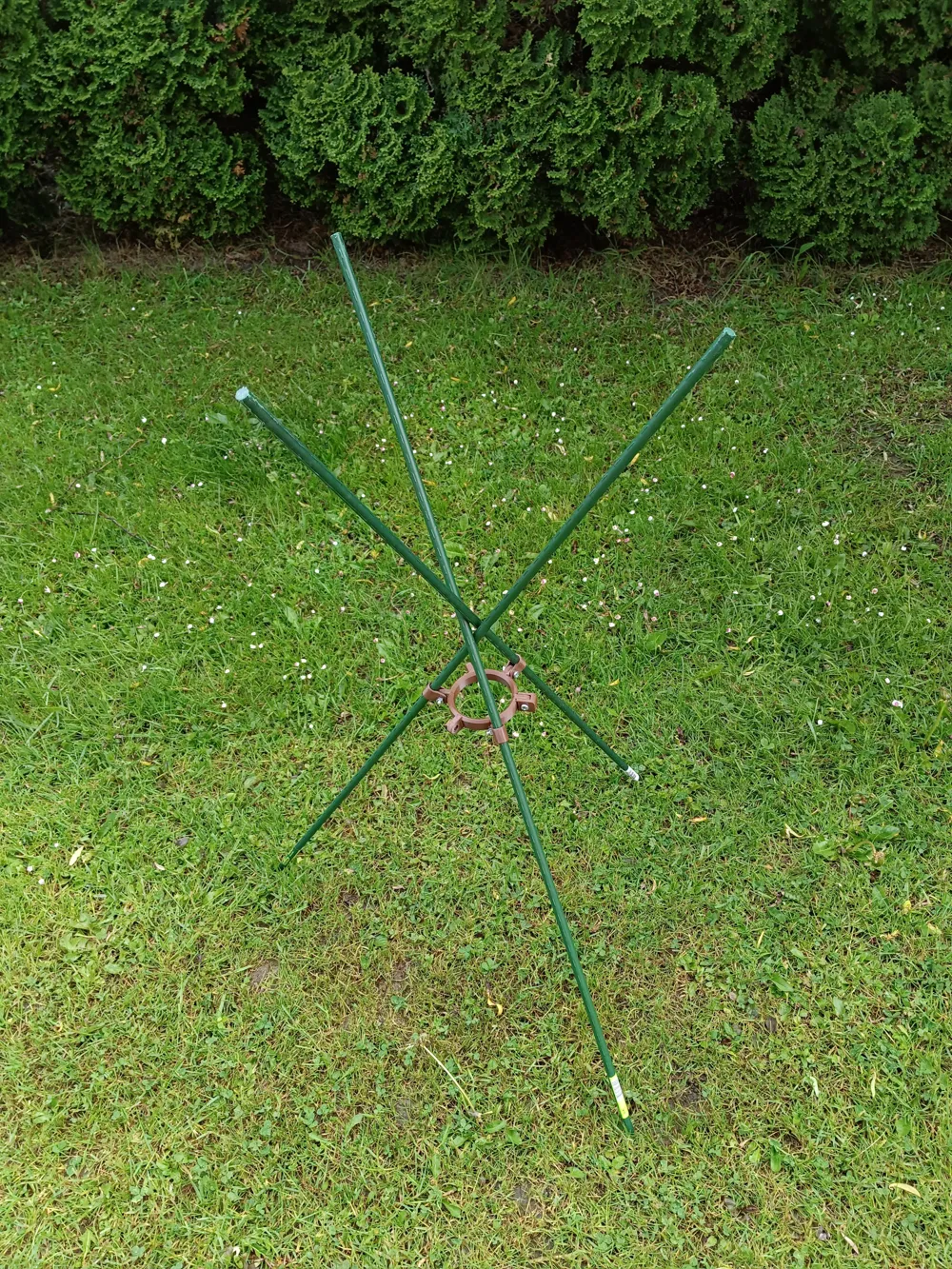

The pins allow you to adjust the bars for tall plants, but also for wide plants - the possibilities are many.

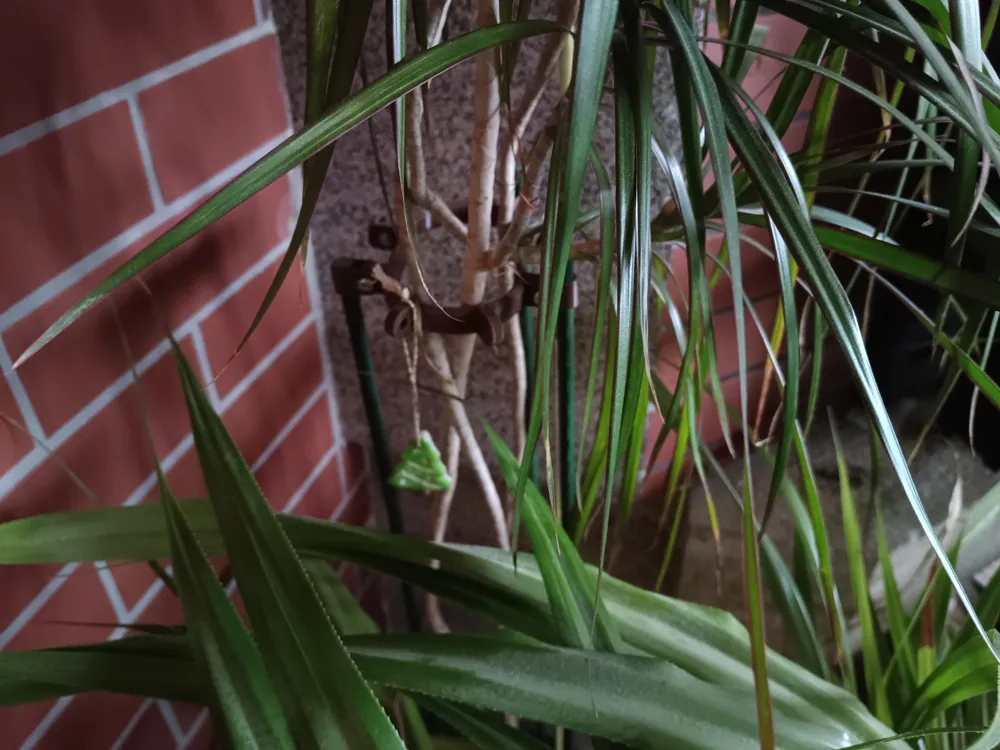

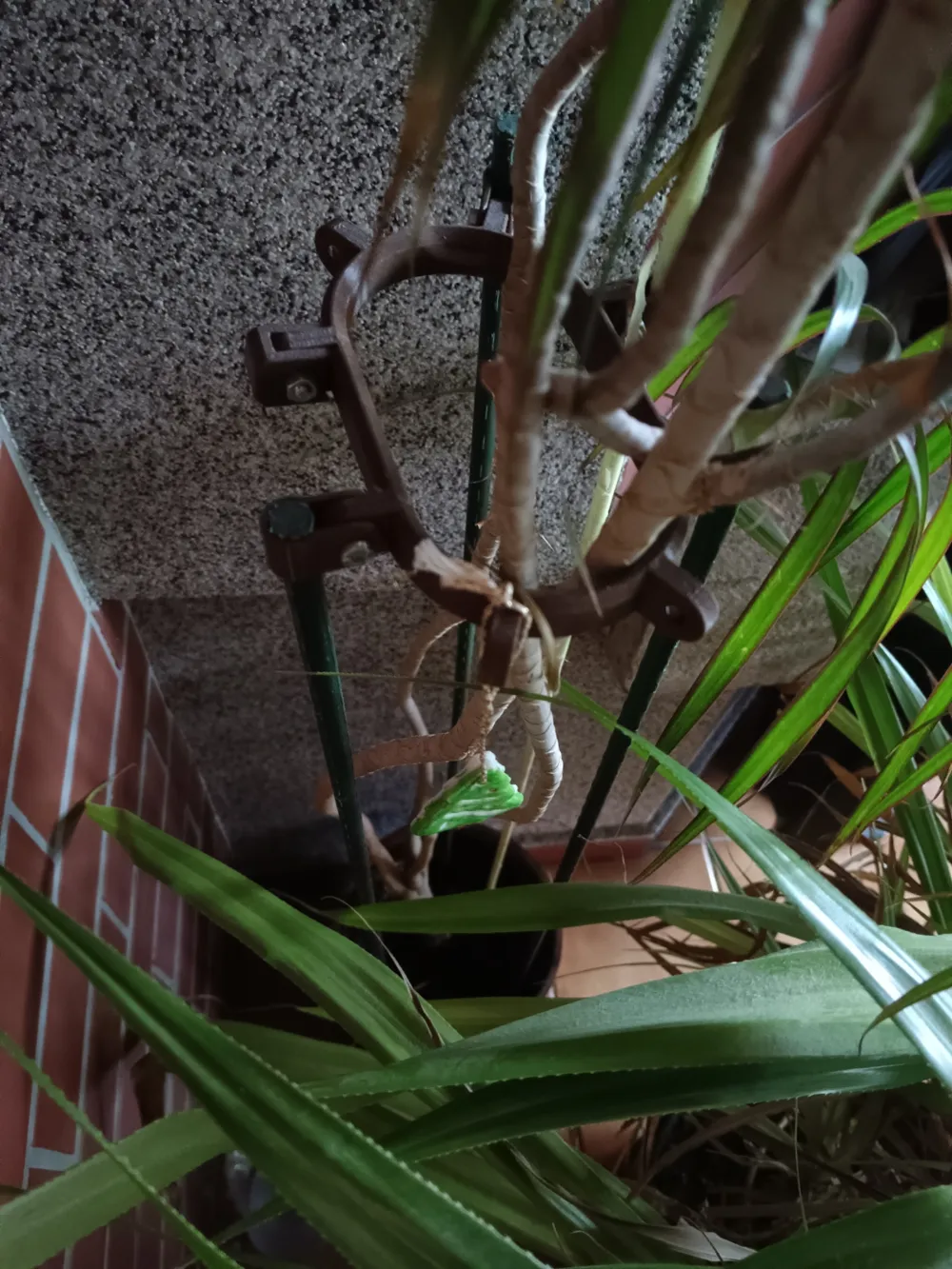

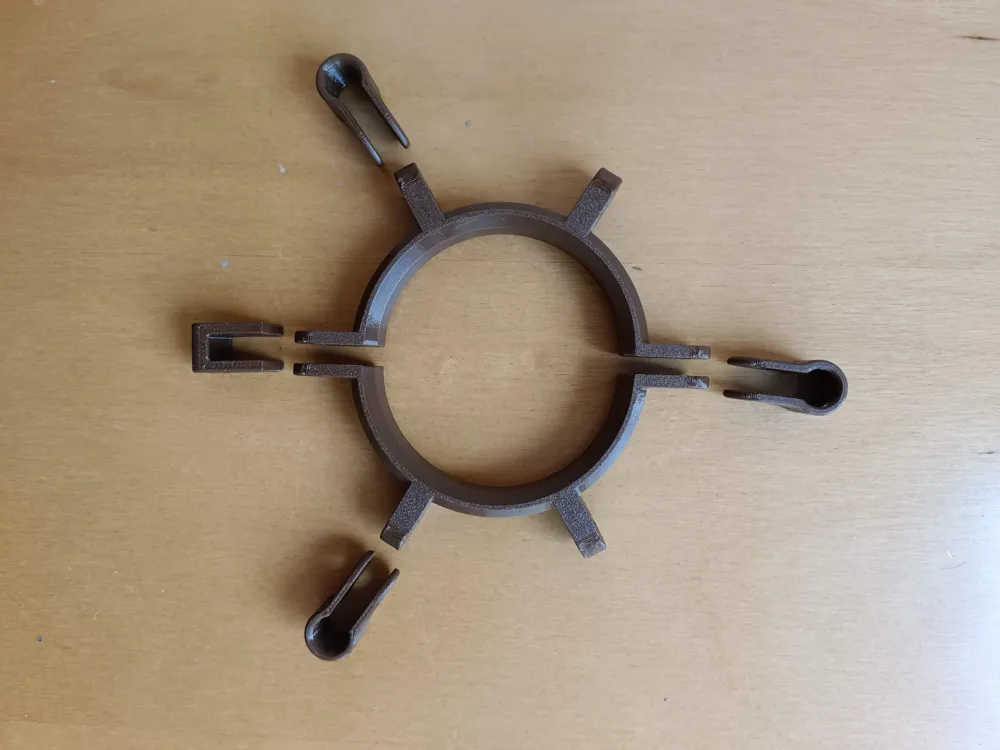

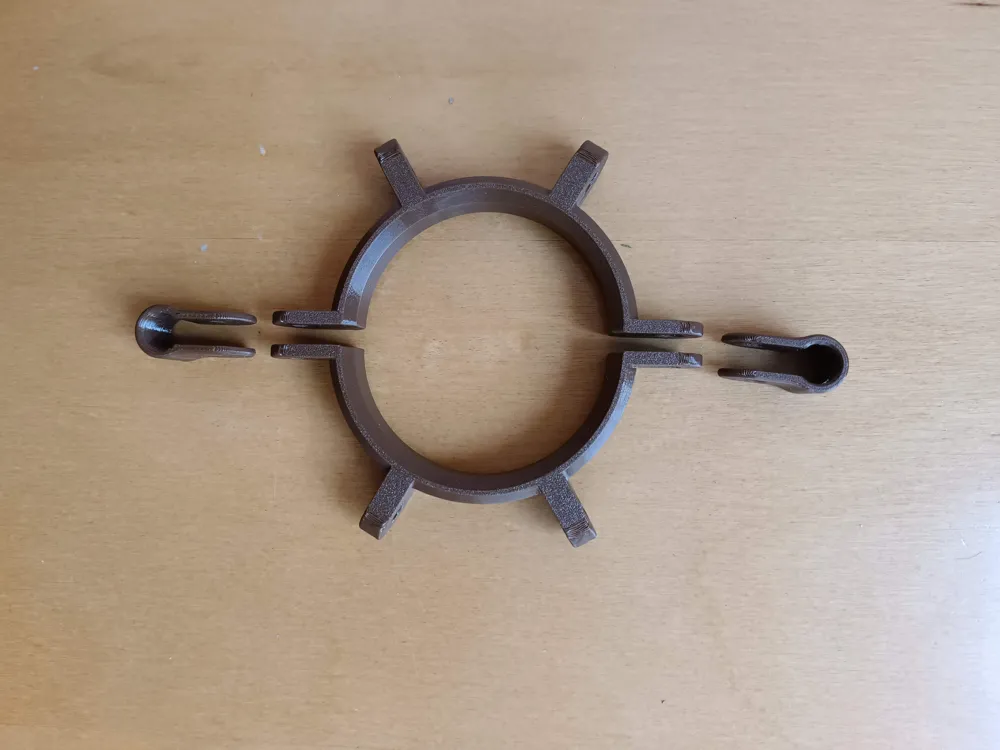

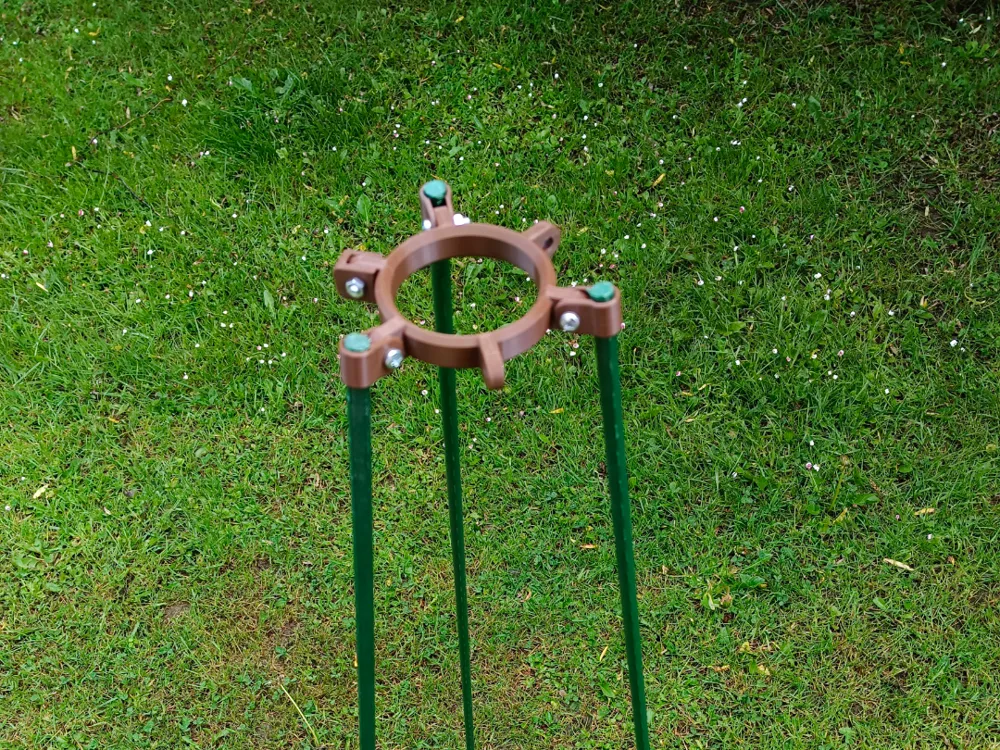

The plant rests on the stakes. The centre ring can now be surrounded by the supported plant - the centre ring is collapsible.

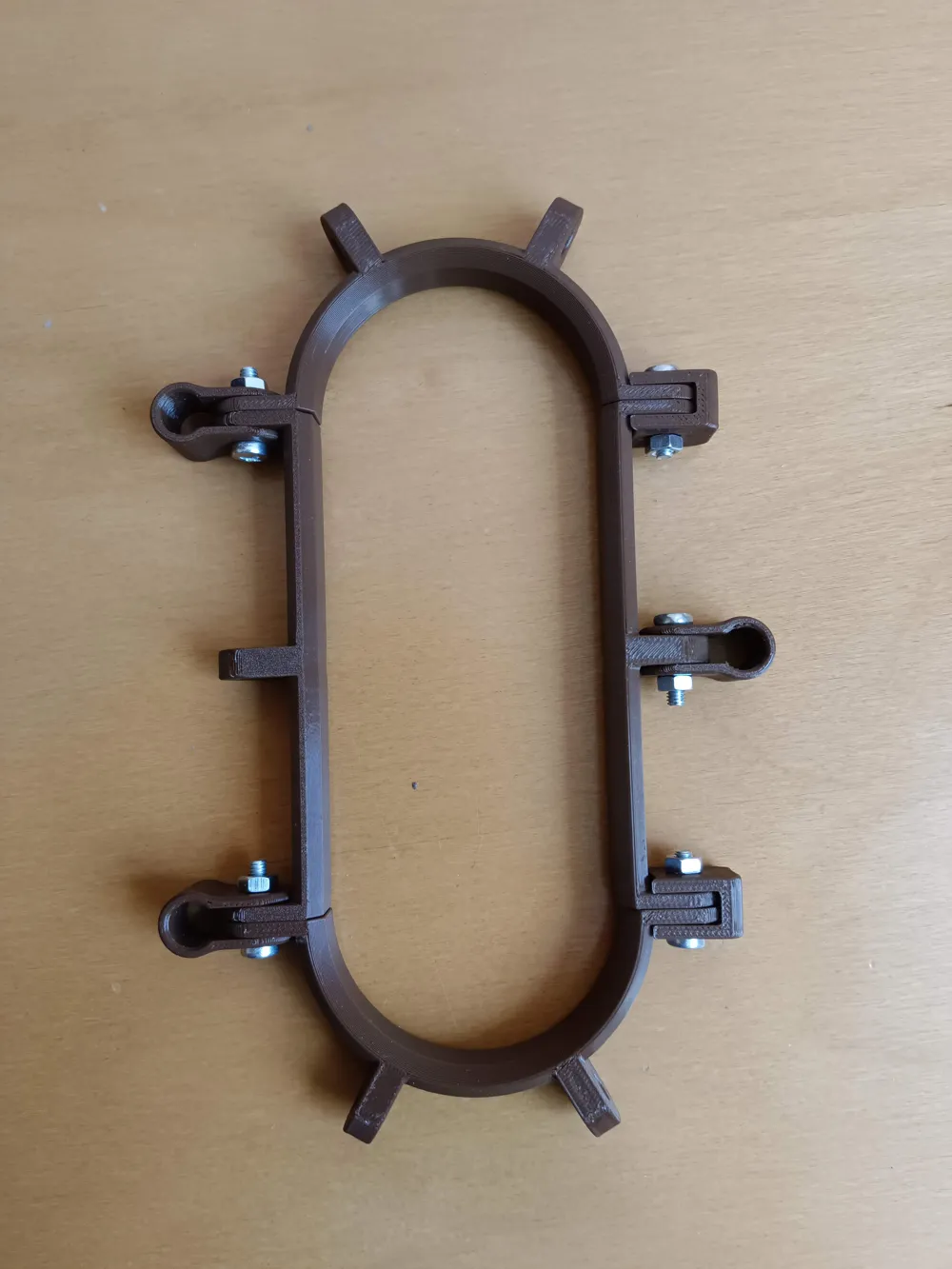

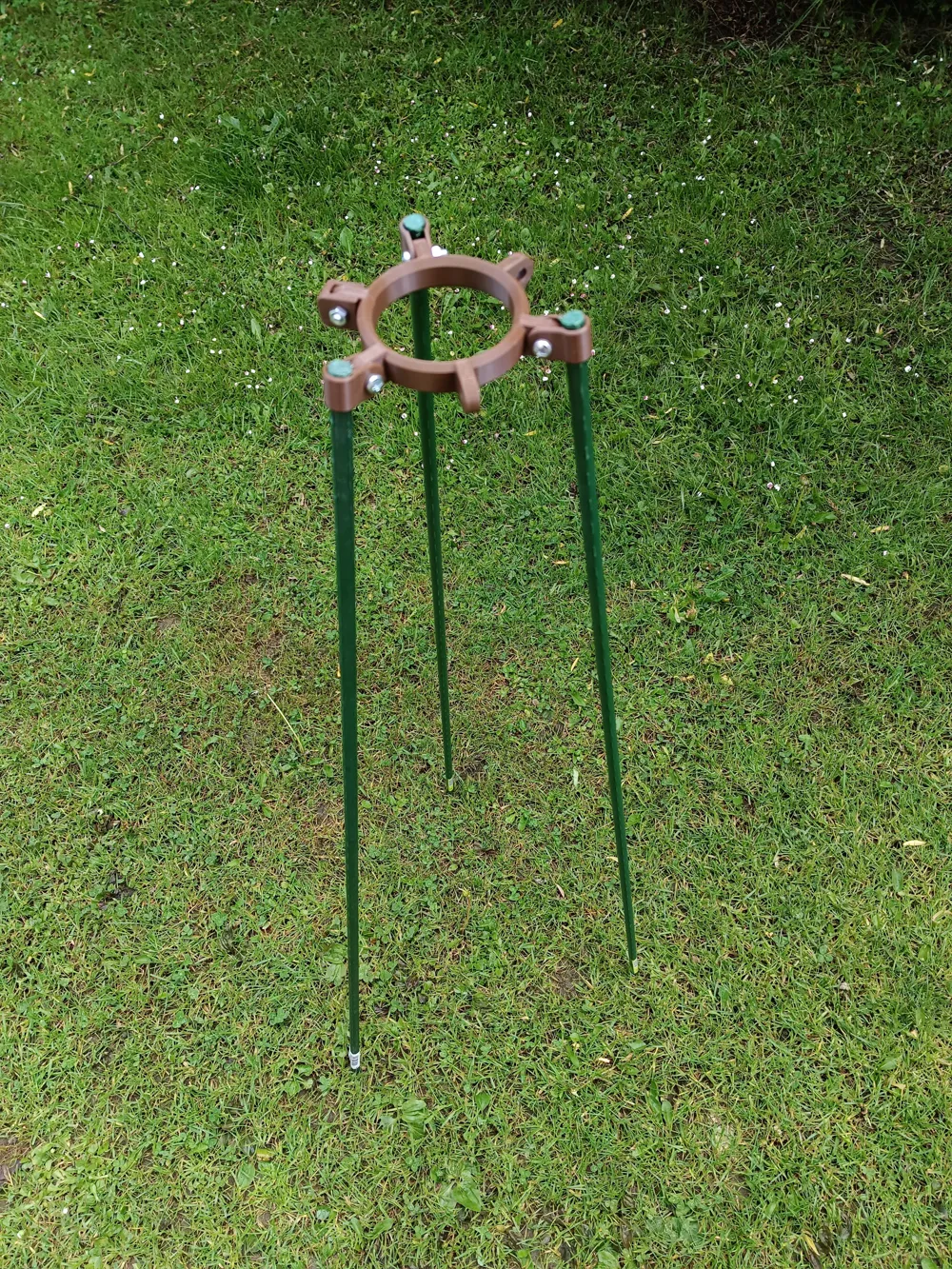

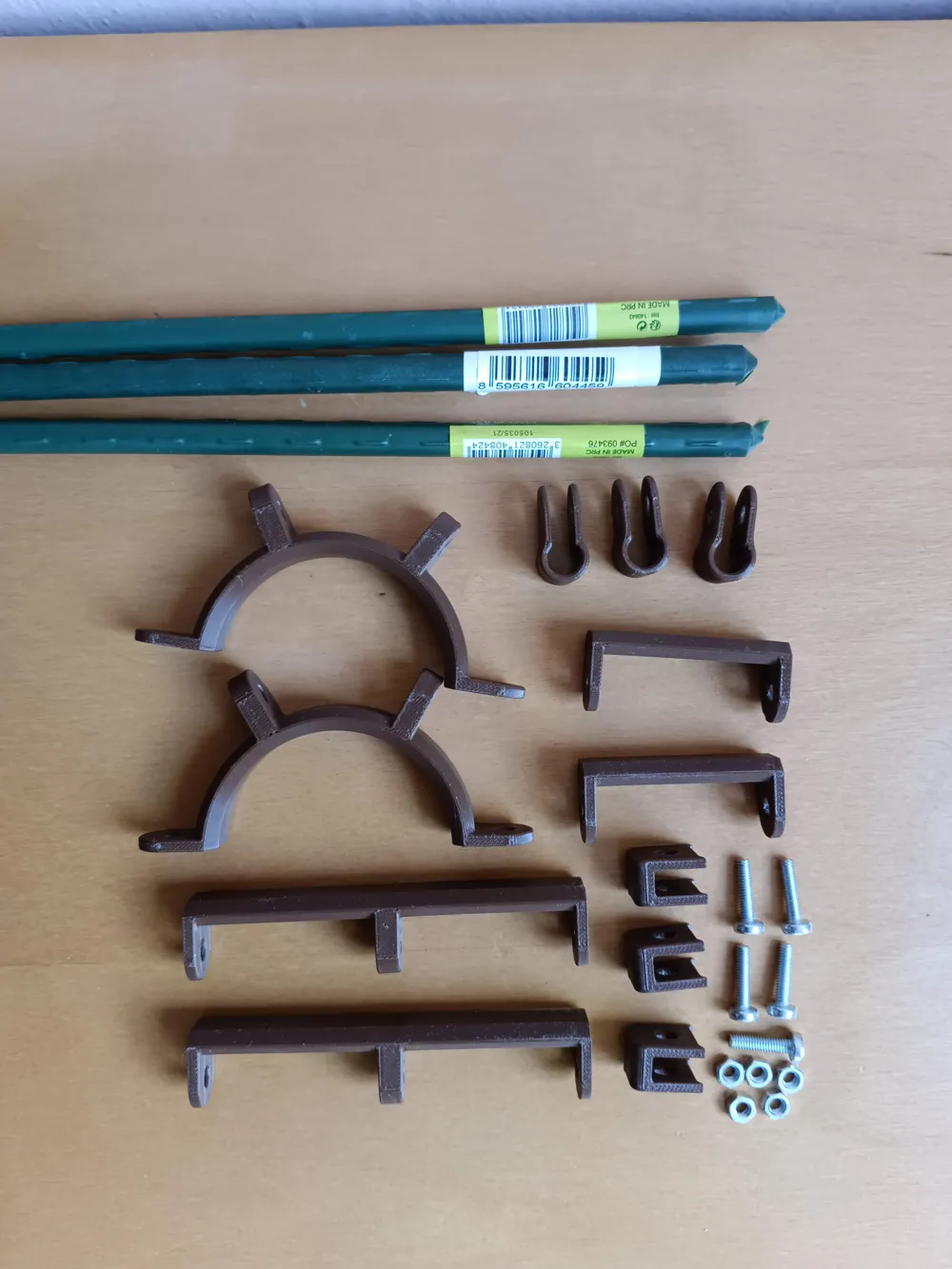

A bolt and nut are needed to connect the rod clamp to the centre piece (the diameter of the prepared hole is 5 mm). Due to the partially self-locking nature of the clamp, it is possible that a tightening or tying strap is sufficient to secure it.



For printed parts, I recommend using PETG.

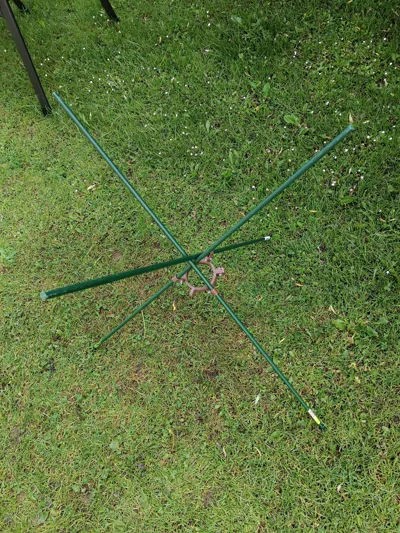

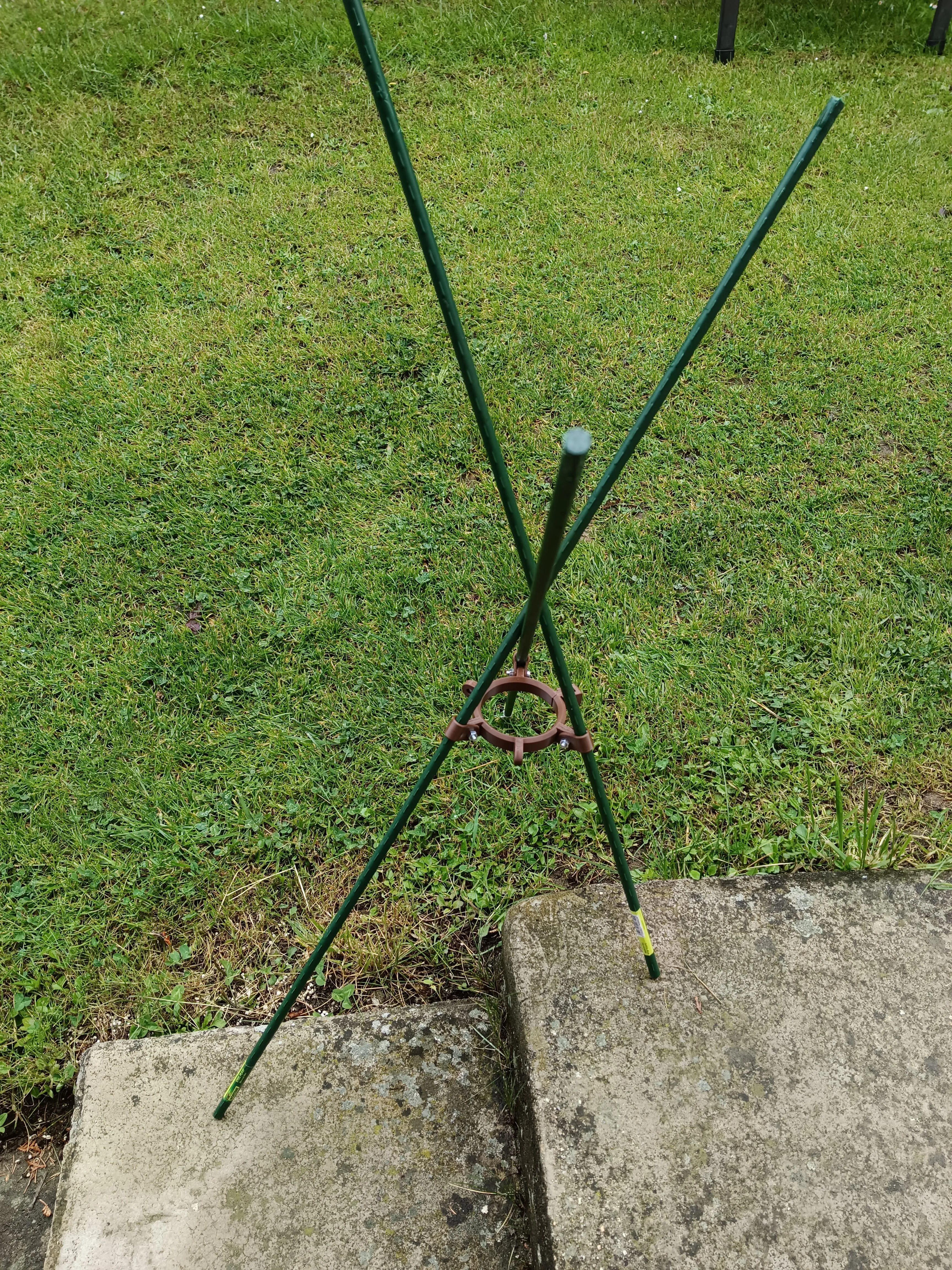

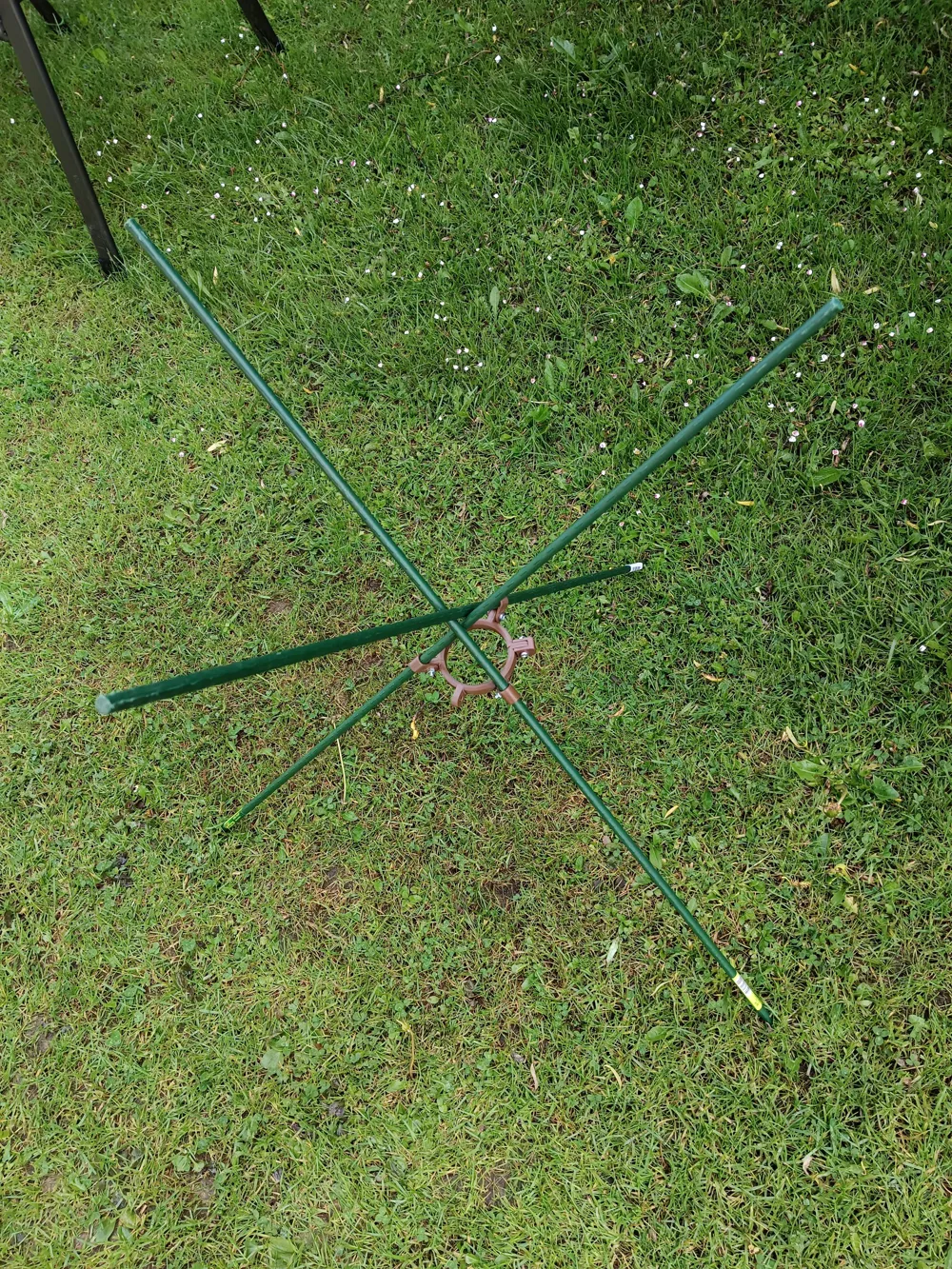

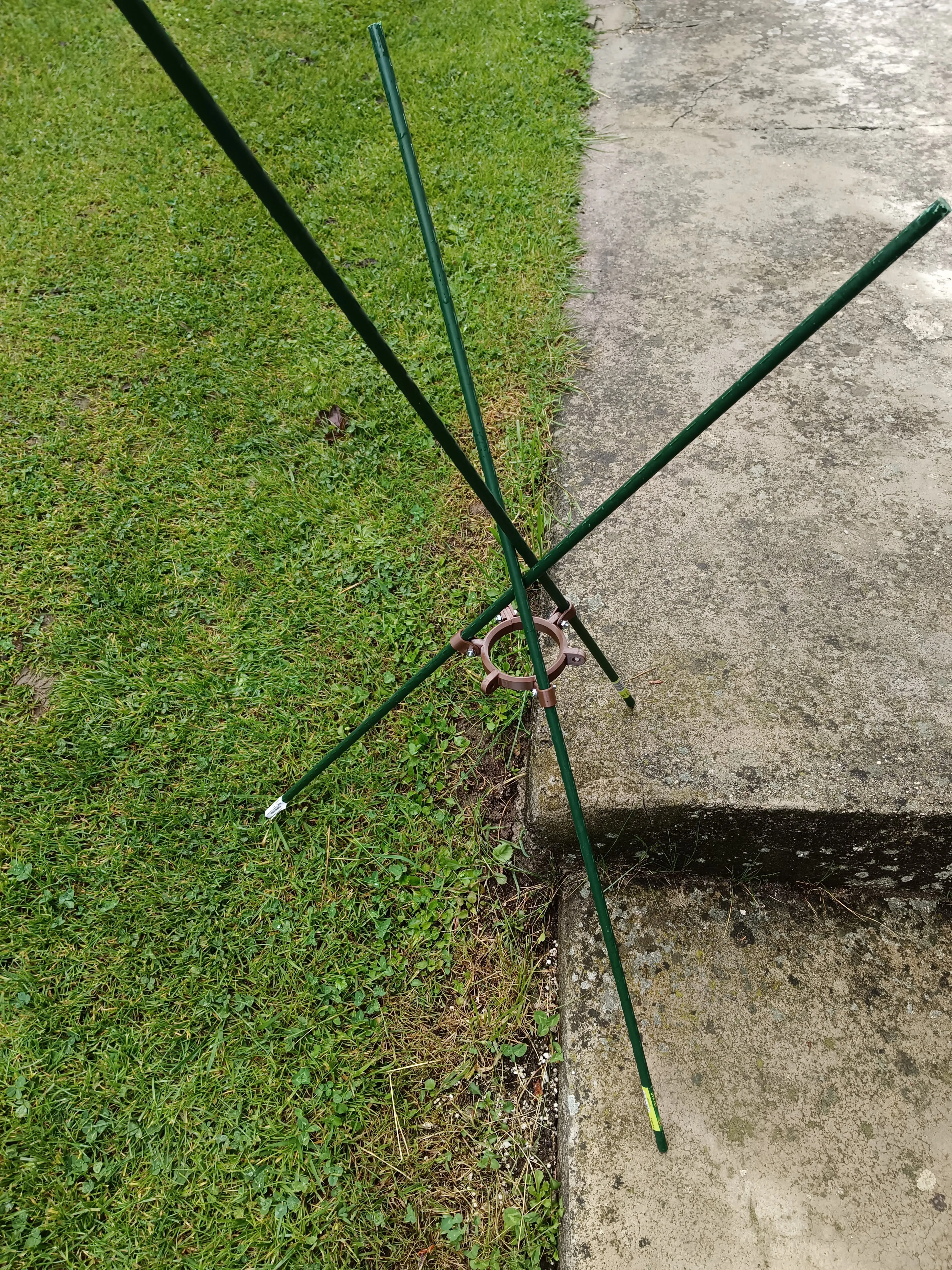

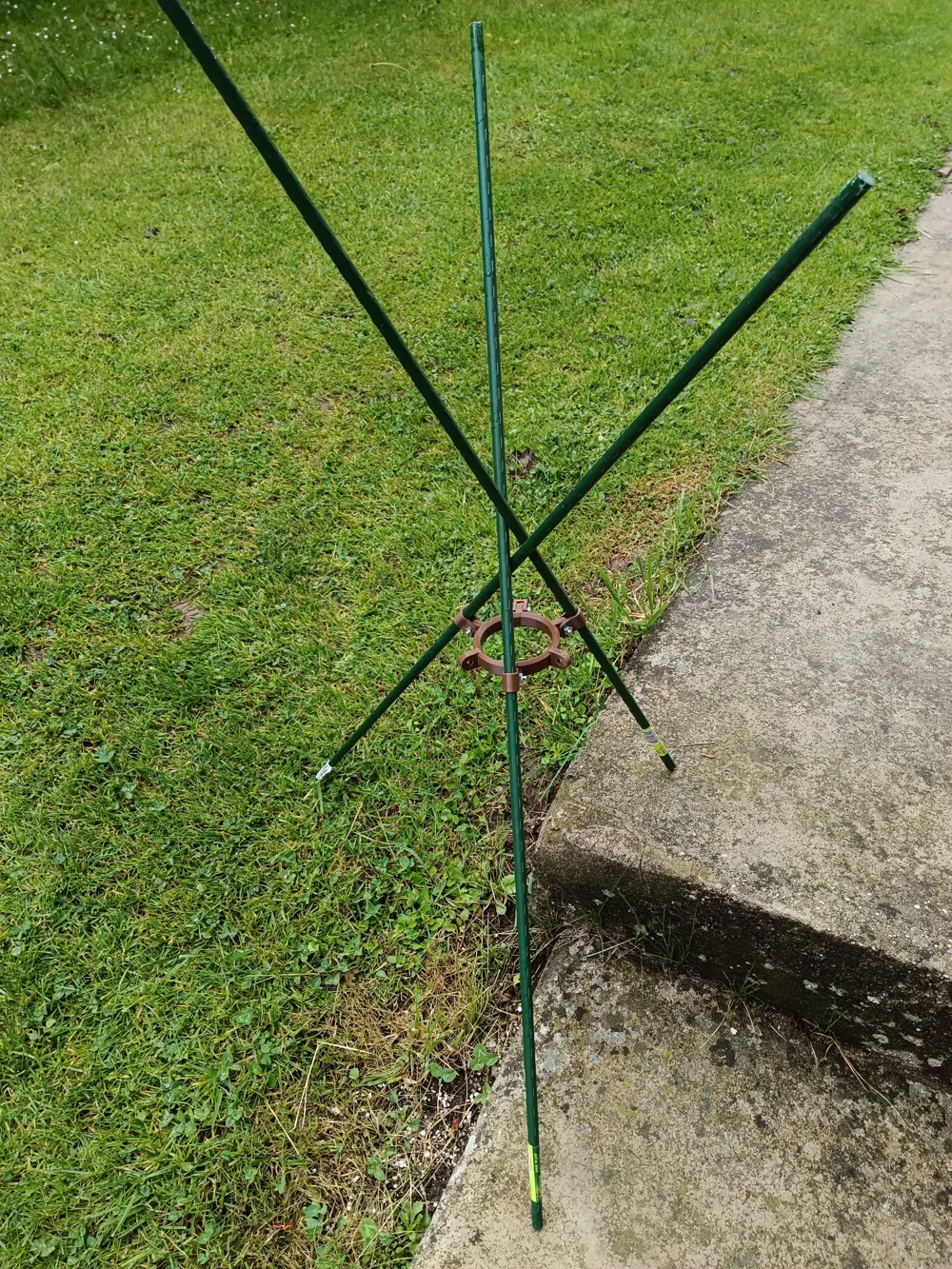

These supports can also be used on uneven terrain - they can be adjusted:

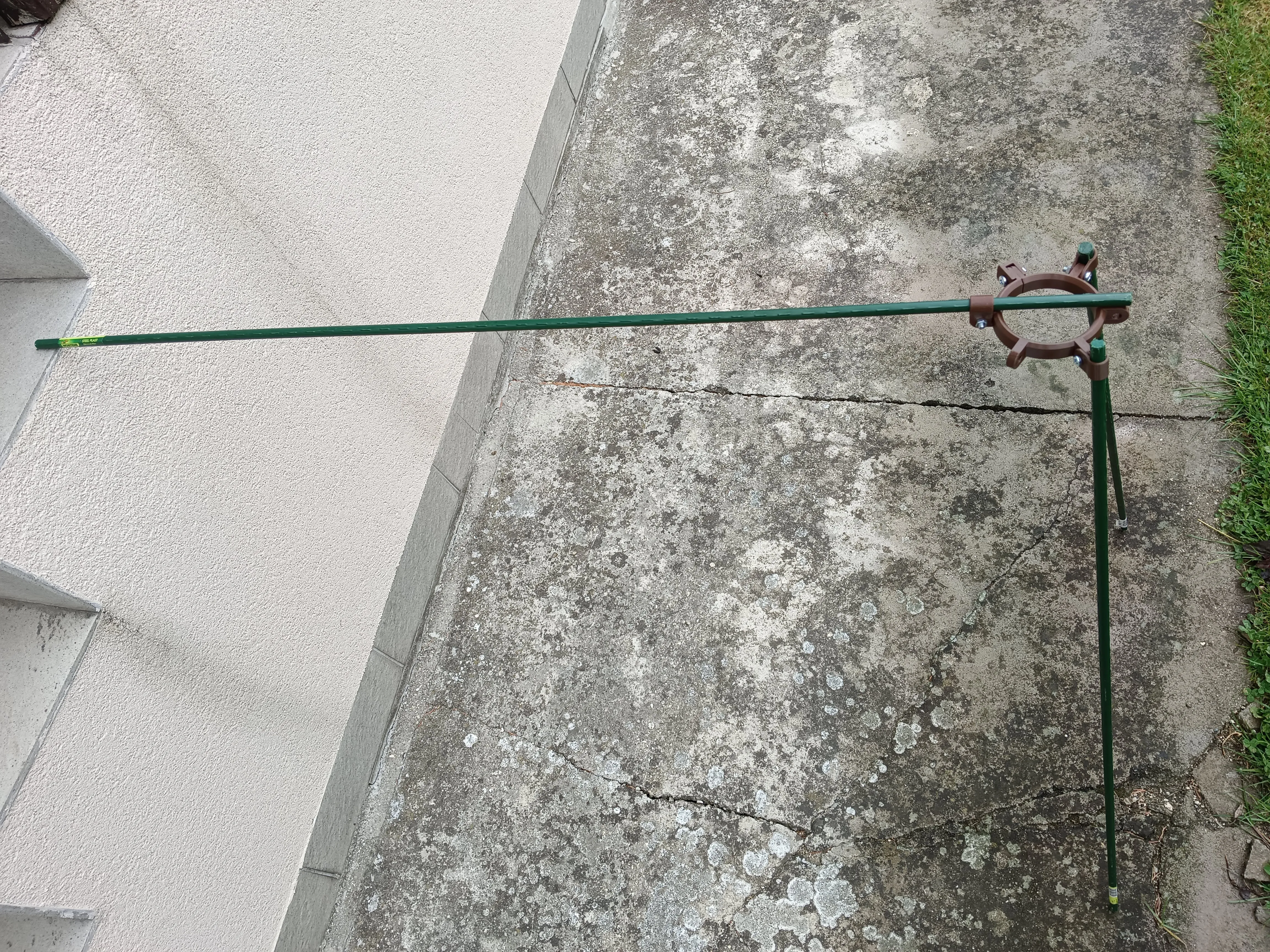

by simply twisting the rod, it is possible to make a connection to another support and connect it to another support
