【Xiaomi】Xiaomi SU7 Pure Electric Performance Sports Car Coupe Gulf Blue Assembly/Movable Wheels
Print Profile(3)
Description
Boost Me (for free)
If you like this model, please boost it! Your support is my motivation for continuous updates!
【Special Notes for F1 Models】
1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!
4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!
【Read Before Printing!!! Warm Tips】
It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

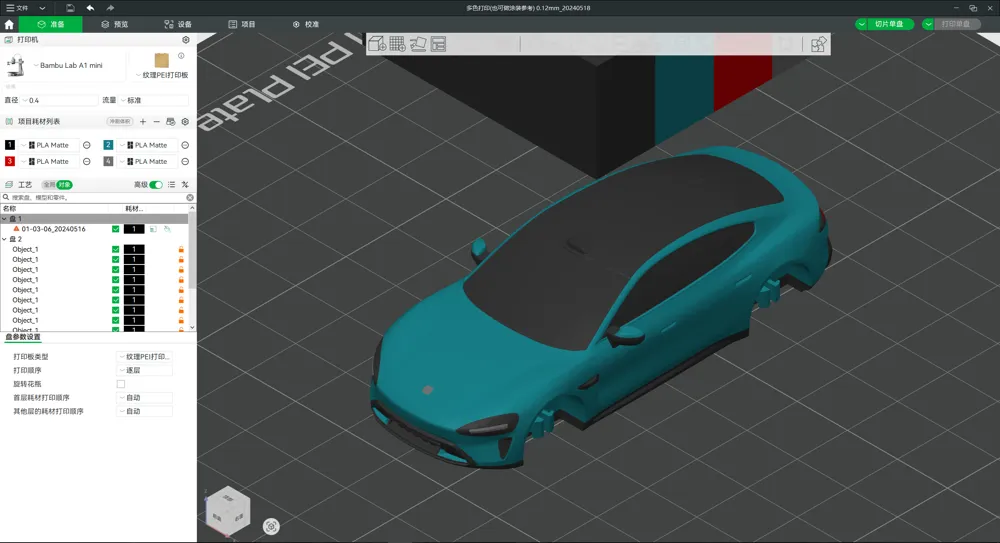

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.
---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------
Xiaomi SU7: A Benchmark C-Segment Pure Electric High-Performance Coupe Created by a Tech Giant
The Xiaomi SU7 is Xiaomi Auto's first mass-produced model, positioned as a C-segment high-performance eco-tech sedan.
Its technology was launched on December 28, 2023, and it officially debuted and announced pricing (starting from 215,900 yuan) on March 28, 2024.
With its disruptive pricing, leading performance, and Xiaomi ecosystem synergy advantages, it quickly became a phenomenal product in China's new energy vehicle market, reshaping the landscape of the 200,000-level mid-to-high-end pure electric sedan market.
Model Description

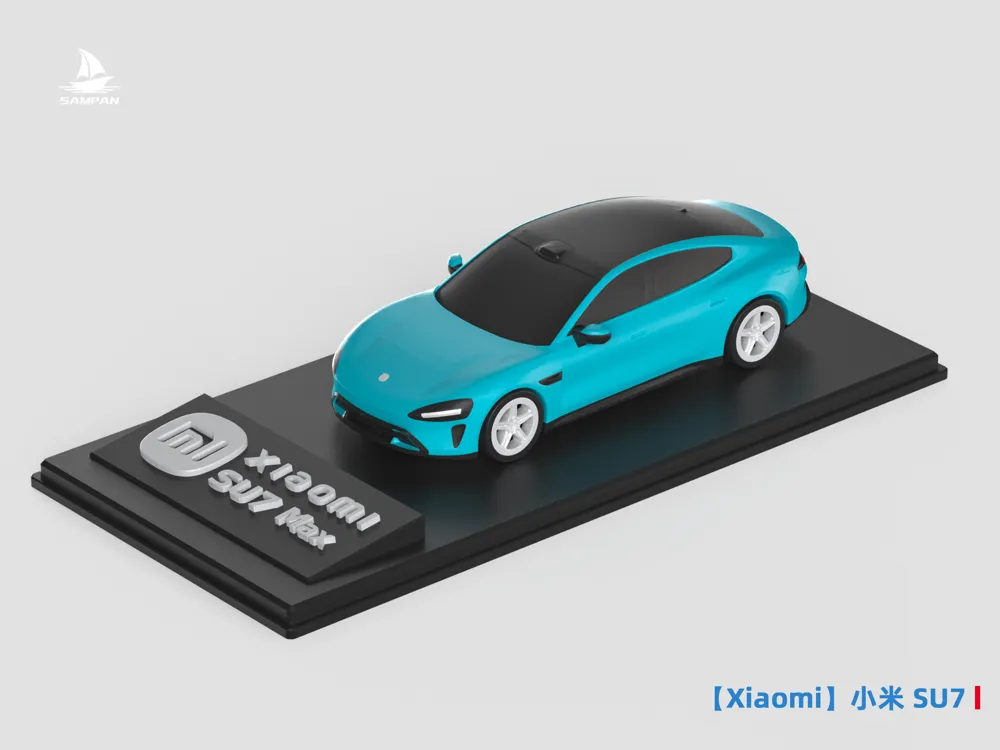

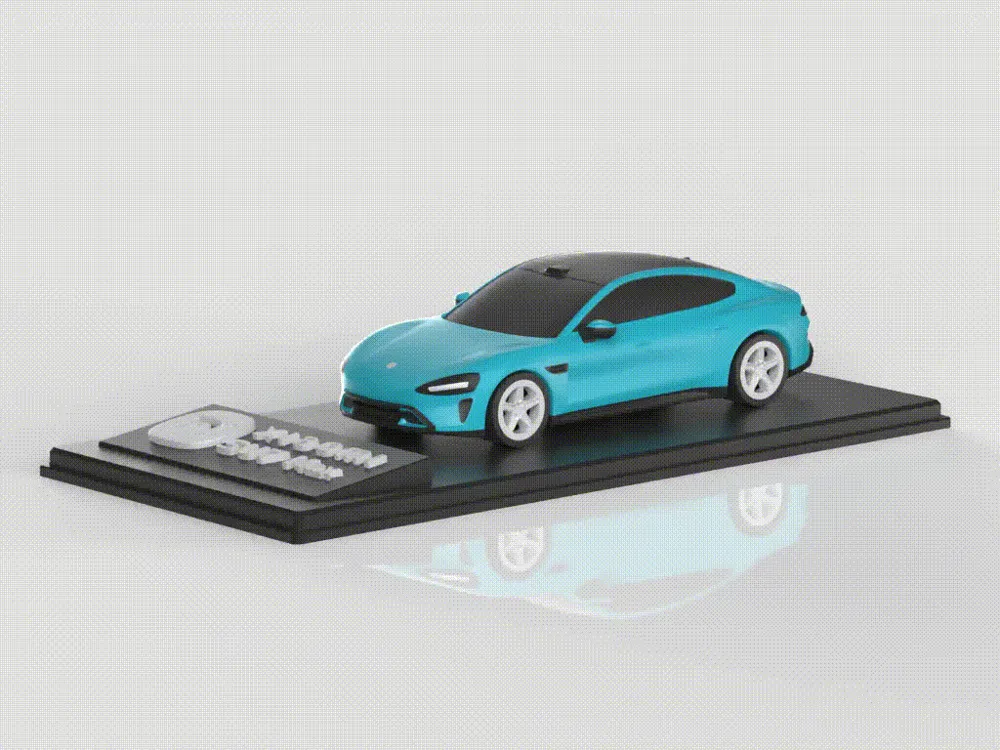

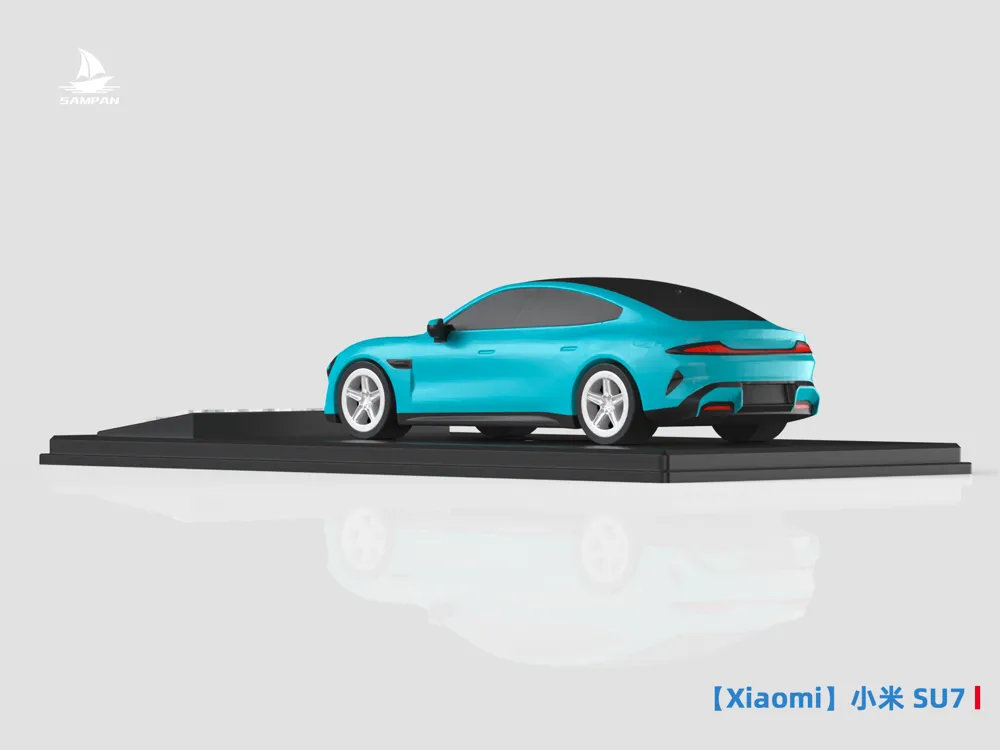

- Includes single-color and multi-color printing profiles: Single-color can be painted and decaled. Multi-color printing profiles can be printed directly (uses more filament, takes longer), or serve as a reference for single-color painting.
- Wheels are movable, assembly requires no glue.

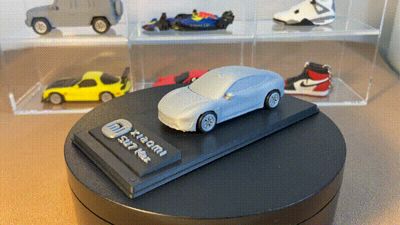

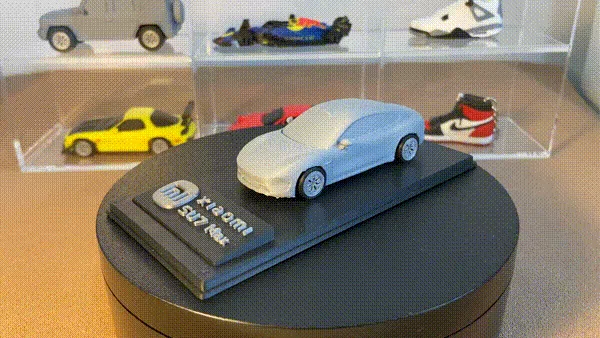

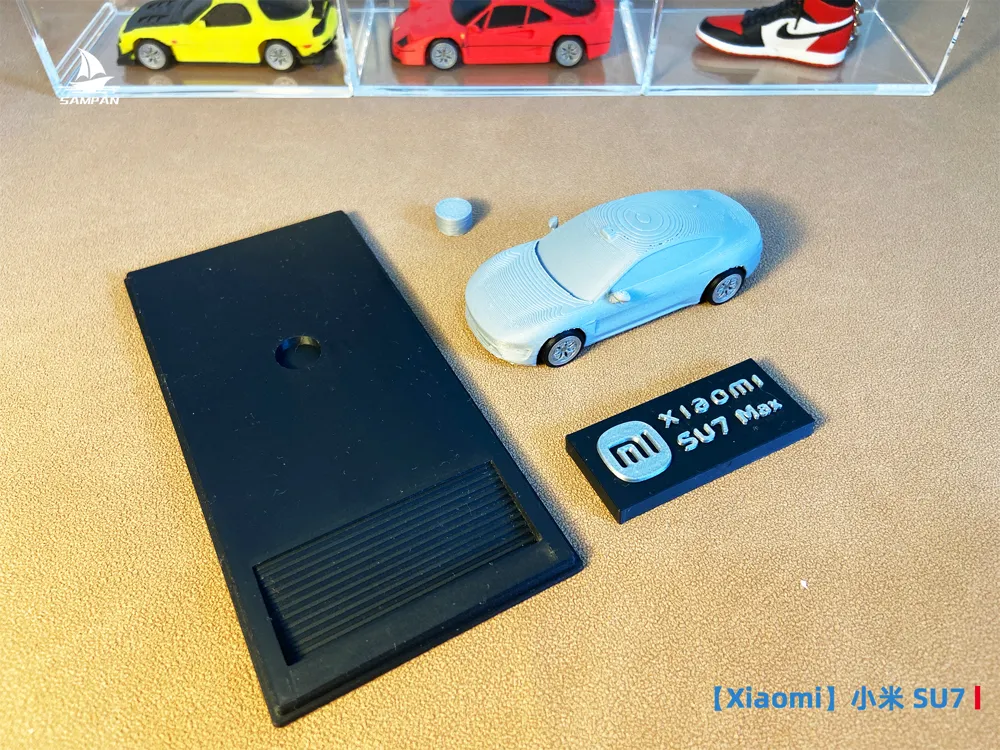

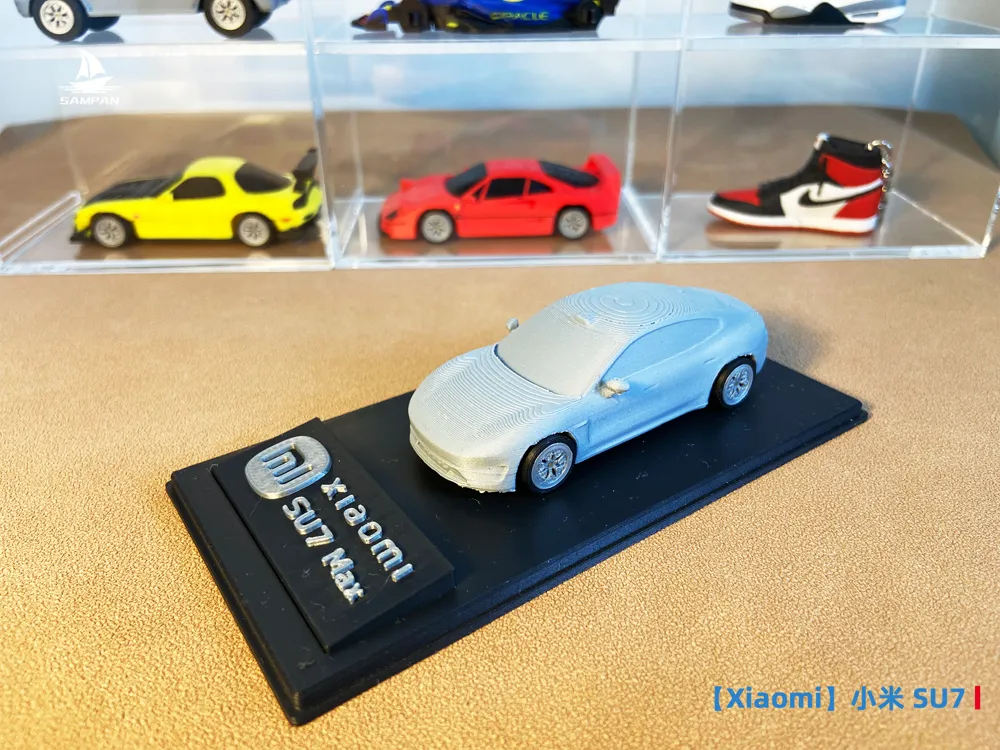

- (Optional) Display stand: More styles of display stands will be released later.
- Replaceable with a variety of wheel hubs from this account. Browse the homepage to download your favorite wheel hub styles.
Dimensions
- 1/64 scale
- 1/43 scale: Simply scale the model to 150% for clearer details.
- Sliced files use minimum printer size settings. You can adjust the number of models to print at once based on your printer size to save time and filament.
FDM Printing Settings

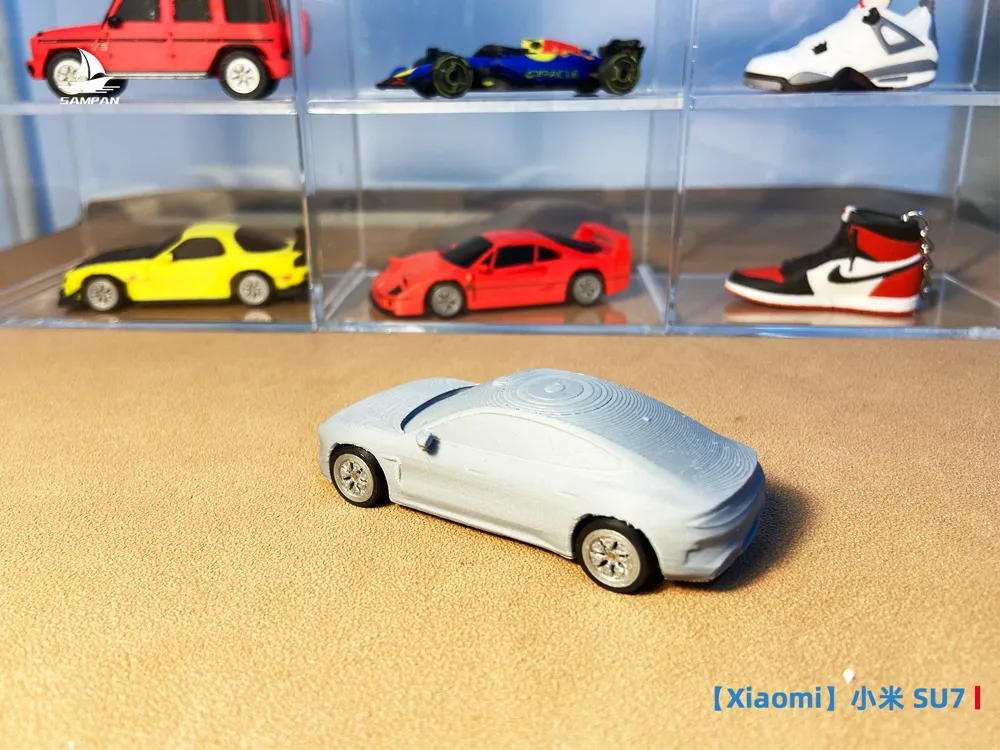

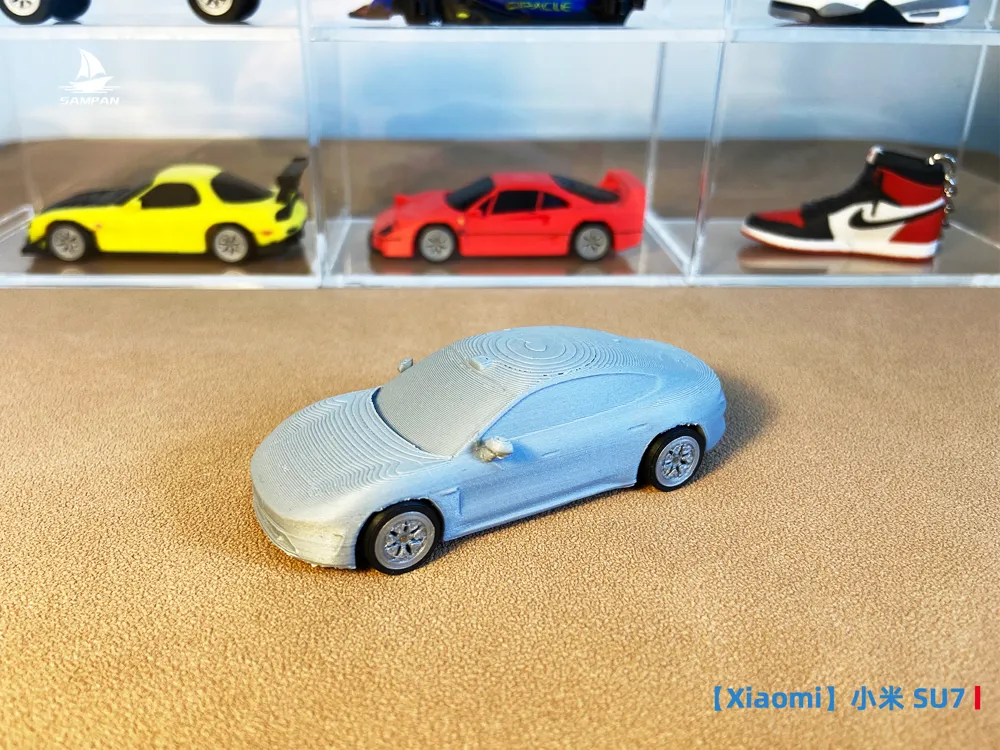

- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.16mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will yield better results (assembly might be too tight or too loose; this can be compensated by adjusting the XY outer contour dimensions of the assembly, or by using sanding tools and 409 glue for processing and connection).
- Infill density: 15%. To increase the model's weighty feel, you can adjust the infill density to 100%.
- Supports: Both normal and tree supports were used.
- Various painted versions will be released later. Follow the account to get the latest updates.
- You can also adjust the parameters based on your own printing experience.
Support Removal Instructions
- The model is relatively small, with supports added in critical areas. Support removal requires the use of sprue cutters and tweezers. Breaking by hand is likely to cause structural breakage, especially for the rearview mirrors.
- Tip: To ensure successful removal from multi-color models and avoid breakage, you can first print a single-color model for removal practice to understand the model and support structure, then remove supports from the multi-color model (if breakage occurs, 409 glue can be used for reattachment).
Single-Color Painting Reference
- Sanding: (Optional) Sand in the order of 400-600-800 grit.
- Painting: Use acrylic paints and brushes for painting (for issues with layer lines bleeding at edges, first apply the main color over a large area, then paint the edges).
- Polishing: Use a soft cloth to sand and polish; acrylic paint will achieve a glossy finish.
Assembly Instructions

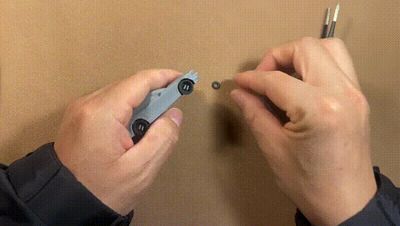

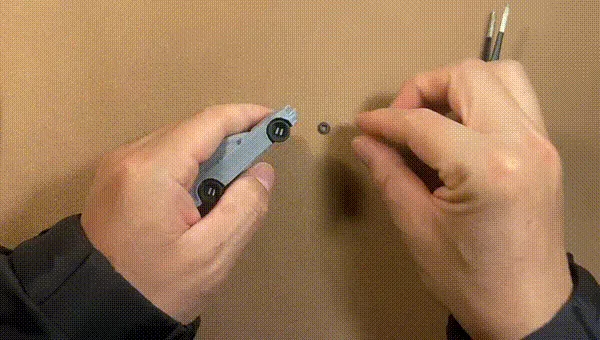

- For long-term stability of the wheels, installation requires appropriate force, and initial rotation might be tight. After playing with it a few times, it will become more flexible. See GIF for wheel installation.
- To facilitate the installation of the wheel calipers, a special wheel caliper installation tool was designed and manufactured. Link: 1/64 Scale Wheel Caliper Installation Tool by SAMPAN - MakerWorld
Visit the author's homepage to see all vehicle models, welcome to like and follow!
Hope to see more friends share your printing photos, I'm curious what kind of works you will print!
We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
