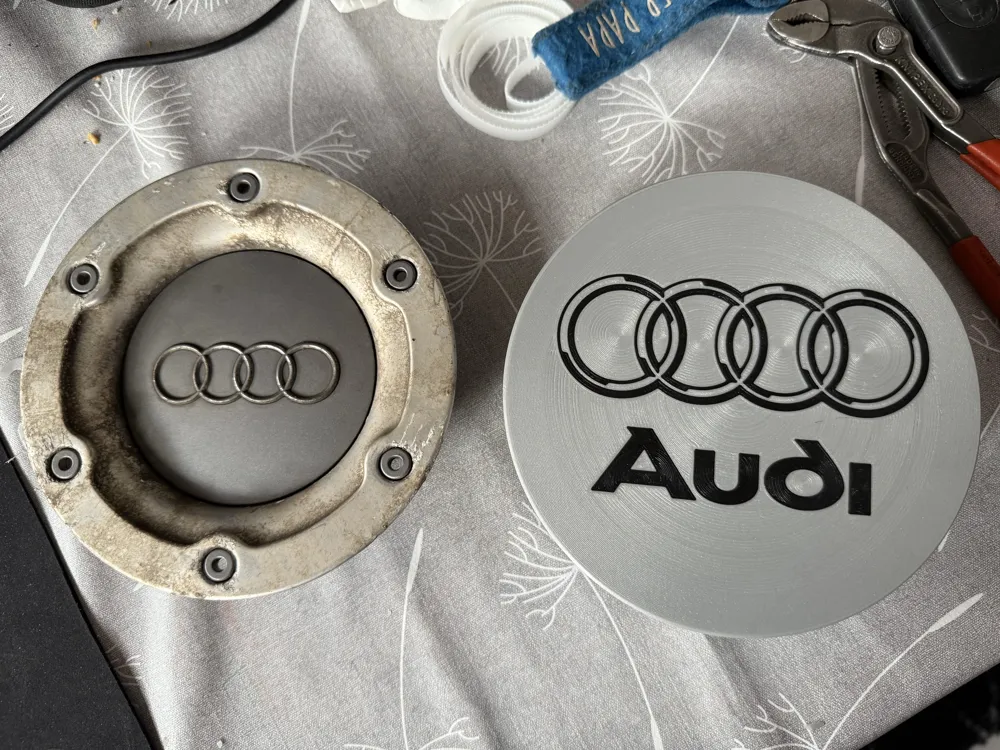

Audi Hubcap for Alloy Wheels

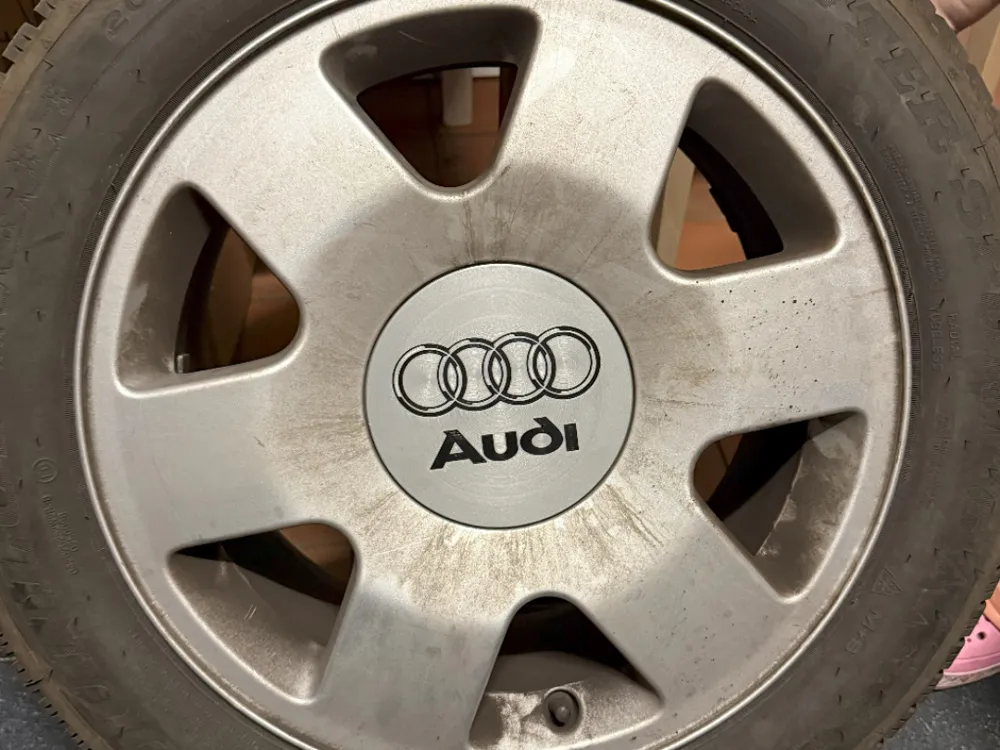

This wheel hub cover fits, for example, our 2001 Audi A4 rims. Inner diameter of the wheel hub 58.9mm.

Outer diameter of the wheel hub 146.5mm

It sits very firmly after installation. This slightly increases theft protection.

Removal will only work if the rims are removed.

In the print profile, the fasteners are to be printed separately.

This massively increases the strength of the pins that click into the rim.

The pins will probably require some post-processing to insert them into the intended holes without problems. In addition, they should be additionally secured with superglue.

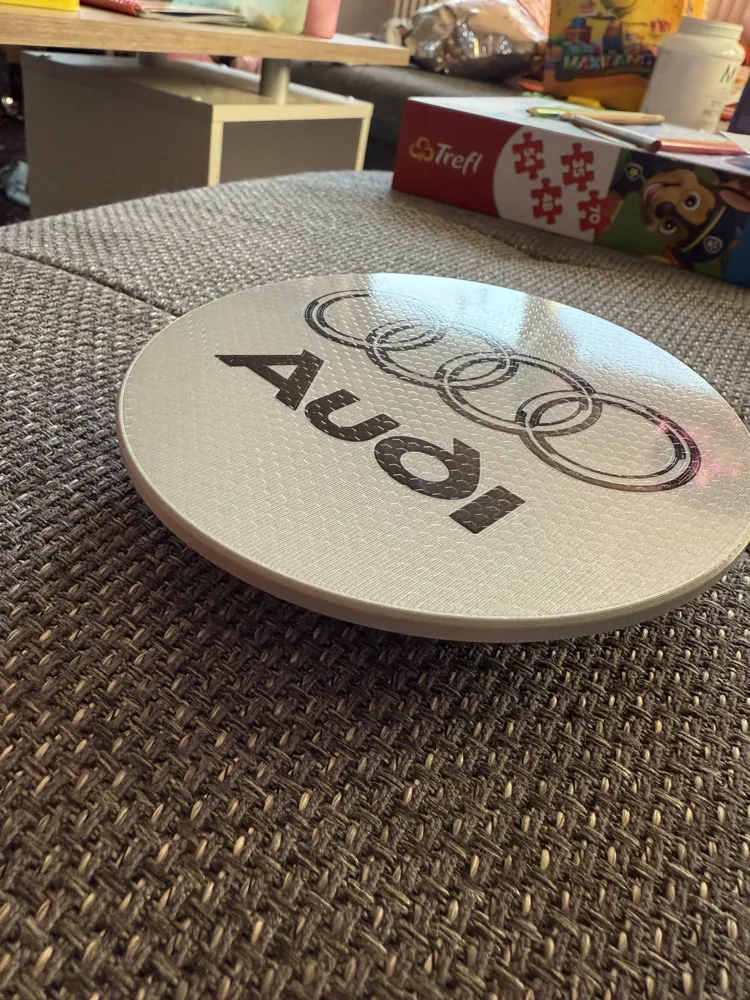

I have added a picture of a second cap.

Basically the same print settings, but with 1.05 flow in the first layer and this printed at only 10mm/s speed.

Print plate from an online shop with honeycomb pattern.

This also works on carbon print plates and similar smooth plates.
