BB-MPK (Functional Prop & Low-power launcher)
Print Profile(1)
Description
This is a toy for cosplay or display purposes only! Never brandish this as a real weapon or bring it out in public, this is a toy modeled off of a REAL LIFE firearm, treat it as such. Just because you know it's a toy, doesn't mean other people will. Enjoy, be safe, and be smart!
The BB-MPK is a functional prop/launcher and the unofficial (PLAS)TEC-9 V2. It is not a very powerful launcher, but still some good fun! Tolerances are quite tight in some places so sanding/filing may be required, but for best performance sand down the bullets and the barrel to reduce friction
There are two super cool remixes on Printables by Katfish Heavy Industries, I would highly reccomend checking out.
Overhaul of the upper reciever - Little Brew Boy - MPK: Upper Reciever Remix by Katfish Heavy Industries | Download free STL model | Printables.com
My Settings:
Printer - Bambu P1P
Filament - eSun PLA+ (Black, Red & Silver)
Walls/Top/Bottom: 4
Infill: 15%+
Supports: Required for larger frame parts.

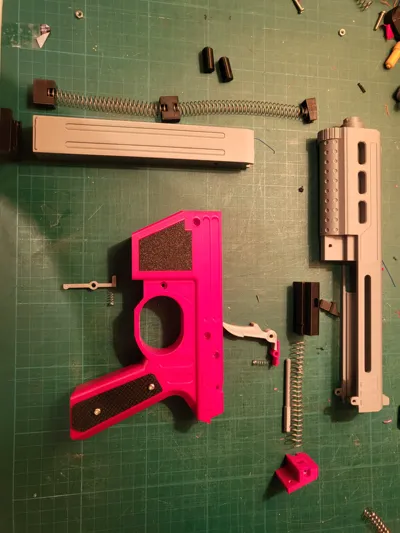

Printed Parts:
1x Lower Frame
1x Upper Frame
1× Bolt
1× Bolt Spring Rail
1x Bolt Latch
1x Trigger
1x Charging Handle
1× Barrel
1x Barrel Ring
2x Back Plate
2x Side panel (mirrored)
2× Grip Panel (mirrored)
1x Magazine Catch
1x Magazine
1x Lift Table
1x Magazine Spring Guide (Base)
1x Magazine Spring Guide (Joint)
1x Magazine Baseplate
10x Bullet
Additional Hardware:
6x M3*5 Bolt
2x M3*7 Bolt
4x M3*25 Bolt
1× M3×20 Bolt
1× Spring for bolt (OD: 10mm, WD:0.8mm, length: 85mm)
1× Spring for Magazine (OD:10mm, WD: 0.6mm, Length: 150mm)
2x Pen Spring (1 for Magazine catch, 1 for Bolt latch)
**Bolt and Magazine Spring were purchased off of AliExpress, I purchased a 305mm one of each wire diameter and then cut it to length.
Tools:
Needle nose pliers.(for pesky pen springs)
Super glue. (To secure side panels)
Hot Glue (to secure barrel)
