Joint Cross for Wash Concrete Slabs
Print Profile(1)
Description

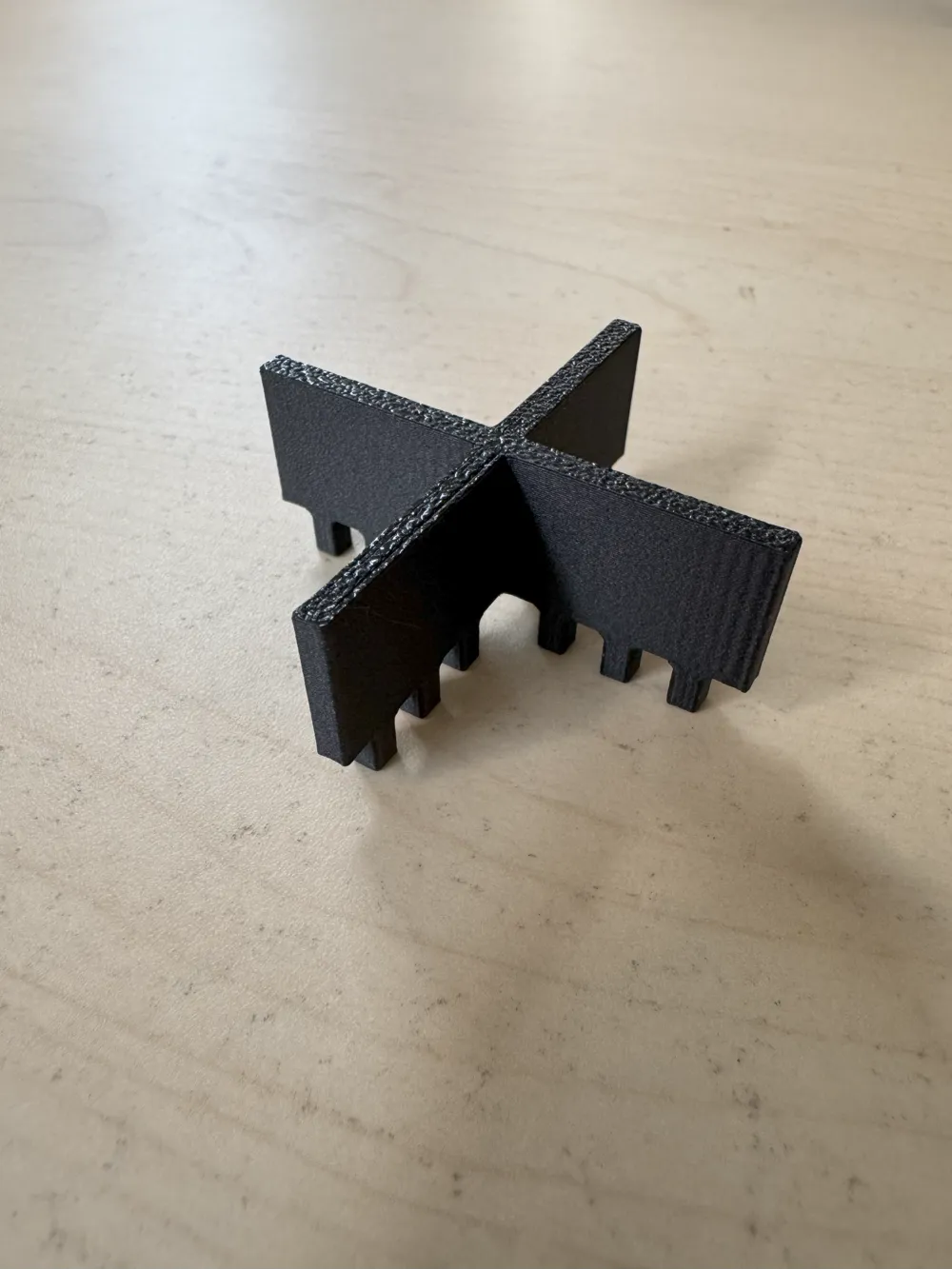

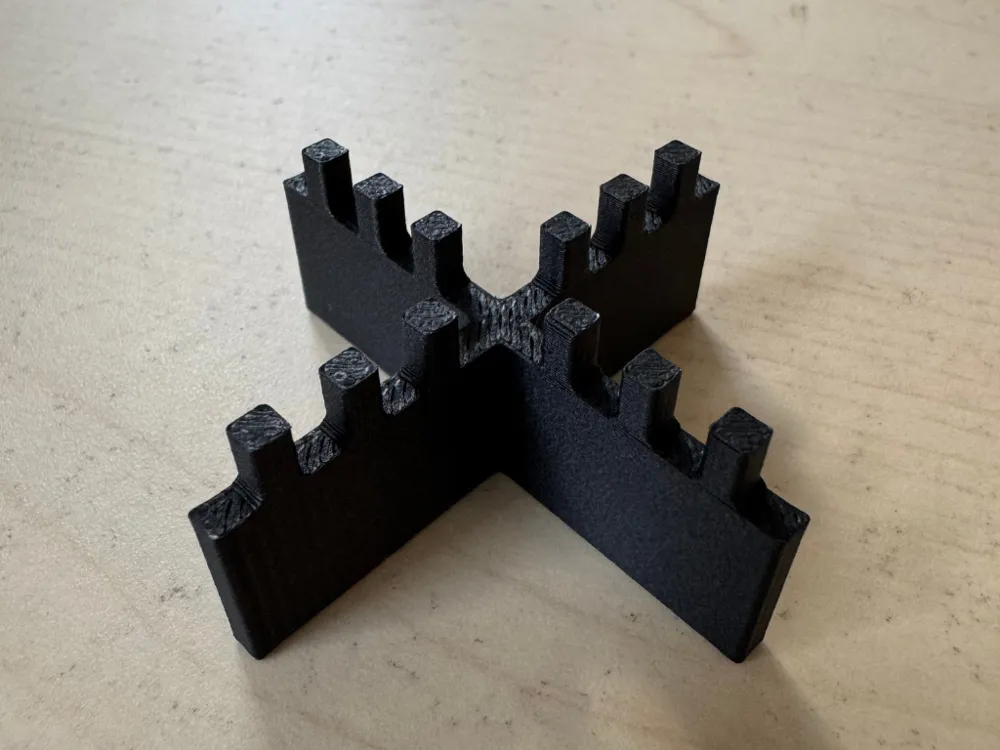

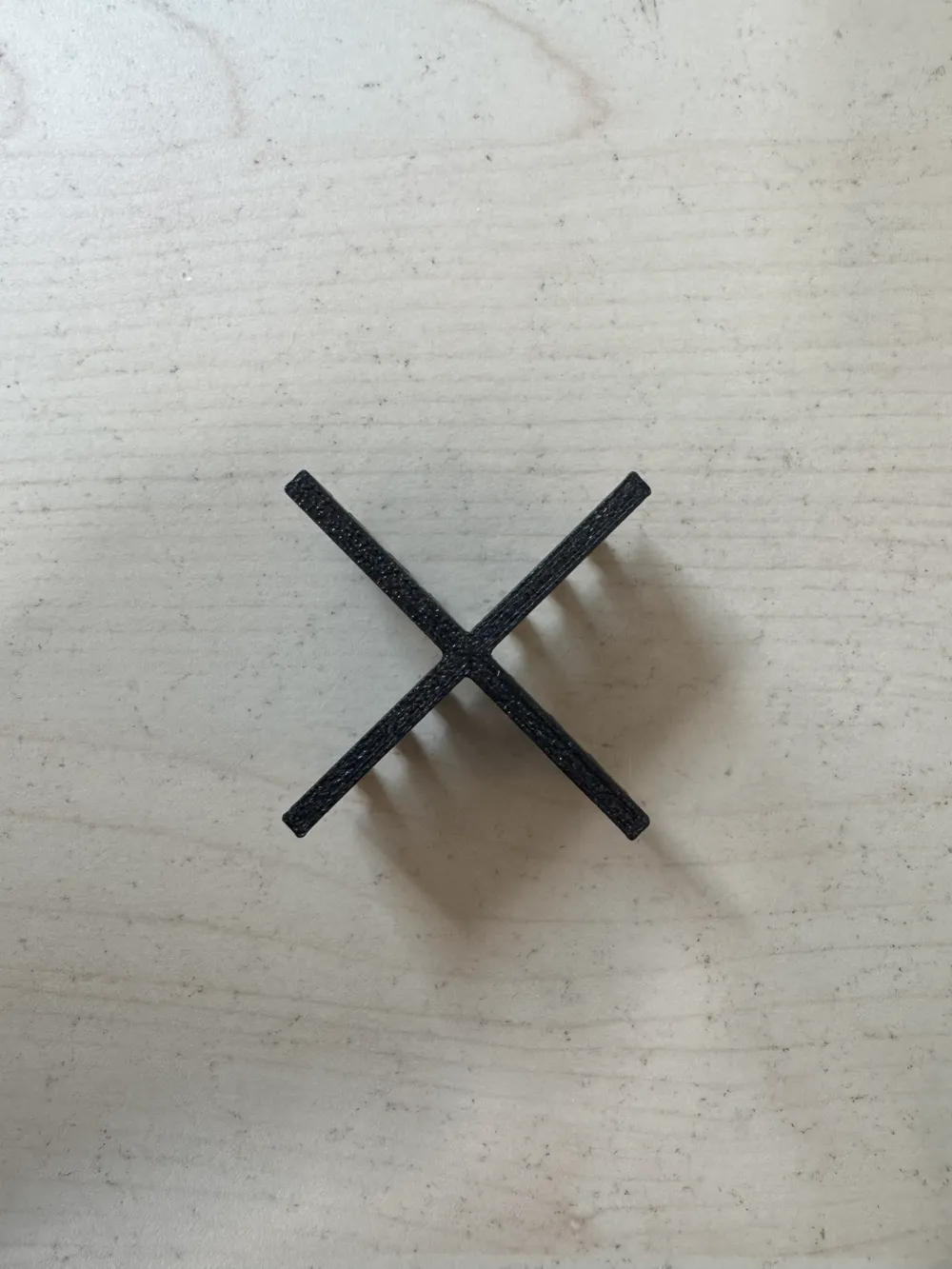

This joint cross was specially developed for laying wash concrete slabs and ensures uniform joint spacing as well as secure locking of the slabs through lateral points. The locking points engage in the substrate and prevent slipping during laying. The cross is suitable for slabs with a thickness of approx. 4-5cm and a joint width of 3 mm.
Advantages:
- Precise joint spacing
- Integrated locking points for better hold
- Stable and reusable
- Optimized for outdoor use
Printing recommendations:
- Material: PETG or ASA (for UV resistance outdoors)
- Layer height: 0.2 mm
- Infill: 30–50%, depending on the load
- Supports: Not needed
- Recommended orientation: Flat on the build plate
Application note:
The cross is positioned between the wash concrete slabs so that the locking points engage in the substrate. After laying, the crosses can be removed or left permanently in the joint.
The file contains two variants: 1x printing plate with 1 piece and 1x printing plate with 28 pieces.
