Moon Design Fantasy Tiara

Please read the description completely – a full assembly guide is included!

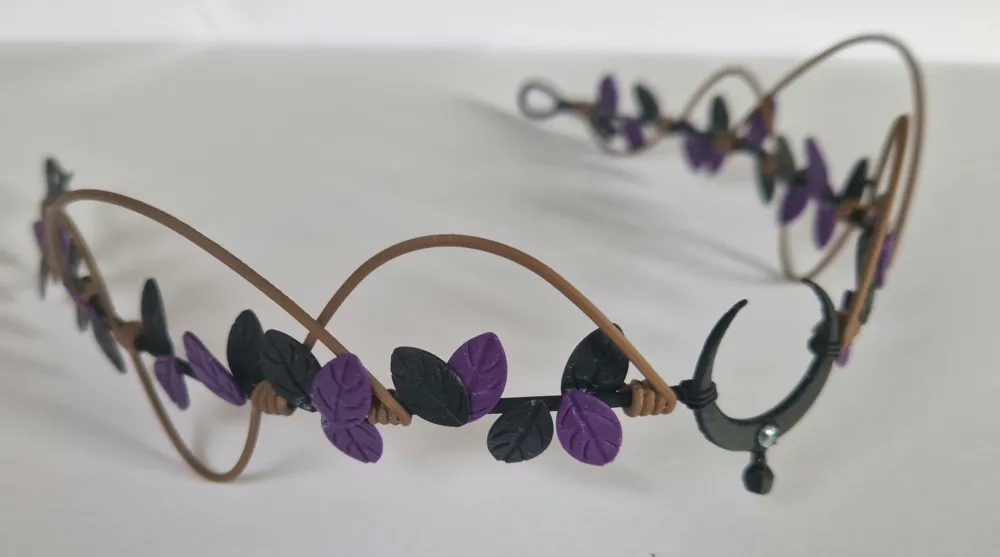

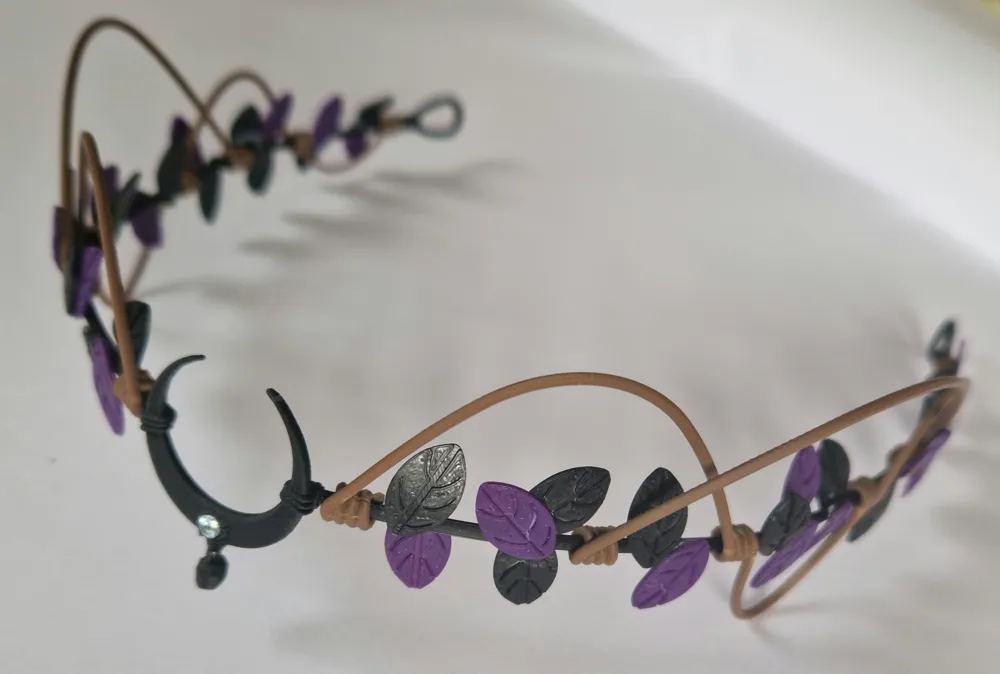

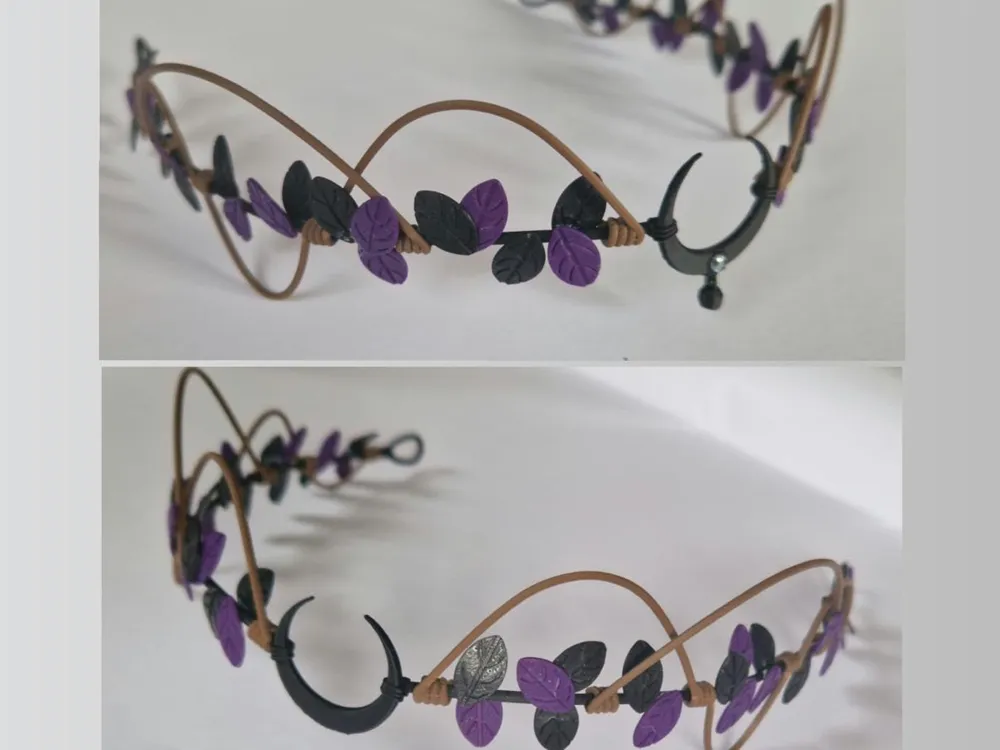

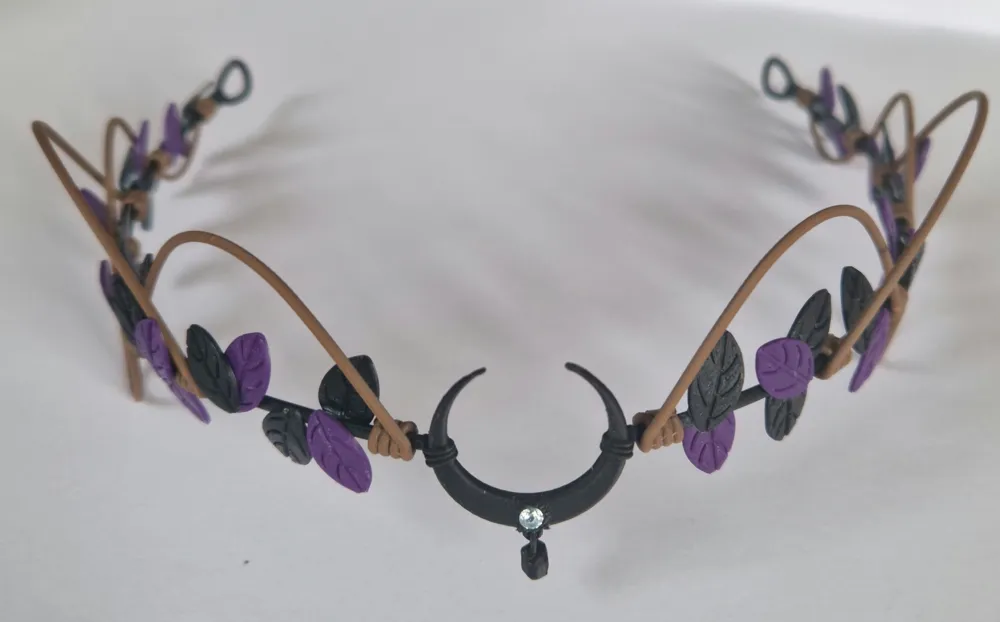

This file contains all the necessary parts for 3D printing a Gothic fantasy tiara with delicate details, leaf embellishments, and a prominent moon symbol in the center. It is ideal for cosplay, photoshoots, LARP, or simply as a decorative eye-catcher.

It is in wearable size

Printing instructions:

• Many parts are printed with support structures (supports). These should be carefully removed to avoid damaging delicate details.
• The printer should be well-calibrated beforehand to achieve a clean result.
• The colors used in the preview are suggestions only and are broadly based on the appearance of the model that served as inspiration.

Variants of the central moon:

• Variant with gemstone setting and pendant: Includes a recess for a small 3mm gemstone and a pendant hanging below it.
  Important: With this variant, the support structures must be removed particularly carefully, as the delicate connecting elements can be easily damaged during post-processing.
• Variant with gemstone setting: Includes a recess for a small 3mm gemstone and the pendant. Here, the pendant's connection to the moon must be bent and glued by yourself with a wire (1mm thick).
• Variant without gemstone setting and without pendant: easier to print and post-process.

Questions & Support:

• If you have questions, something isn't working, or you have modification requests, just send me a message!
  Please do not immediately leave a 1-star review without first giving me the chance to solve the problem with you. I strive to help quickly and with a focus on solutions.

Parts list & Print Plate Overview:

• Print Plate 1: Main part, end pieces, standard moon
• Print Plate 2: Long wavy arches, individual arches
• Print Plate 3/4: Leaves in various shapes
• Print Plate 5 : Moon with gem/stone, same but the stone can be attached with wire

Assembly Instructions (step-by-step with images):

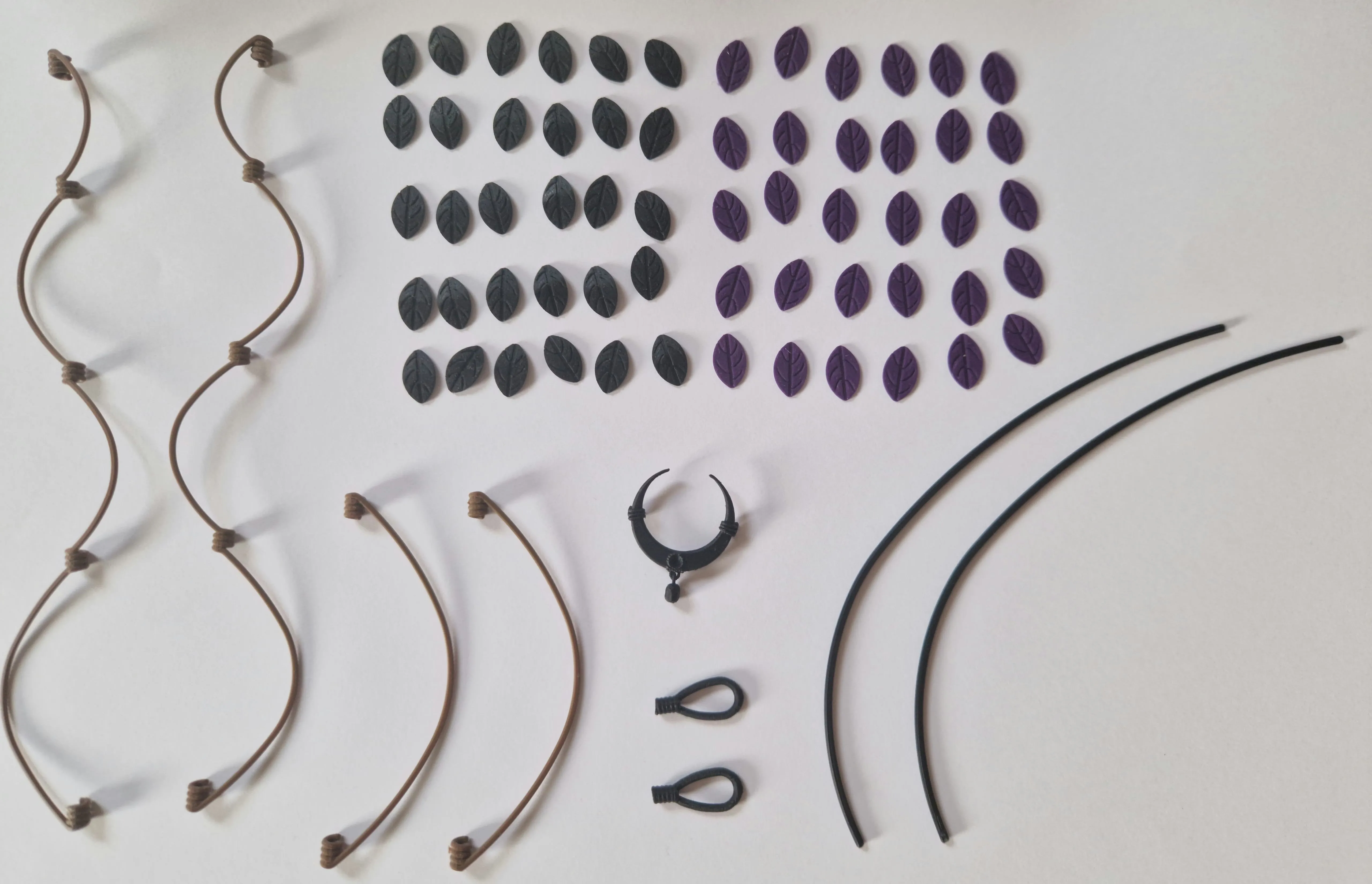

• 1: Overview – here you can see all the parts needed for assembly.

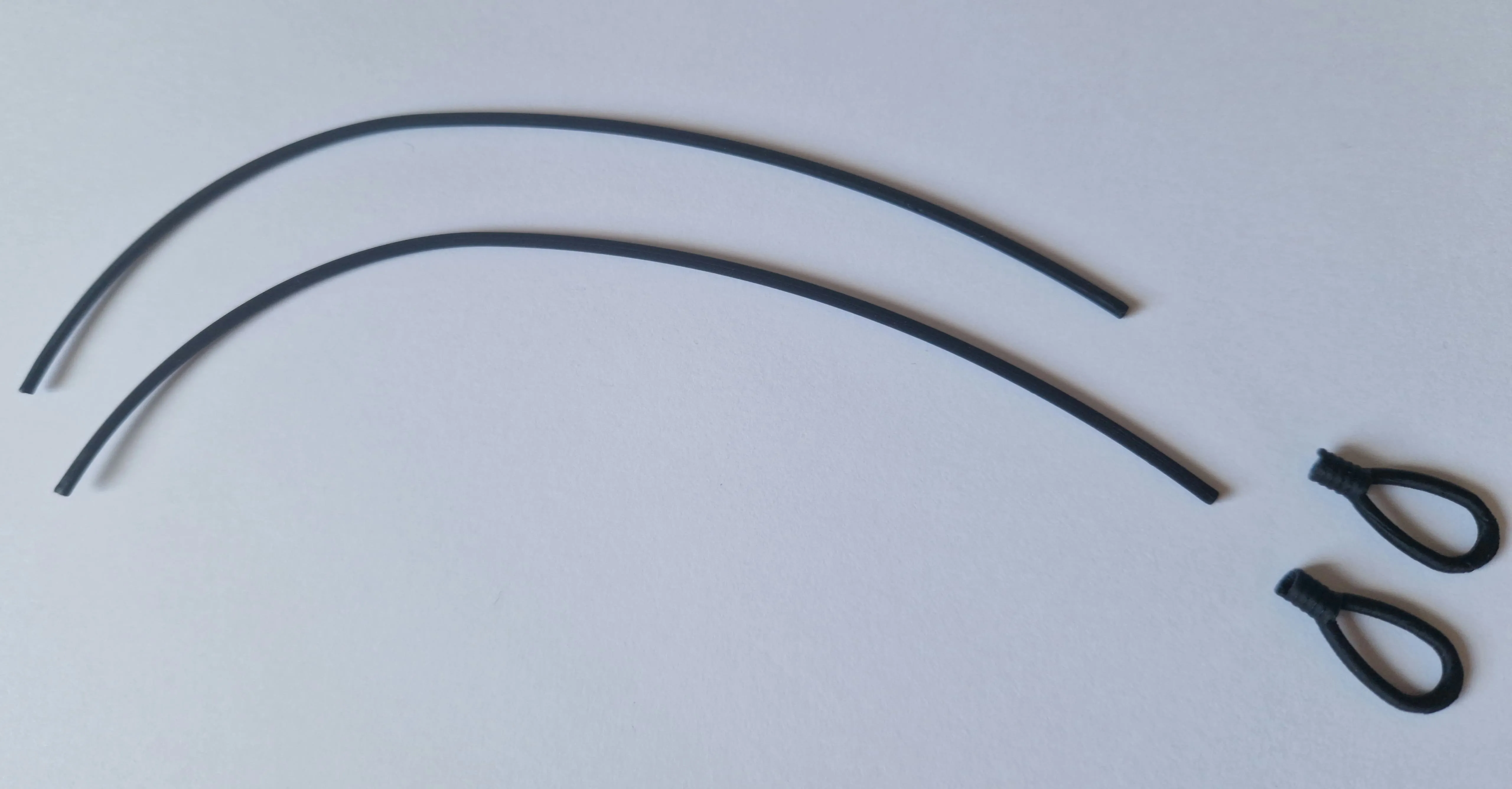

• 2: The end pieces and the main struts are needed.

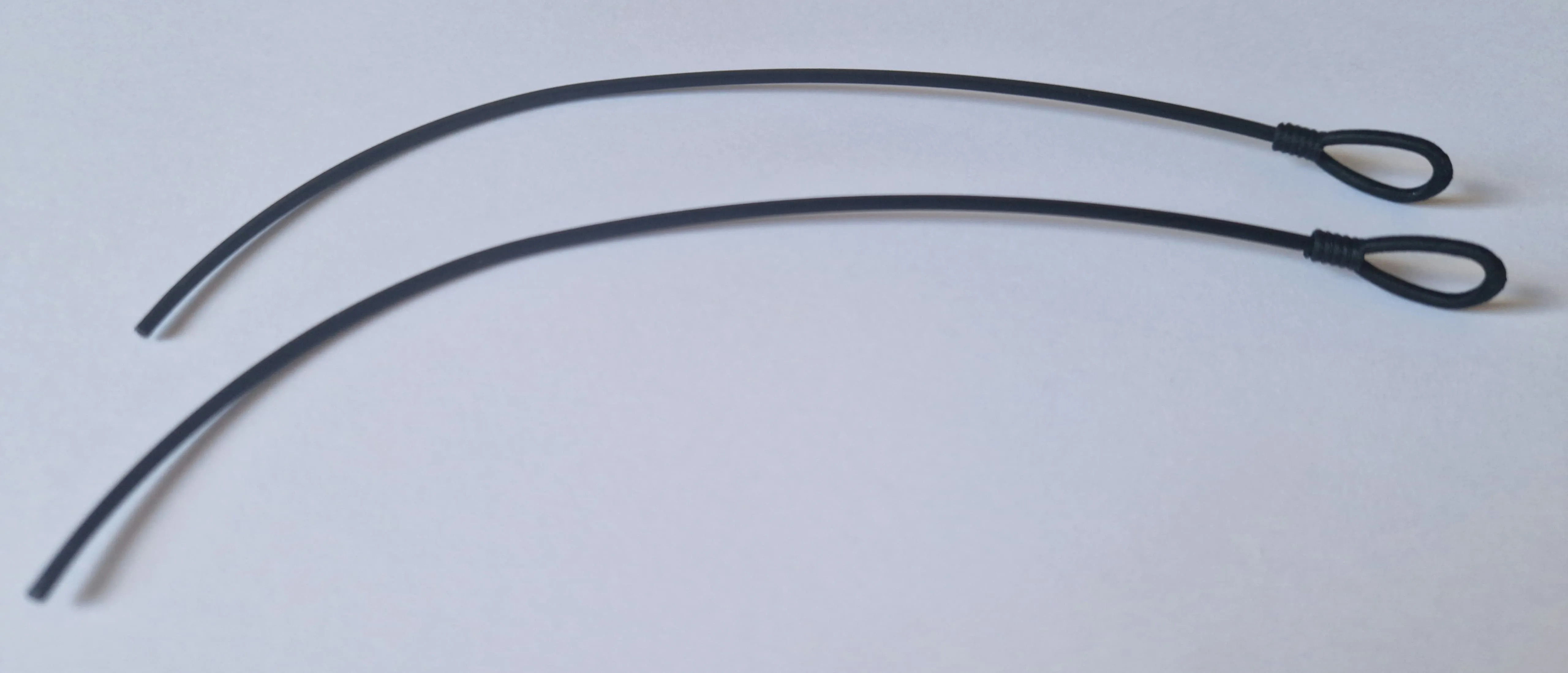

• 3: Attach the end pieces as shown.

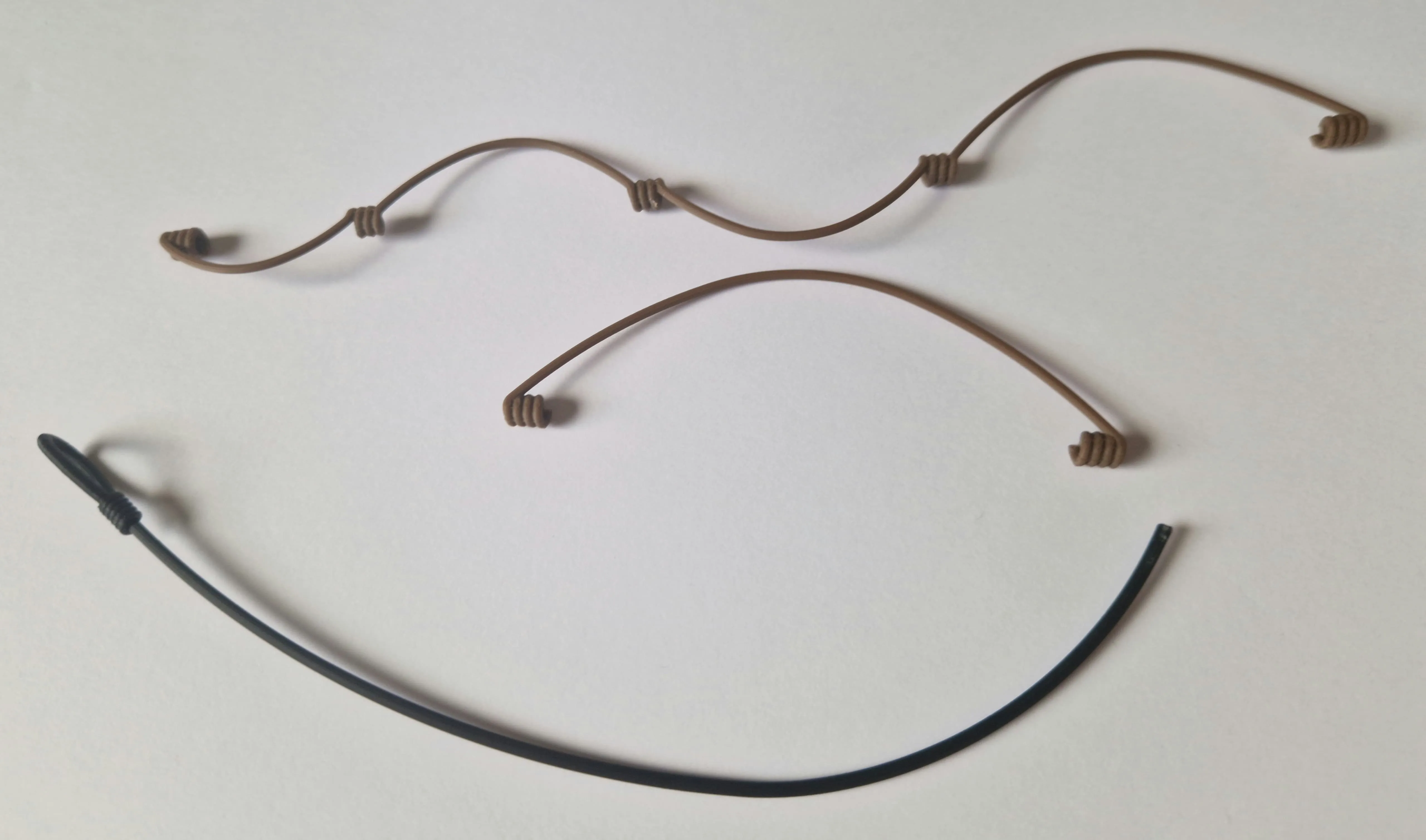

• 4: Now take the long wavy piece, the short single arch piece, and one of the previously assembled main parts.

!!Caution!!

Slide the arch piece on slowly and evenly, otherwise parts may bend or break.

Work Carefully

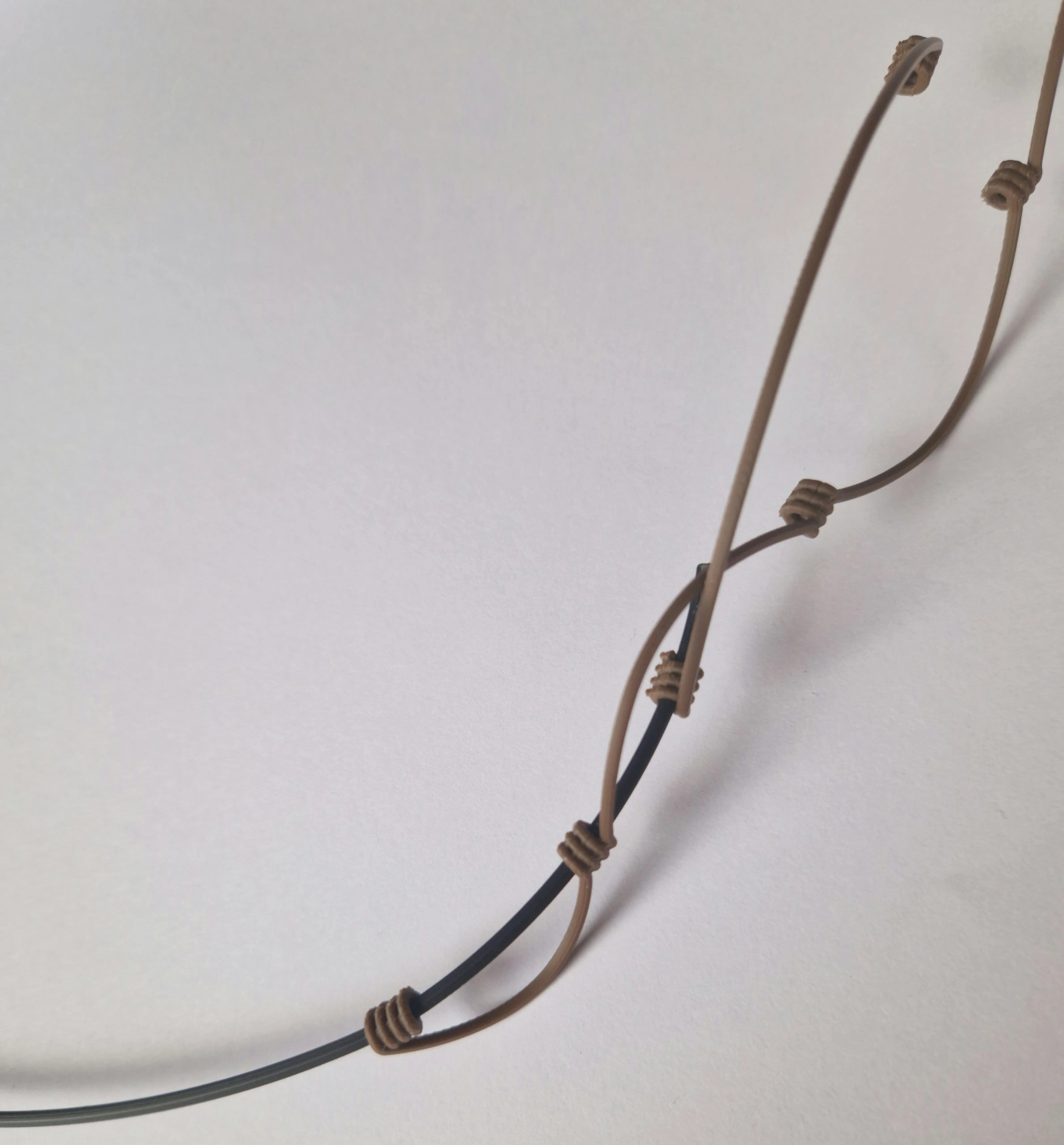

•  5: The long wavy piece is pushed onto the main part so that the small arch points downwards. The first two nodes of the wavy piece are pushed on. Make sure the nodes protrude inwards – see image.

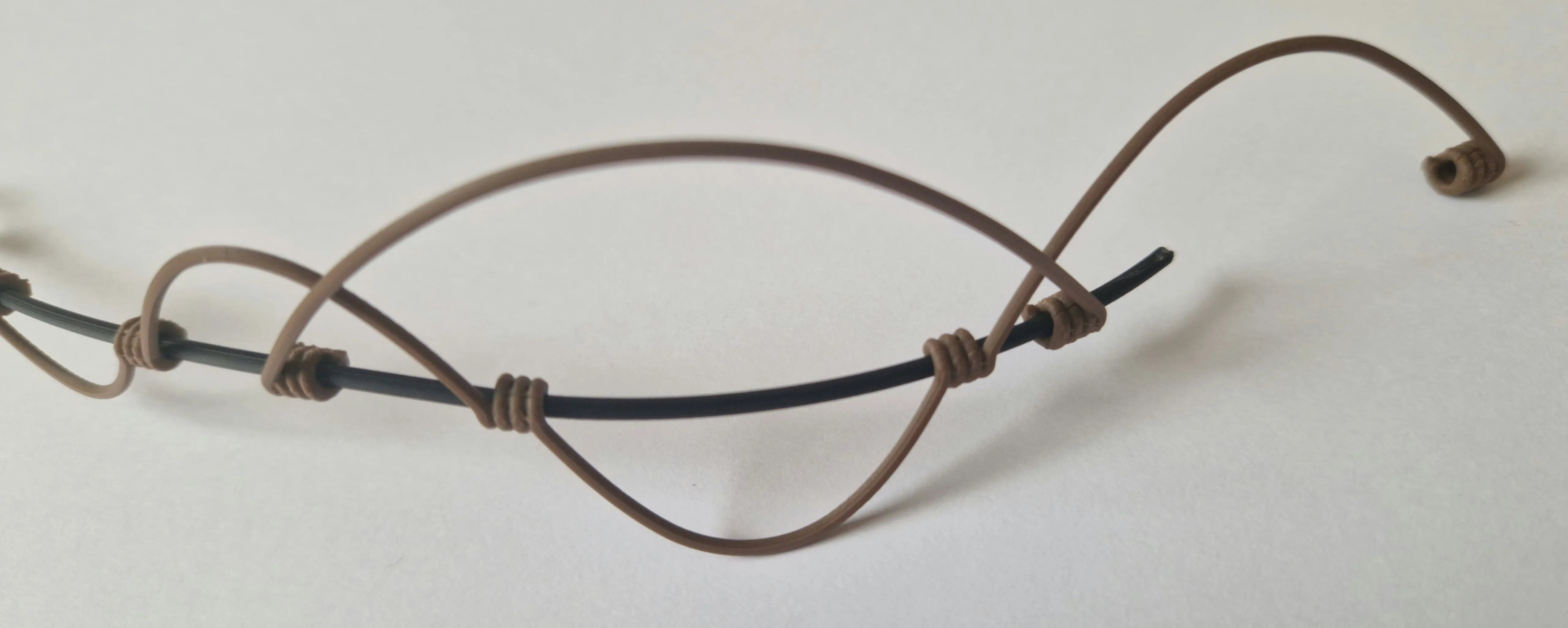

• 6: Before sliding the long piece further, the single short arch is slid on at the front. Make sure it is in the foreground.

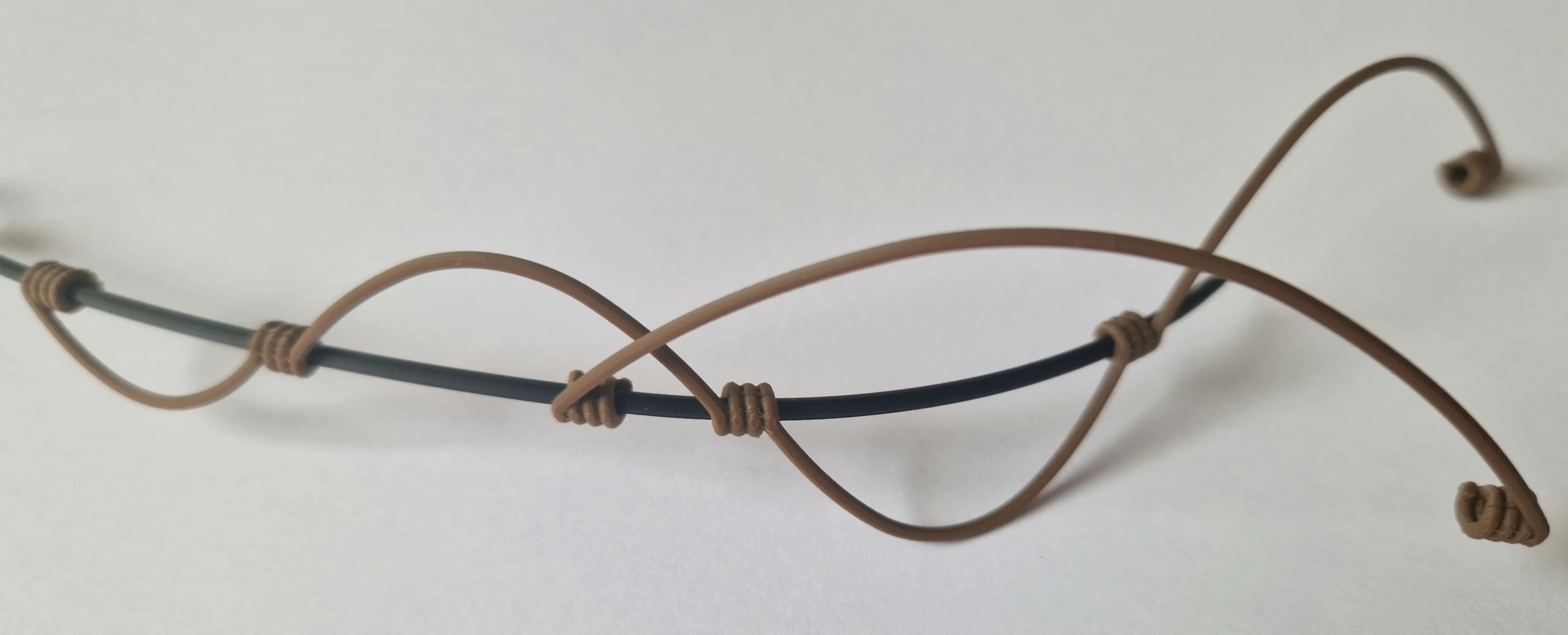

• 7: Now push on the next two nodes of the long piece.

•  8: Push on the second node of the single arch – again, make sure it is at the front.

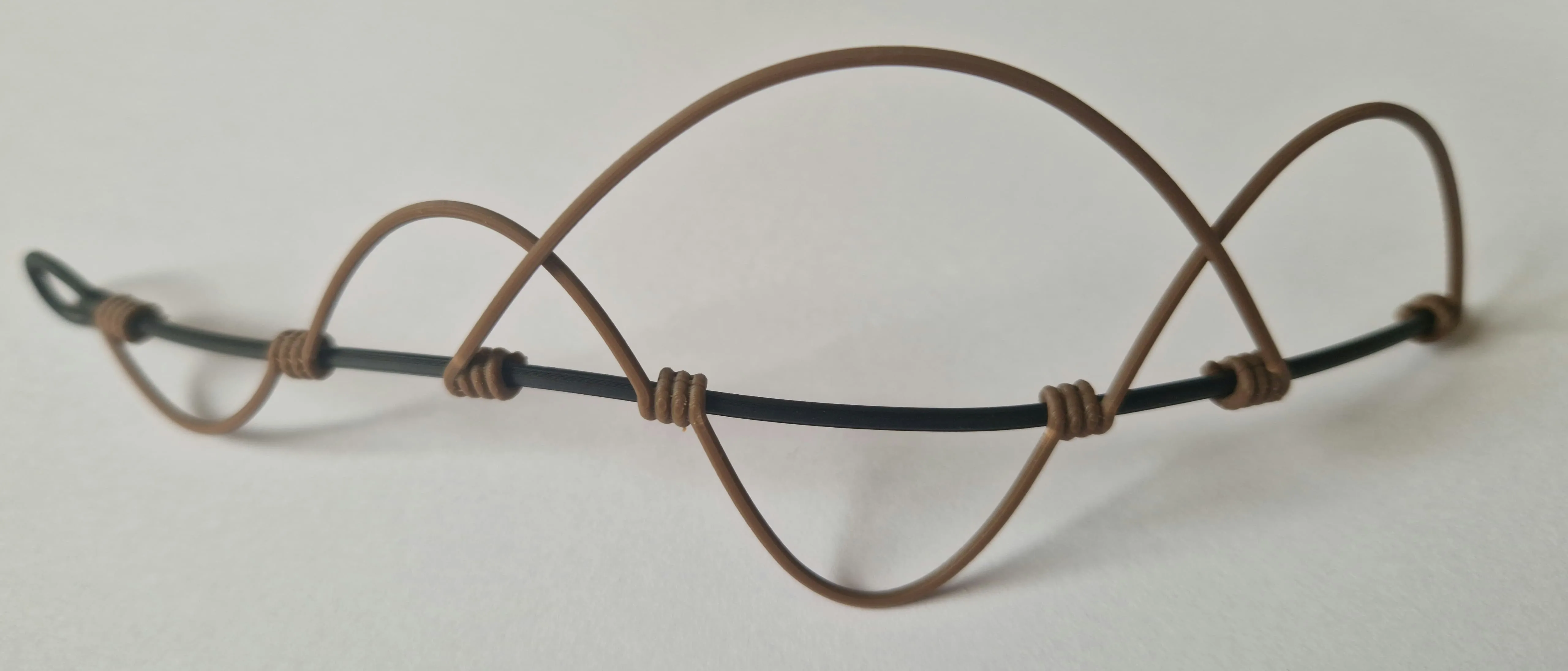

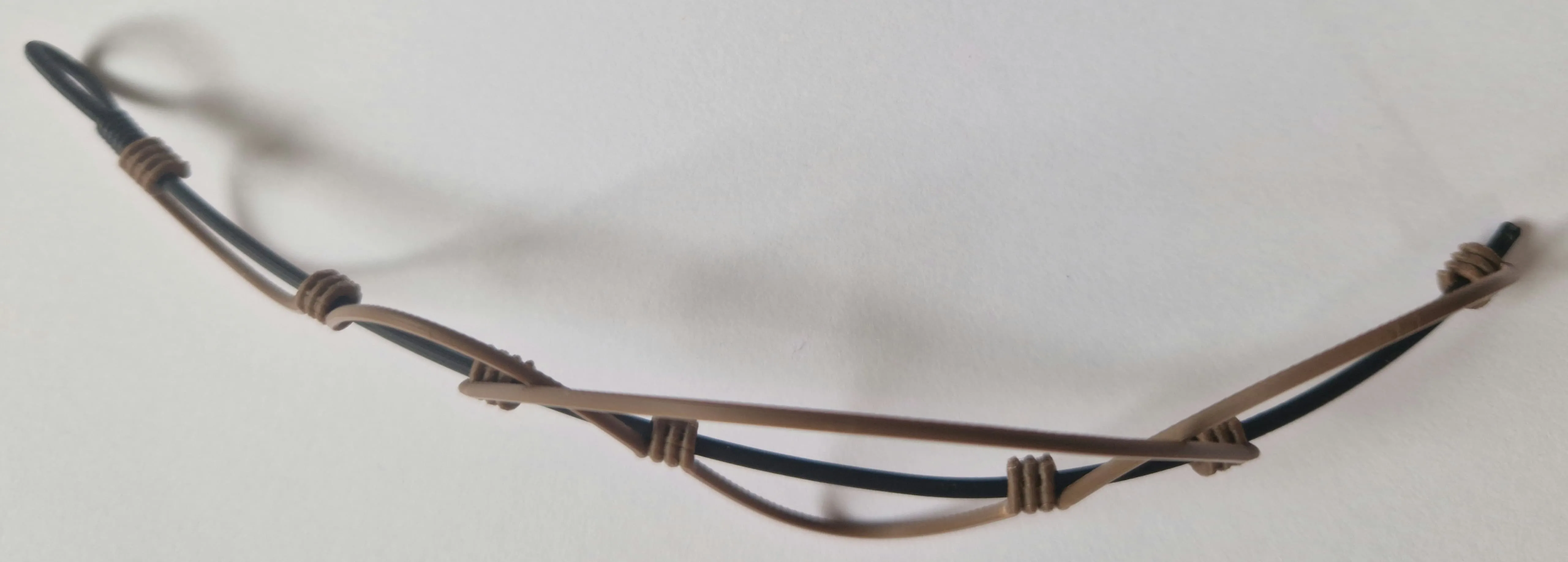

• 9: Now push on the last node of the long piece. Ensure everything is seated well and the parts are evenly distributed. The order in this guide is a recommendation – you can adjust it as desired.

Repeat this process mirrored for the other side.

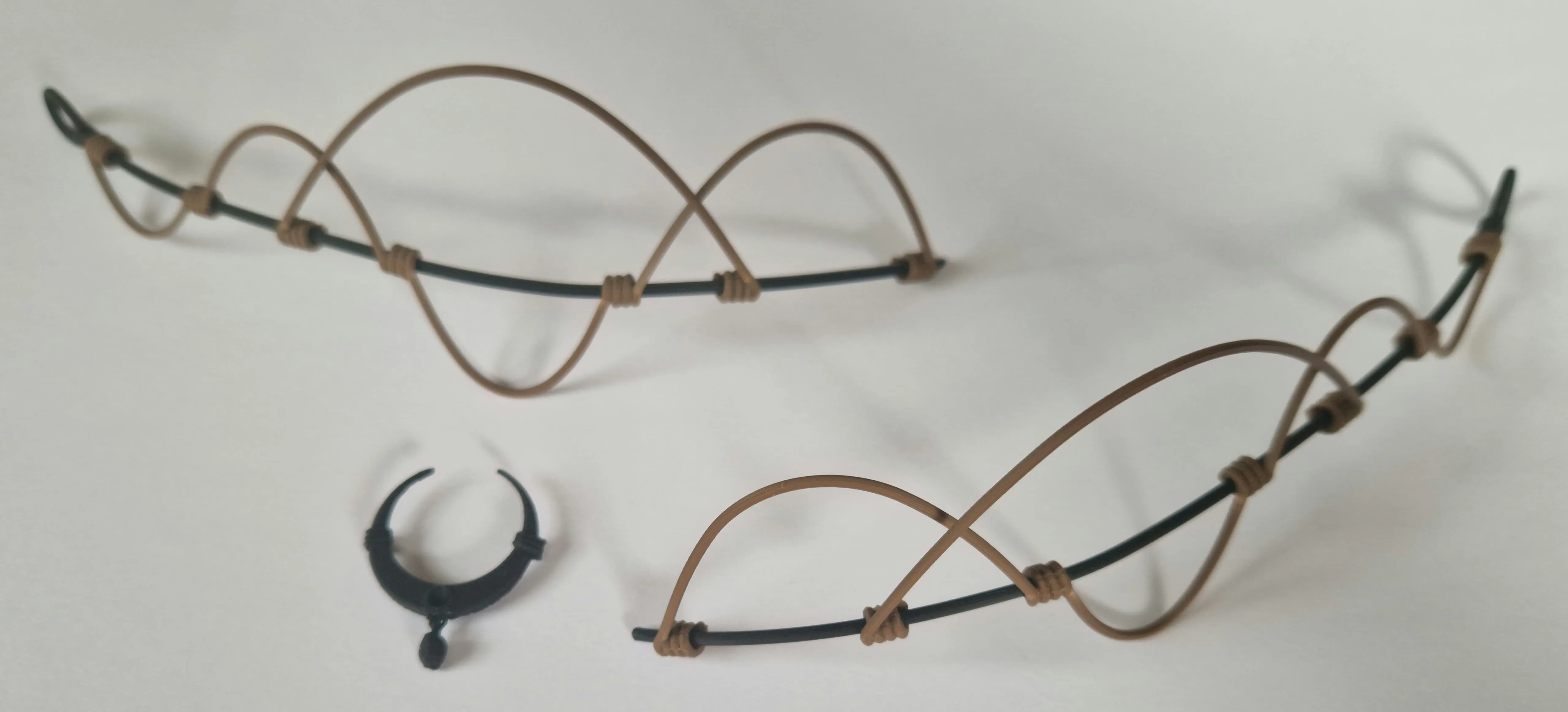

• 10: Prepare both sides and the moon piece of your choice.

Fine adjustment: Before attaching the leaves, the arches must be moved into the desired final position, as this will no longer be possible after gluing.

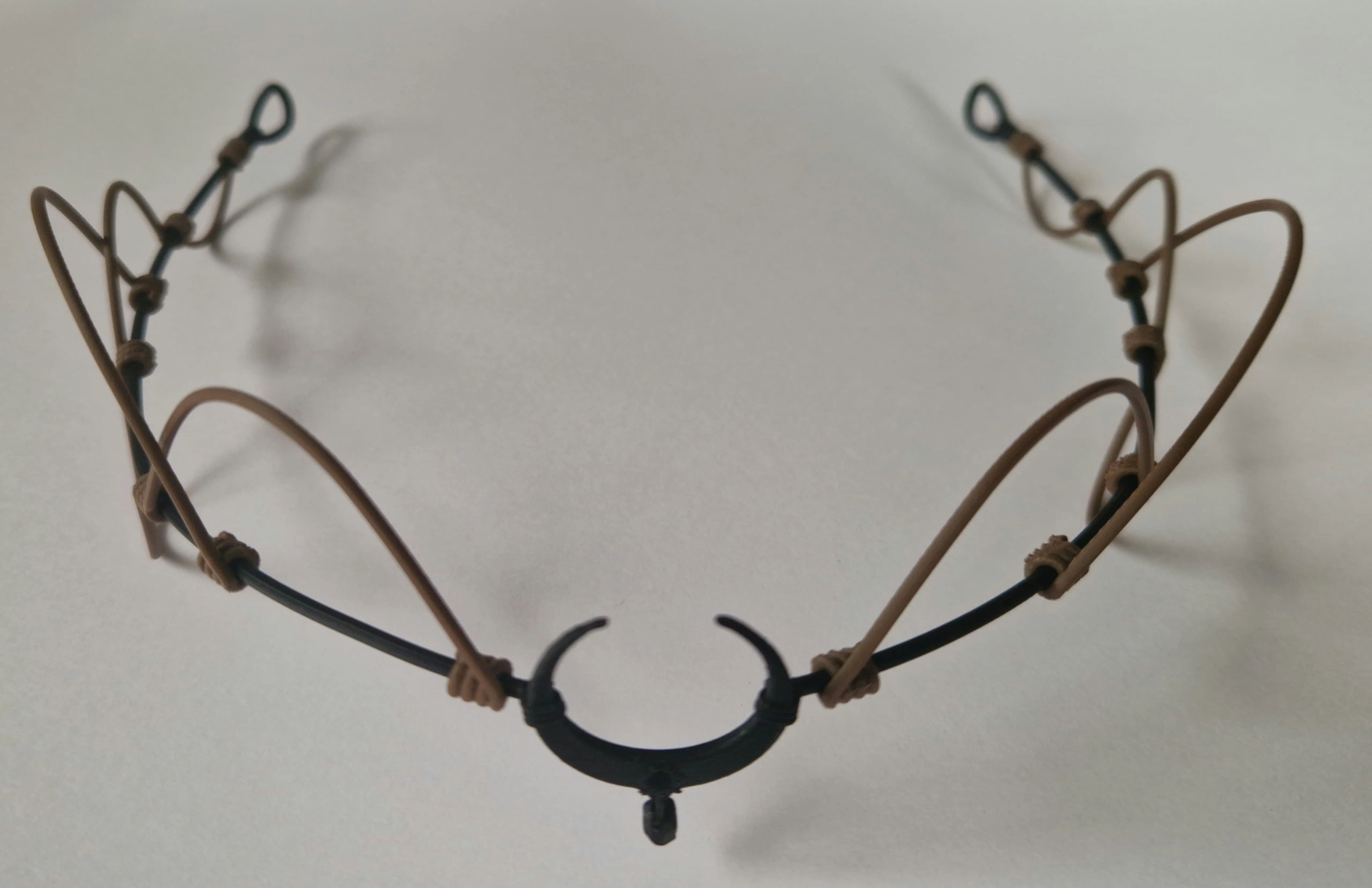

• 11: Carefully insert both sides into the designated holes in the moon part – a slight twisting motion can help.

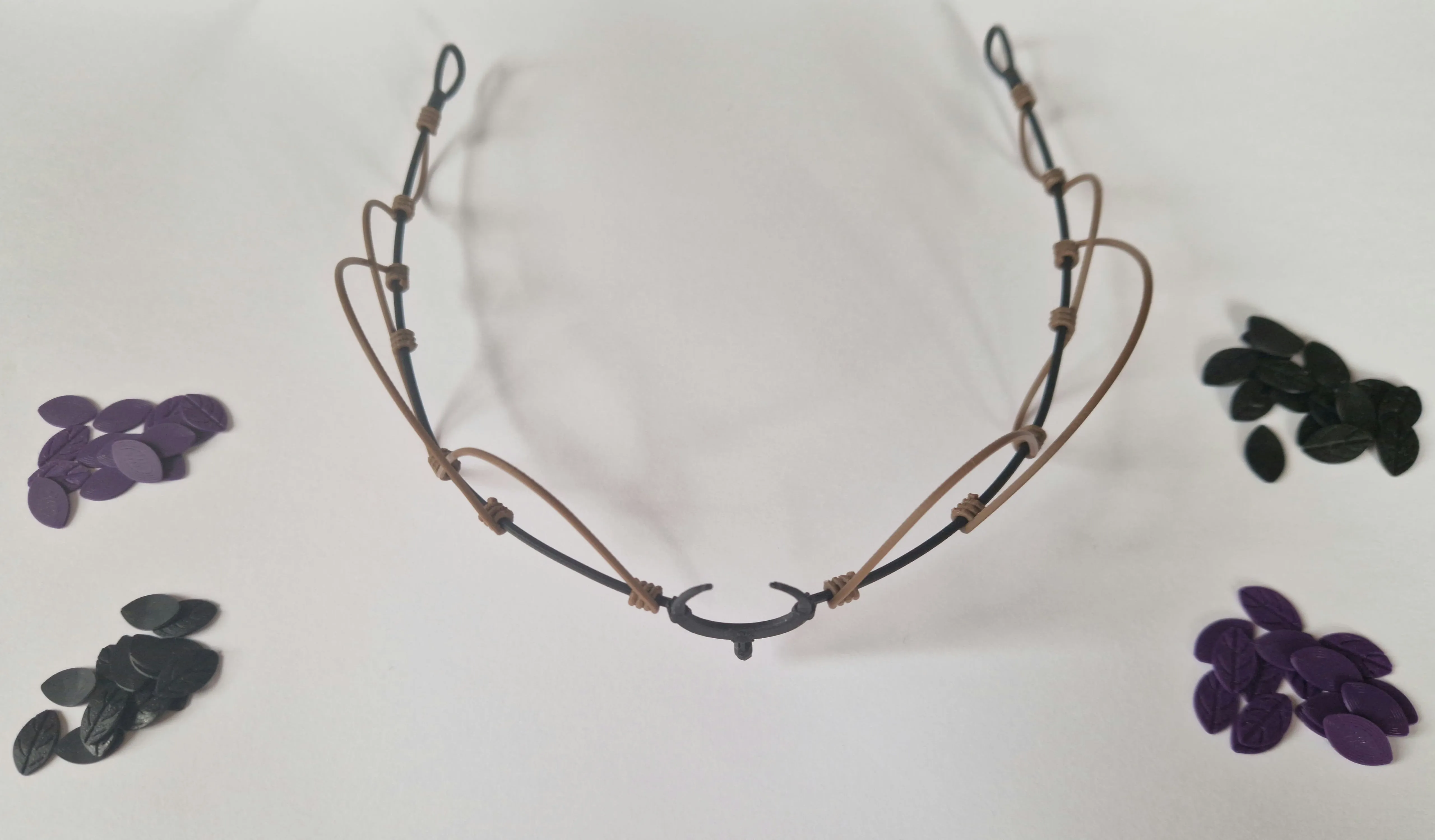

• 12: Now the leaves come into play.

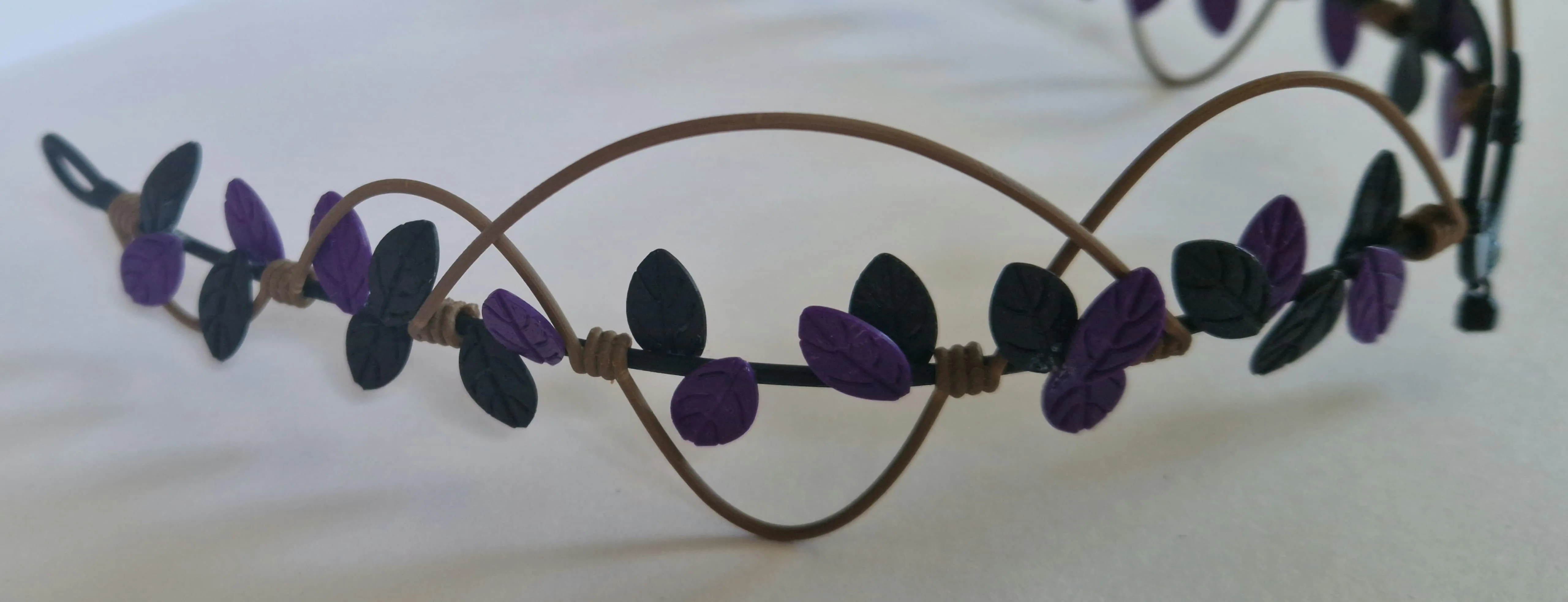

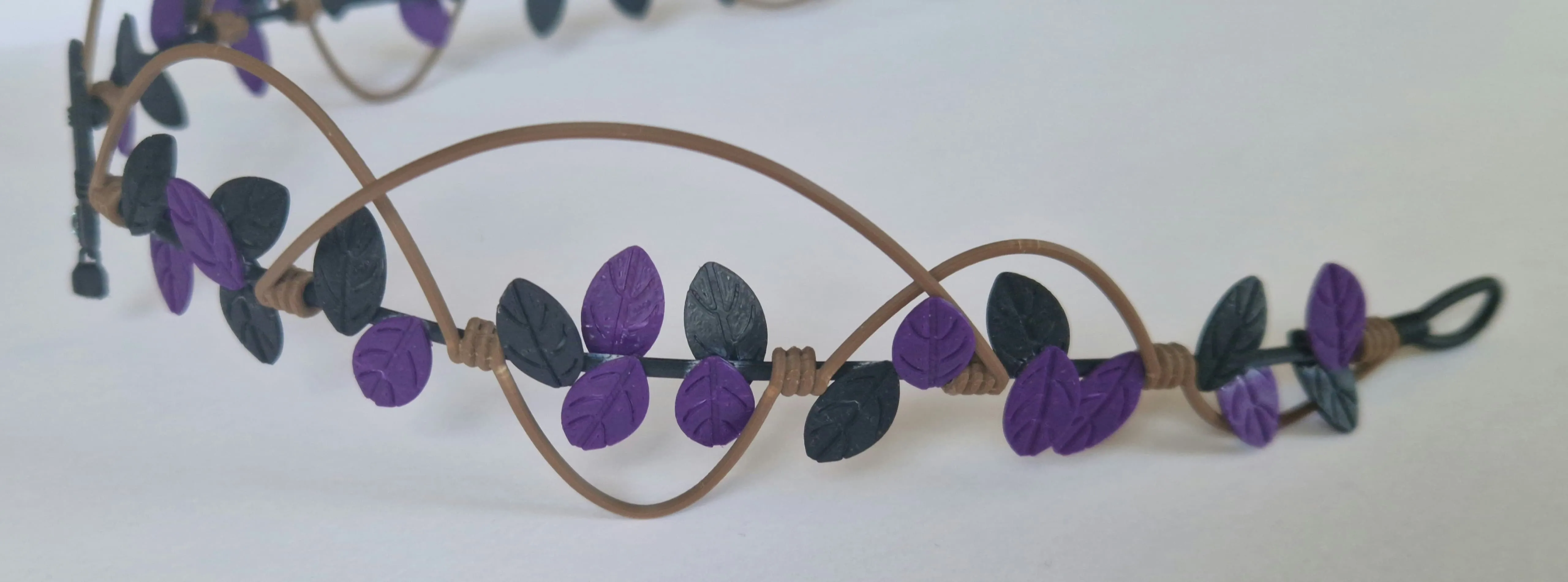

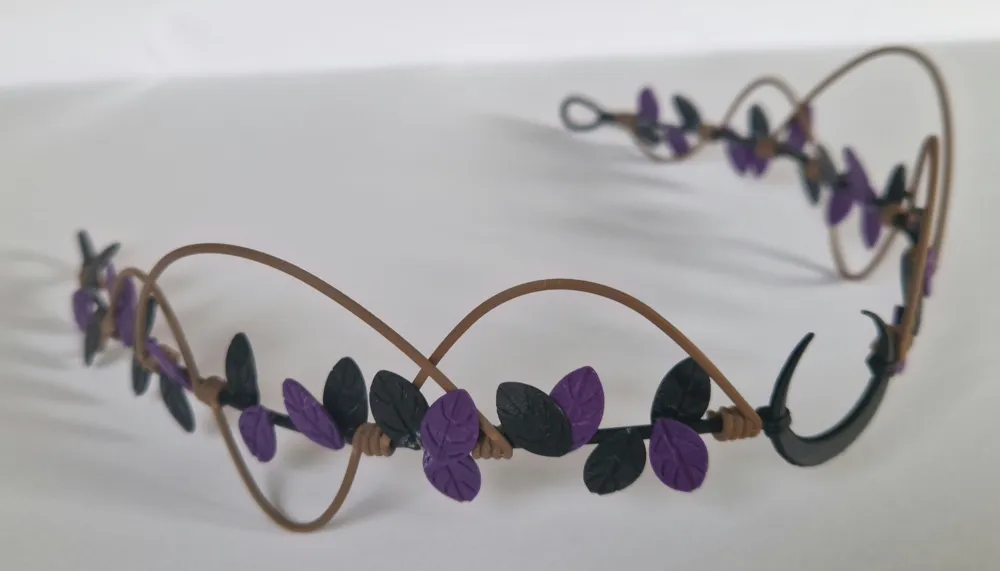

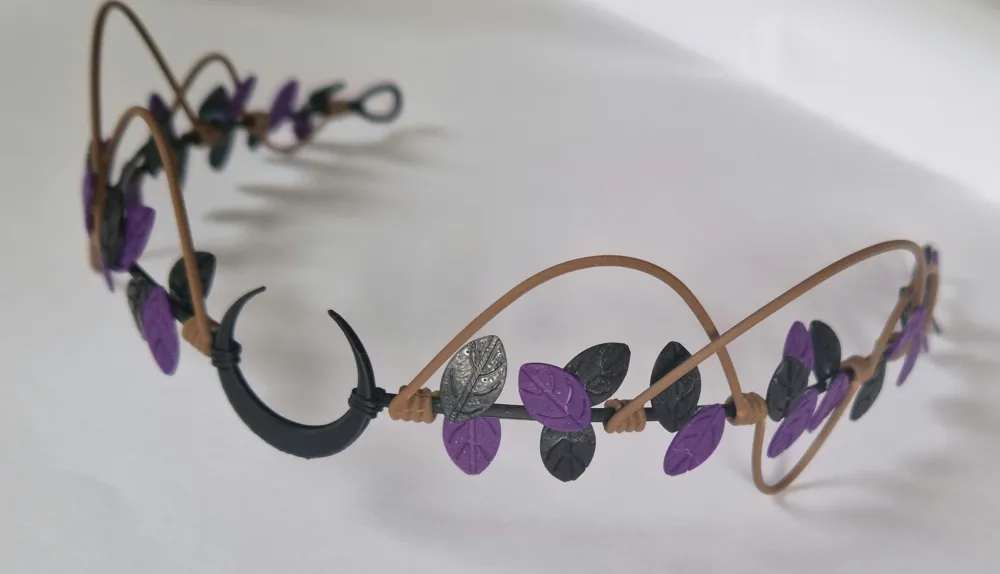

• 13: Gluing the leaves: These can be glued to the main part according to your taste. For inspiration, you can refer to the example shown – I made sure the leaves were attached alternately and look like small branches. I had a few leaves left over.



•

• Gluing (optional): Once the crown is assembled in the desired shape, it can be glued for stabilization (e.g. with superglue). In my case, the connections hold well even without glue.

I have added the colors used below.

If you like the tiara, I would appreciate

a Like and a comment.

It is best to include a picture of your work so others can see your color variation.
