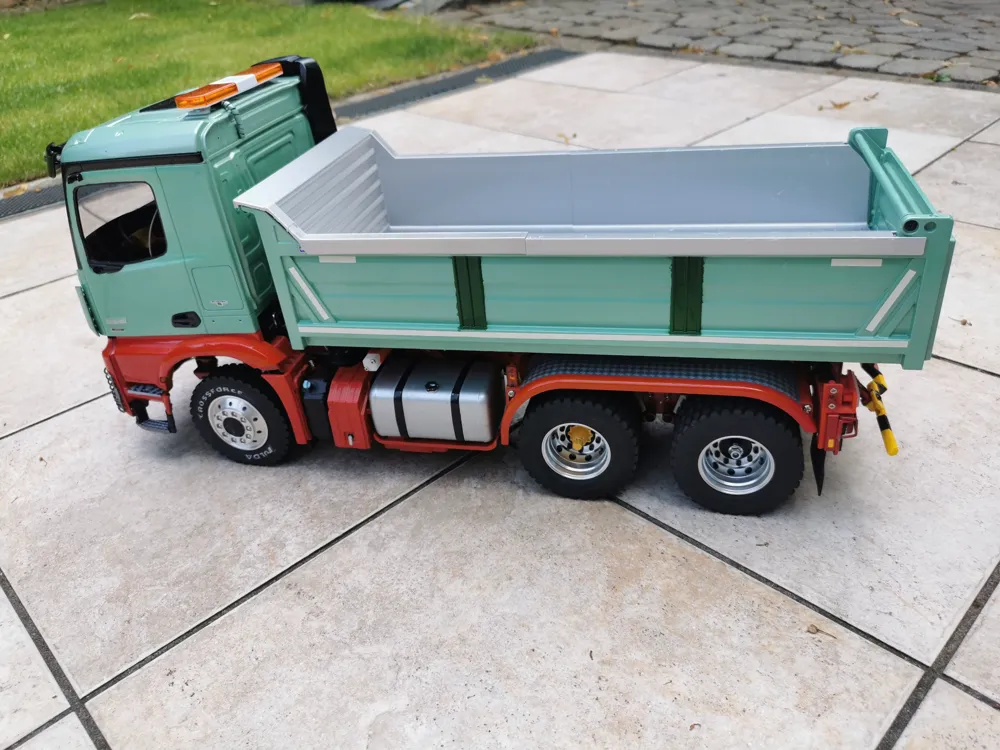

Tamiya Arocs Tipper Box Liner

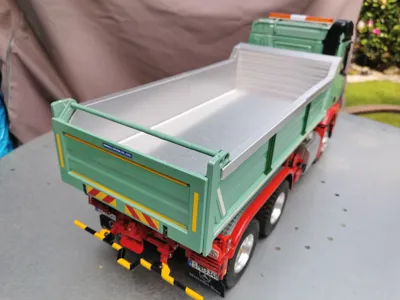

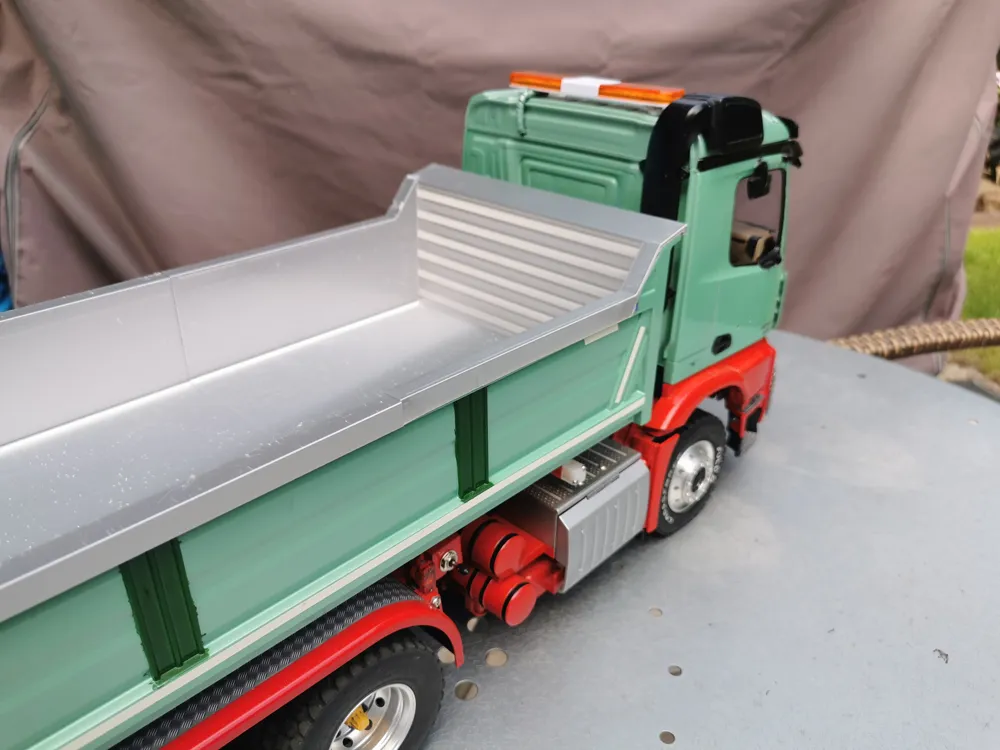

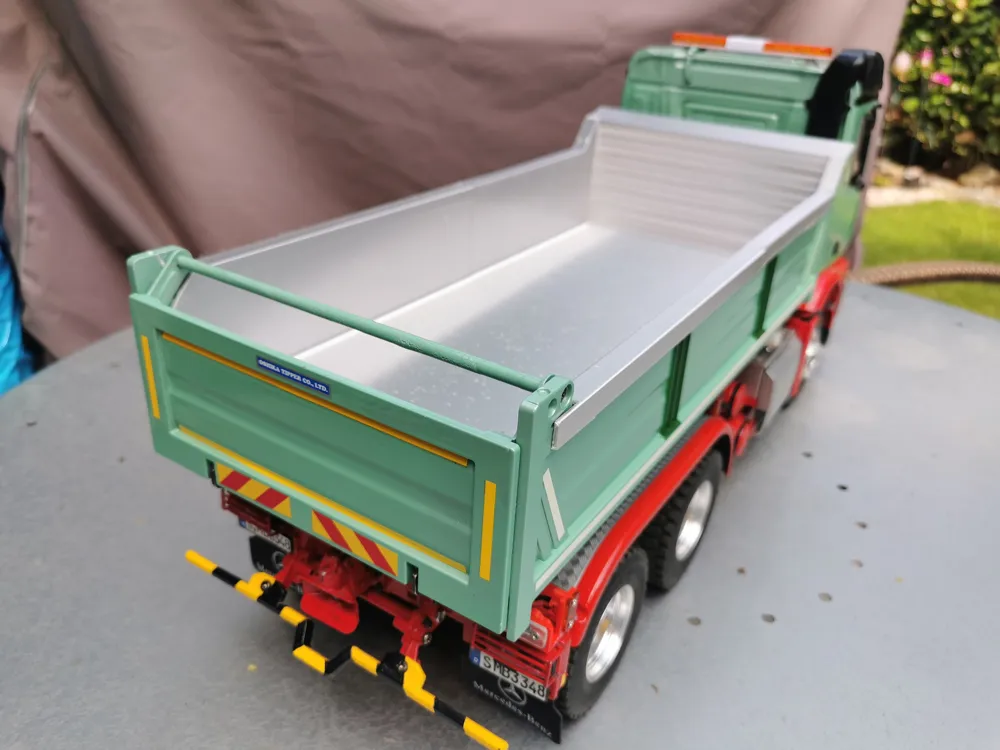

The tipper box "liner" is intended to protect the original Tamiya model plastic from the continual use and wear to the supplied plastic box. Having spent the time and patience to build a fine functional model it offers some protection to the supplied box.

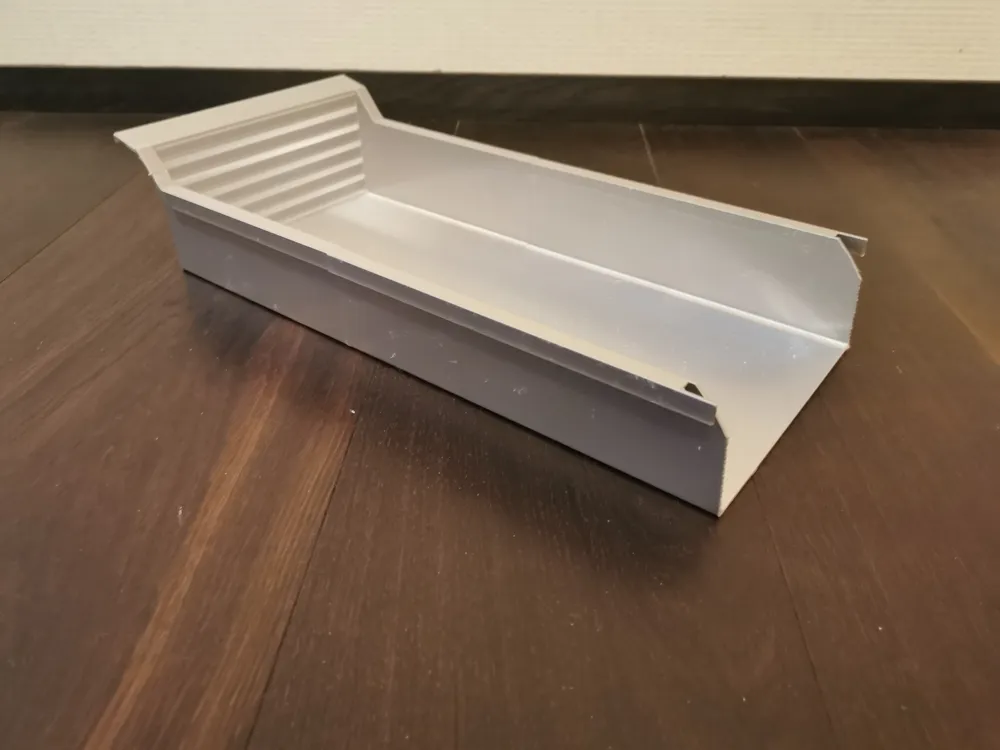

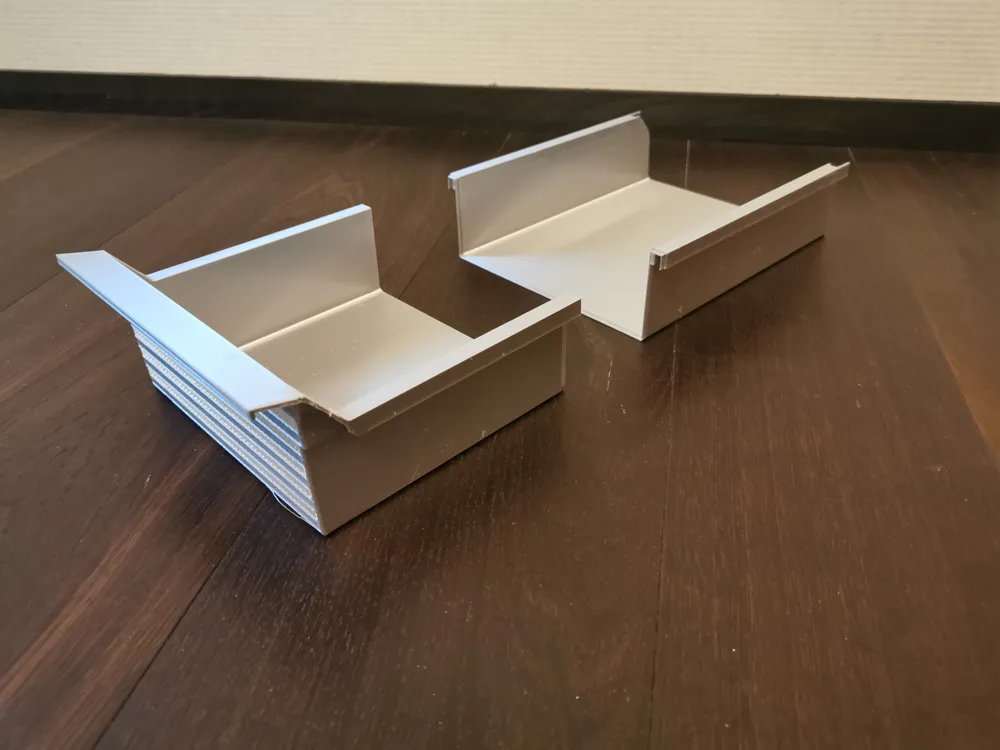

The liner is designed in 2 section in order to fi the print bed and easily fit the model.
Printed vertically the design fits my 220 x 220 bed and the length (height) fits within the 270 mm vert height.
the front section is printed vertically using supports below the front of the box with a skirt.

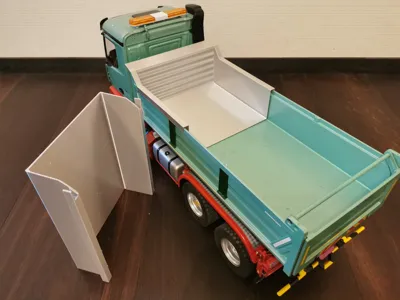

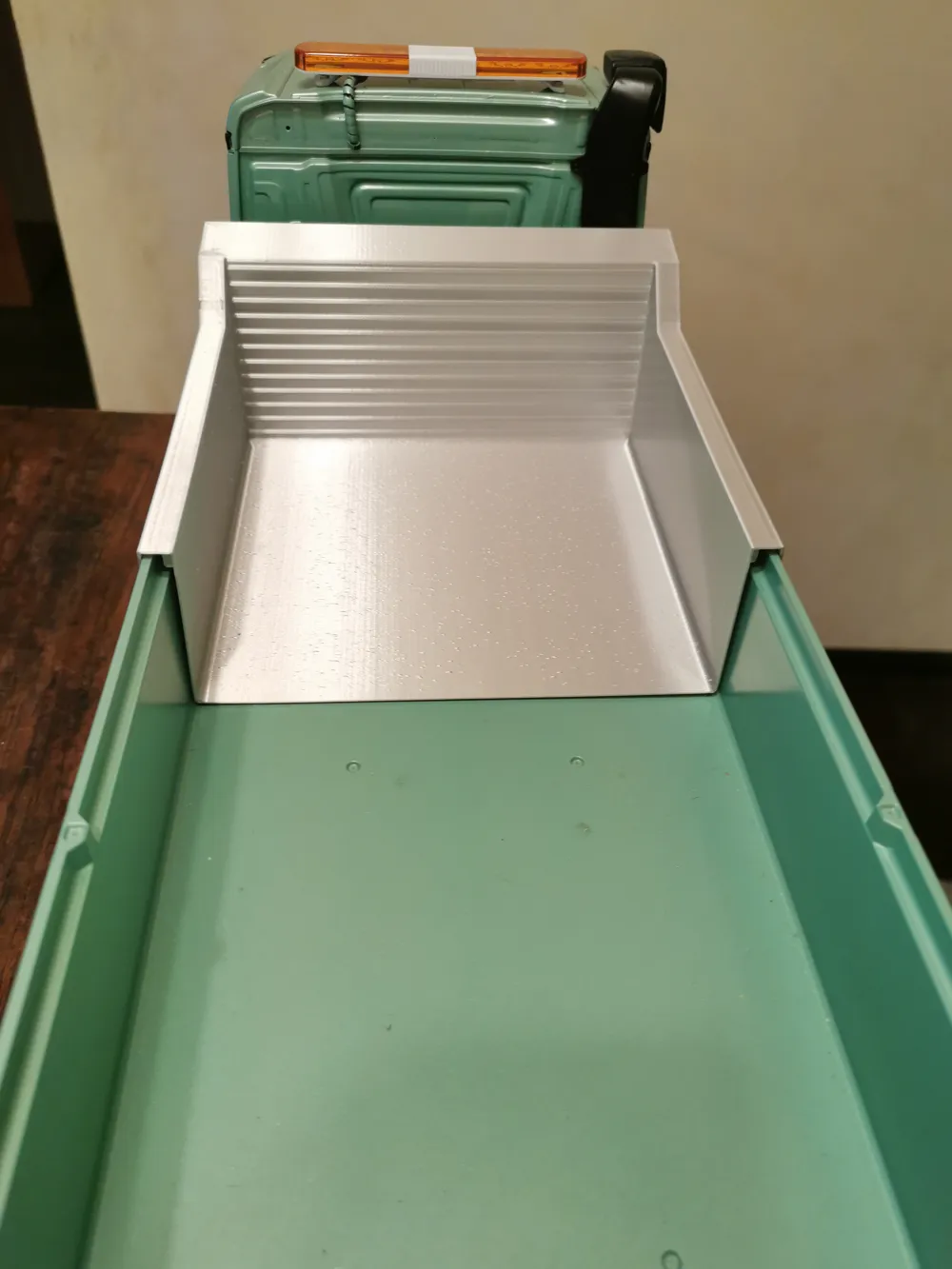

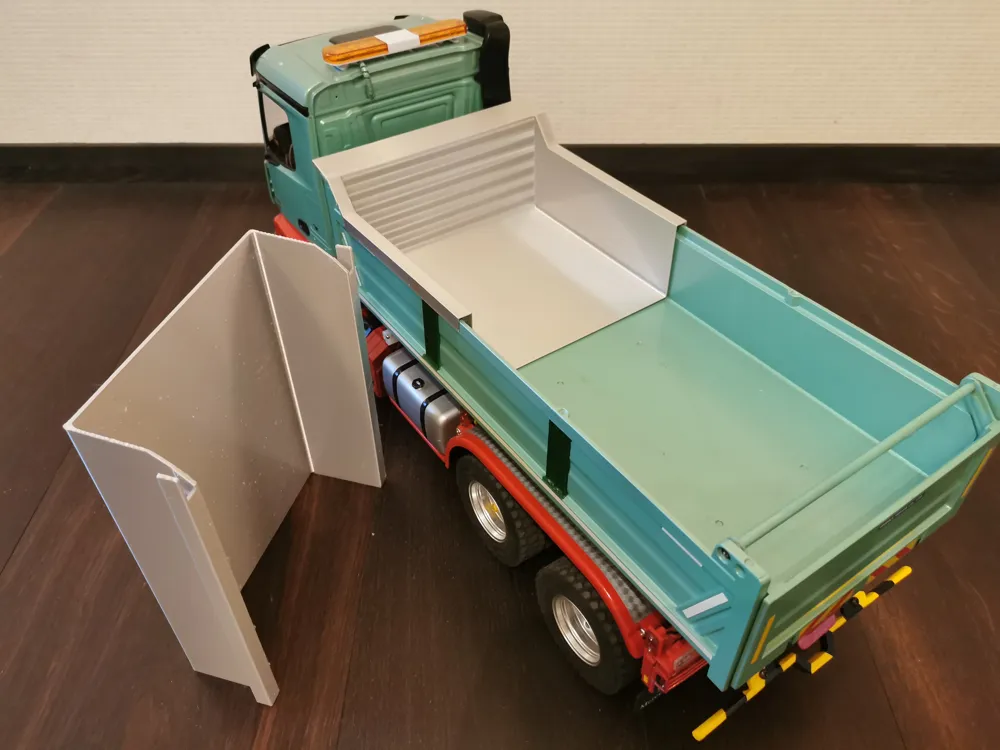

The front section overlaps the rear section to make a continuous box.

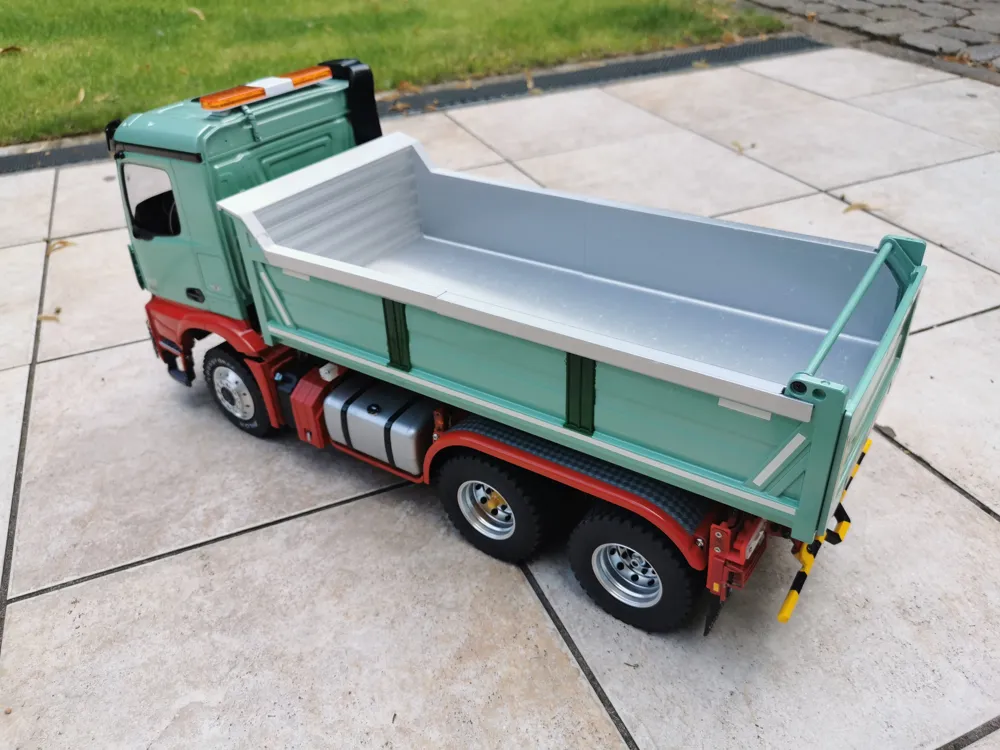

The rear section also printed vertically with the rear sitting on the bed using support and a brim. This allows the middle joint section to be printed fully and correctly enabling a good fit together in the truck, appears to be one continuous box when joined.

Printed on my Ender 3 S1 Pro using e-Sun PLA, using generic settings, nozz temp 200, bed temp 60.

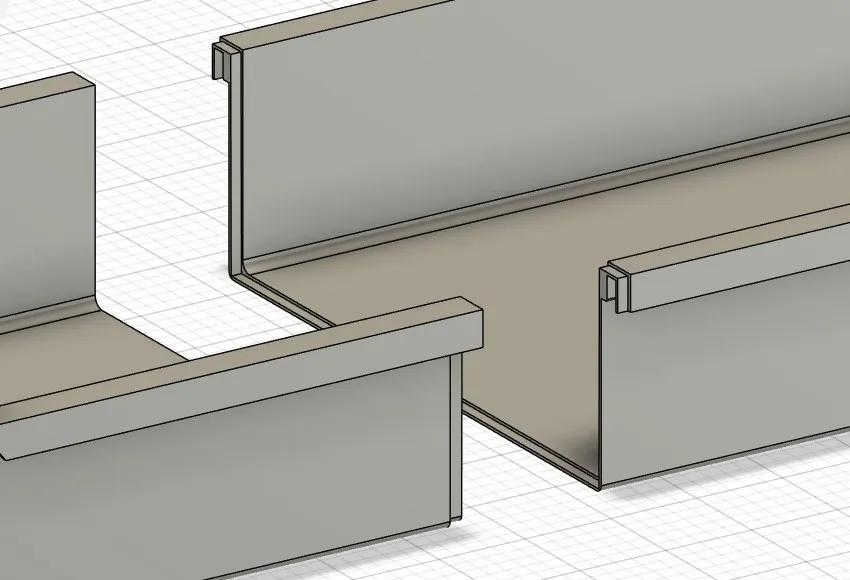

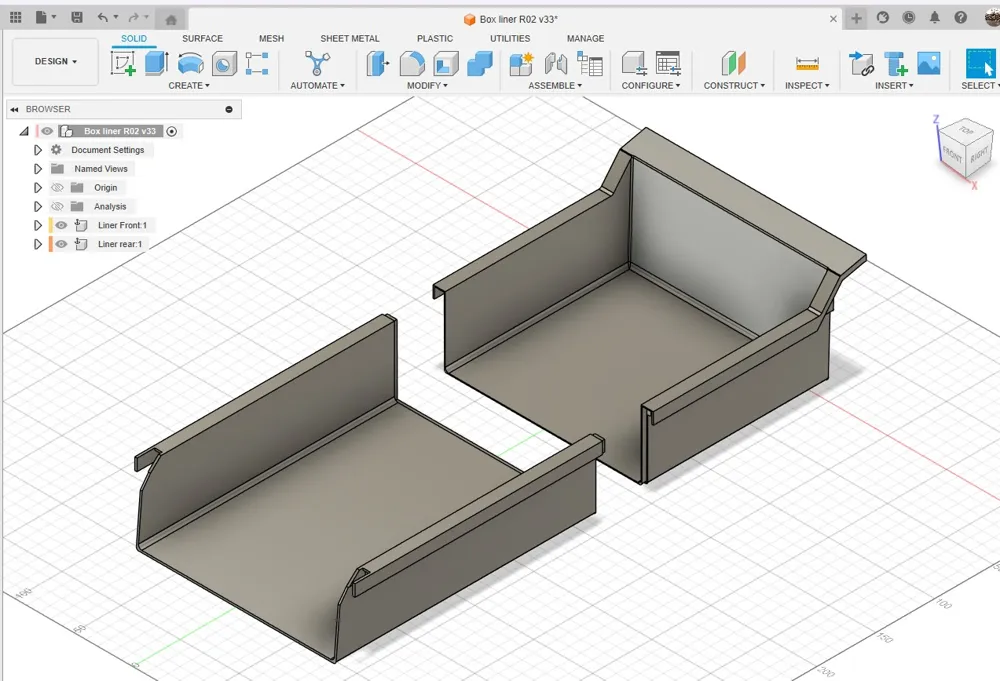

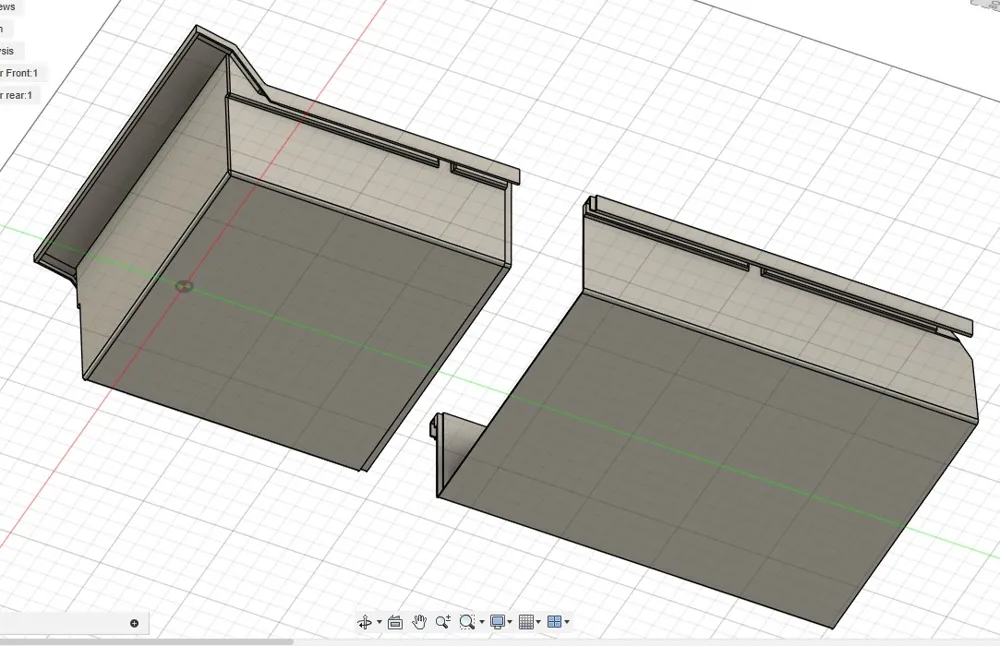

Designed with Autodesk Fusion
