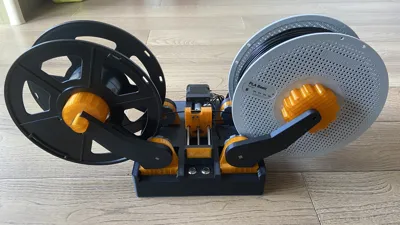

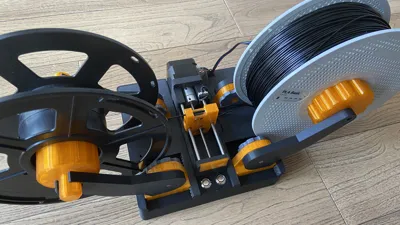

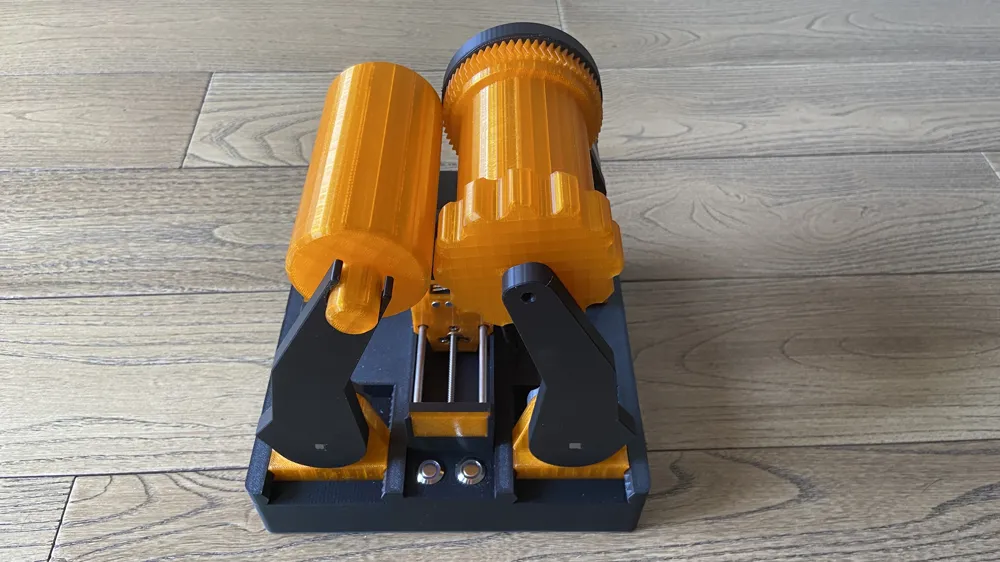

3D printed multifunctional winding machine

Winding Machine 2.0 is out — fully upgraded

Axes upgrade: From 2-axis to 3-axis for finer path control and higher winding precision.

Drive upgrade: Switched from stepper to encoder motor, solving long-run overheating while cutting power consumption and boosting torque and speed.

New mode: In addition to wire break detection and wind by turns, now supports wind by length.

Electronics: Faster MCU with a custom PCB. No soldering—plug-and-play assembly.

Remote updates: OTA firmware upgrade supported—no more flashing headaches.

Same footprint, larger travel: Overall size unchanged, but effective travel is increased.

See more details for the full spec and demos.

New page:

➡ : link
https://makerworld.com/zh/models/1871728-multifunctional-winding-machine-2-0-stronger#profileId-2003495

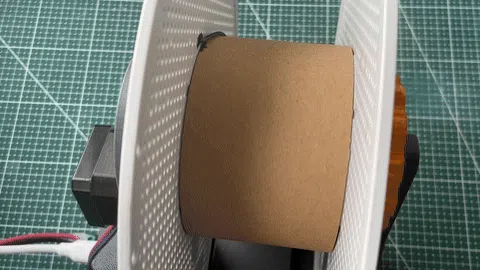

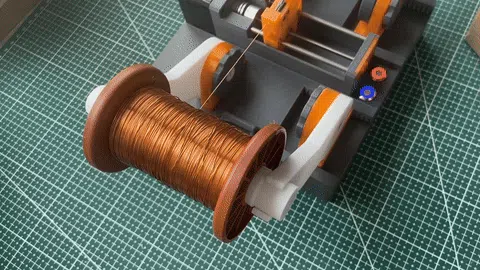

Winding Example：

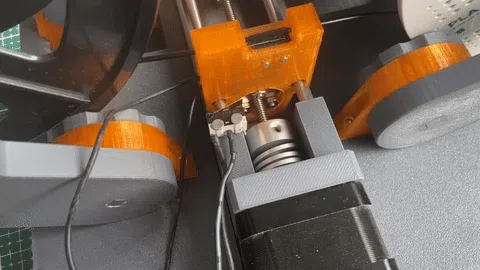

Back to zero

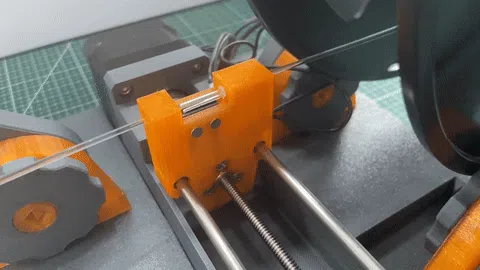

Disconnection detection:

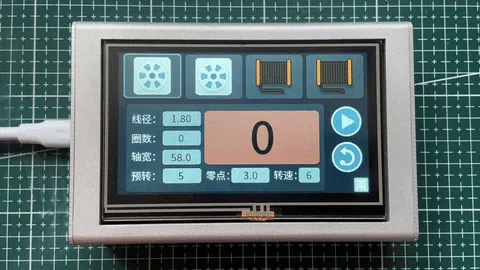

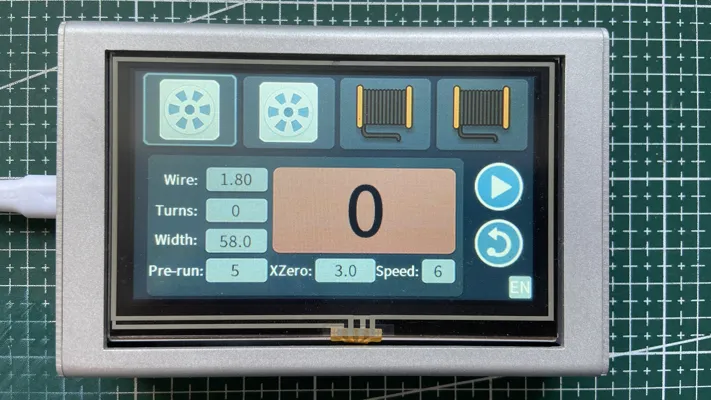

Multi-language options

Winding machine parts kit assembly process

Arduino Burning Tutorial

Touch screen firmware burning .

Touch screen installation

Circuit board wiring.

Stepper motor four-way frequency setting .

Added step-down module to CNC Shield V4.

Fan Installation

Motor torque adjustment

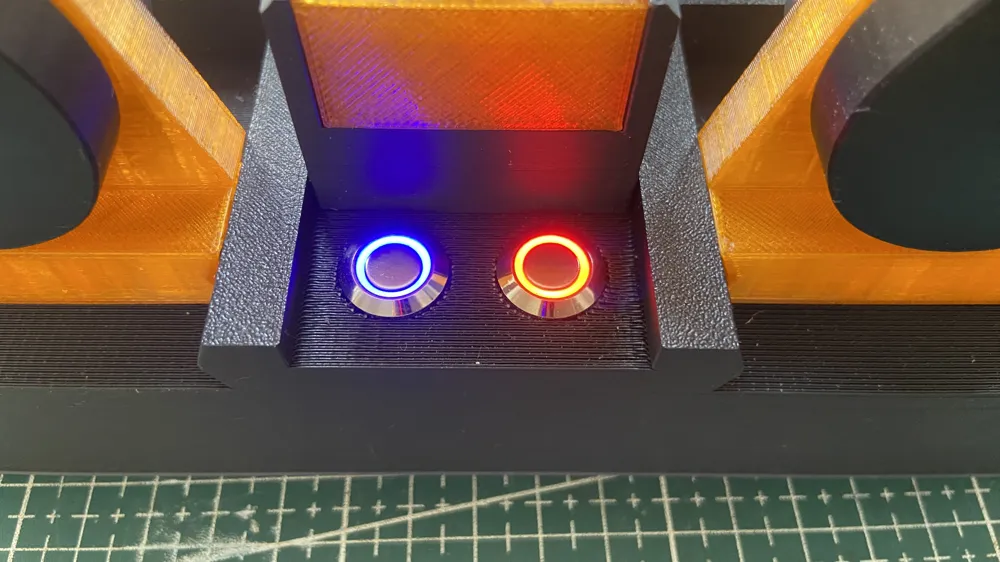

Switch production

Travel switch production

USB to Arduino serial cable

xh2 54 to type c

==============================================================================================================

2025.6.7 Upgrades

3D Model Upgrades

1. Add fan-base model
   – Provides a mounting point for an external fan to add active cooling.
2. New panel interface 2.0
   – Redesigned to fit a more common USB-A female port.
3. Reinforced slider model
   – Strengthened the shaft–hole region for greater durability.

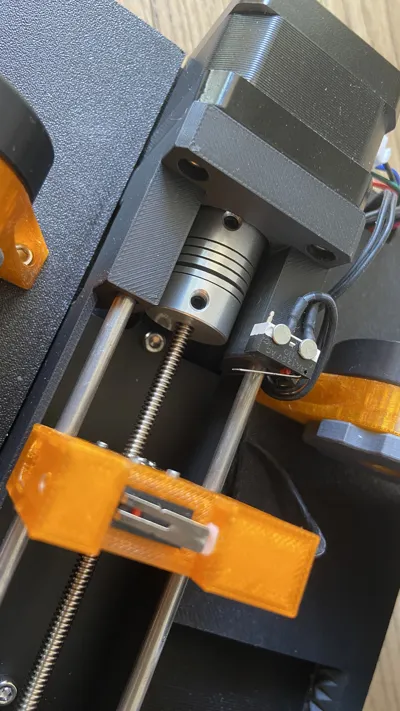

4. Refined linear-rail model
   – Added extra clearance around the stepper motor for heat dissipation, and corrected the mounting-hole dimensions for easier installation.
5. Expanded base model
   – Reserved more internal space to simplify cable routing.
6. Upgraded main filament-spool axle
   – Redesigned so the rotating spindle no longer rubs against the swing arm.
7. Improved four swing arms
   – Increased the cooling gap around the stepper motor and adjusted the minimum swing angle so that, at its lowest position, the filament never contacts the base.

All of these upgraded models remain fully compatible with the previous parts—these are pure design optimizations. We especially recommend installing items 6 and 7 (located in plate 2 and plate 3).

Hardware & Software Upgrades

1. Added fan cooling to improve driver-board thermal stability.
2. X-axis motor drive switched to quarter-step mode, significantly reducing noise.
3. Turn-count now reports the Y-axis rotations after gearing, rather than raw stepper steps.
4. Fixed display-screen bugs for smoother operation.
5. Unified module-test code: every button press now produces a double-flash solely to verify functionality, regardless of where it’s connected.

Note (v1.1): The new Arduino firmware drives the X-axis in quarter-step mode and is incompatible with the previous wiring. To upgrade to v1.1, you must add a single jumper wire on the driver PCB—this is required to achieve the intended noise reduction.

Arduino and LCD screen program download address:
https://github.com/shanhujiao1985/Arduino-e-module-learning/tree/main/WindingMachine

Below is the accessories purchase list
