Capacitor Discharge Tool
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
6
18
2
1
25
4
Released
Description
Content has been automatically translated.

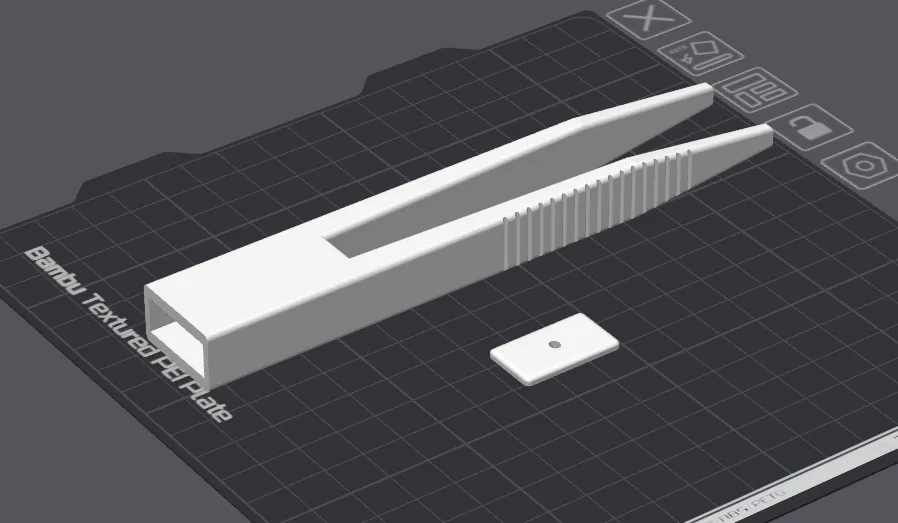

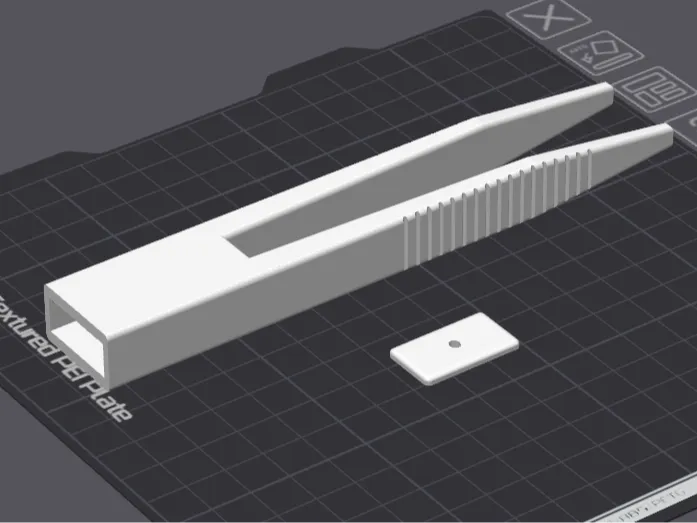

Simple tool for Discharging Capacitors up to 600V
Apologies if it's not perfect, as this is my first FreeCAD design
You can assemble it using only a 2W or higher resistor if necessary.

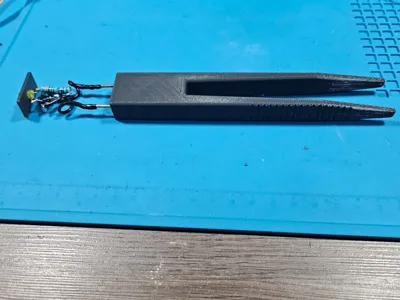

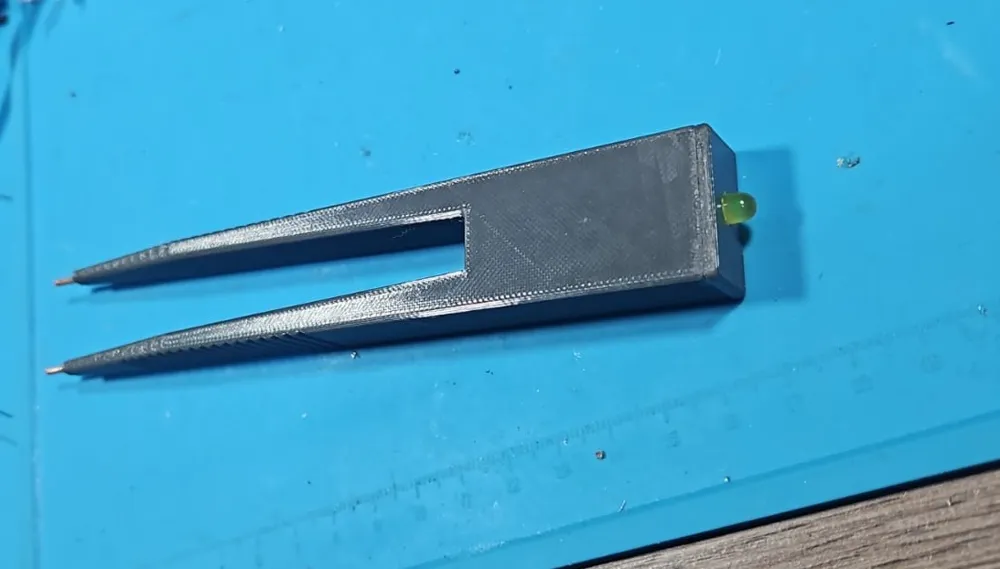

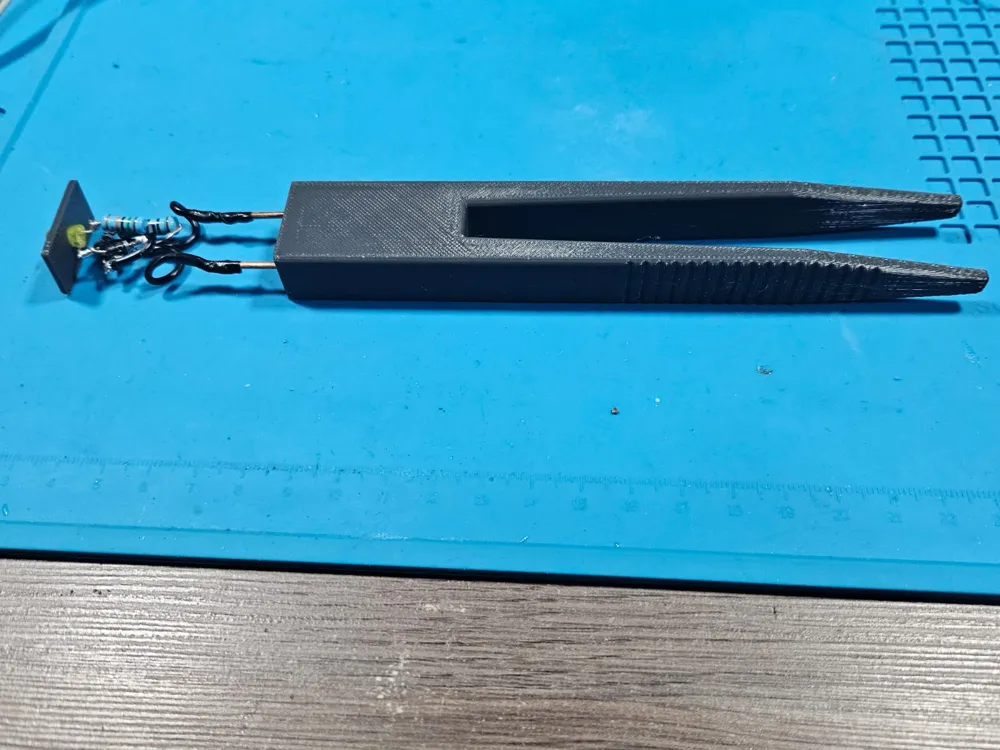

Alternatively, you can create a simple parallel circuit to illuminate an LED while a charge is present, as I did.
In parallel with the discharge resistor, place a diode bridge; at the bridge's output, connect a 200 or 300k (2W) resistor, and then the LED (observe LED polarity).
