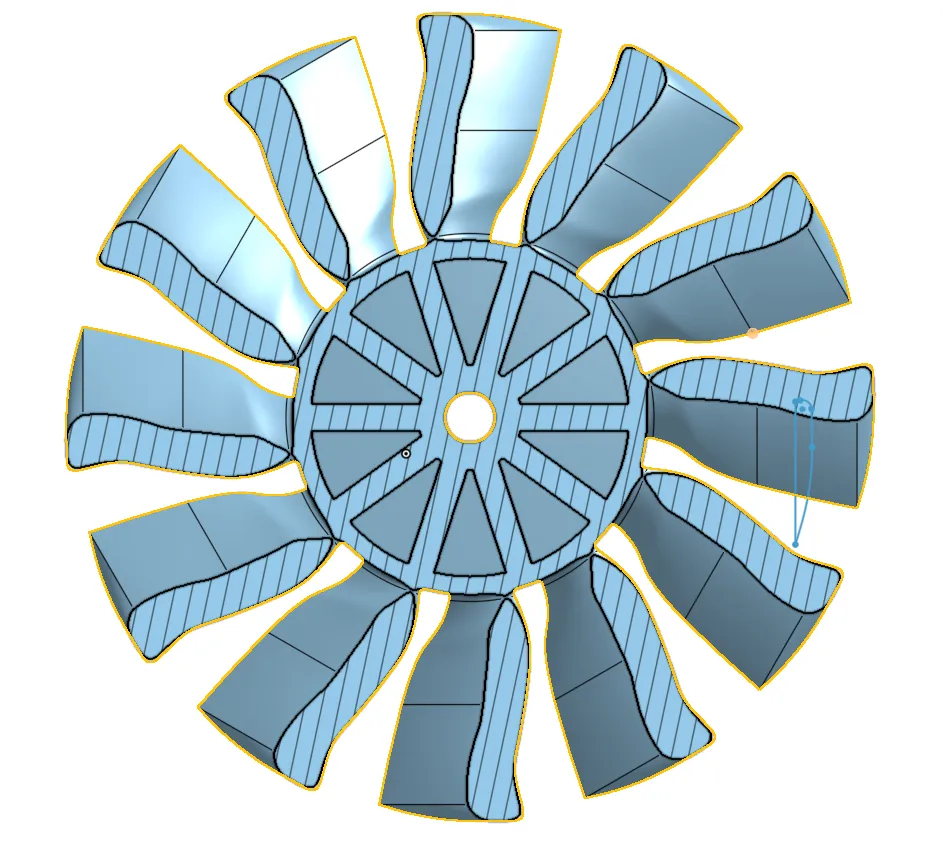

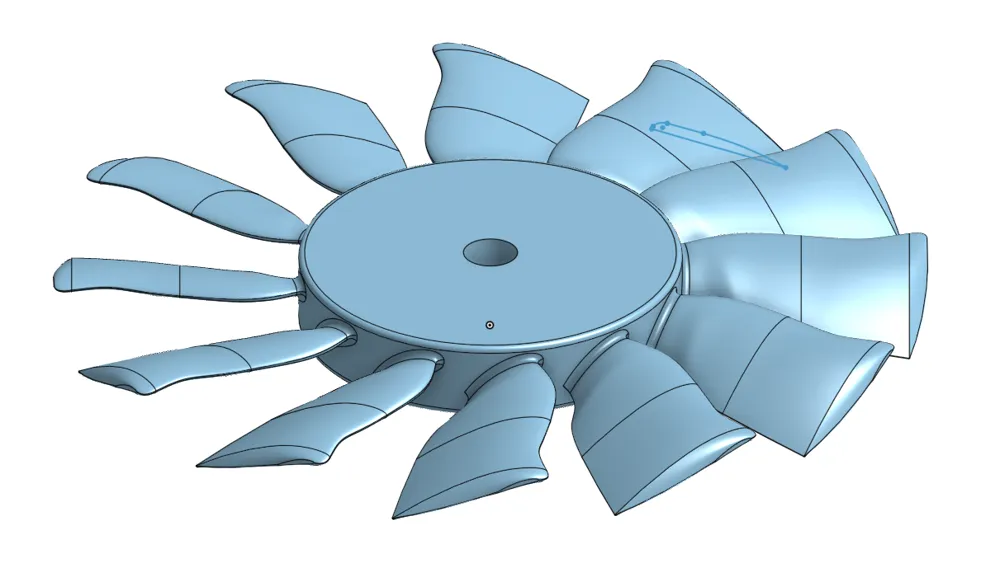

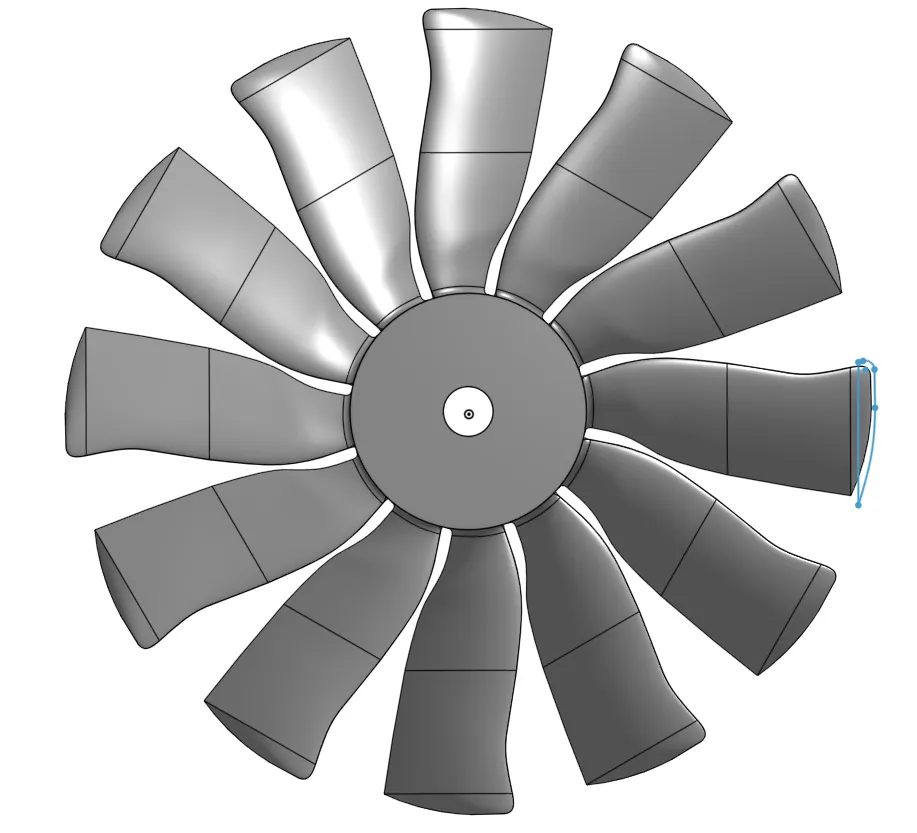

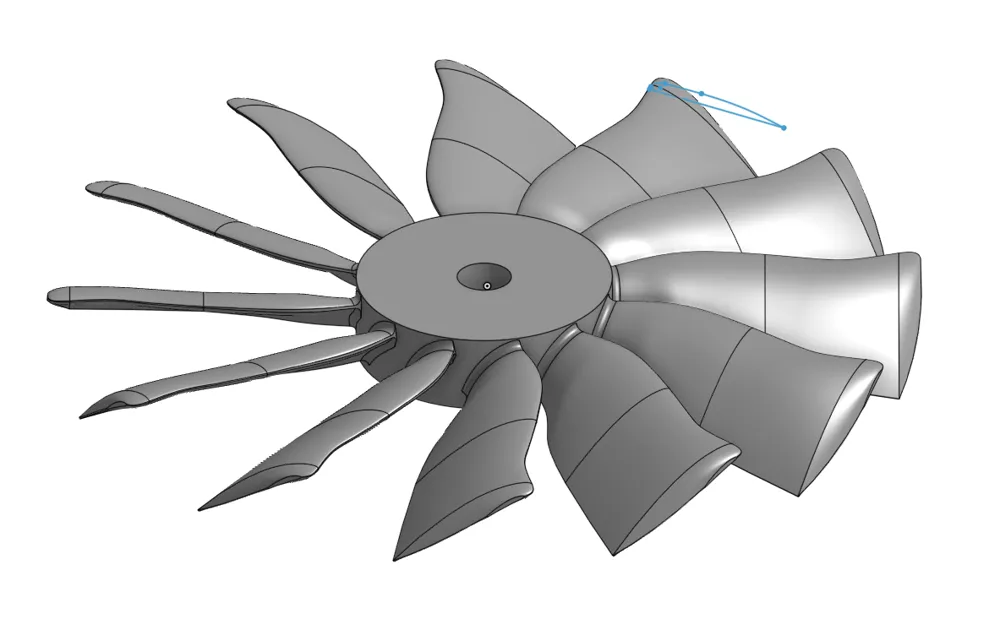

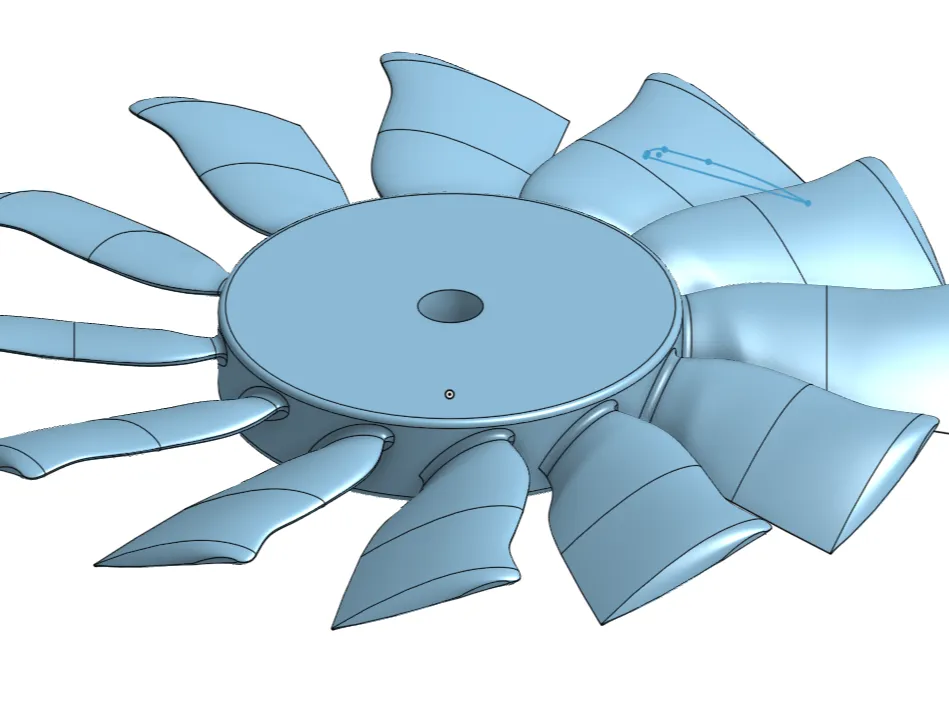

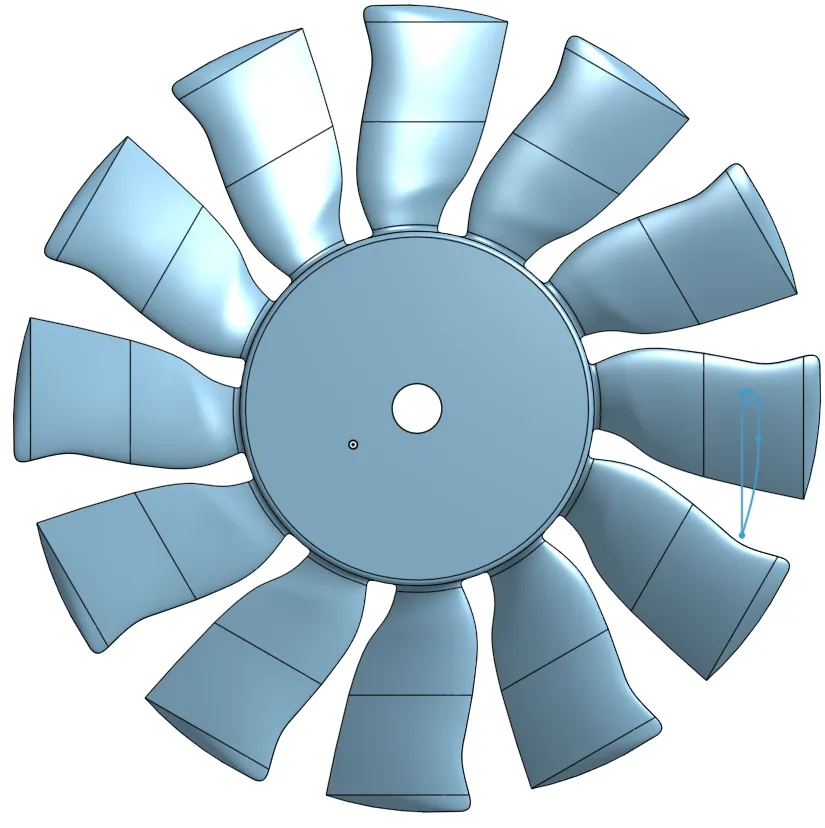

90mm 12-Blade Propeller – Two Versions for Different Applications
This download includes two types of 12-blade propellers with a diameter of 90 mm, designed for use in RC models, aerodynamic testing, cooling systems, or general prototyping.
Included in the package:
- Two propeller designs:

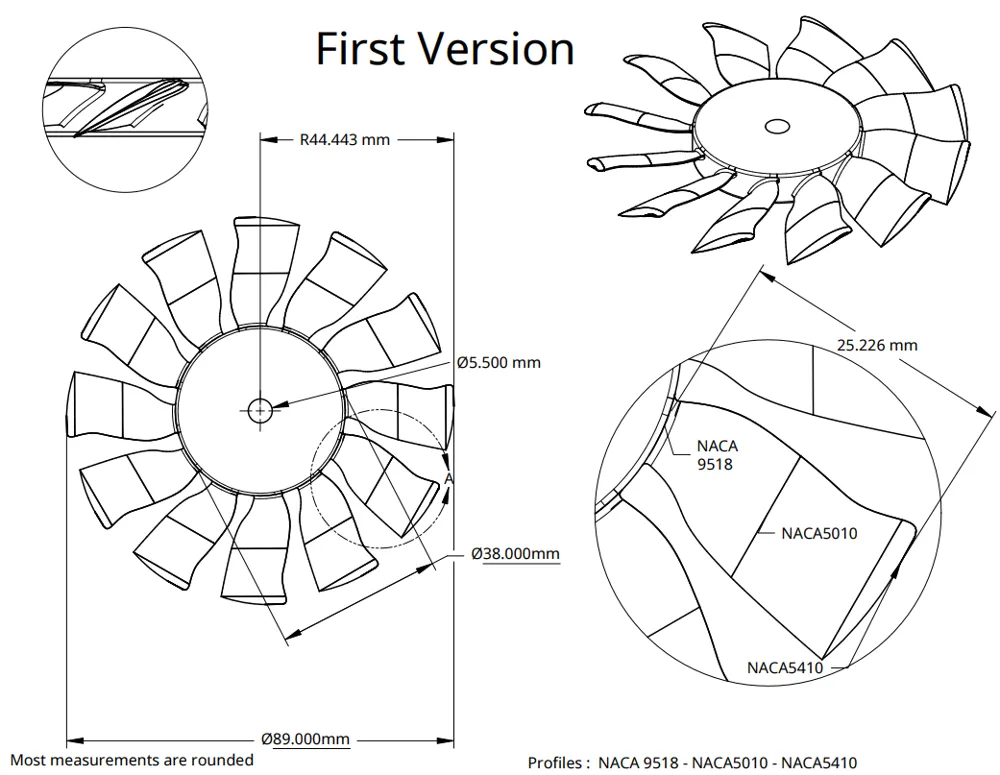

- First version with a steeper blade pitch, suitable for high KV motors.

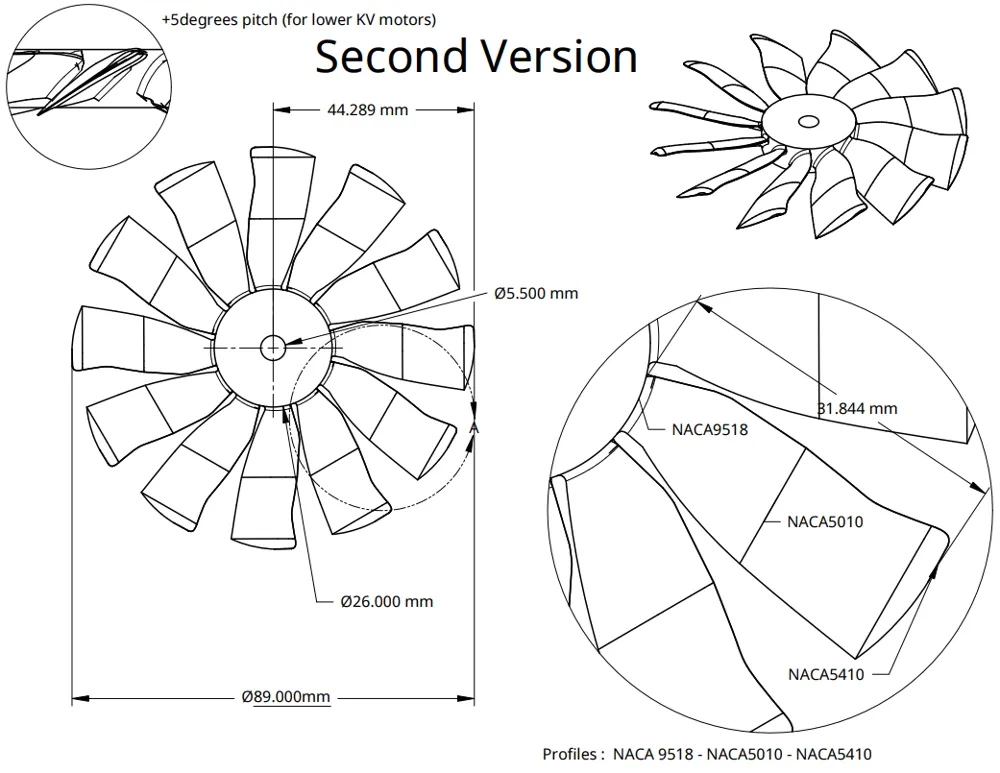

- Second version with a +5-degree lower pitch, optimized for lower KV motors.
- Detailed specifications:
- Diameter: 89 mm
- Shaft hole: 5.5 mm
- Hub diameter: 26 mm
- Airfoil profiles: NACA 9518, NACA 5010, NACA 5410
- File format: STL (3 files)
You can print with FDM or RESIN, with PETG or PLA for FDM or any material for optimal strength and durability.
