Travel Trailer Wire Cover Cable Entry Junction Box
Print Profile(1)
Bill of Materials
Description
[ Model Overview ]

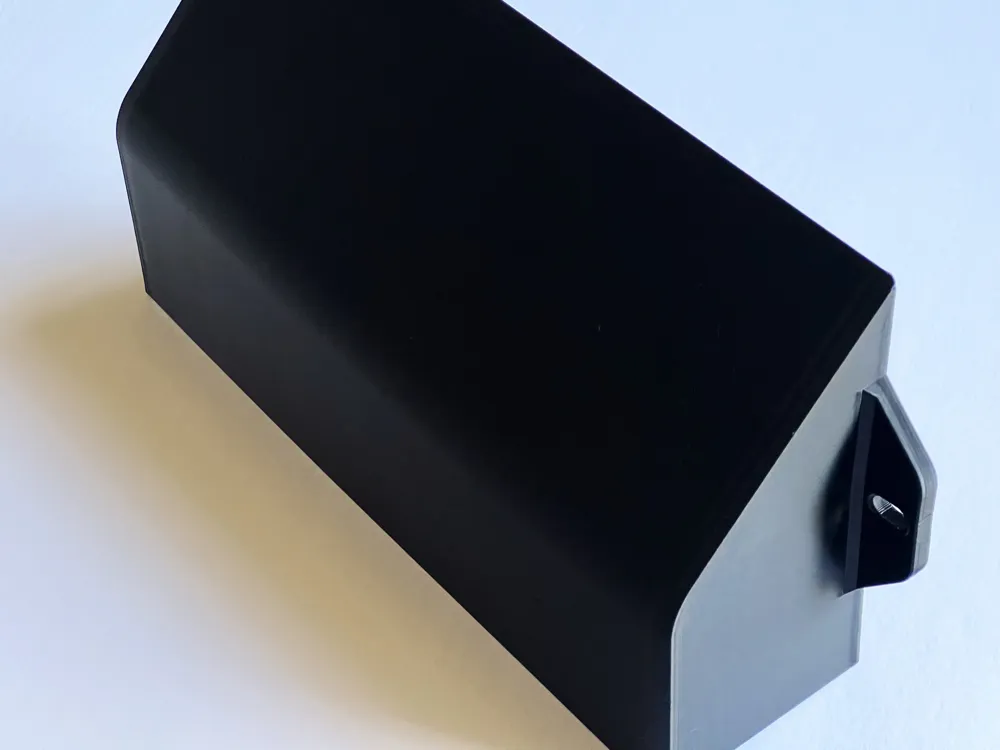

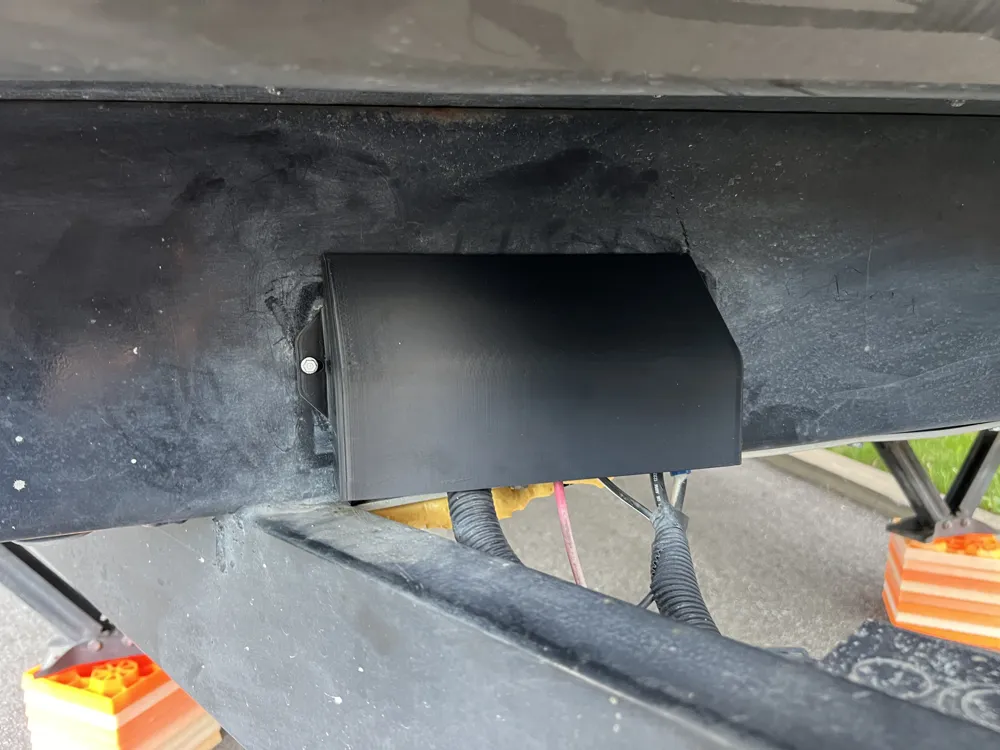

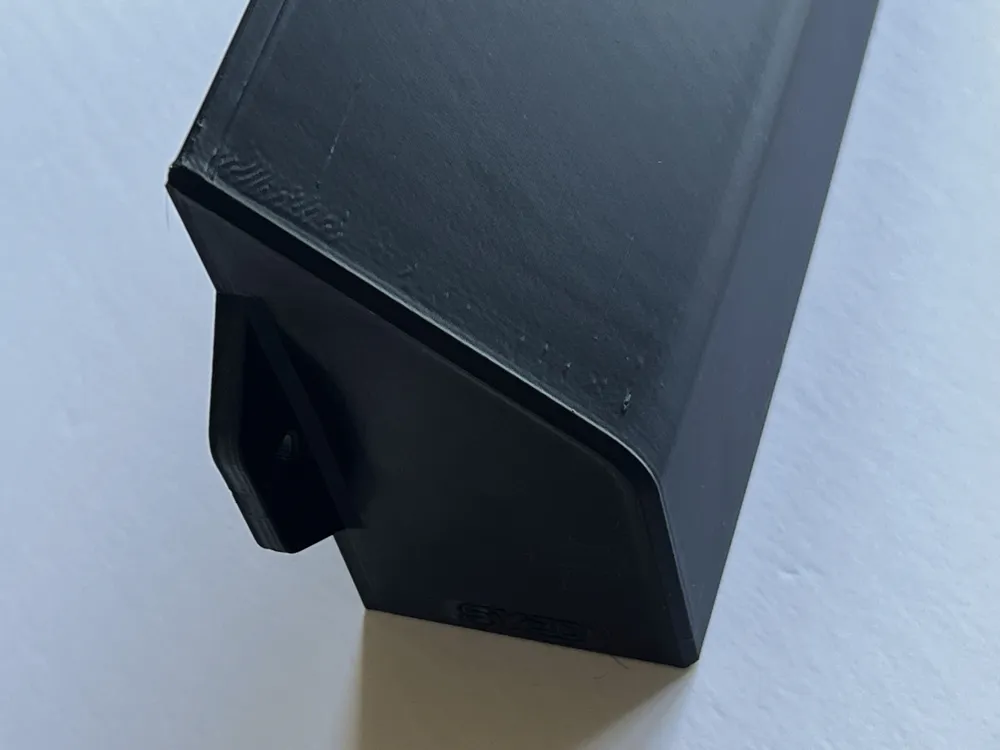

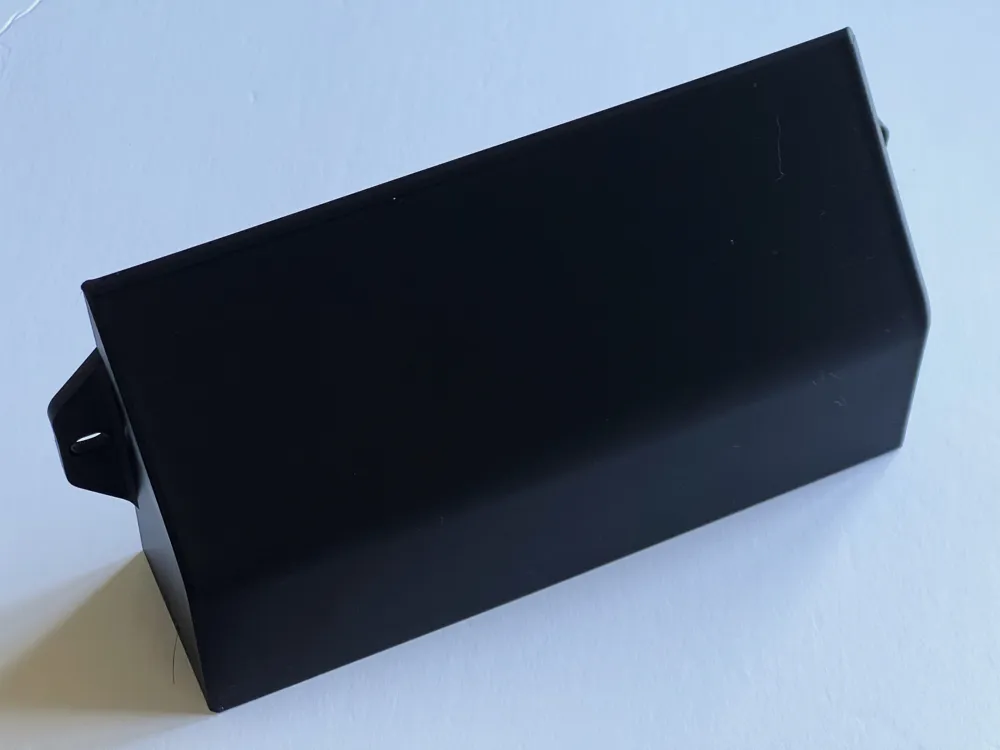

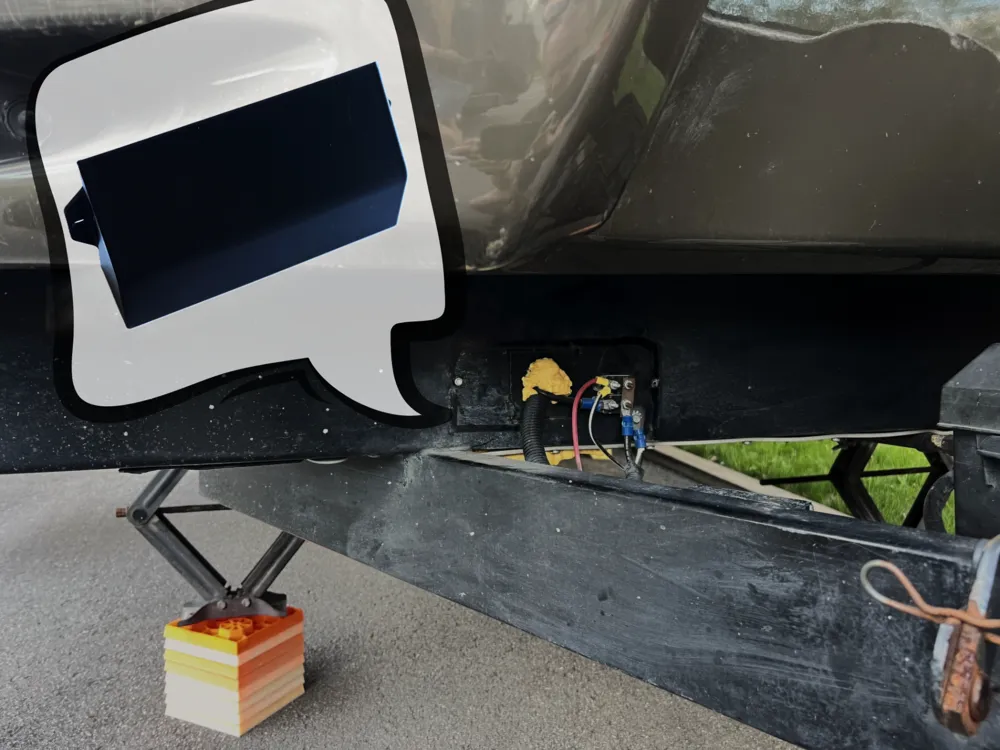

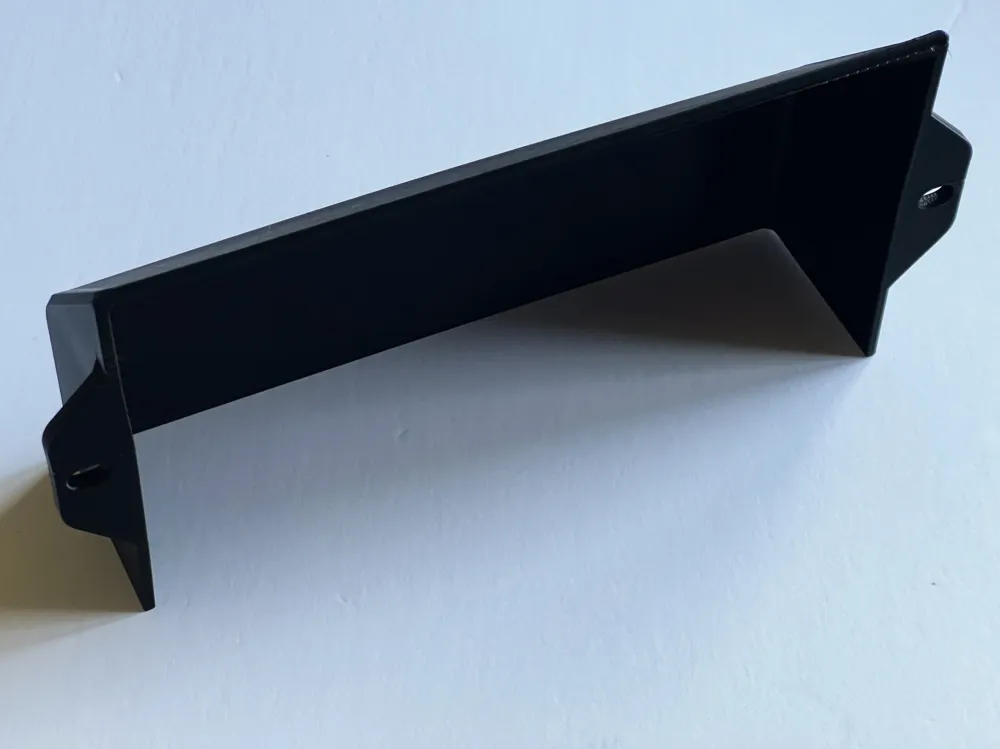

This cover is intended to cap the typical wiring entry into the steel frame of larger enclosed and travel trailers. This cap is not intended to be water tight or sealed, since it’s open on 2 sides. Its design to help prevent the entry of water and dust in the cabling holes in the frame.
Not designed for a particular make of trailer in mind, just a cover to fit over the wiring entry.

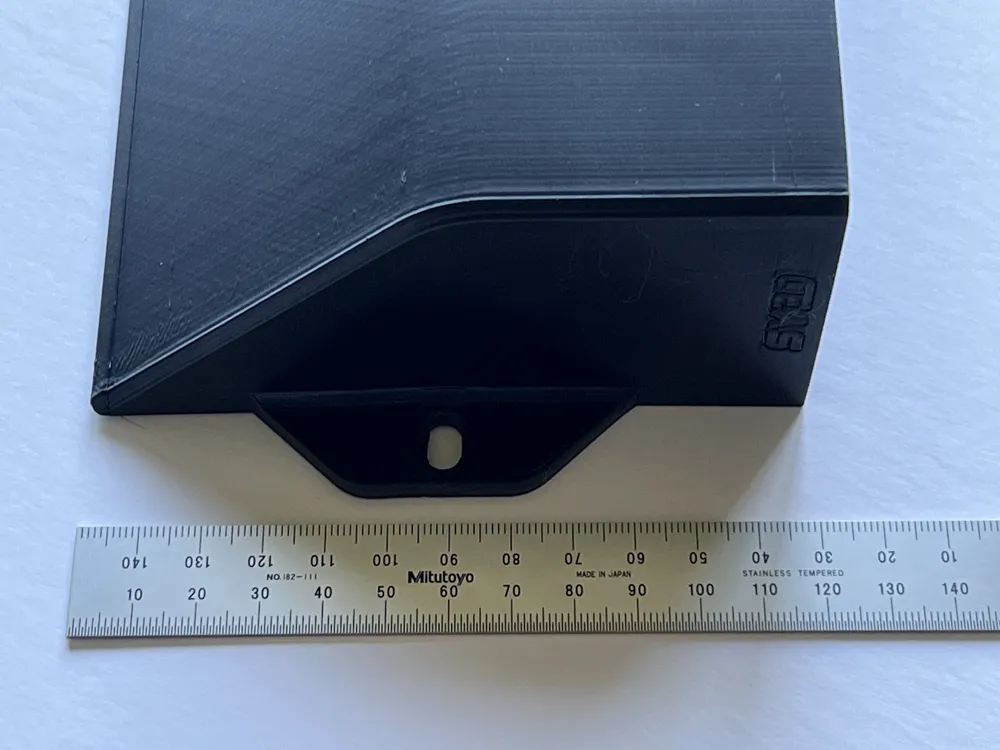

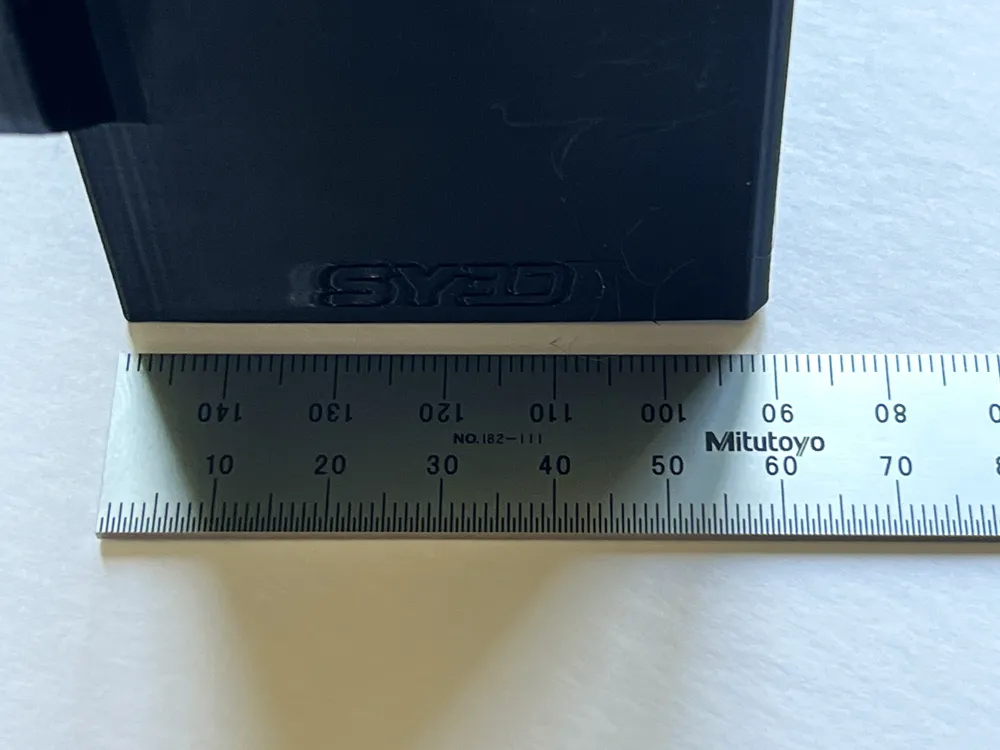

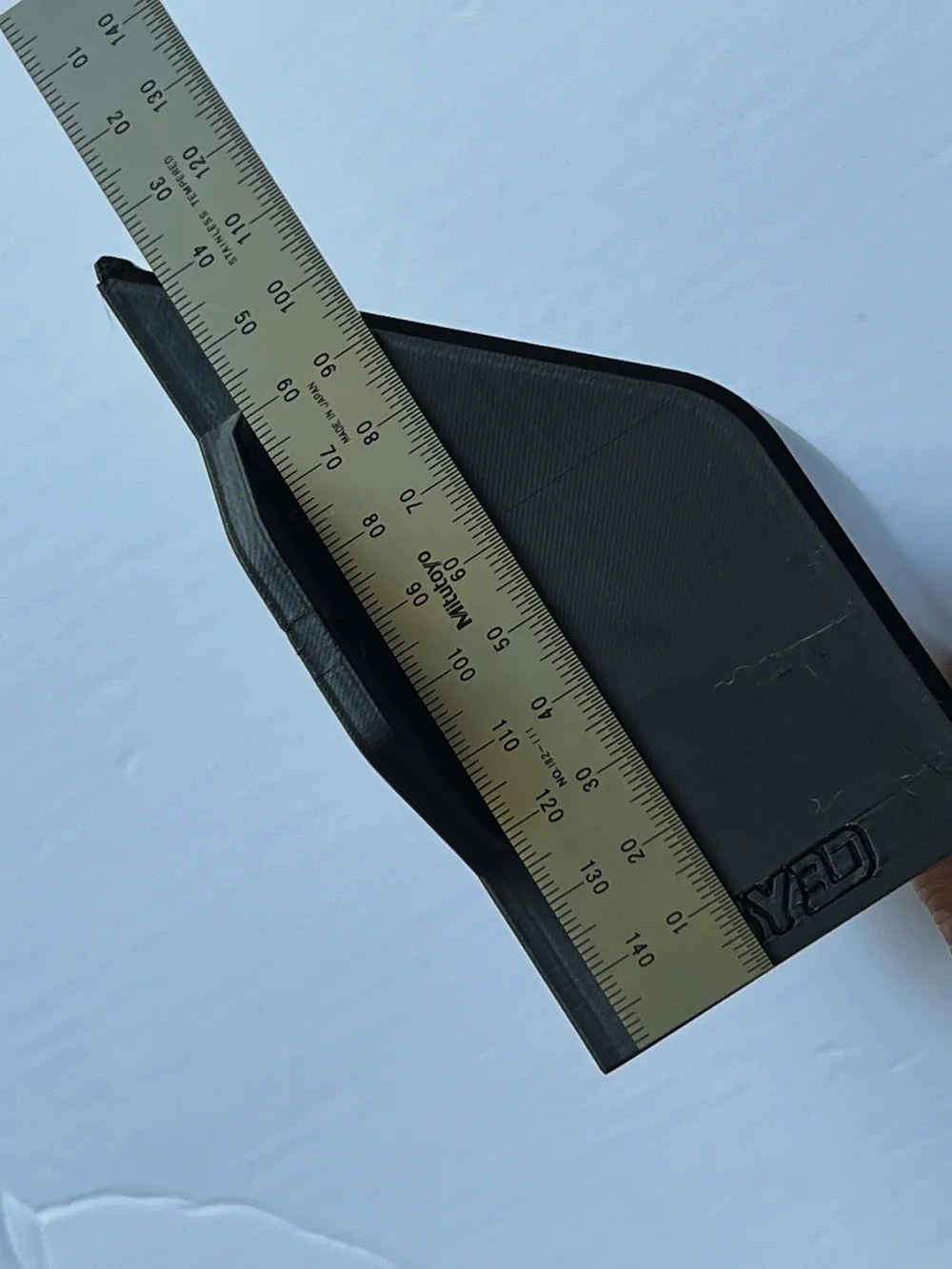

[ Dimensions ]
| Height* : | 120 mm |
Width* :
| 220mm (without the wings for the screws) Add about 17mm each side for the wings. |
| Depth* : | 60 mm |
Center to center holes : | 240mm (with slotted holes to give a little play) |
| Wall thickness : | 3mm |
| Holes : | 6mm Use flat heat screws Conical head screws will break the part Screws shall be loose in the holes (not thread in the slots). |
* Outside dimensions
Boost Me (for free)
Sending a FREE boost token is a nice and simple way to say thanks.
Big thanks for your precious support :)
[ Printing ] No supports required for printing.
This is a wide print, will use almost all your volume (Except for H2D users).
PETG worked fine for my application
