DJI Goggles V2 RX5808 Panel Adapter

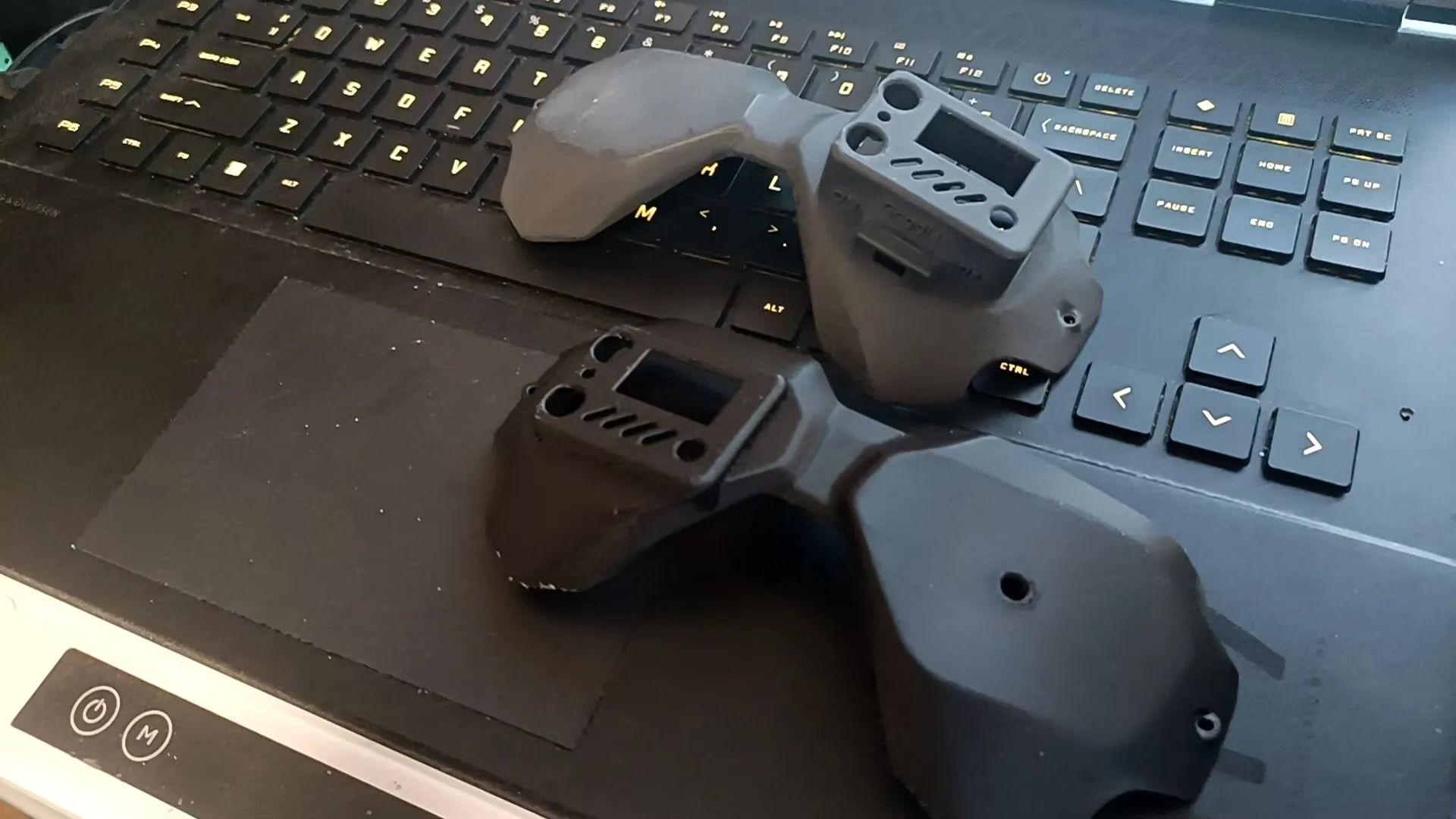

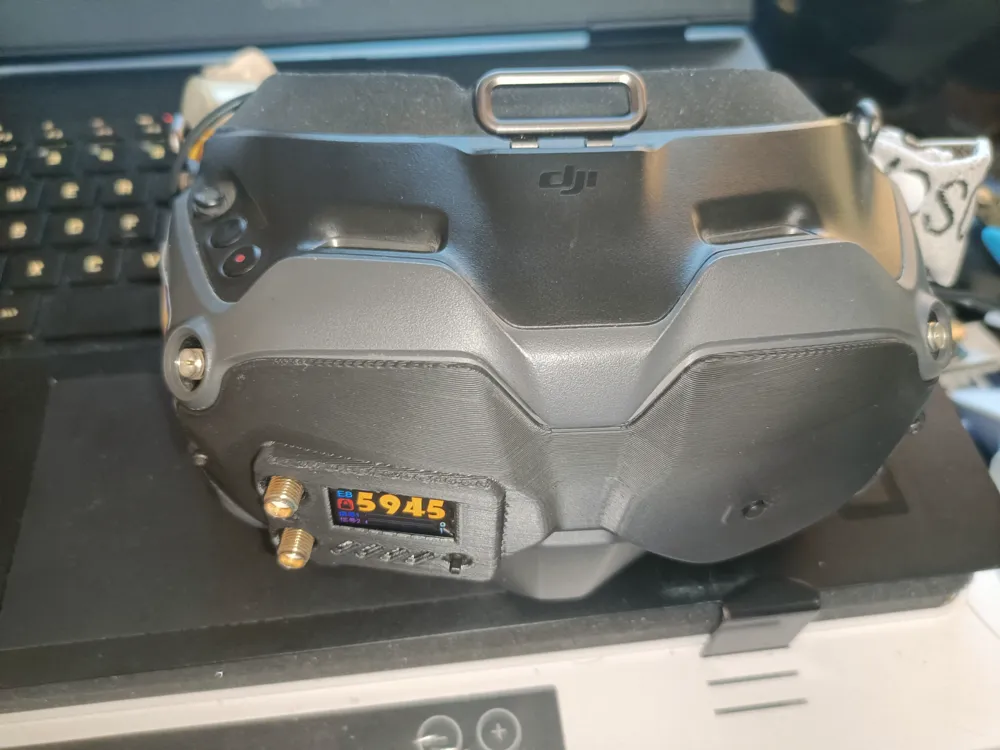

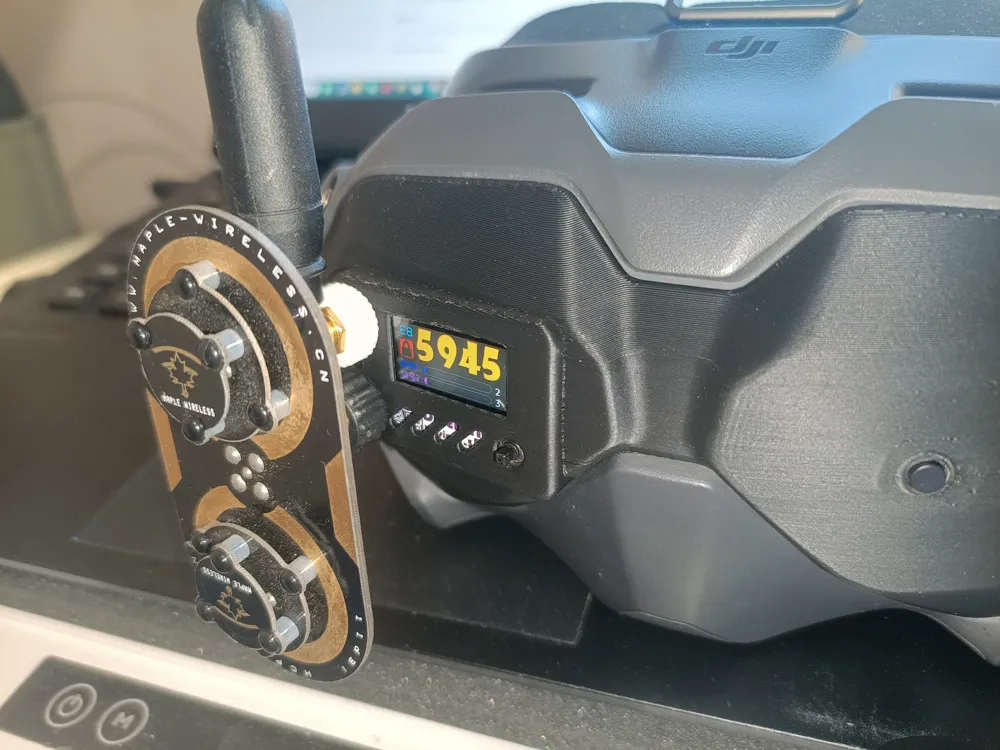

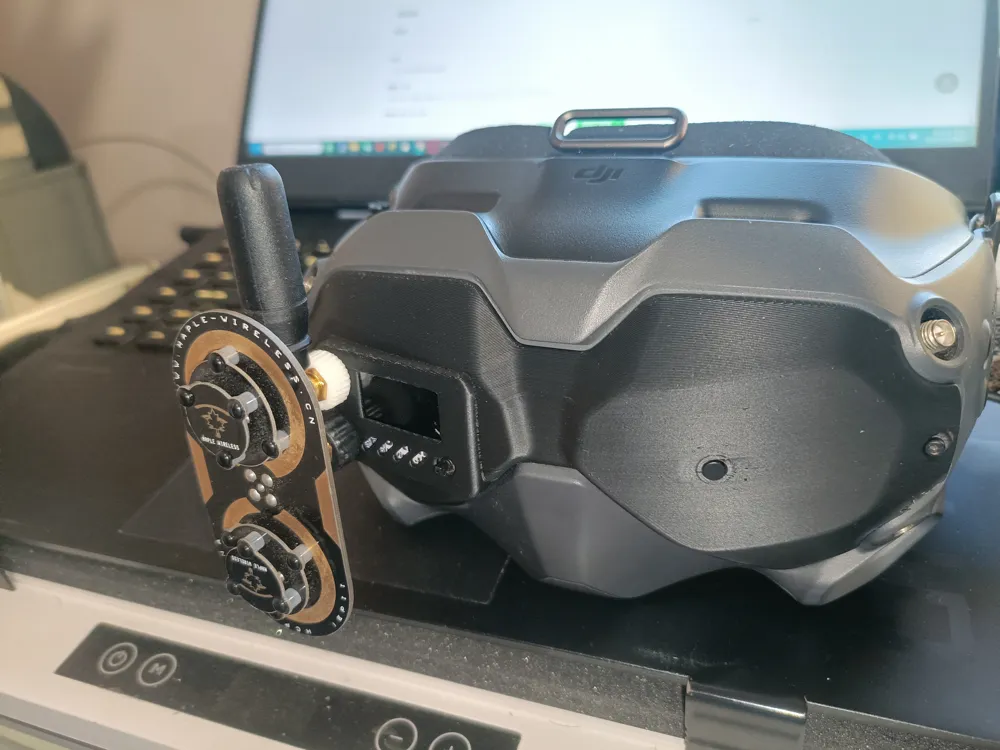

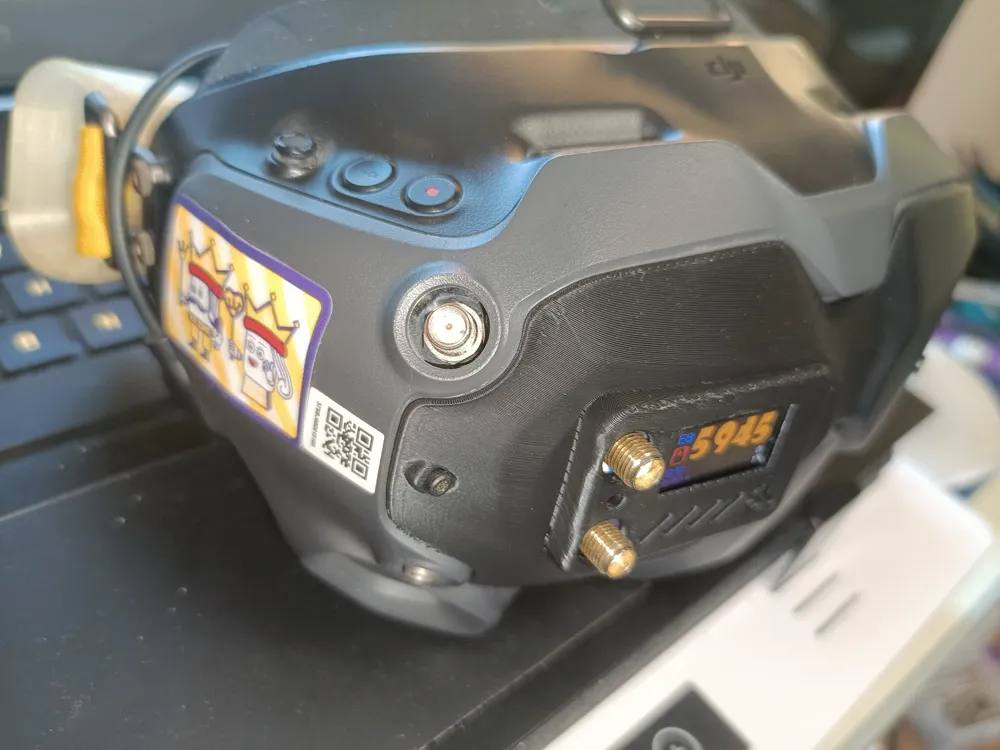

I've always been troubled by the imperfect adaptation of analog signals to the DJI Goggles V2. I made a version before, but it was too prominent and difficult to fit into a protective case. This design allows the RX5808 to be hidden inside the casing as much as possible. Although there are solutions that modify the RX5808 into the top, the modification process is complicated and requires destruction of the original casing. This version is the one with almost the minimum change to the original size. As far as I know, it is currently the solution with the least protrusion.

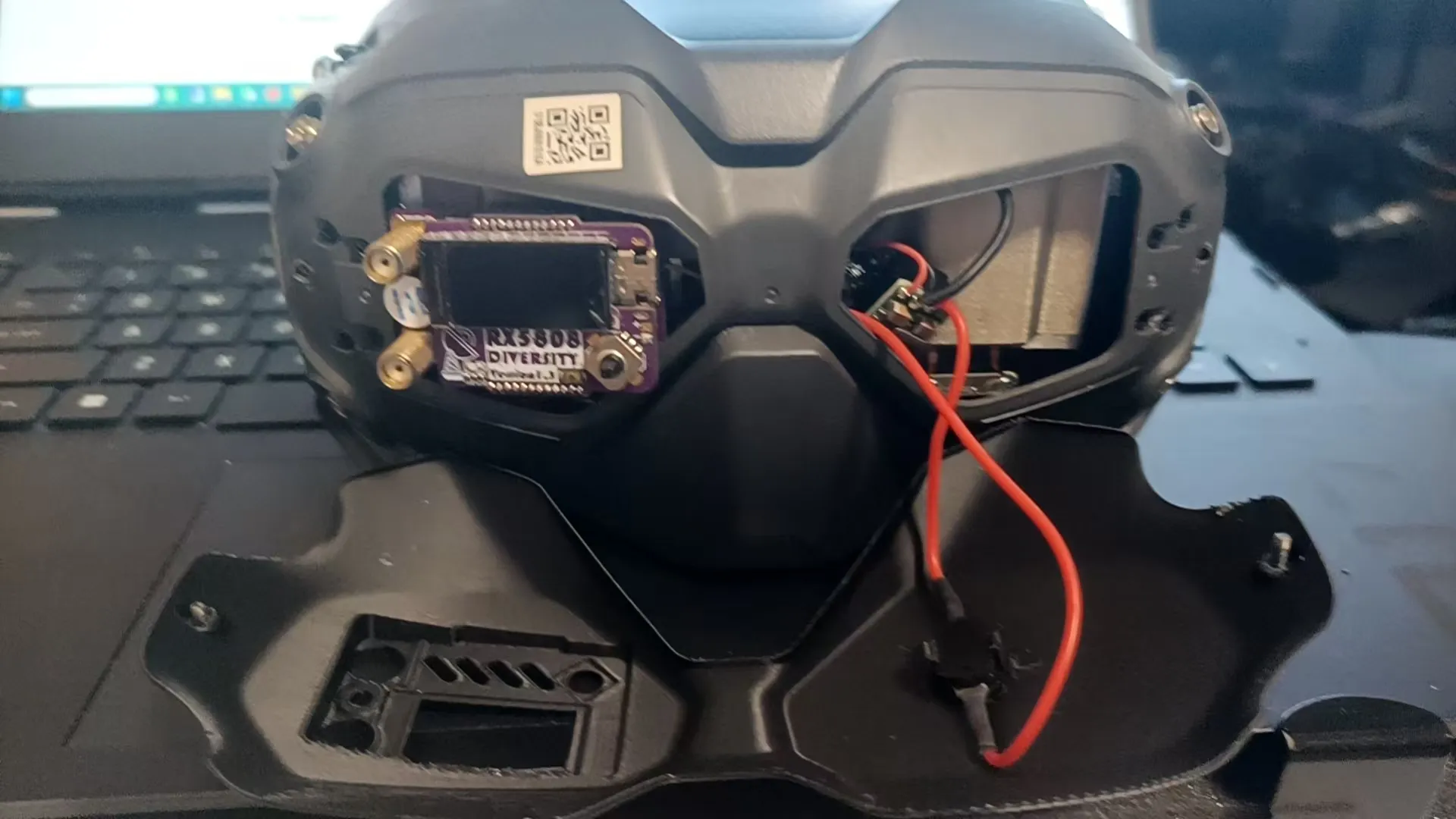

This solution is very easy to modify and requires no glue. Place the soldered RX5808 module as shown below,

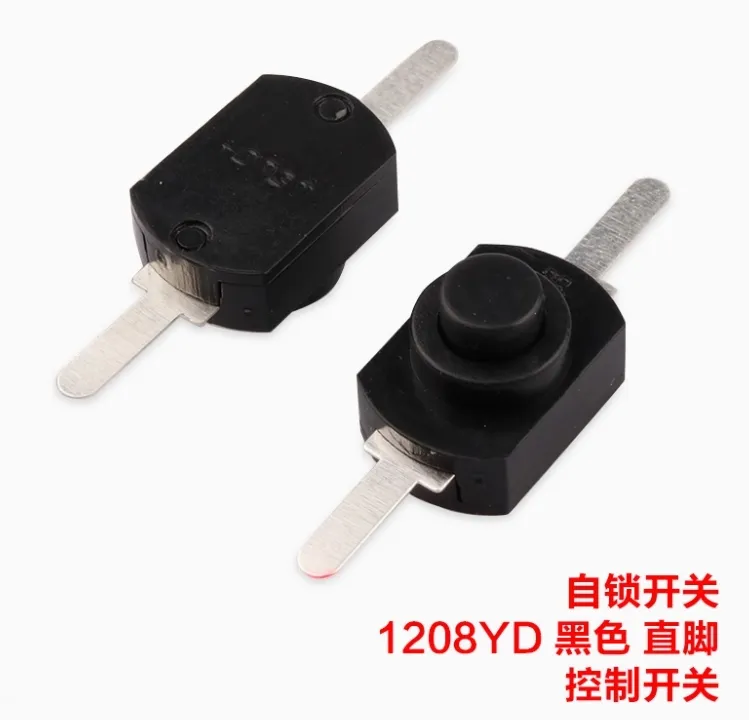

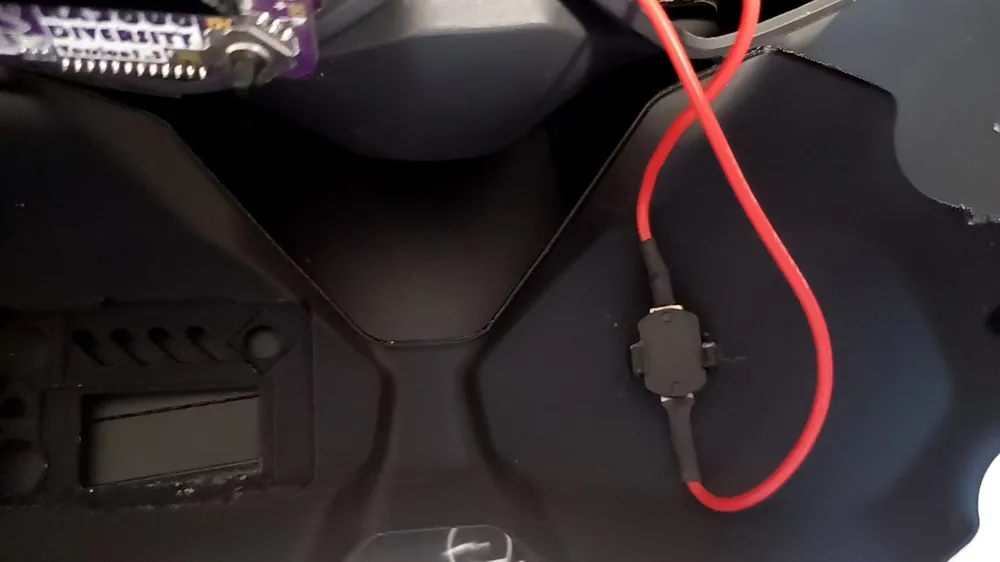

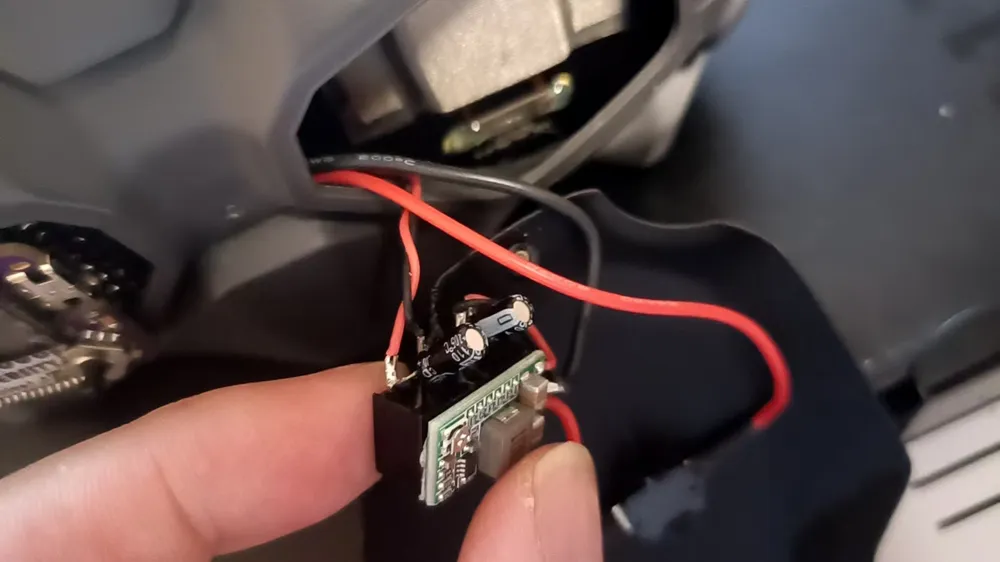

then embed the self-locking switch into the switch latch. The switch used is a 1208YD self-locking switch. I use a mini step-down module for power supply, cut the ADJ pin and short-circuit 5V. If there is interference, a DC isolation module is also needed.
