FIRST Robotics Driver Station Tray Handle
Print Profile(1)
Bill of Materials
- AndyMark Peanut Extrusion x 2: Your choice of length
- 1/4-20 x 0.75" Thread Forming Screws x 8: Or tap and use conventional 1/4-20 x 0.75" screws.
Description

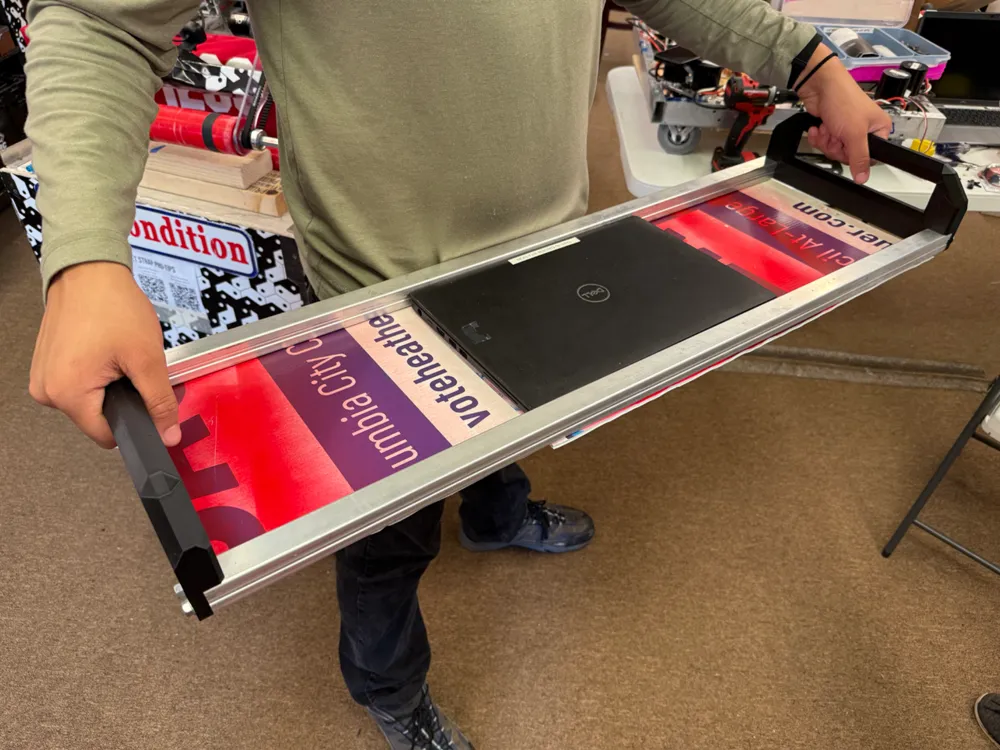

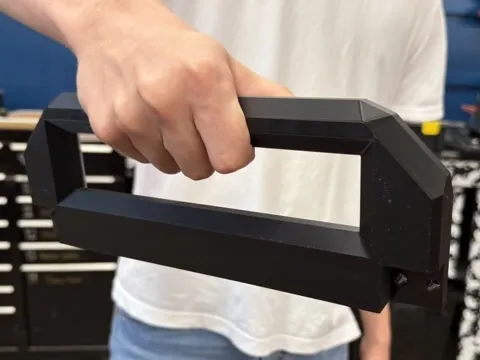

This handle is designed to form a tray for FIRST Robotics Competition driver stations. It screws into AndyMark Peanut extrusion using ¼-20 thread-forming screws (or tap it for your own hardware). 36" lengths are pictured, but you can use any length you desire. (Do pay attention to the game manual for driver station size limitations; in 2025, it was 60" long.)
Each handle will fit on a 256mm-class print bed, and it all prints without supports. The tray has enough room between the rails to accommodate a 14" Ultrabook, like our Dell Latitude 7490. If you want something a little chunkier, consider a top panel as well to claim an extra 2". Our tray floor is currently corrugated plastic attached with VHB tape while we decide how to accessorize it; you can get as fancy as you desire.
