Japanese Outdoor Solar Column Headlight
Print Profile(3)
Description
Boost Me (for free)
Your boost is always appreciate
Fits on a 4 x 4 inchs beam. Printed in PETG.
Led solar step lamp: https://www.aliexpress.com/item/1005007162360020.html
Inspired by the beautifull lantern of Maxx Design:
https://makerworld.com/en/models/1205278-japanese-led-lamp-tea-light-lantern#profileId-1219015

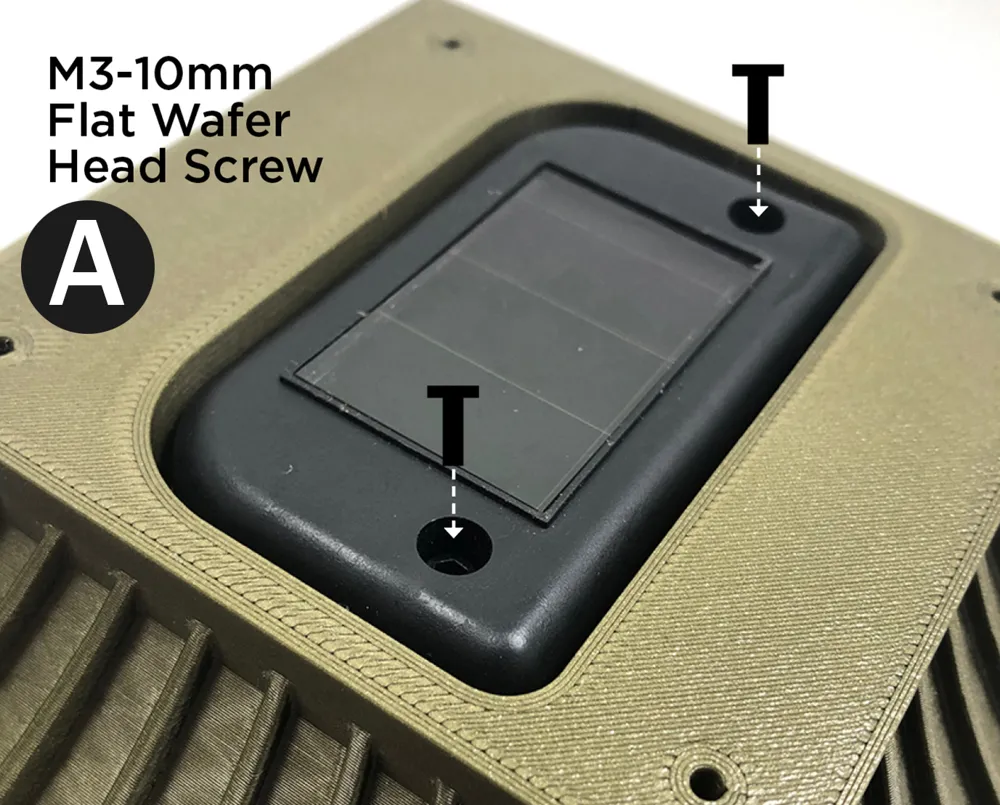

A- Screw the solar lamp to the roof (2 screws)

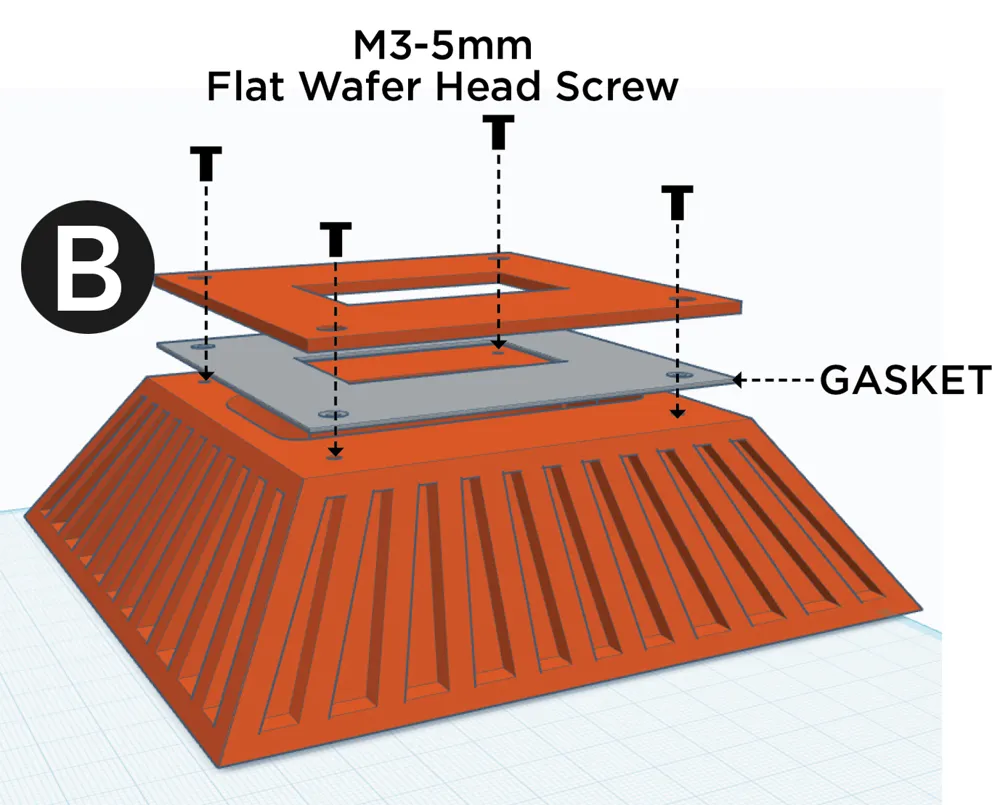

B- Install the cover and the gasket (4 screws)

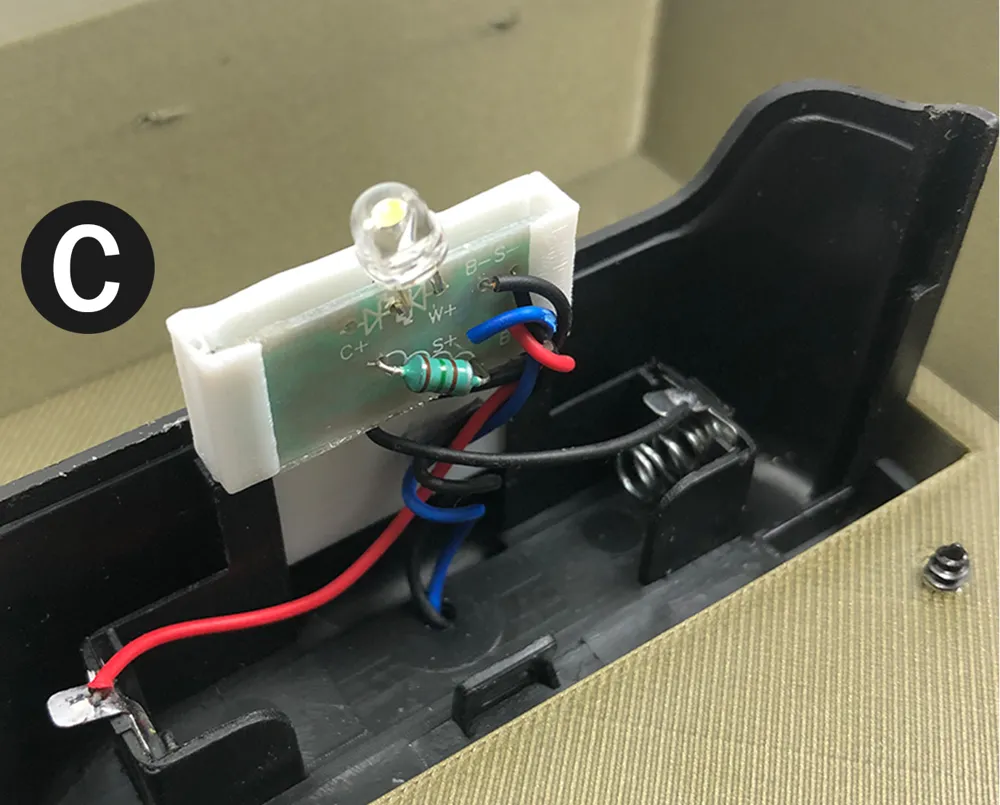

C- Remove the clear plastic reflector (don’t need anymore). Install the holder and reinstall the bulb.

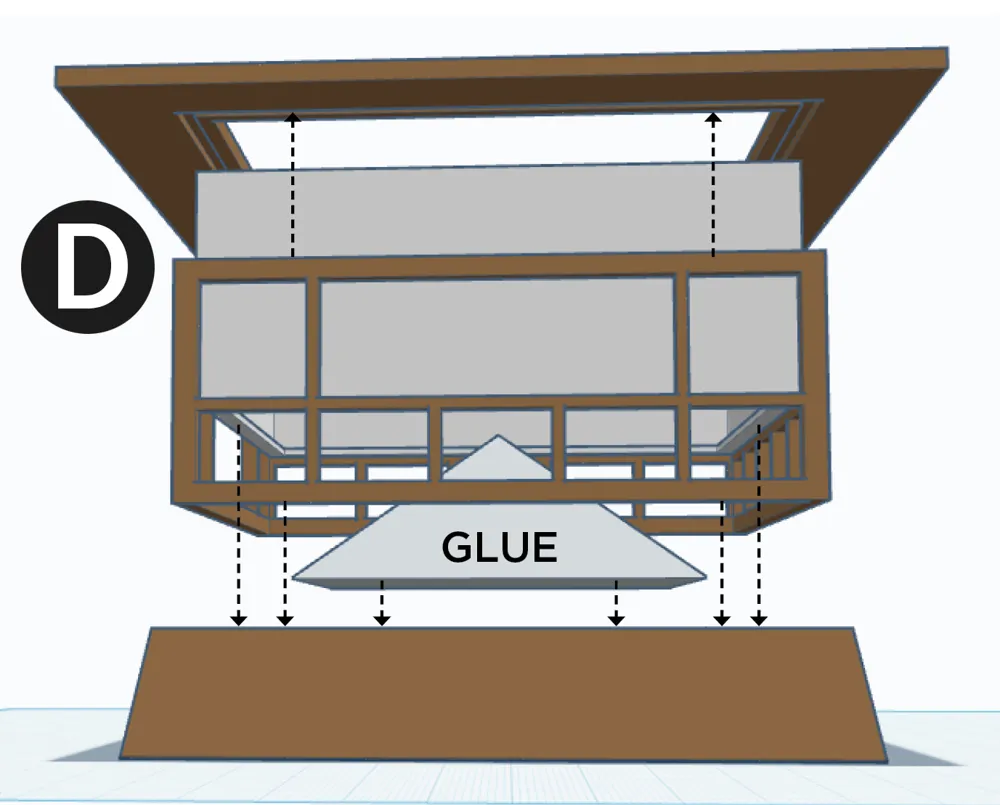

D- Glue together the base, the reflector (pyramid), the window and the frame.

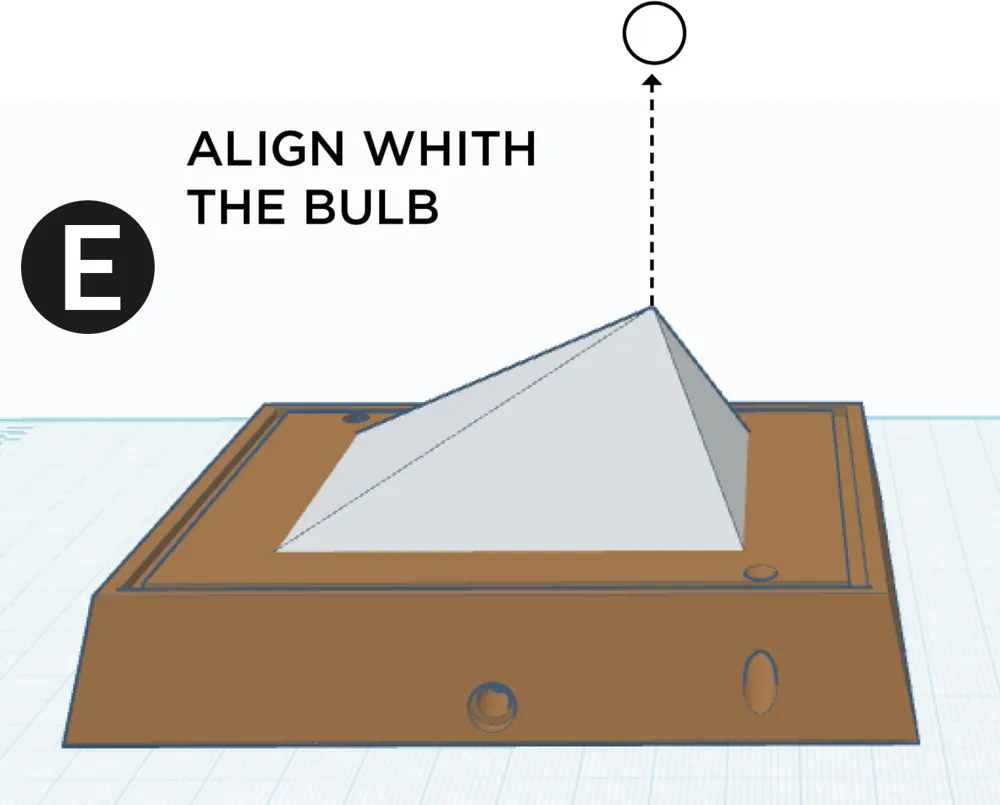

E- Be sure to align the top of the reflector with the bulb (it’s not center)

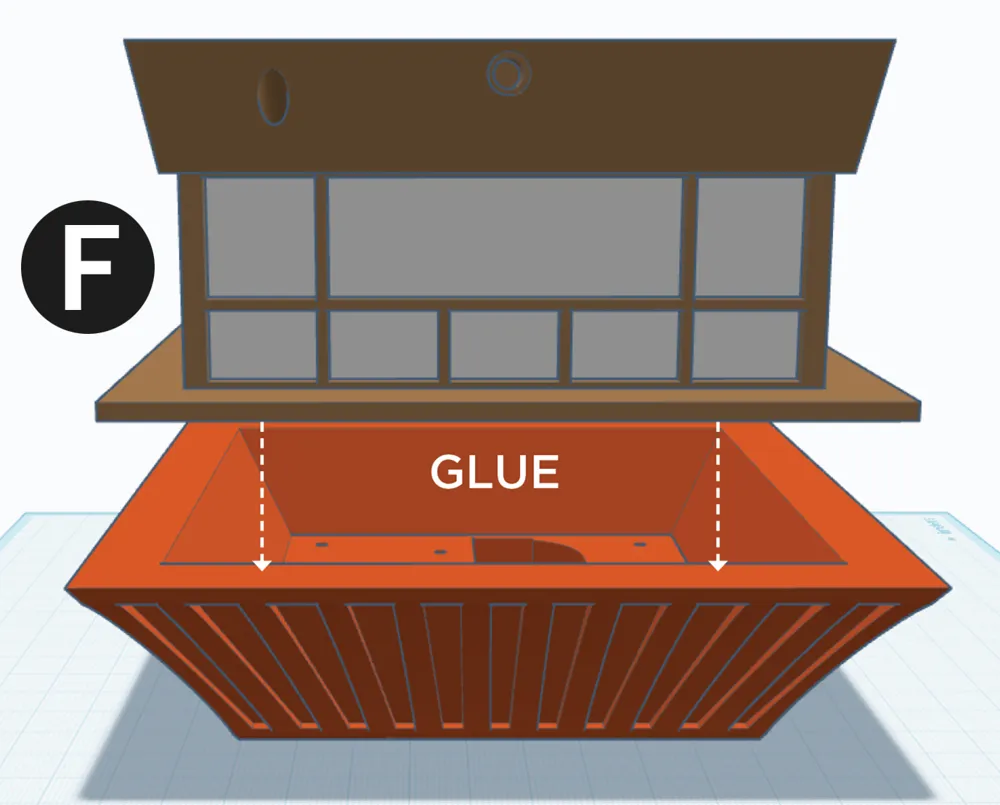

F- Glue the roof with (D)
Screw the headlight on top of the column with (2) 1-inch #6 wood screw
