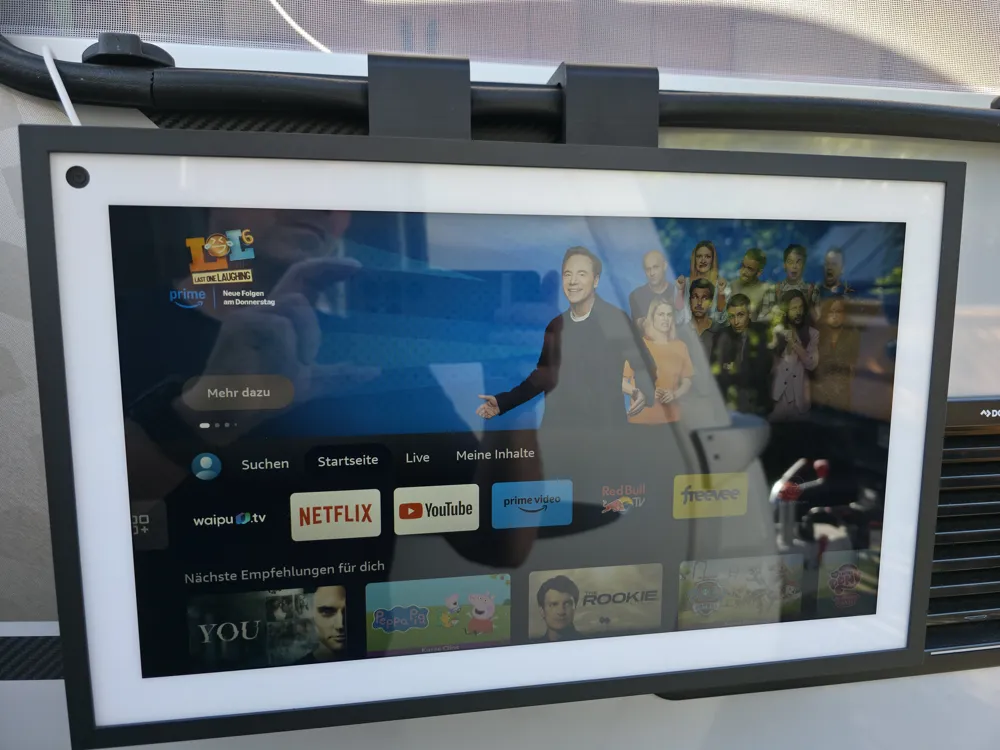

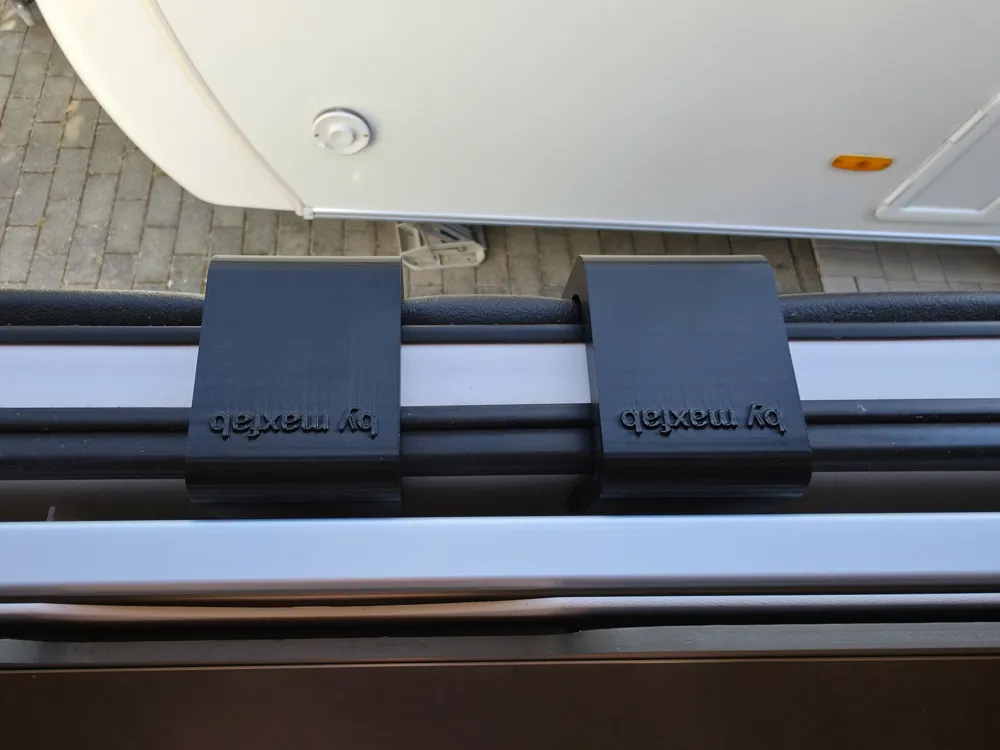

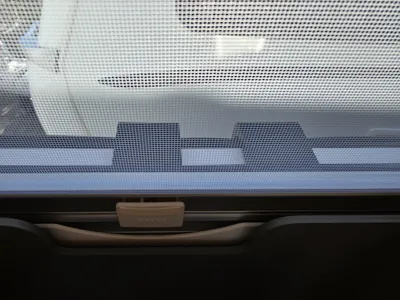

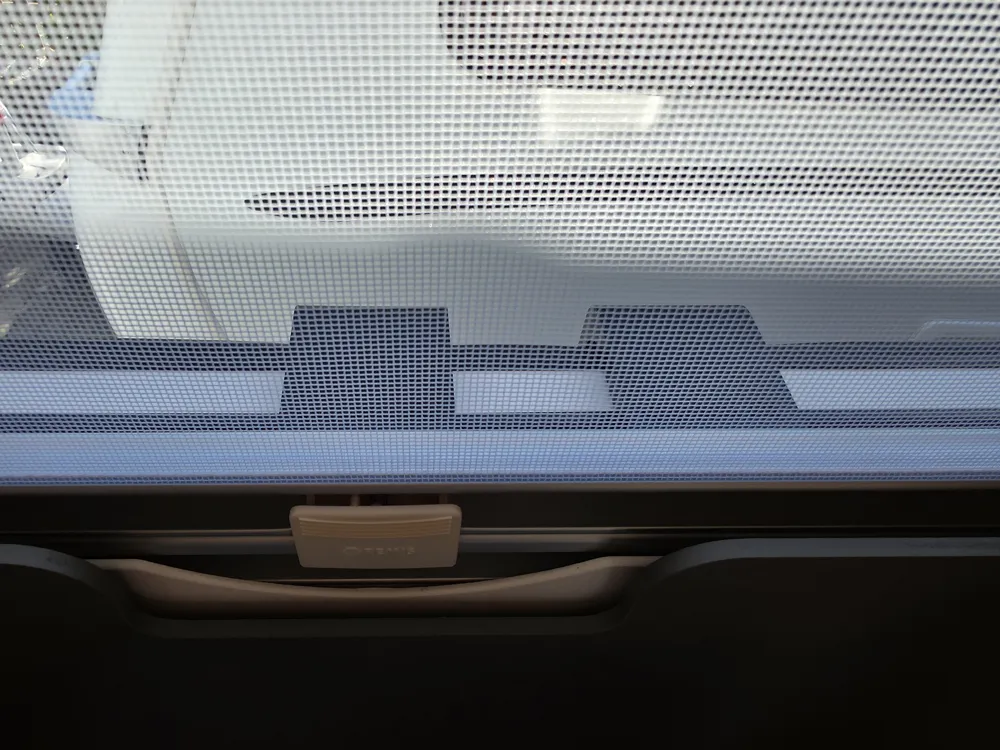

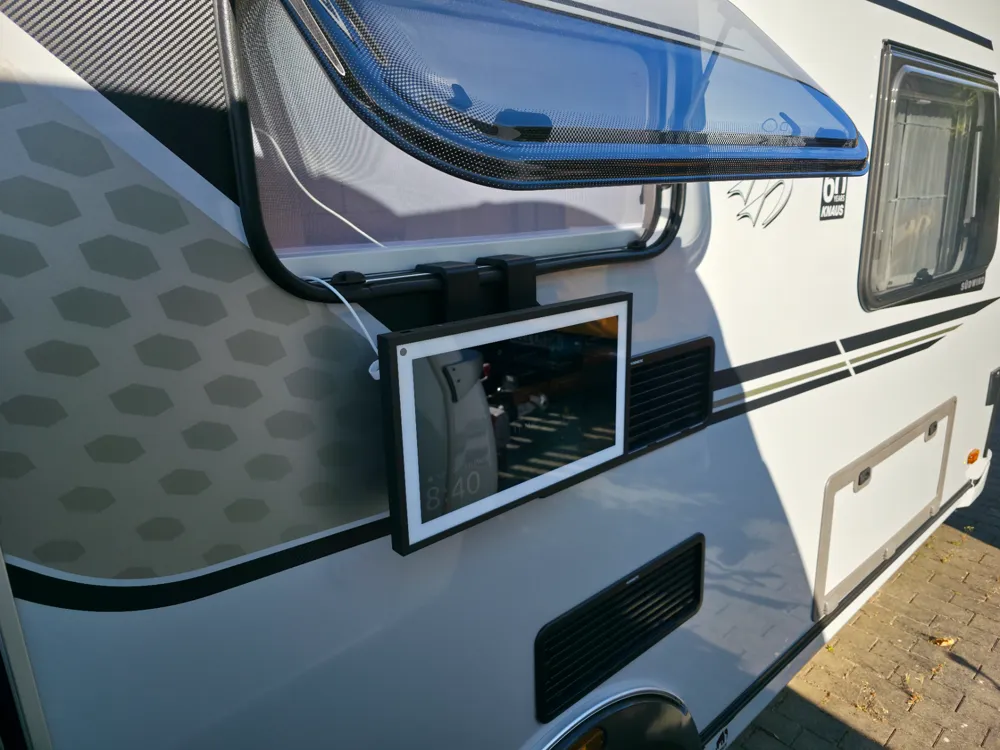

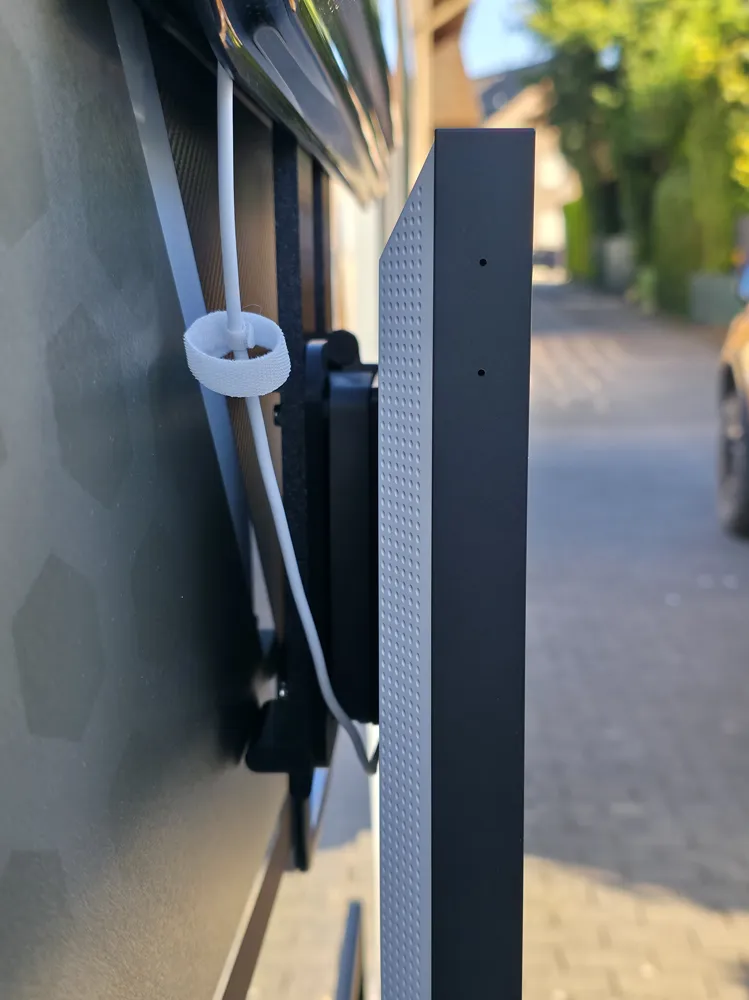

TV mount for the window frame of our Knaus Südwind 460 EU.

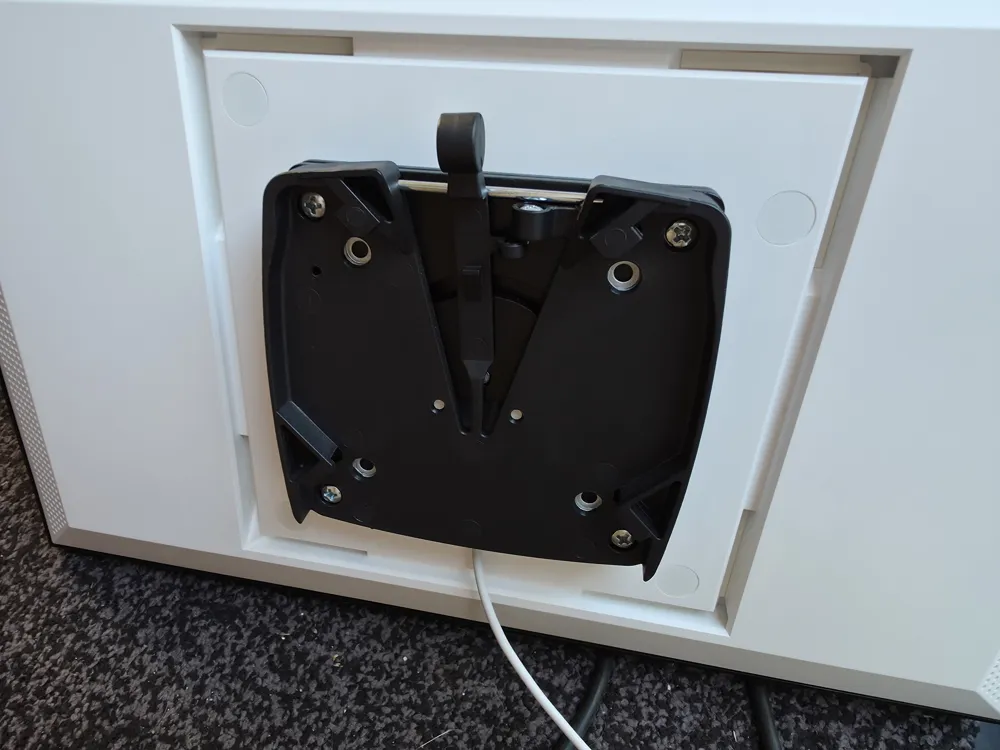

We installed the Novus Sky TV mount in the camper. My idea was to use the mount with quick release for other devices as well. So I bought the Sky 1N wall mount and adapted the adapter plate accordingly.

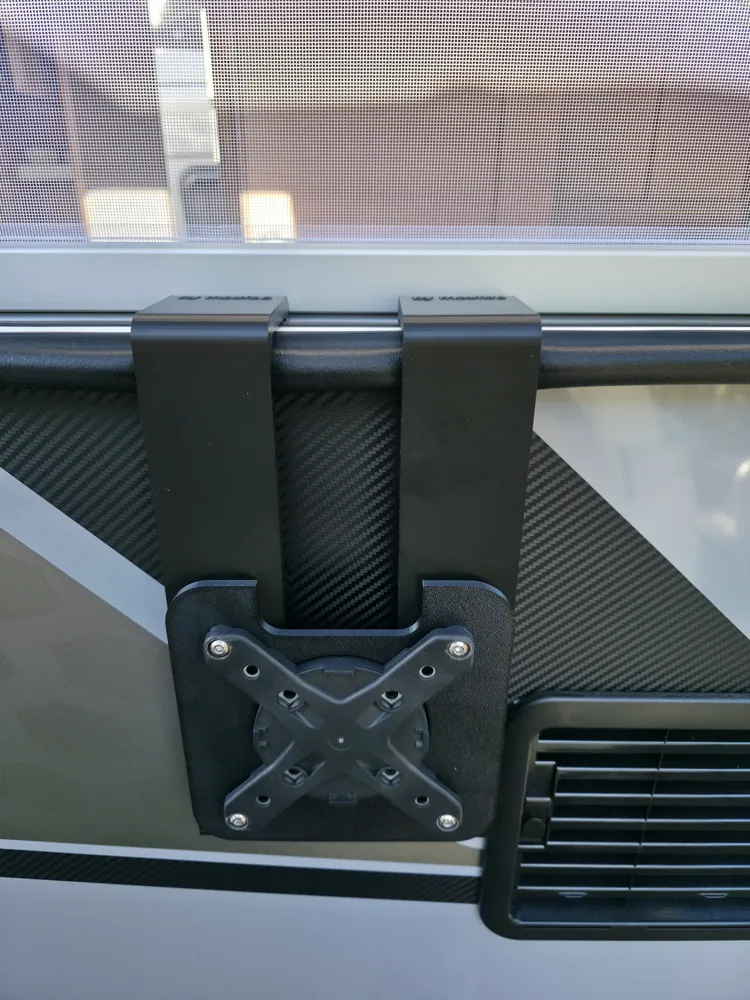

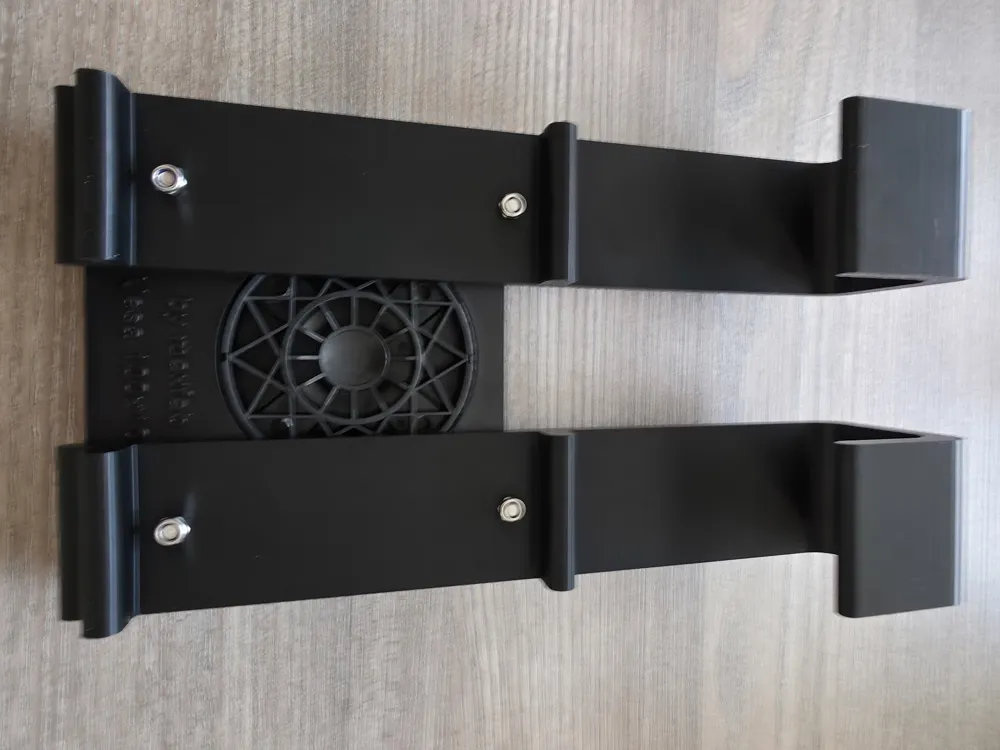

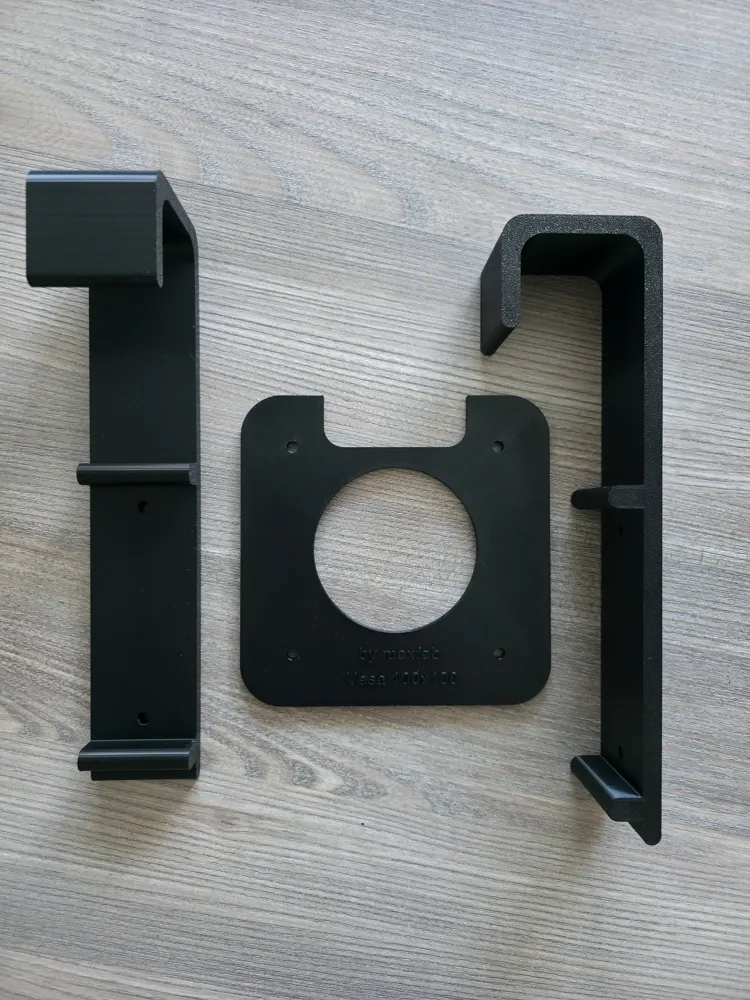

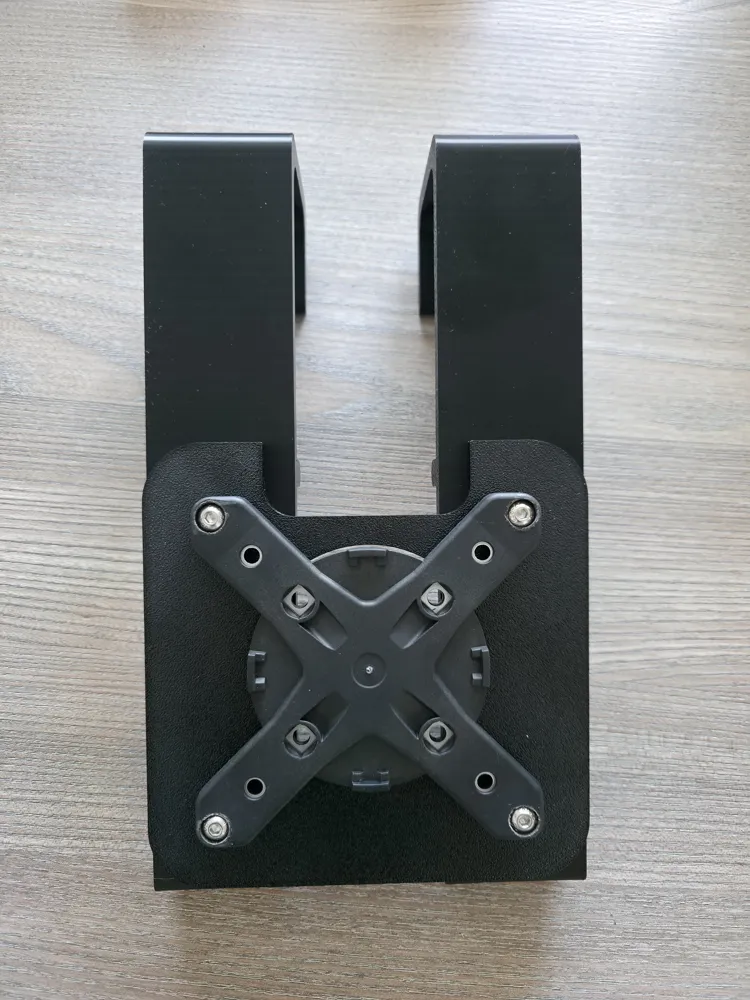

You then have the version as in the photos with an adapter plate for the Sky 1N and a version adapter plate for all Vesa 100x100 devices. Suitable screws would be 4 pcs. M5x25 with 4 pcs. self-locking nuts M5. The screw head should be as small as possible for the Sky mount! Otherwise, it won't fit into the recess on the mount and needs to be adapted. I heated a screw with a flame and pressed it into the Sky mount with pliers.
