Electric duct junction reducer

This is a remix of Phiphila's work https://www.thingiverse.com/thing:5974177

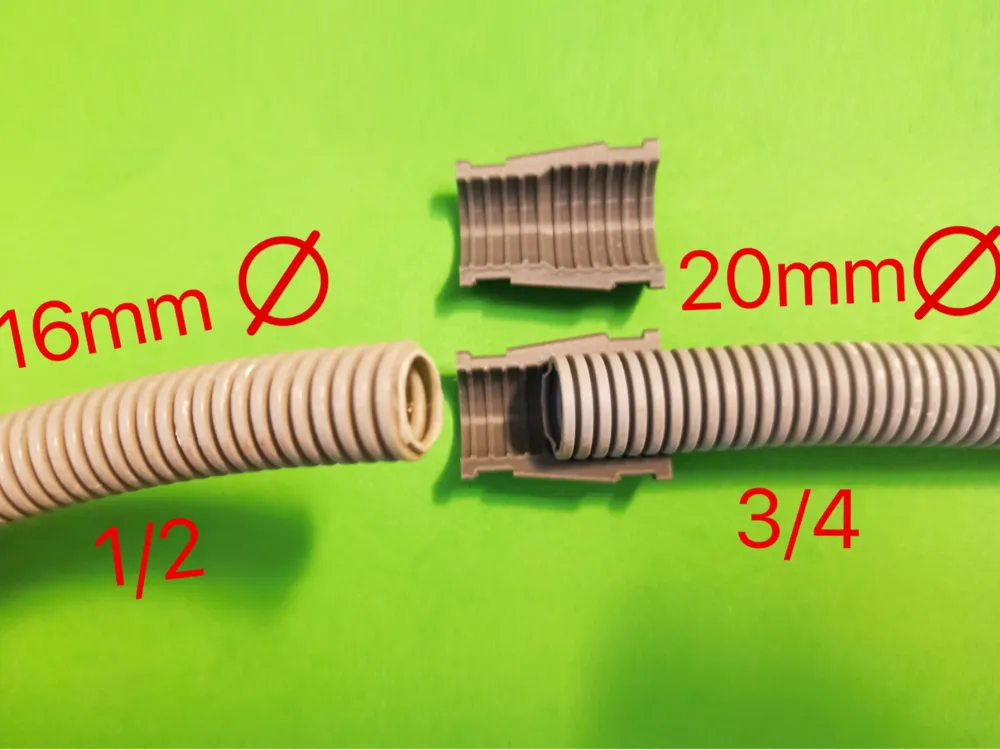

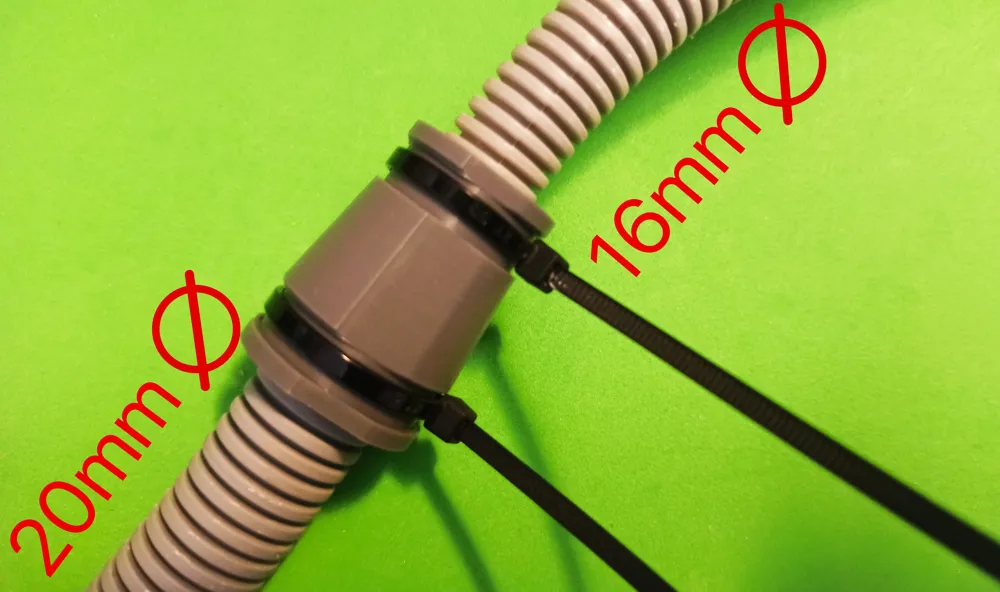

This iteration enables connection of 1/2 to 3/4 inch (16mm to 20mm) ICTA electrical conduit

CRUCIAL SAFETY WARNING: ICTA CONDUIT COUPLING USE

Please peruse this warning meticulously prior to printing and utilizing this model

This coupling for ICTA (Insulating Cintrable Transversally Annulated) conduits is intended for personal, experimental use, providing a mechanical joining solution

FIRE HAZARD AND NON-COMPLIANCE WITH ELECTRICAL CODES:

• Material: This model is designed for 3D printing using PLA (Polylactic Acid) PLA is a combustible, non-self-extinguishing material It is flammable when exposed to heat or flame
• Non-Compliance with Standards: ICTA conduits are self-extinguishing and flame-retardant, as mandated by electrical installation codes Using this PLA coupling, while providing a mechanical joint, compromises the installation's adherence to fire safety regulations It introduces a vulnerability in the fire protection of the cable pathway and could potentially propagate a fire ignited by an external source or an internal fault should the cable carry substantial power
• Usage: While the author has employed this coupling for a very low-voltage cable (coaxial antenna cable) where fire risk is minimal, this coupling must NOT be used for mains voltage electrical cables (230V, 400V) or any cable capable of generating heat or posing a fire risk

LIABILITY DISCLAIMER:

By downloading and using this .STL file, you acknowledge and accept:

1. This is Not a Certified Product: This model is a personal design lacking third-party certification or approval
2. No Warranty: The author offers no warranty, expressed or implied, regarding the suitability, safety, reliability, or compliance of this coupling with any standard
3. Use at Your Own Risk: Using this coupling is solely at your own risk You are solely responsible for assessing its suitability and safety for your specific application
4. Limitation of Liability: The author disclaims all liability for any property damage, personal injury, or any loss, direct or indirect, resulting from the use or misuse of this model, or from non-compliance with this warning

For a compliant and secure installation, utilize commercially available ICTA conduit connection accessories specifically designed for this purpose and certified as self-extinguishing

*****

This is a remix of Phiphila's work https://www.thingiverse.com/thing:5974177

This version allows connection of a 16mm to a 20mm (1/2 inch to 3/4 inch) ICTA electrical conduit


IMPORTANT WARNING: USE OF THIS ICTA CONDUIT COUPLING

Please read this warning carefully before printing and using this model

This coupling for ICTA (Insulating Cintrable Transversally Annulated) conduits is designed for personal, experimental use, offering a mechanical connection solution

FIRE SAFETY HAZARD AND NON-COMPLIANCE WITH ELECTRICAL STANDARDS:

• Material: This model is intended for 3D printing using PLA (Polylactic Acid) PLA is a combustible and non-self-extinguishing material It can ignite when exposed to a heat source or flame
• Non-Compliance with Standards: ICTA conduits are self-extinguishing and flame-retardant, as required by electrical installation standards Using this PLA coupling, even if it provides a mechanical join, jeopardizes the installation's compliance with fire safety standards It creates a weakness in the fire protection of the cable pathway and could potentially propagate a fire from an external source or an internal fault if the cable carries sufficient power
• Usage: Although the author used this coupling for a very low-voltage cable (coaxial antenna cable) with negligible fire risk, this coupling should NEVER be used for mains voltage electrical cables (230V, 400V) or any cable that may generate heat or pose a fire hazard

LIABILITY DISCLAIMER:

By downloading and using this .STL file, you acknowledge and agree to the following:

1. This is Not a Certified Product: This model is a personal design and has not received third-party certification or approval
2. No Warranty: The author provides no warranty, express or implied, regarding the suitability, safety, reliability, or compliance of this coupling with any standard
3. Use at Your Own Risk: Use of this coupling is entirely at your own risk You are solely responsible for evaluating its suitability and safety for your specific application
4. Limitation of Liability: The author disclaims all liability for any property damage, personal injury, or any loss, direct or indirect, arising from the use or misuse of this model, or from non-compliance with this warning

For a compliant and safe installation, use commercially available ICTA conduit connection accessories specifically designed for this purpose and certified as self-extinguishing
