Headlight mount for USD motorcycle fork
IP Report
Print Profile(1)
PLA strength
Designer
4.1 h
1 plate
Open in Bambu Studio
Boost
111
267
3
0
155
64
Released
Description

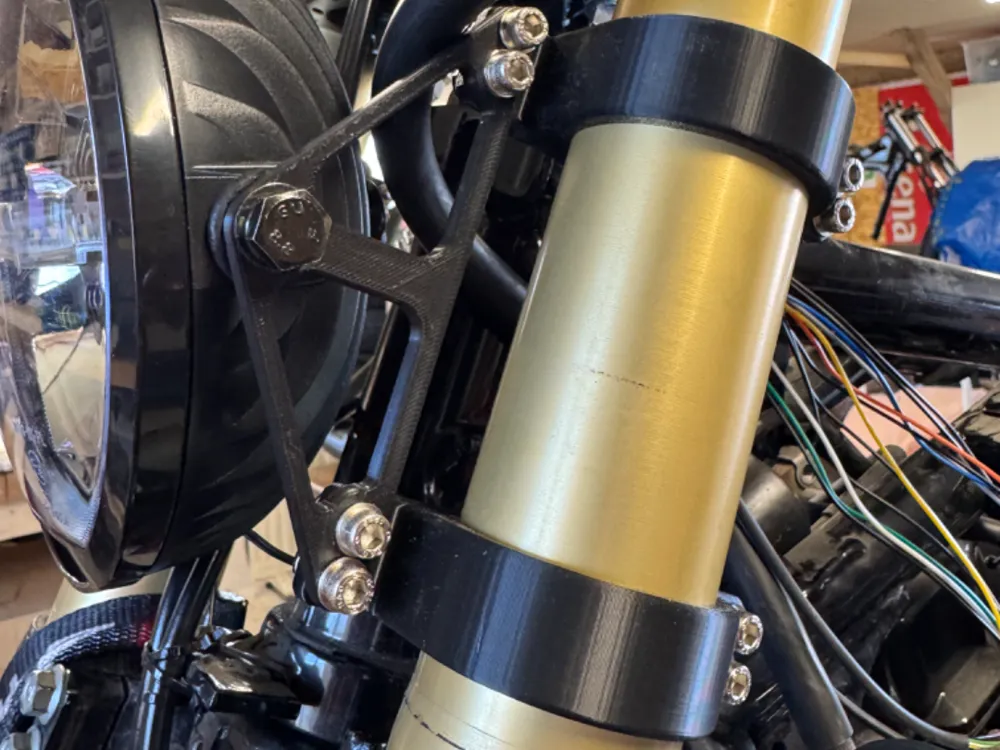

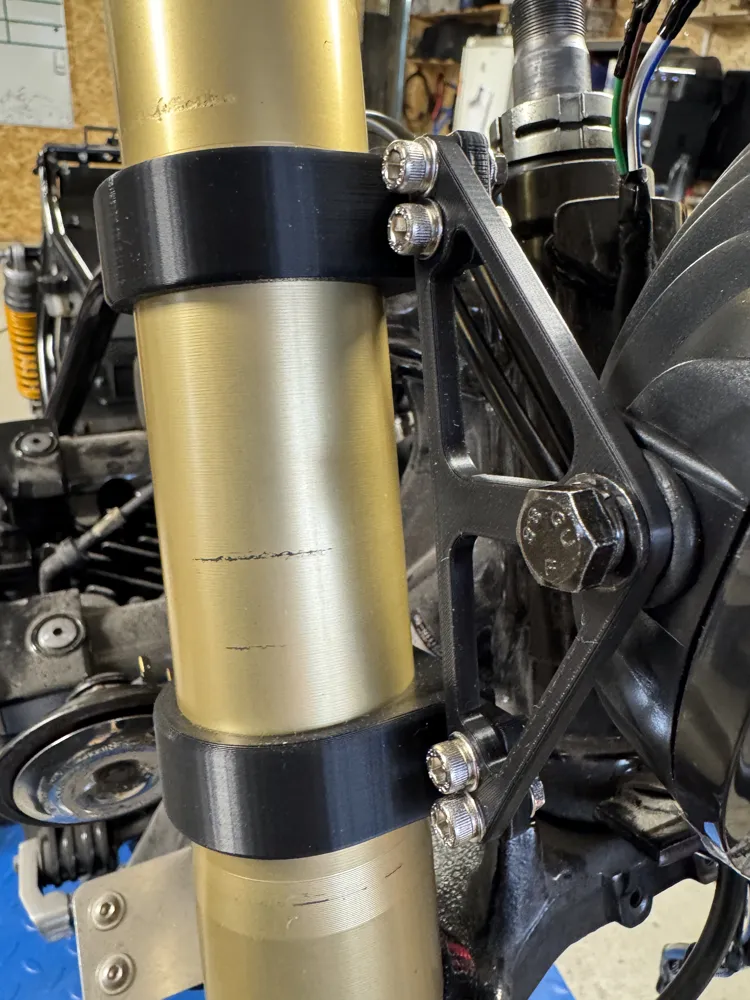

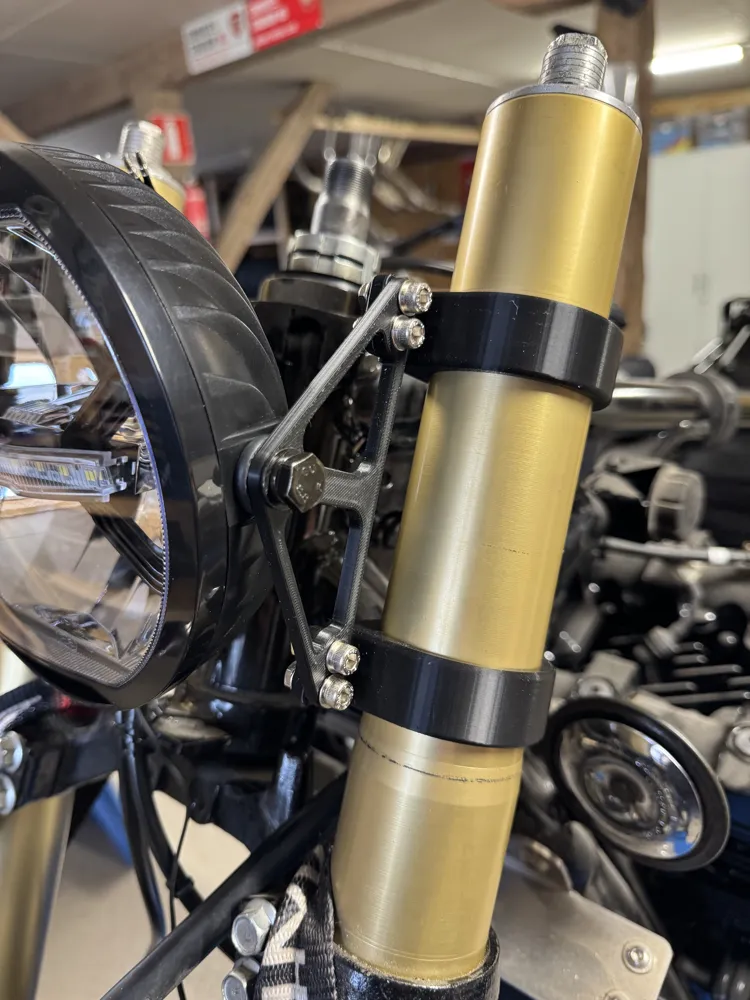

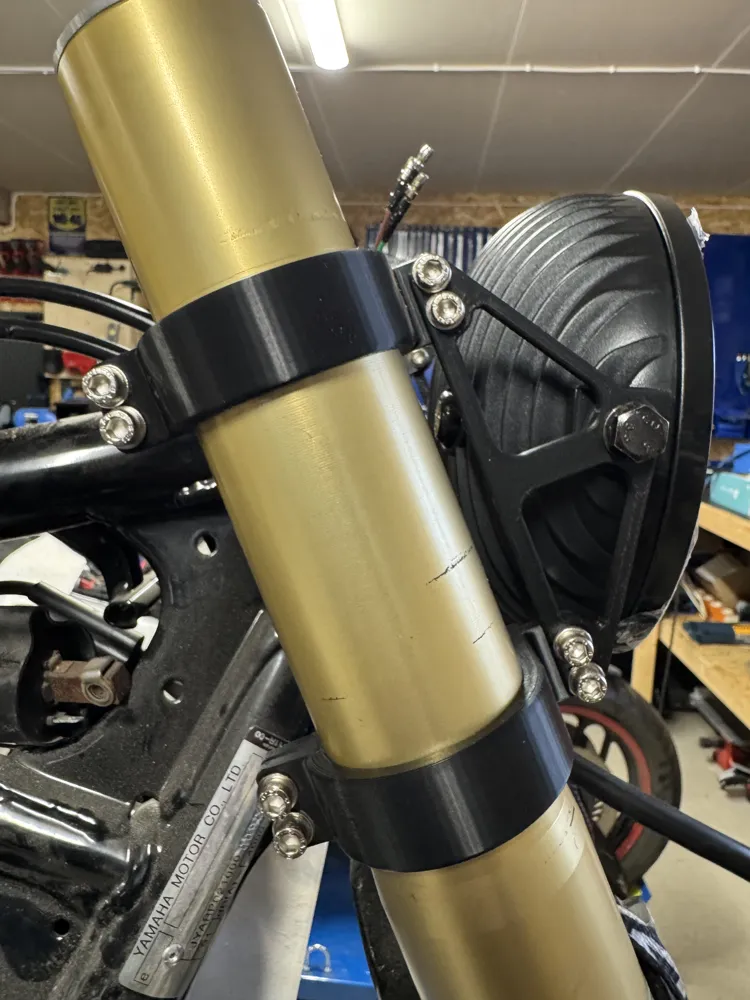

This model is a headlight mount designed for my USD fork on my Yamaha XJR 1300. I needed a design where the headlight was closer to the fork than the mount that I bought. It was designed by me in fusion360, and some trial and error lead to this design.

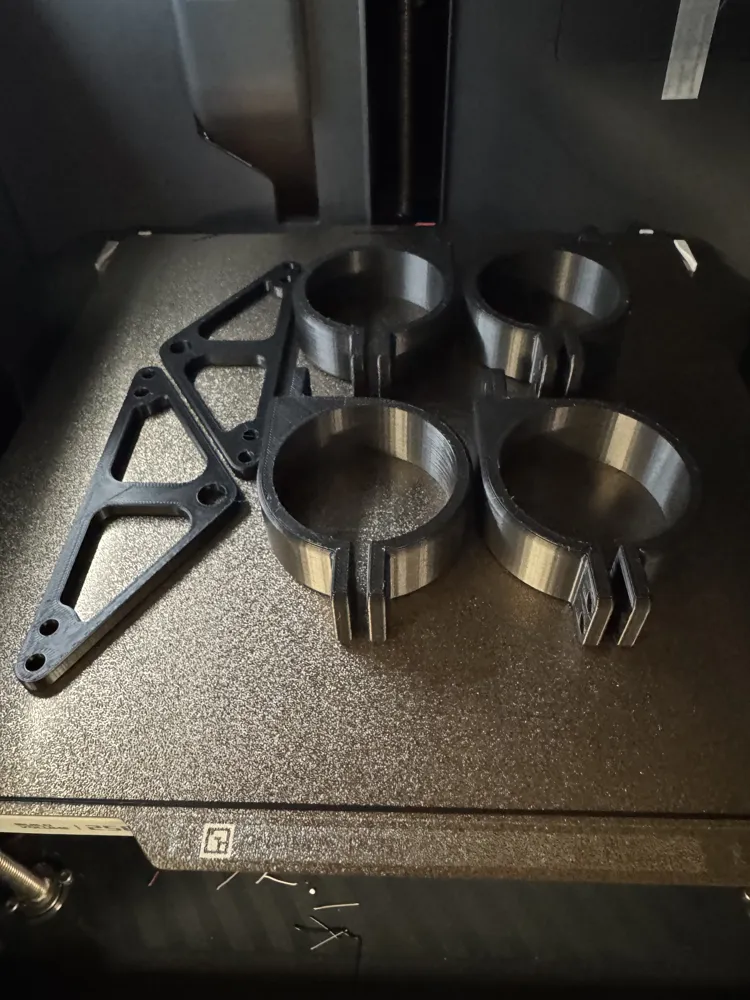

It is sliced with Bambu studios strength profile, and I've printed it in PLA. The hardware used is 16 M5x20 bolts, 32 washers, and 16 M5 nuts.
The inner diameter of the fork clamp is 52,3mm.
