Apple Apple TV TV Bracket Mount (4K 3rd Gen)

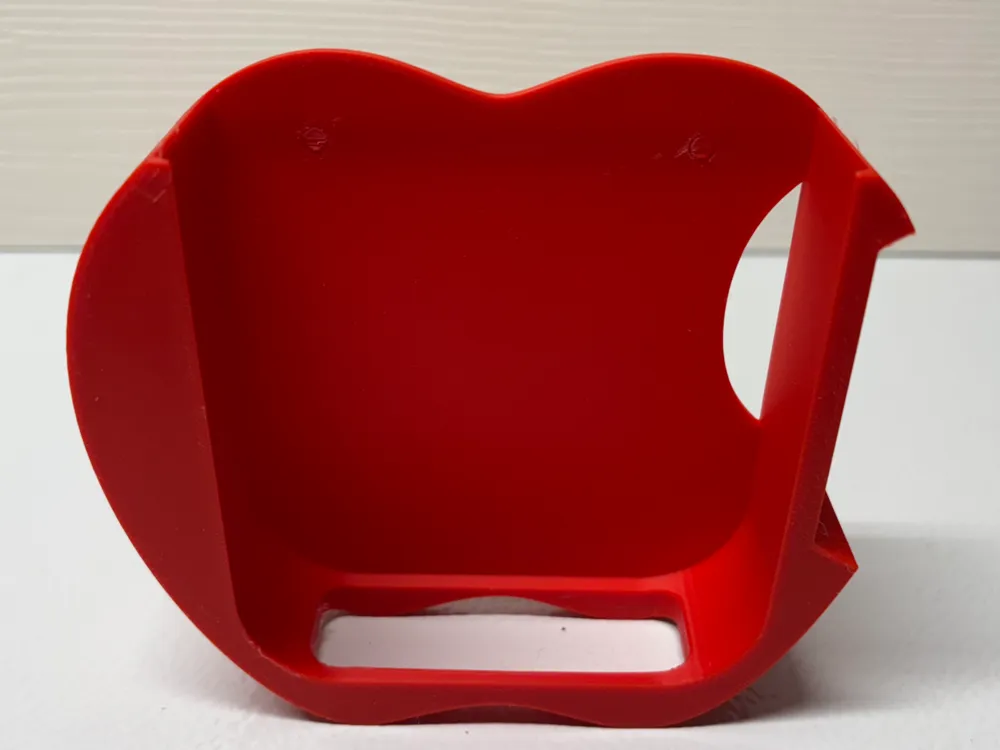

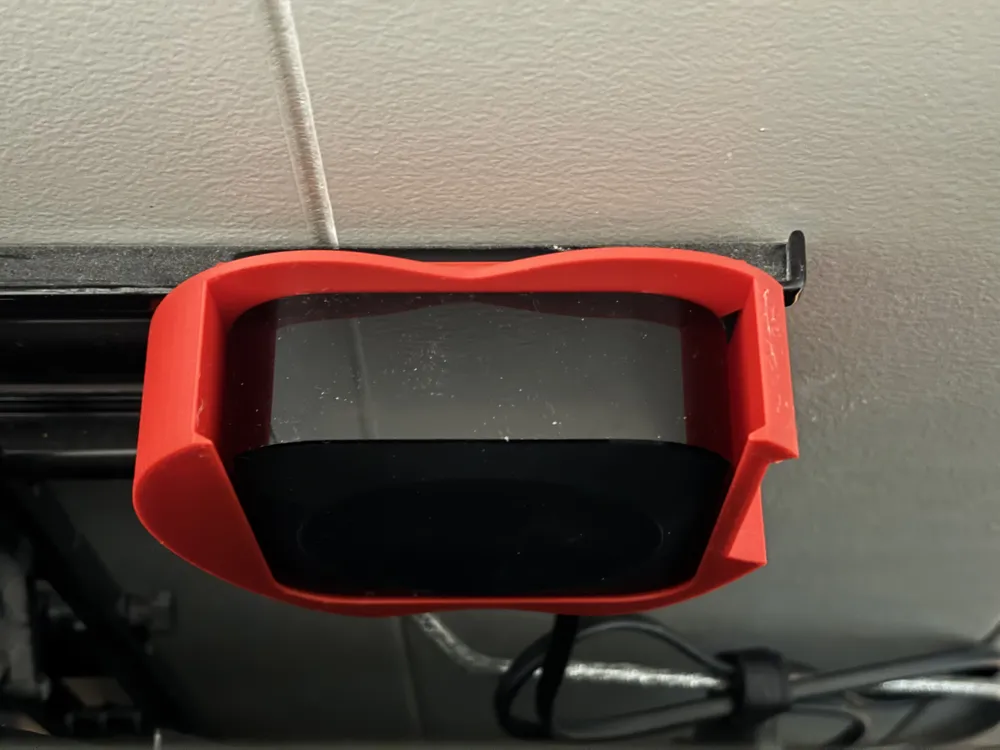

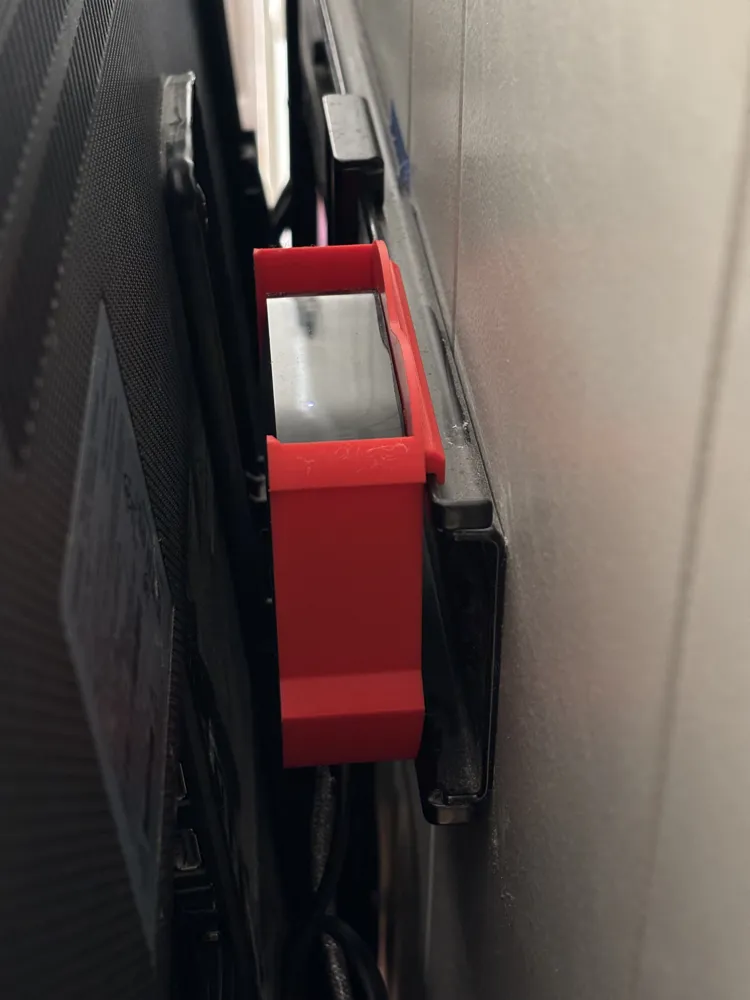

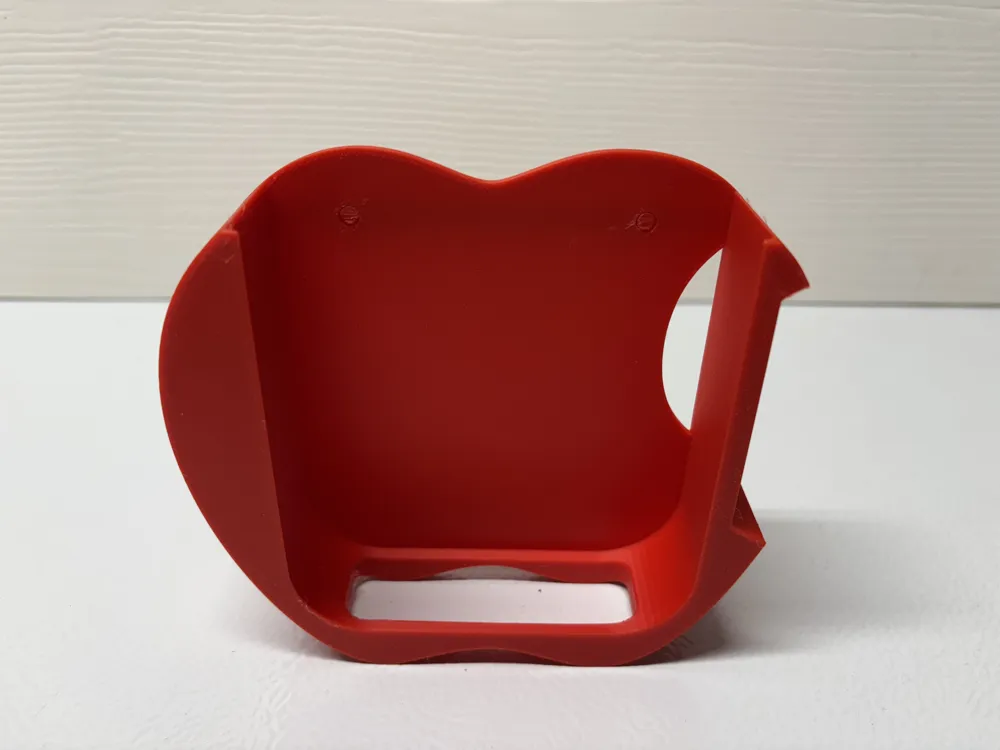

This is a slide-in mount for the Apple TV 4K 3rd generation. It first both my WiFi 64 GB as well as the Ethernet 128 GB models. The unit will slide in with the “bottom” facing away from the back wall. While this means you won't see the Apple logo, the whole thing is meant to hide behind your TV anyway. It is designed to be printed in two parts, and then the bracket glued to the backside of the holder. The bracket allows the mount to hang on many of the brackets that are used for wall mount TVs it has 3 mm of clearance in the “hook” and will require about 100 mm of free space on the hanger bar.

I designed this simply to satisfy the “Apple Apple TV TV Mount” pun/tongue-twister. I also did not want to screw into or stick anything to my wall or TV. Since I wall mount my TVs whenever possible, this seemed like a good solution.

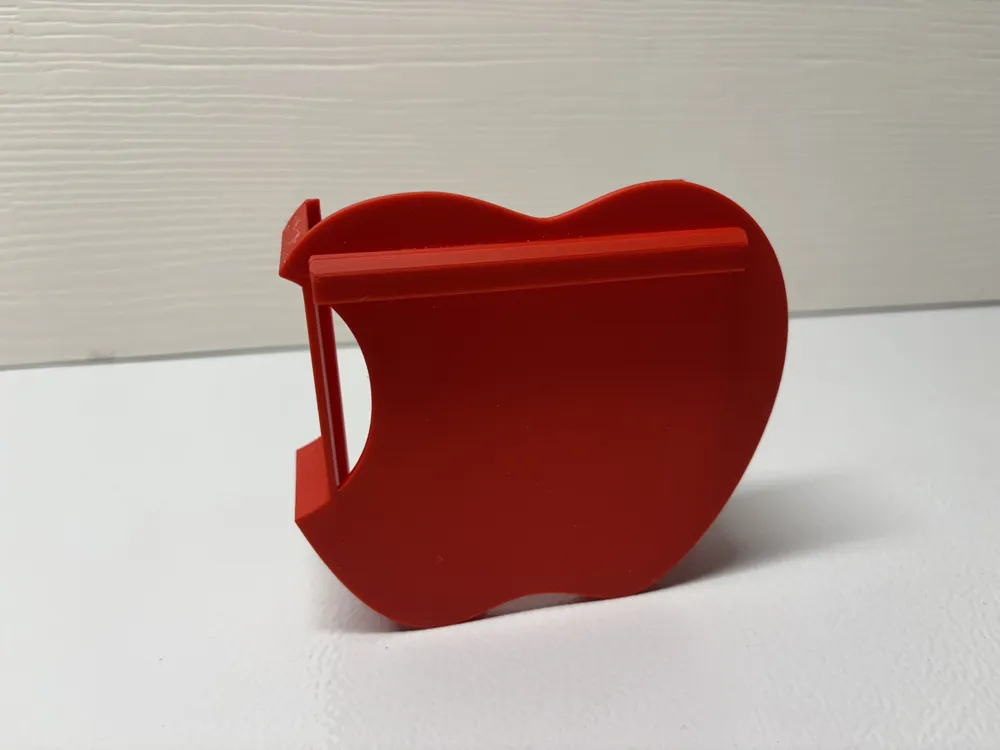

Note that in my print profile, the bracket part is printed at a 45-degree angle. Printing it flat is tempting, but the post would either immediately snap off or require supports. The posts will locate the bracket into the holder, but you will need to glue it into place. If the glue were ever to fail, the HDMI and power cables would probably arrest the fall, but use at your own risk.
