Springfield Armory Echelon Competition Holster
Print Profile(0)
Description

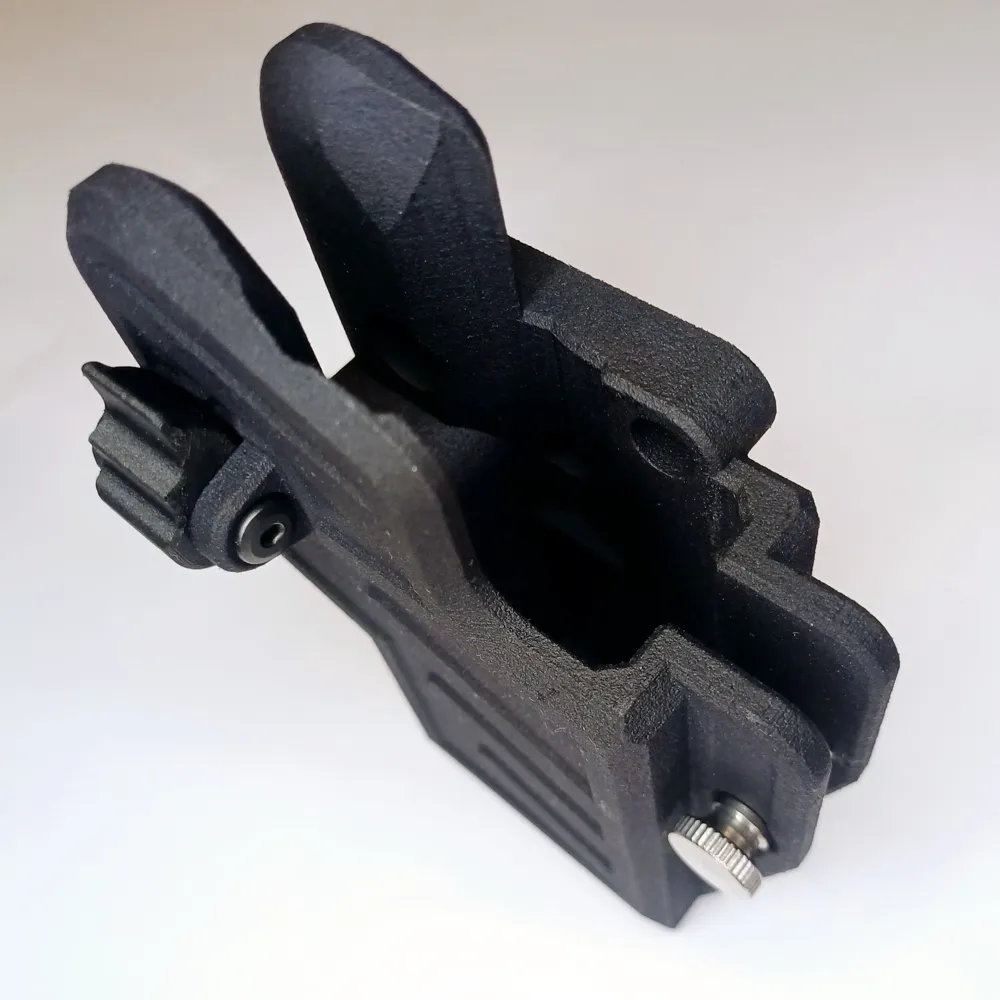

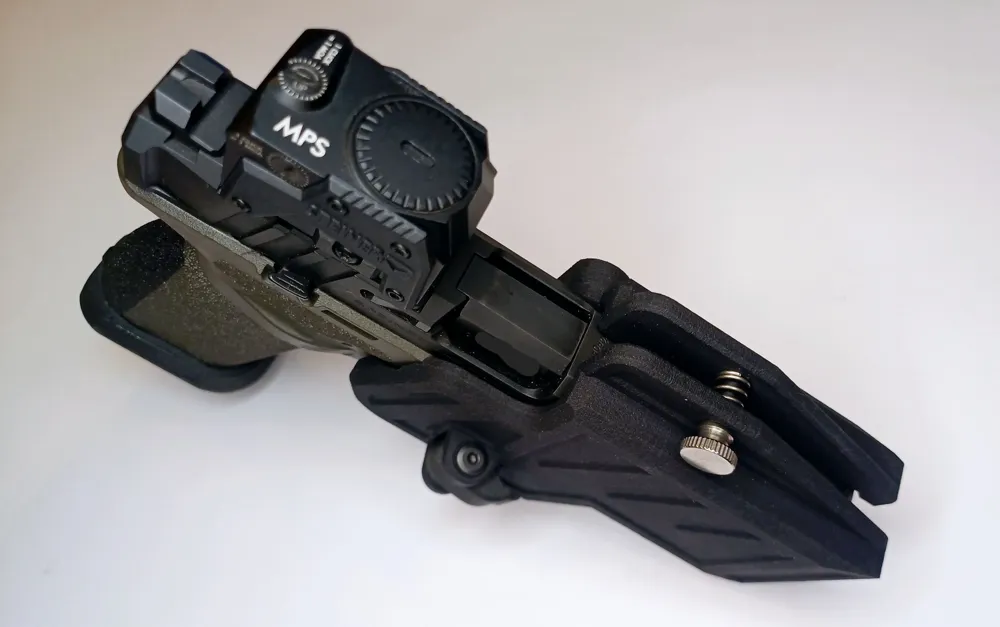

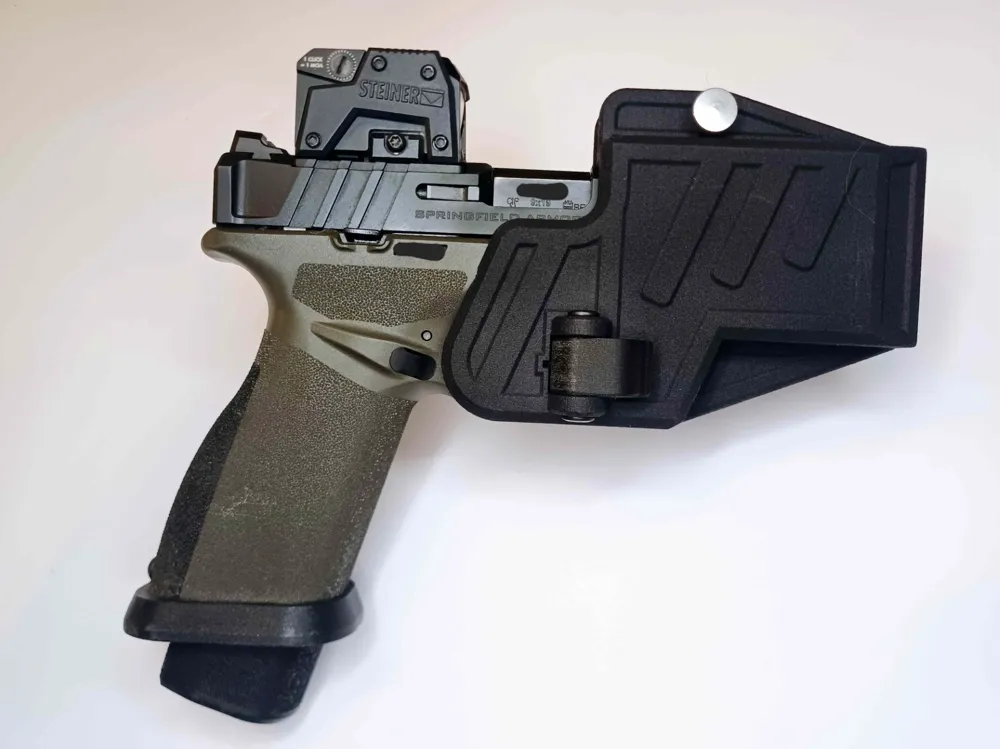

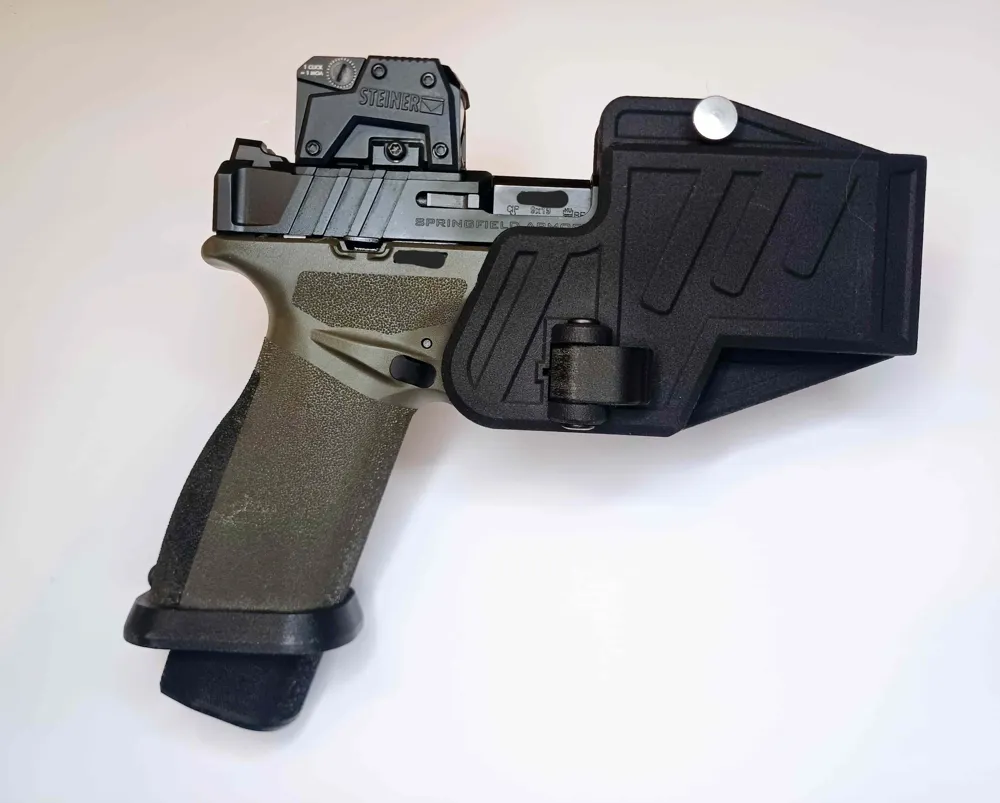

This is a high-end speed holster for the Springfield Armory Echelon Fullsize pistol. Also suitable with Reddot optics.

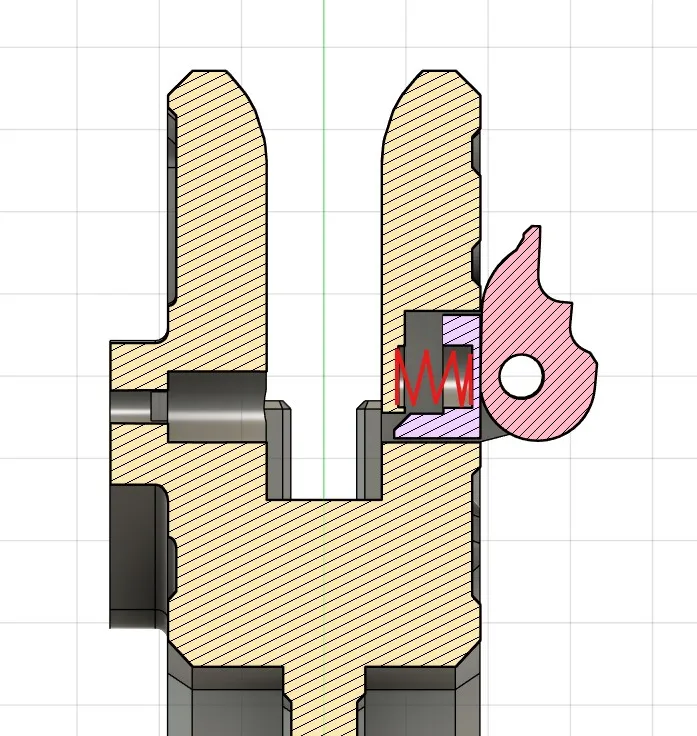

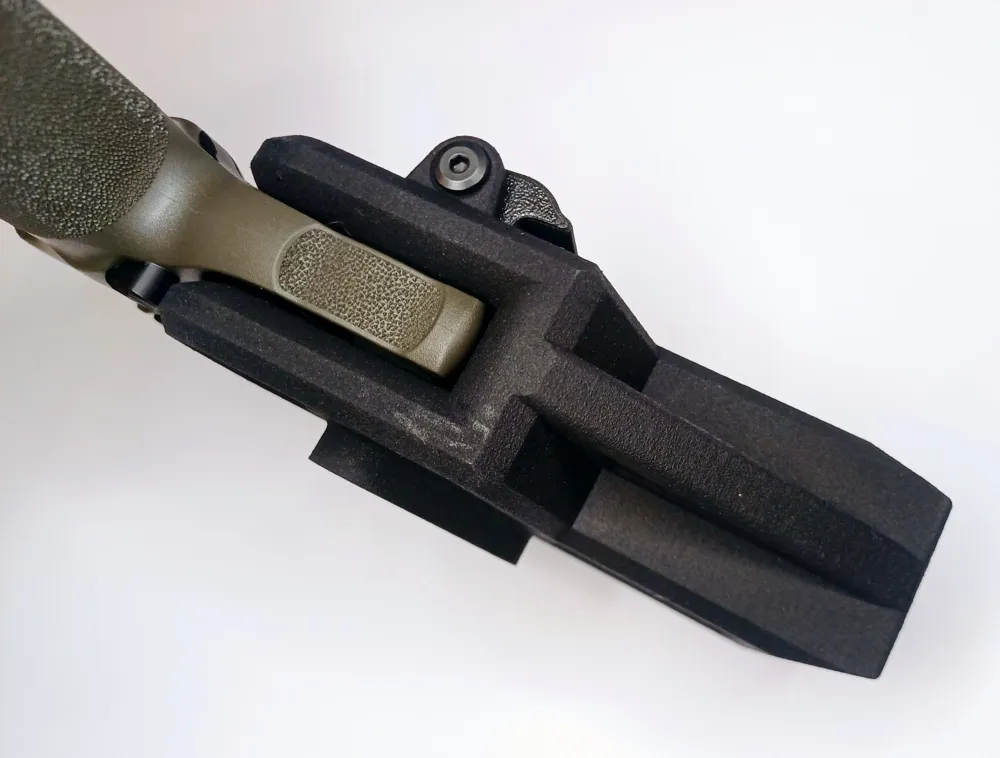

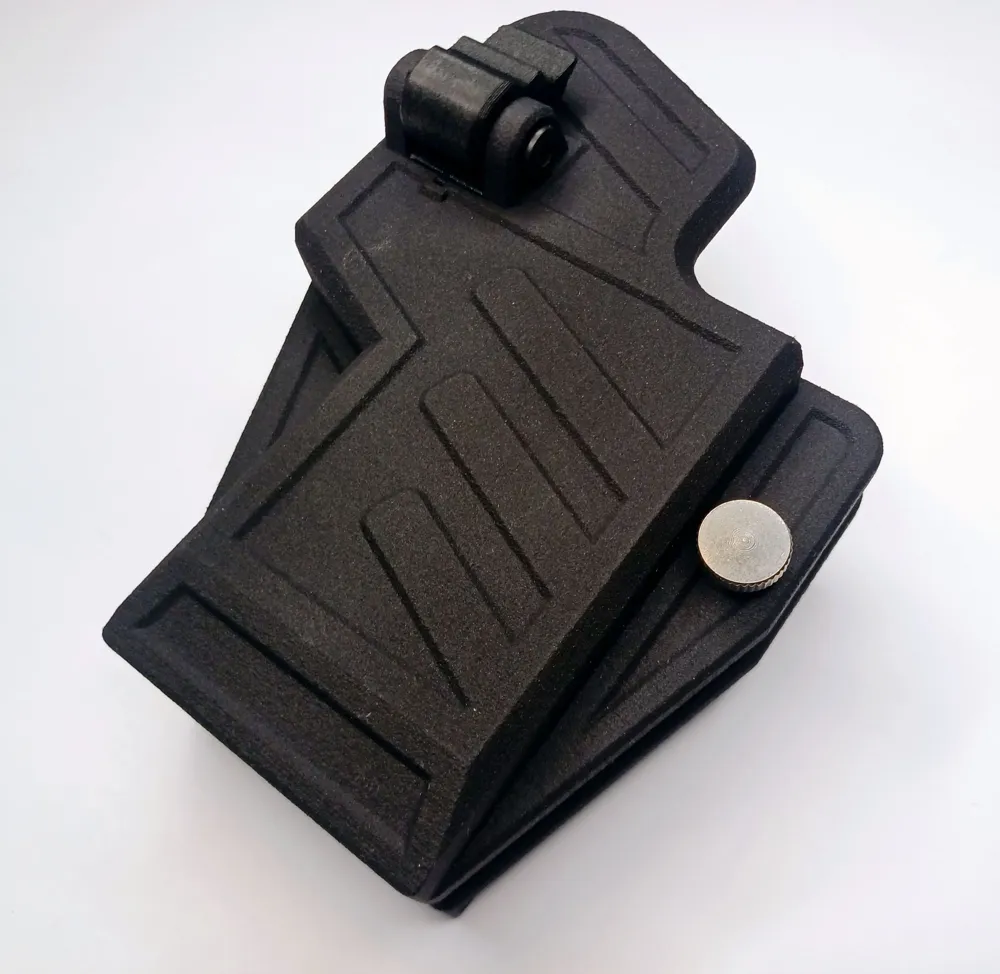

The holster features a smooth locking mechanism that engages the trigger guard.
This ensures that the pistol does not accidentally fall out of the holster between stages or when running with the weapon holstered.
The principle of the locking mechanism is locked or unlocked, the mechanism does not have to be operated every time to draw the weapon.

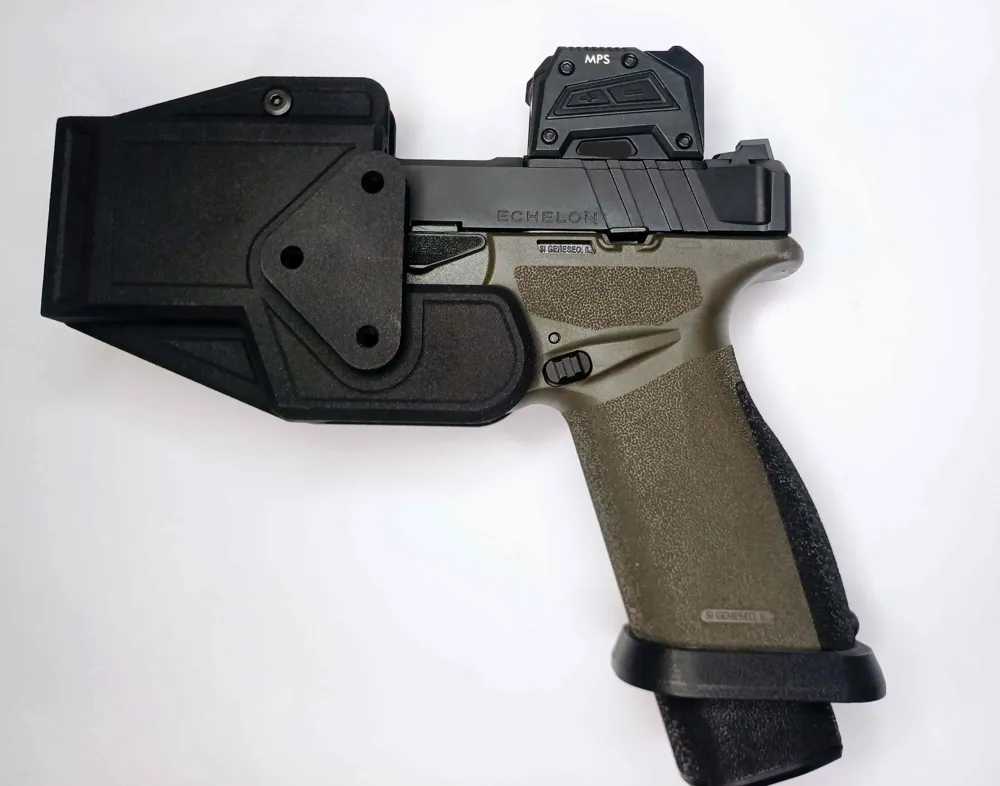

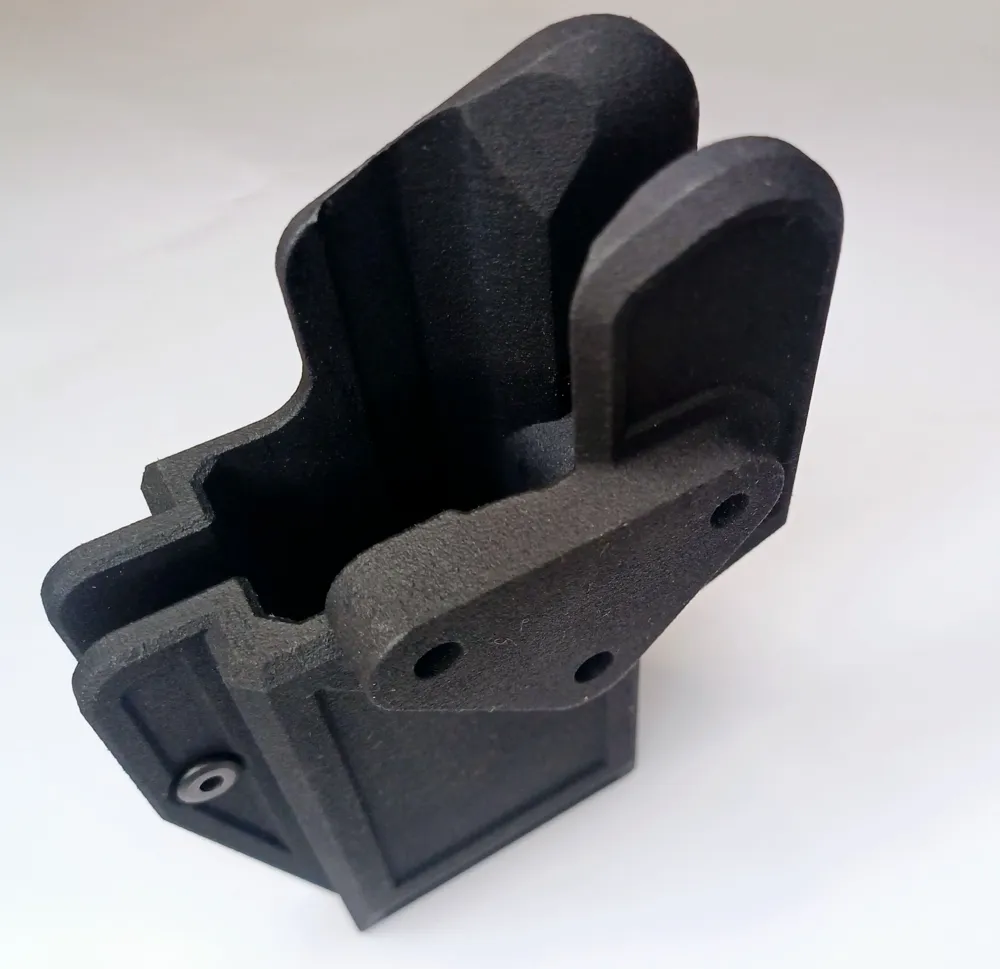

The holster attaches to the hanger via the 3-hole Bladetech pattern. 3, 5, and 8mm spacers are included.
Mounting works via M4 carriage bolts and suitable sleevenuts.

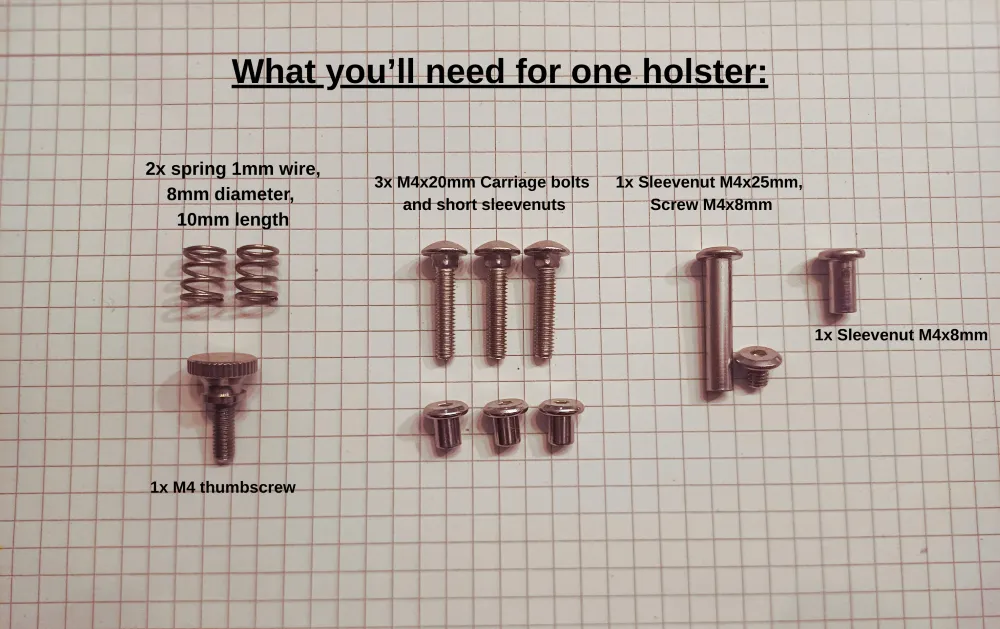

Additional parts list for one holster:
2x Spring, 8mm Diameter, 1mm Wire Diameter, 10mm length
1x Sleevenut M4x25mm blus Screw M4x8mm

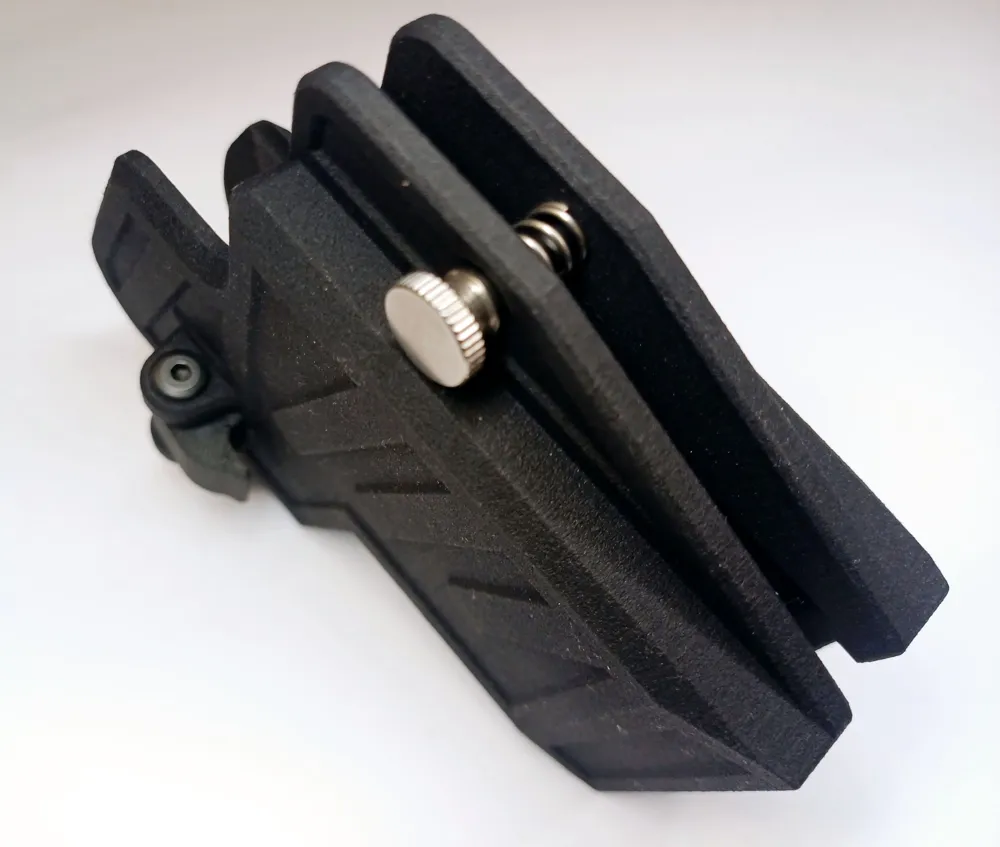

1x Sleevenut M4x8mm plus Thumbsrew (for draw tightening mechanism)
3x Carriage bolts and sleevenuts (length depends how much spacers you install, we recommend bolt lengths of 15, 20mm and 25mm and 10, 15, 20mm sleevenut sets)
You can print it FDM, but for high end use we recommend printing it SLS out of Nylon PA12 GF filament or PA12 without GF.
We also recommend using a Hanning T1000 Holster Hanger for best use.
