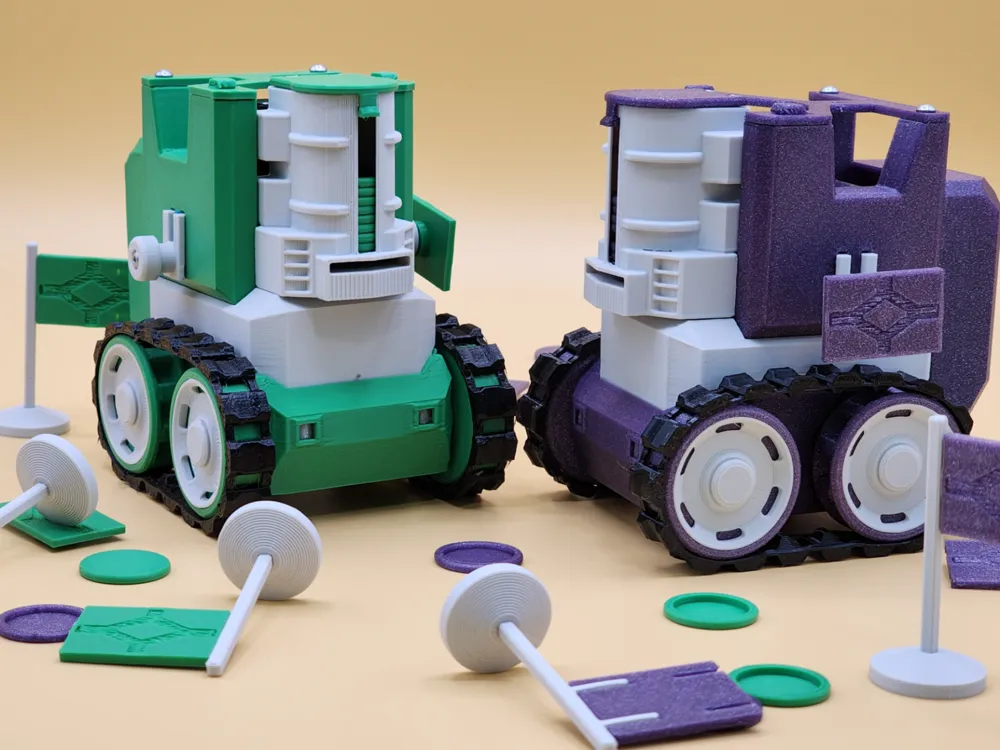

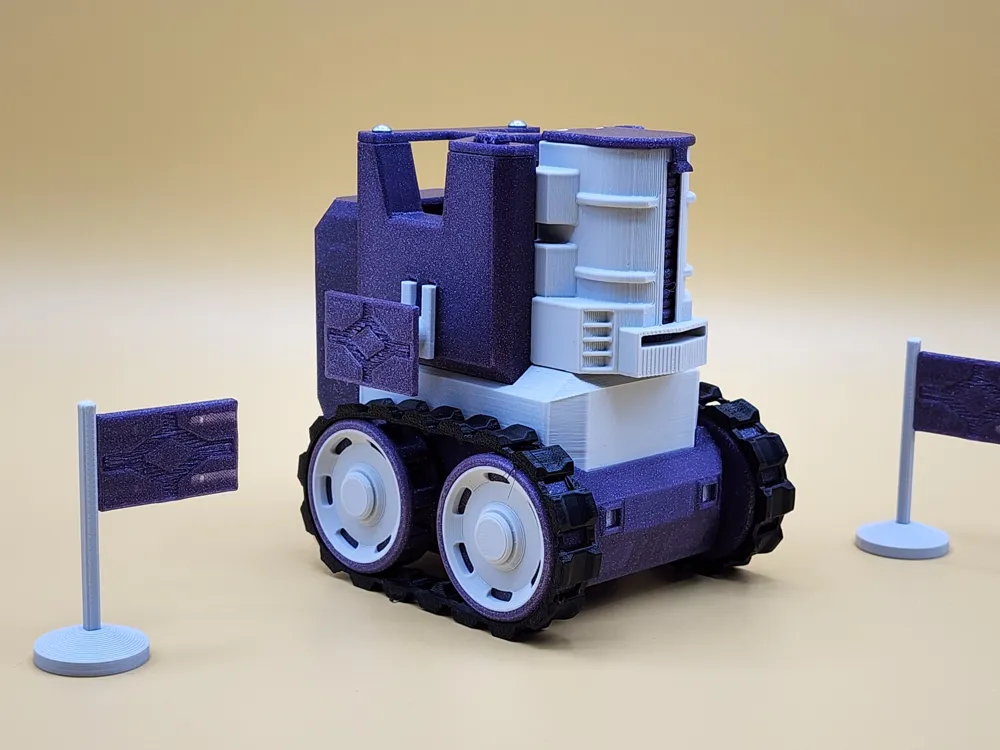

This DodgeBot model is a remix of the Official CyberBrick™ SoccerBot. This replaces the SoccerBot ball launcher with a disc shooter.
Everything including the hardware components, wiring, remote control bindings are the same, except the gantry AKA Locomotive Head Assembly. Assemble the full SoccerBot model first following the official assembly guide. Ensure that you are able to correctly assemble, program and operate the SoccerBot before attempting to assemble the DodgeBot.
If you did assemble and configure the SoccerBot first before attempting the DodgeBot, you don't need to do any configuration change. However, the DodgeBot config file is provided below in case you went straight into building the DodgeBot.
Additional Hardware & Materials Needed
If you haven't purchased any of the CyberBrick kits, you will need at least the DodgeBot for CyberBrick kit referenced in the BOM section below to add the needed hardware to the printed parts.
If you already purchased any of the CyberBrick kits, you will just need the following additional hardware:
- 1.4x20mm rubber band (SKU# RA002 from Maker Supply Store).
- 360° Servo (SKU# PG002 from Maker Supply Store) If you want to easily swap between the SoccerBot and DodgeBot gantries without disassembly
- 4x2mm Round Magnets (SKU# CA001 from Maker Supply Store) The flag targets on the DodgeBot tanks use 4x2mm Round Magnets to mount to the sides of the tanks. You might still have some extra magnets from the CyberBrick kits.
Game Modes
Enjoy playing solo, against another player, co-op or competitive play! Choose between lightweight or mediumweight discs for the best battle performance! The disc silo can load up to a maximum of 20 discs.
| Game Mode | Description | Solo | 1v1 | Team Play | Free-for-all |
| Checkpoint Race | Players compete in a race where progress is only achieved by knocking down flags at each checkpoint. The first to cross the finish line wins. | Yes (beat your previous record) | Yes | No | Yes |
| Elimination | Players aim to knock down all opponent flags on their bots/tanks or knock down all opponent flag stands. The player to achieve this first, wins the round. | No | Yes | Yes | Yes |
| Survival | One player must dodge incoming discs from incoming players trying to knock down all the flag stands. The player should disable all incoming bots by knocking down the opponents' mounted bot/tank flags. | No | Yes | Yes | Yes |
| King of the Hill | Players fight for control of a central flag zone. Points are earned based on time spent holding the zone while defending it from opponents. | No | Yes | Yes | Yes |
| Capture the Flag | (To follow) Players must retrieve a magnetic flag and bring it back to their home base while avoiding the other players steal the flag. The player or team successfully brings the opponent flag to their home base wins the round | No | Yes | Yes | No |

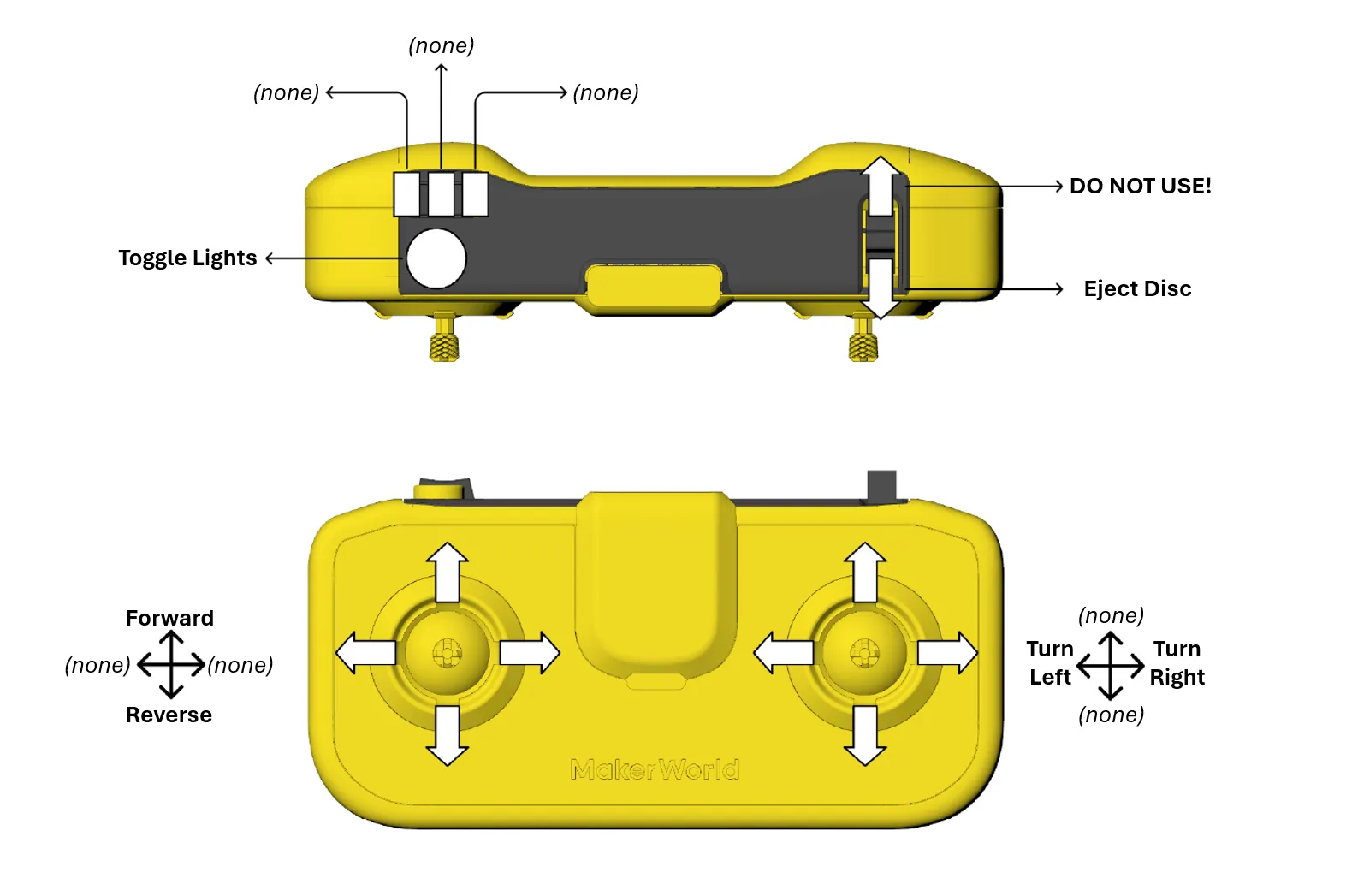

Control Key Bindings
You can use the Official CyberBrick Standard Remote with no wiring modifications and with the joystick bindings similar to the Official SoccerBot:
WARNING
Not suitable for children under 13 years old. Keep discs away from small children, as they may pose a choking hazard. Minors should be supervised by an adult when playing the CyberBrick toys.
