Description
Compatible with DN15 (½") BSP thread
All parts require no supports unless otherwise specified
Unleash your creativity and craft your own industrial style

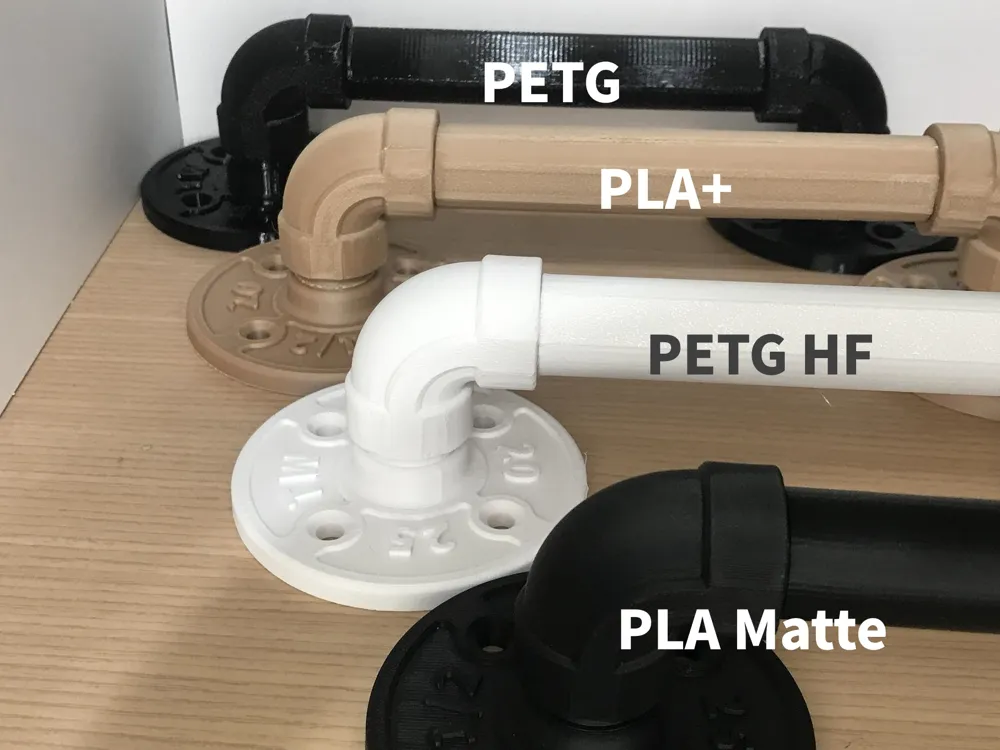

PLA or PETG filament may be used
For enhanced durability, PETG is recommended

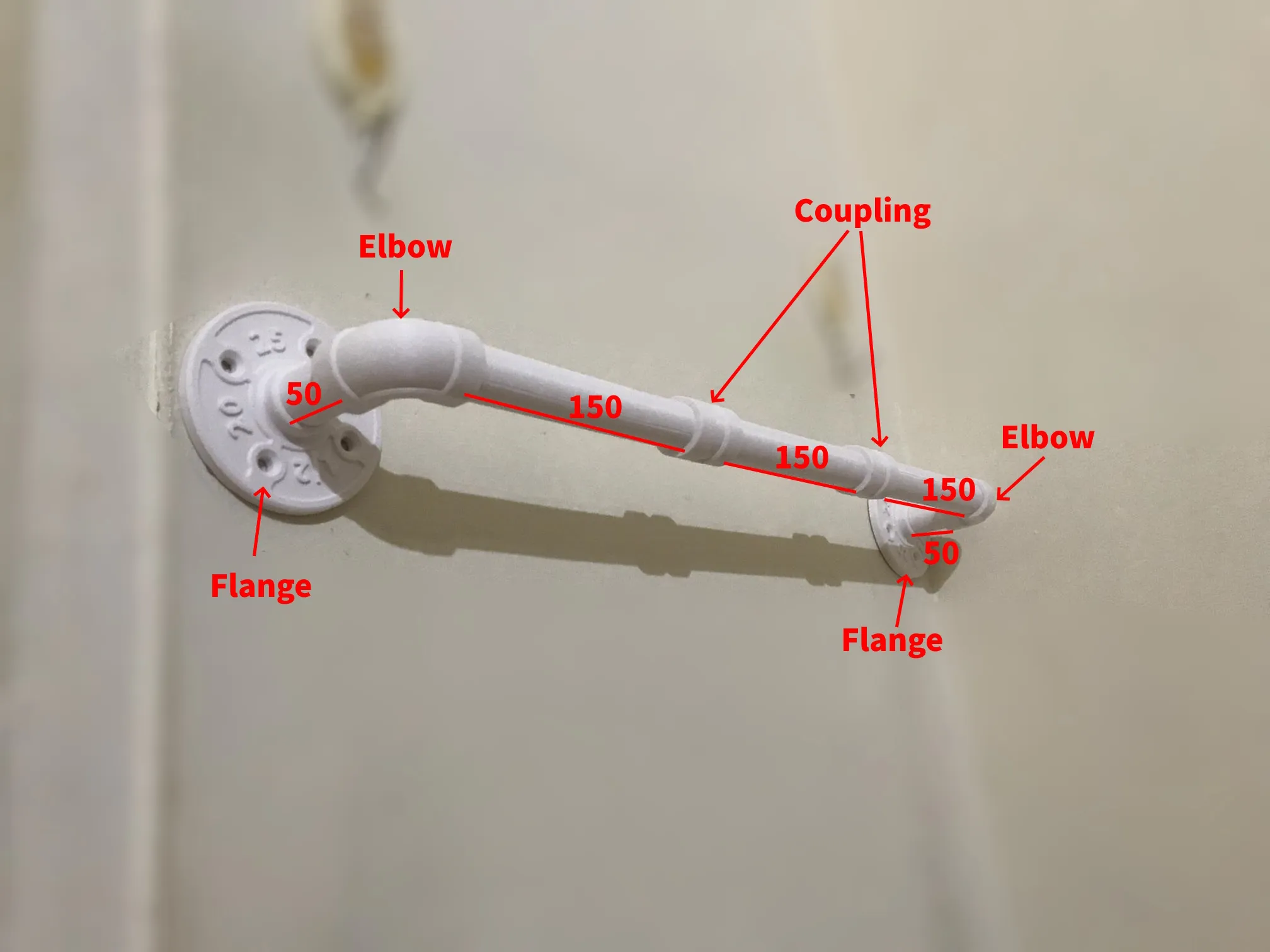

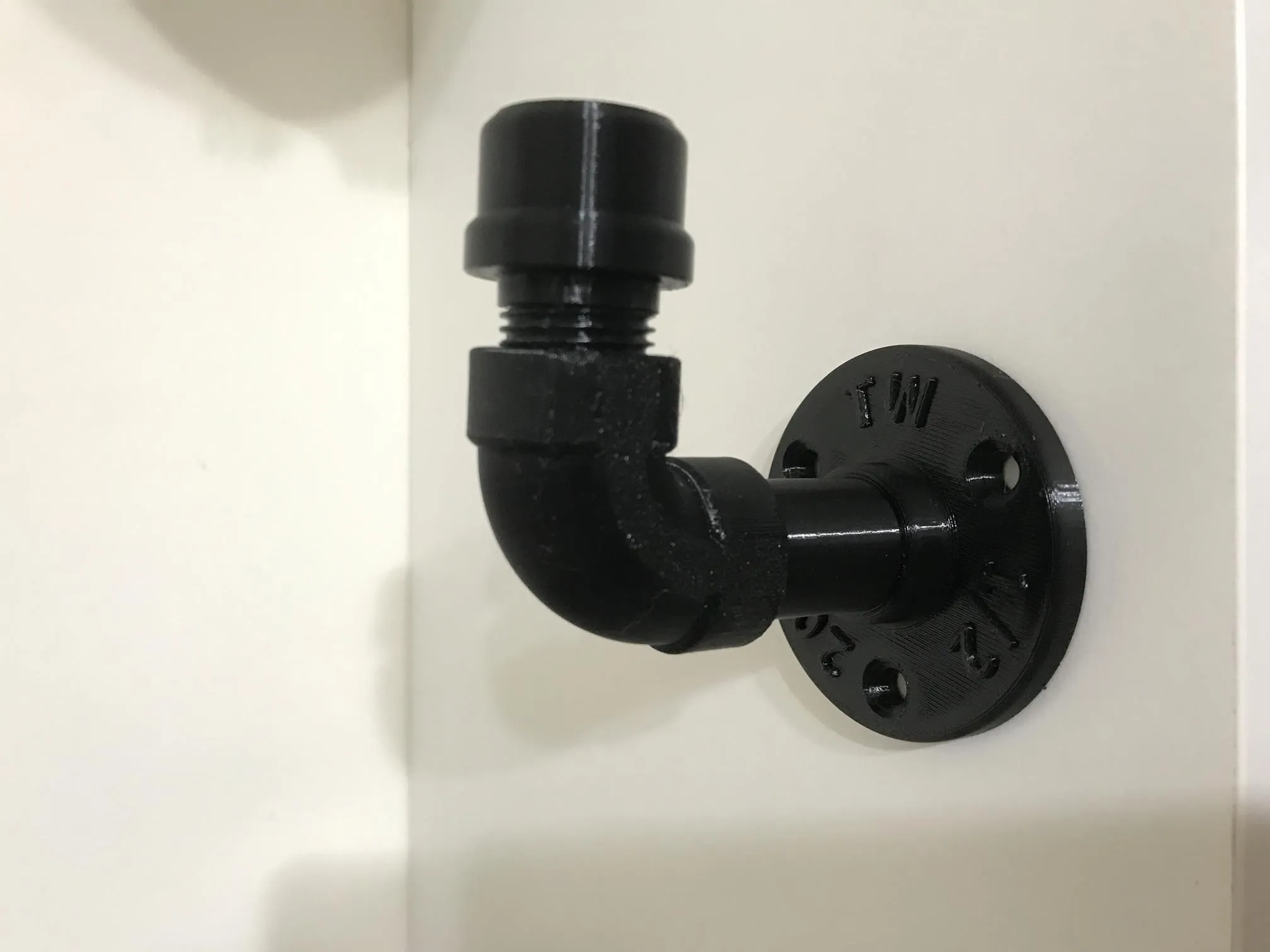

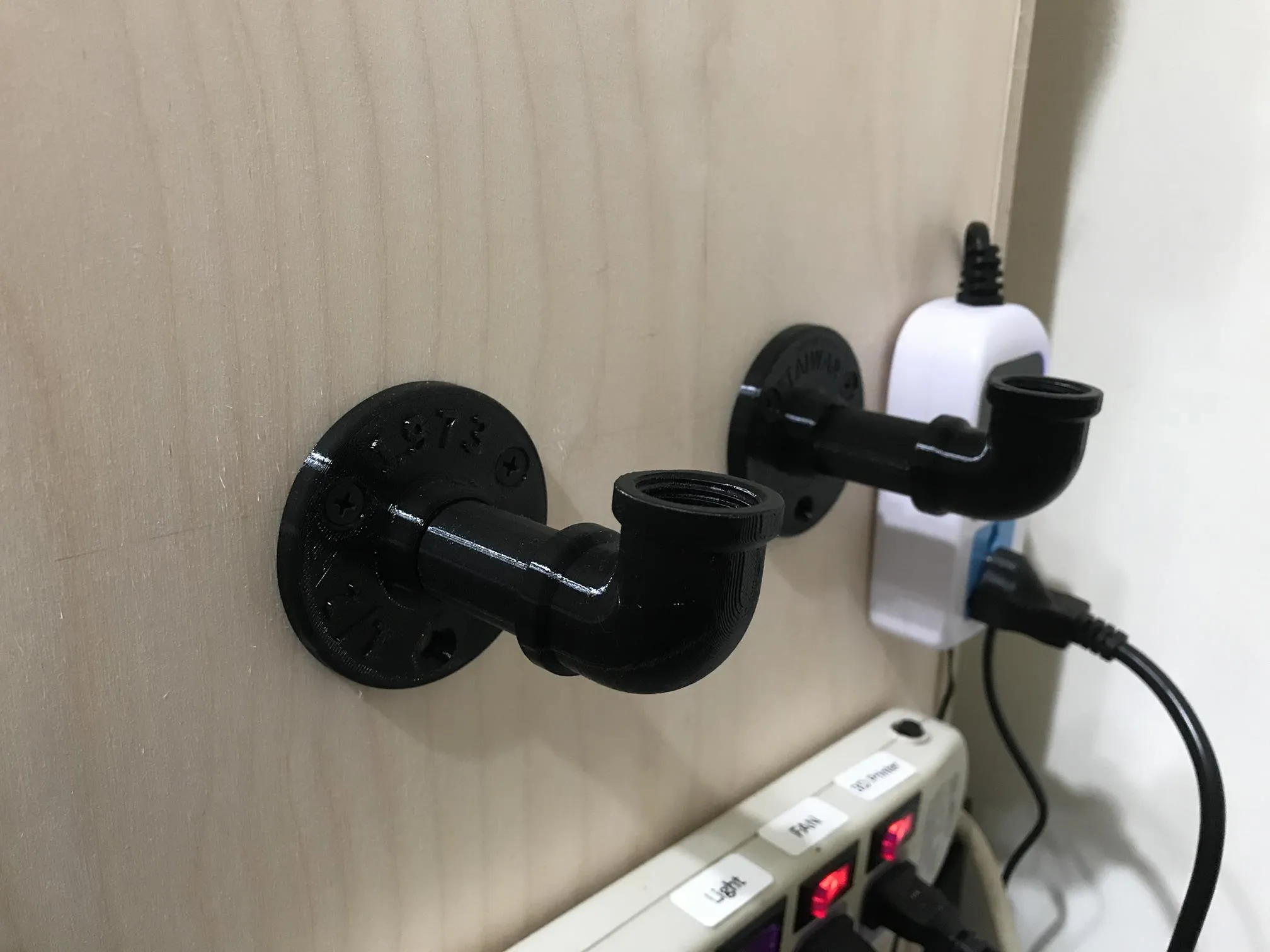

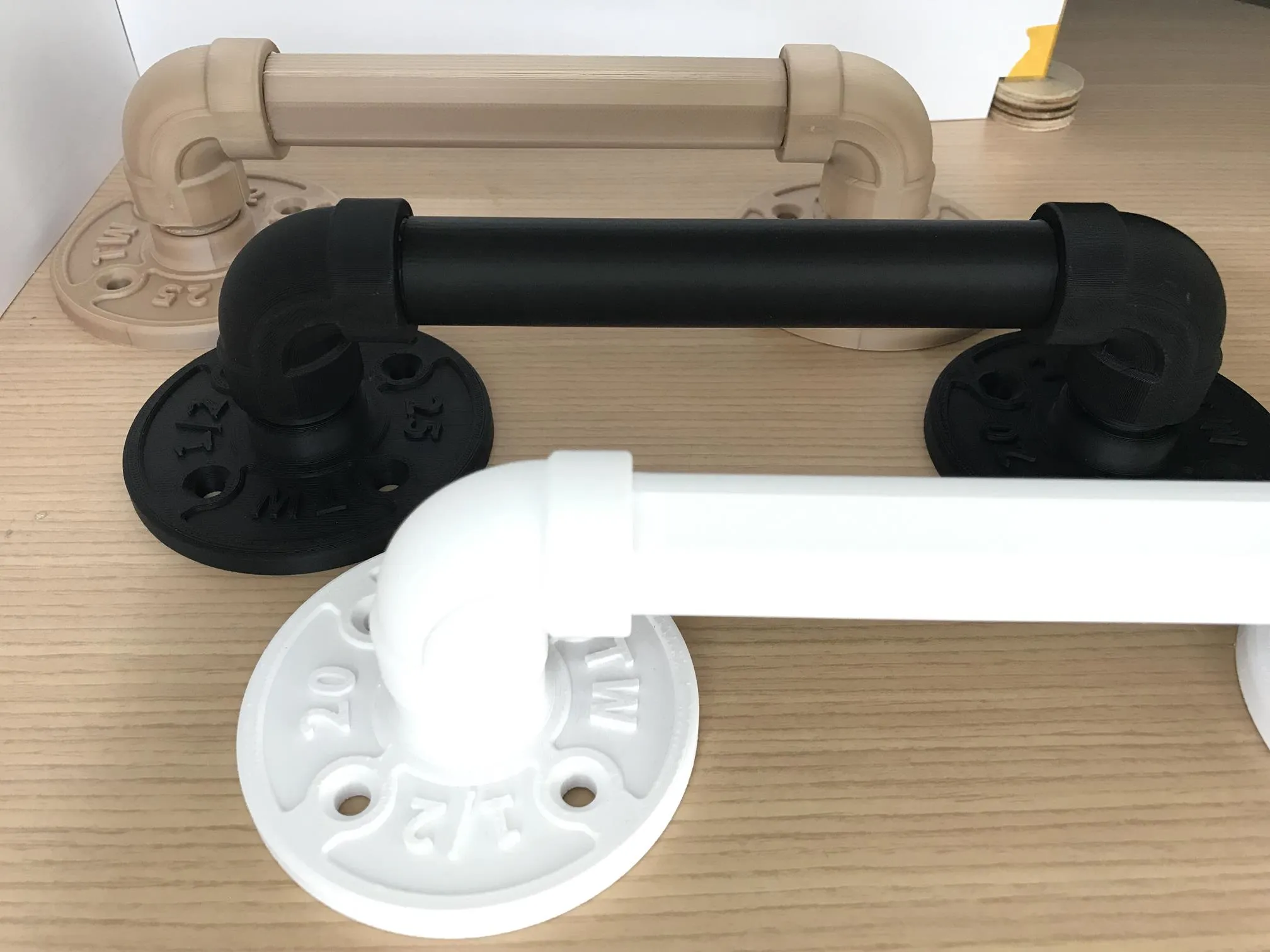

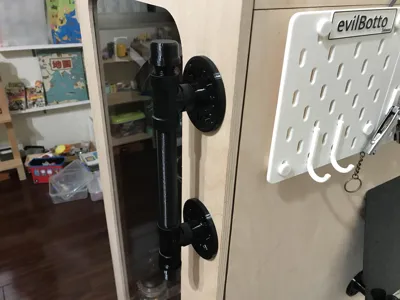

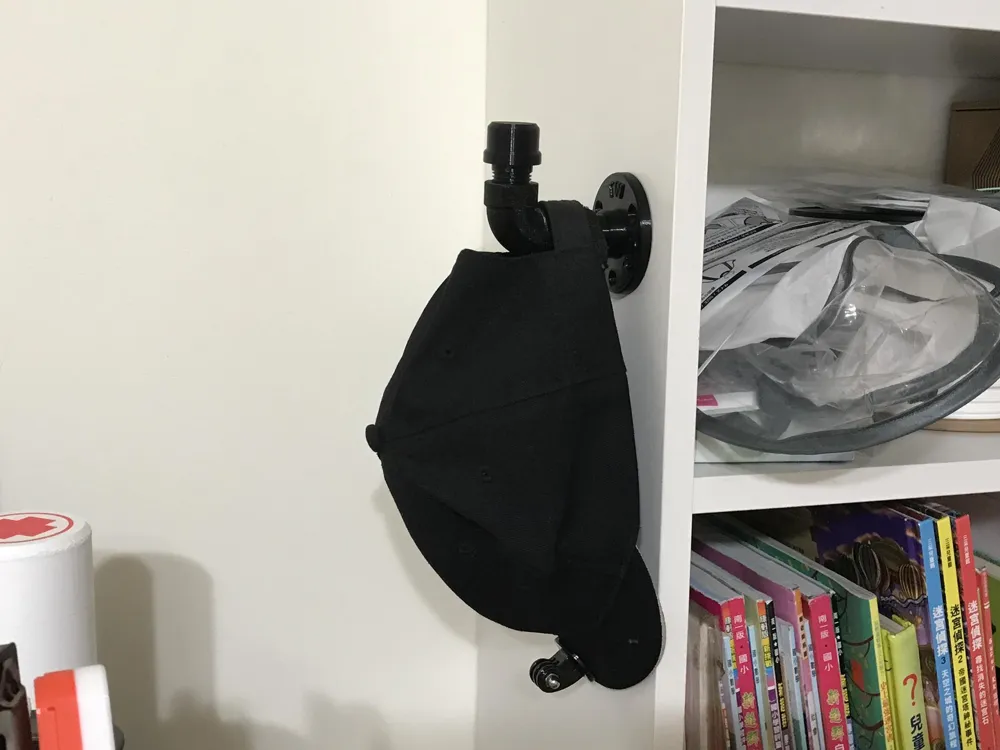

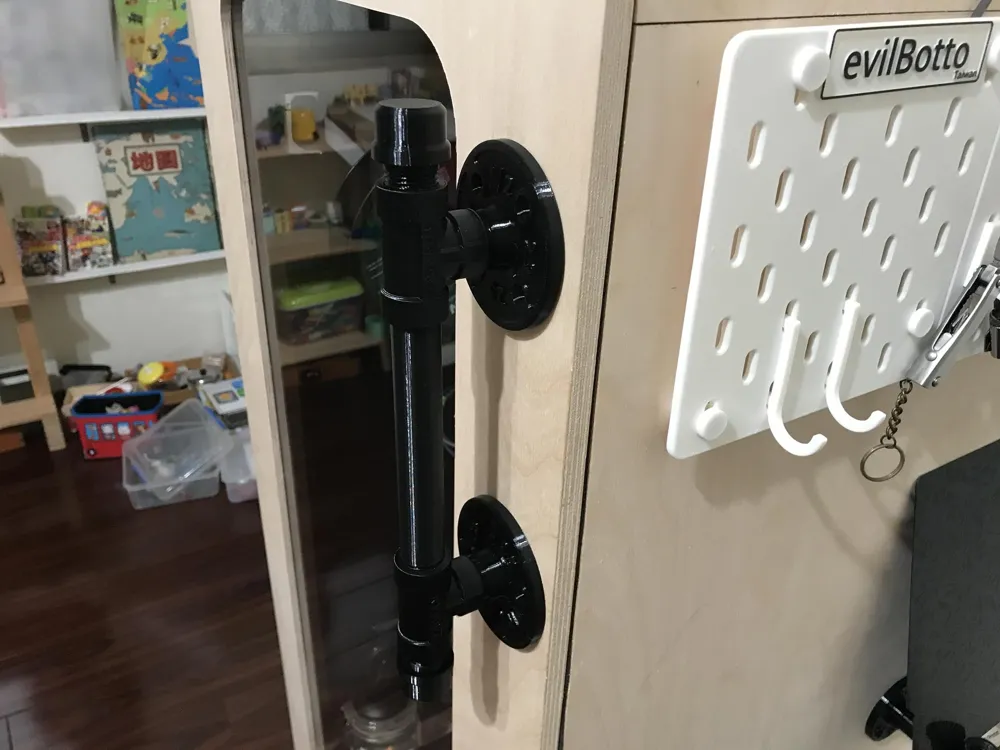

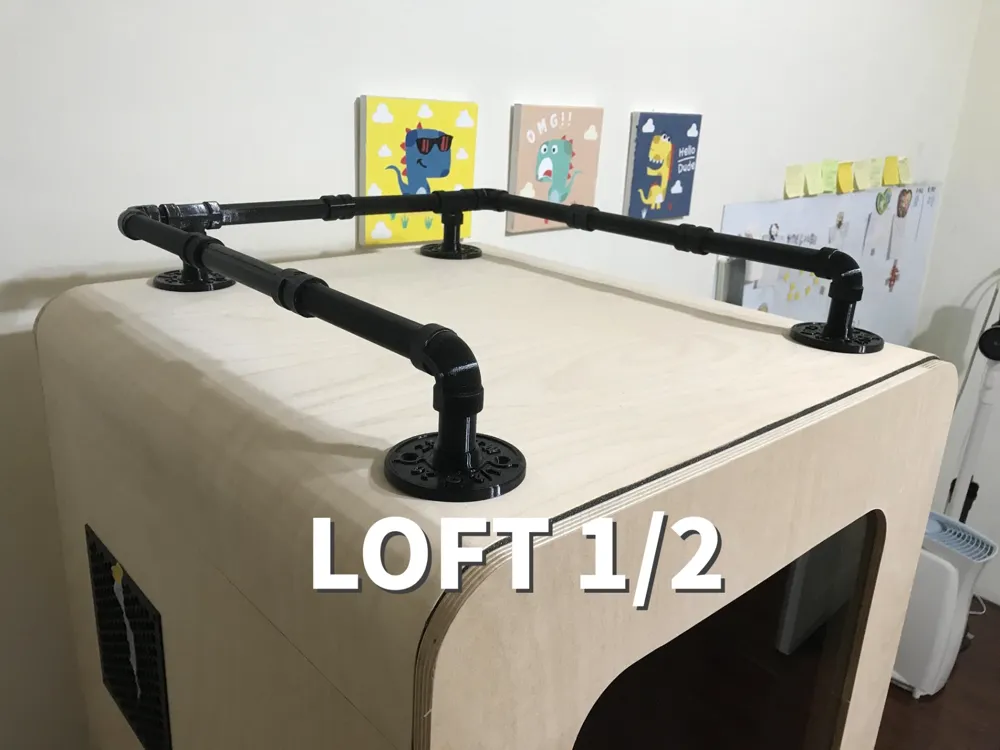

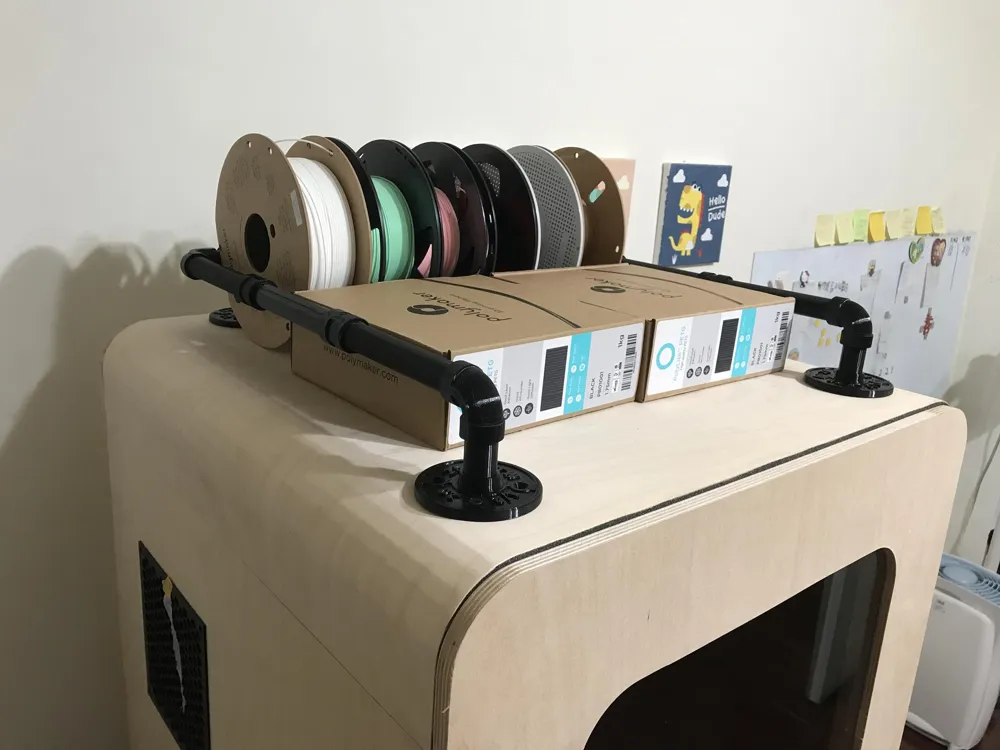

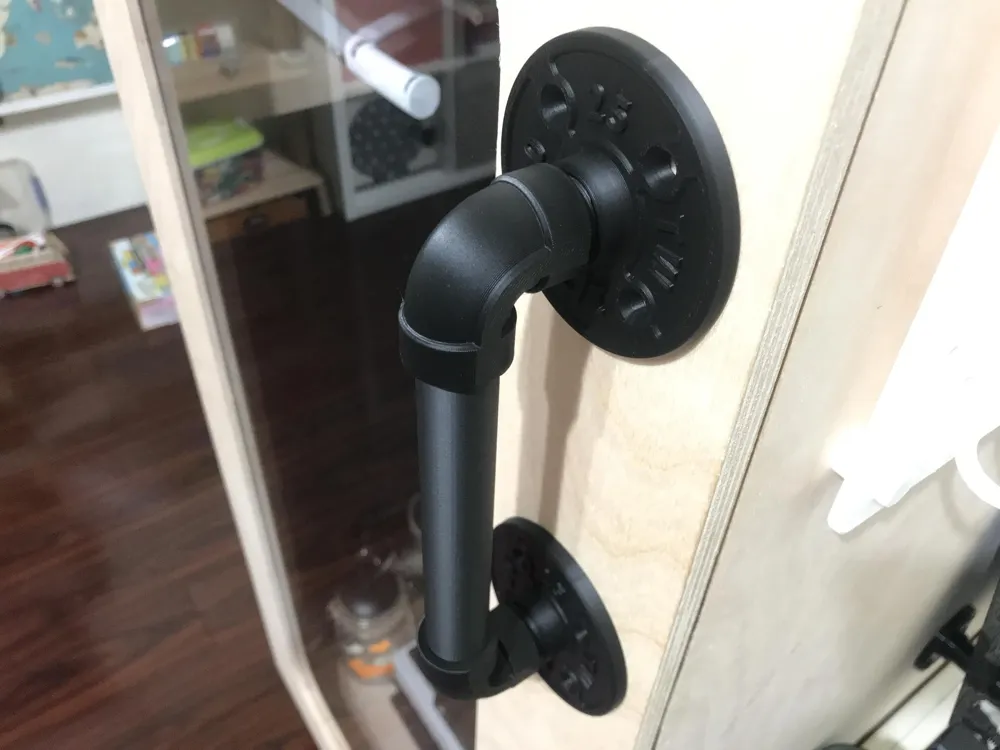

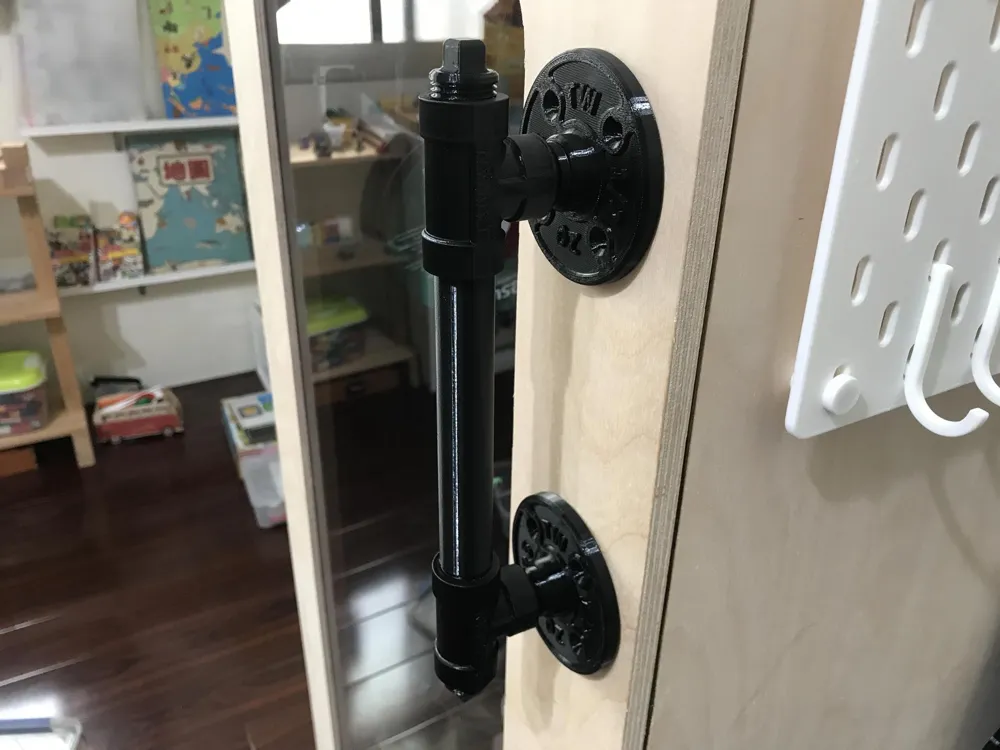

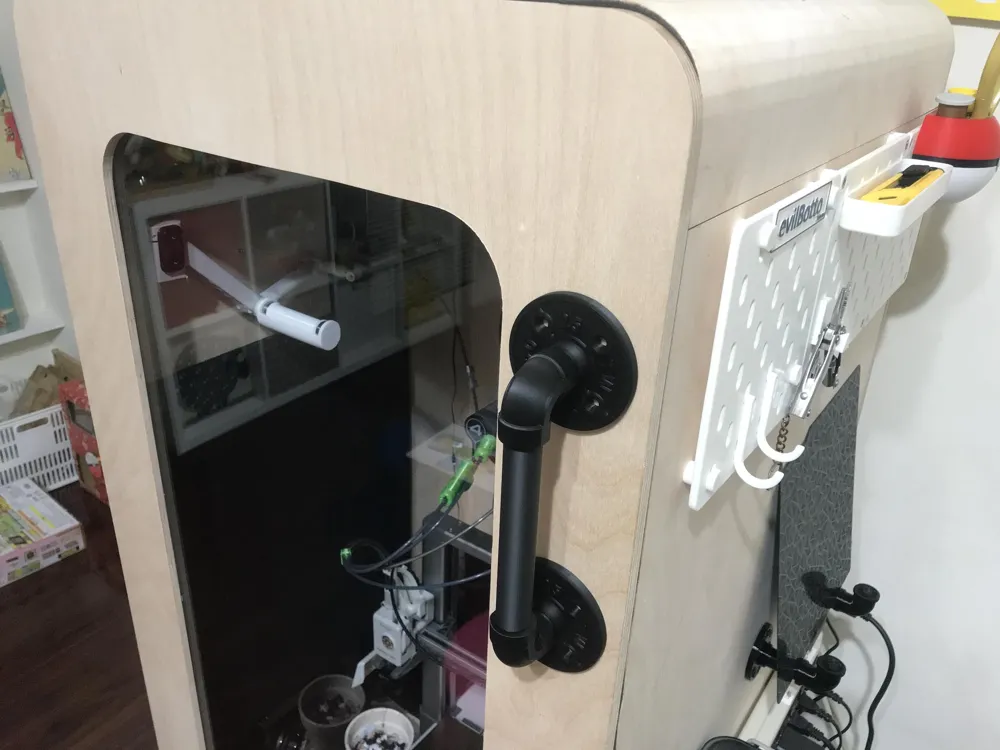

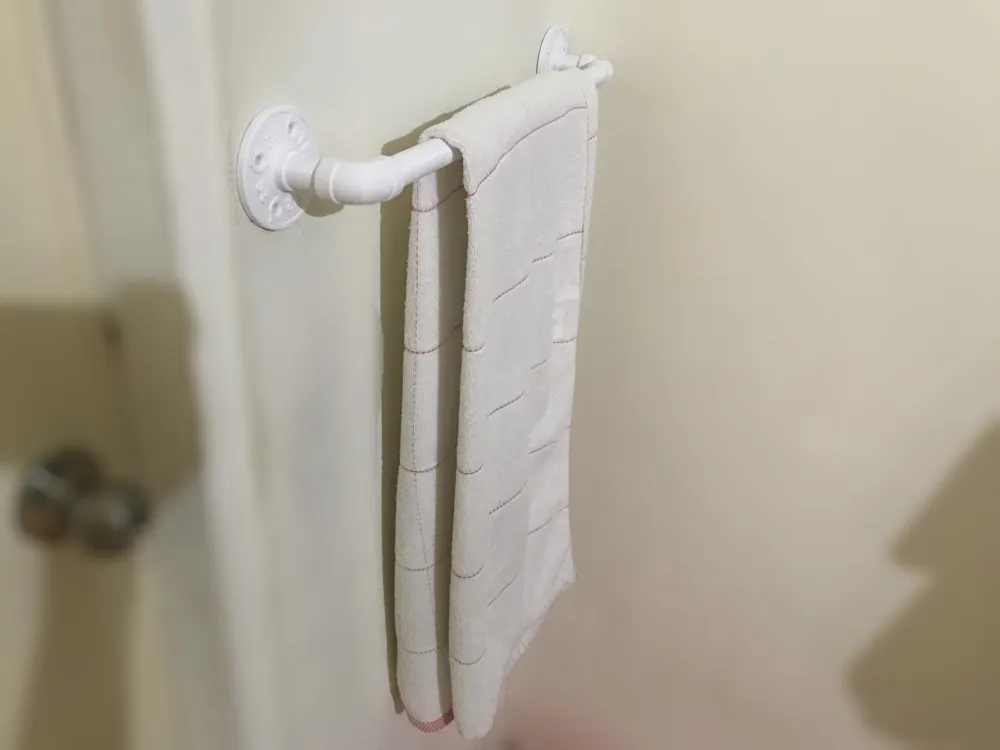

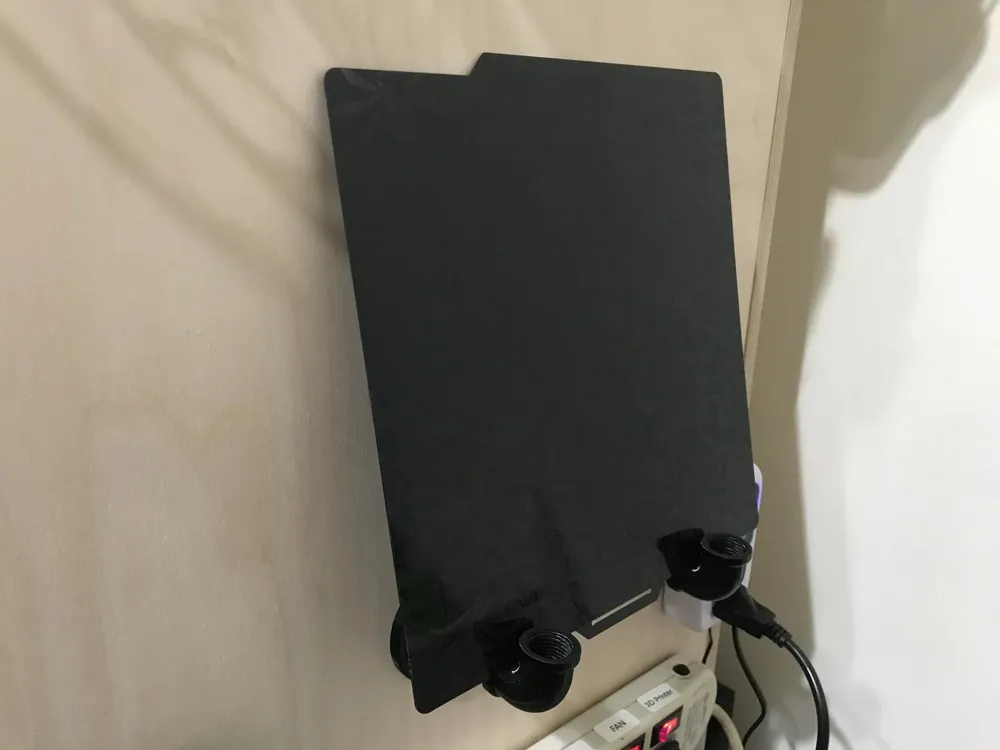

Examples:
 |  |
 |  |
Part Description
Units in mm

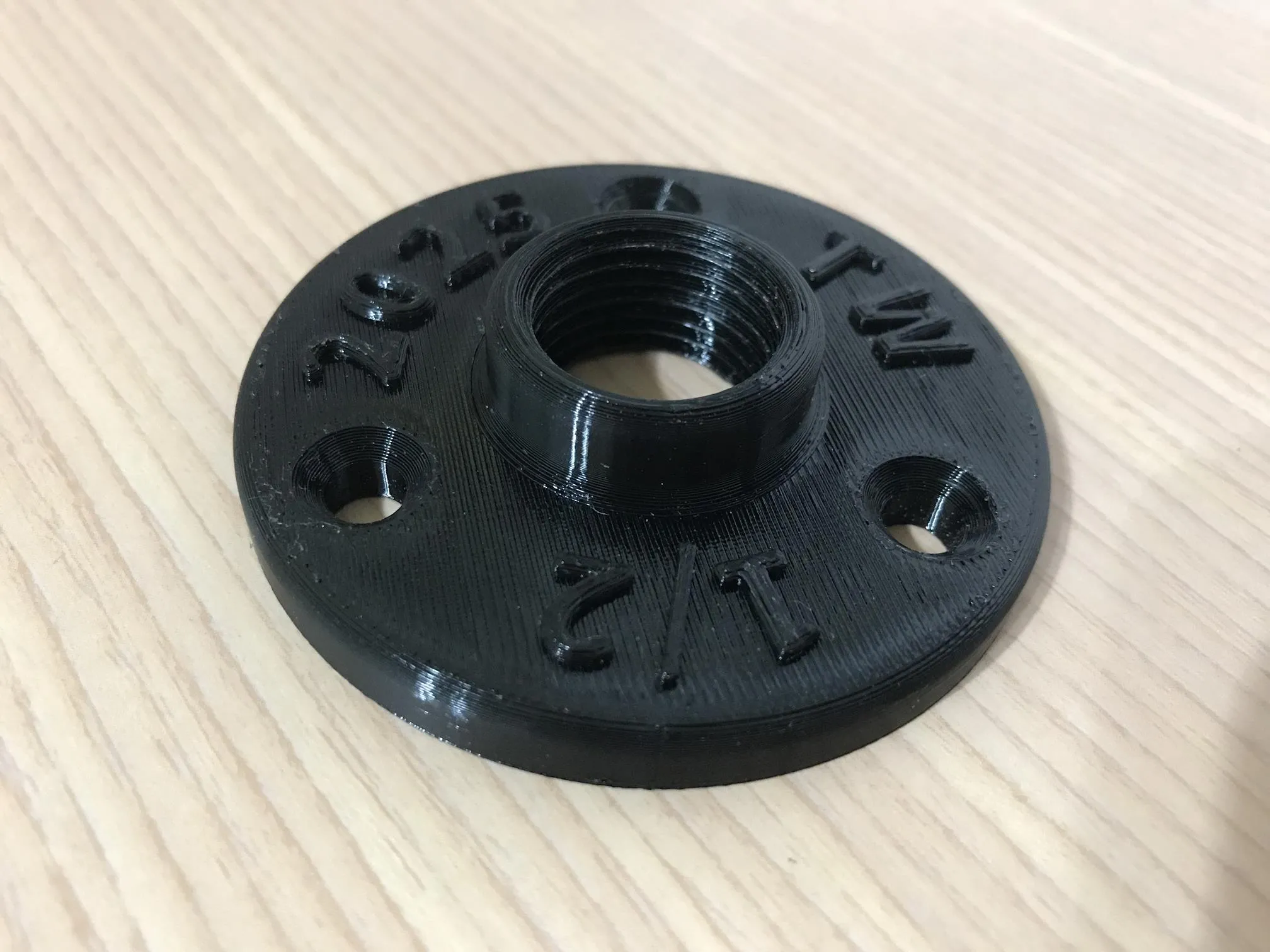

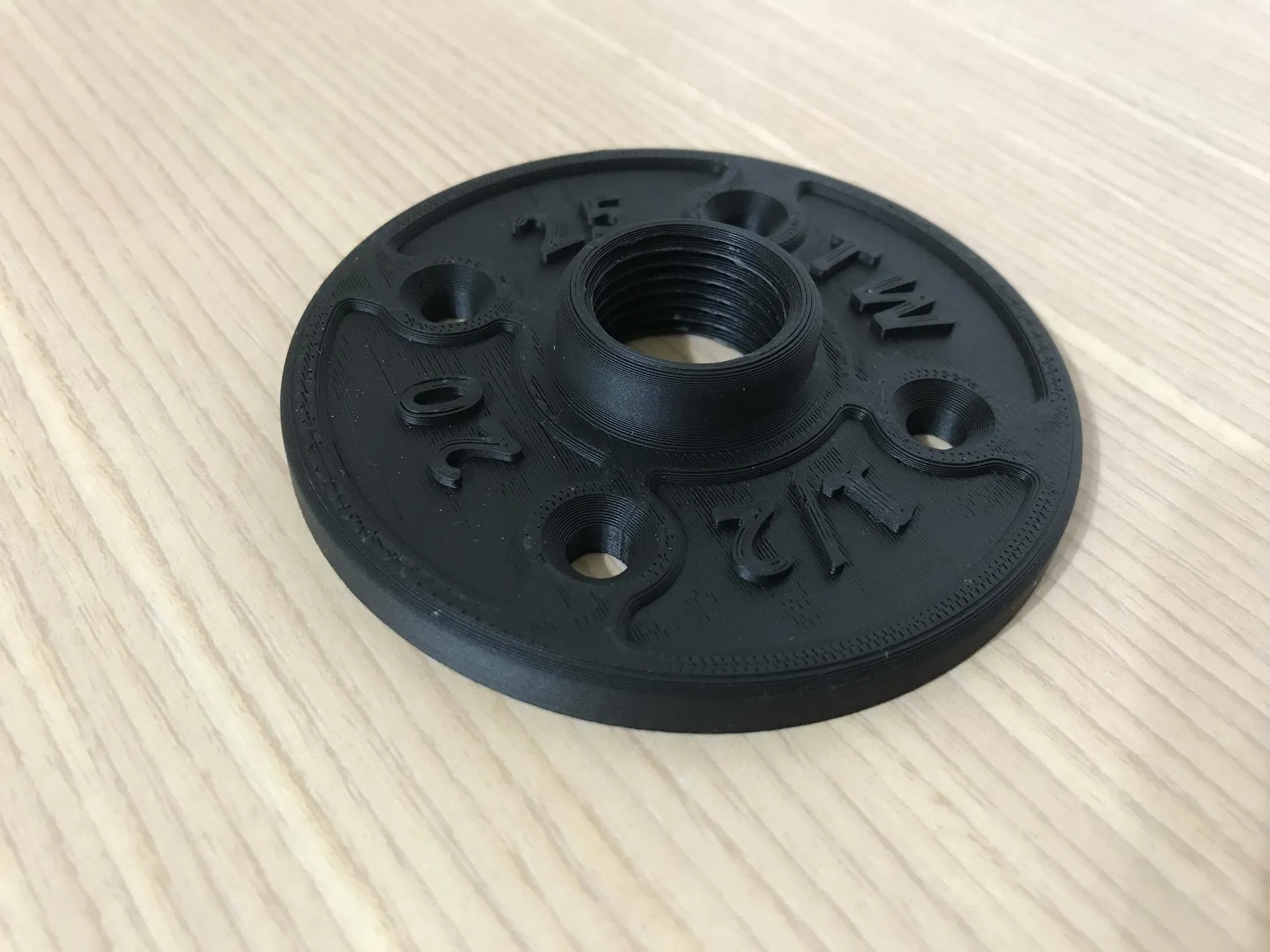

 | Flange Dimensions: Diameter 80 Thickness: 6 Overall Height: 14 4 Holes |

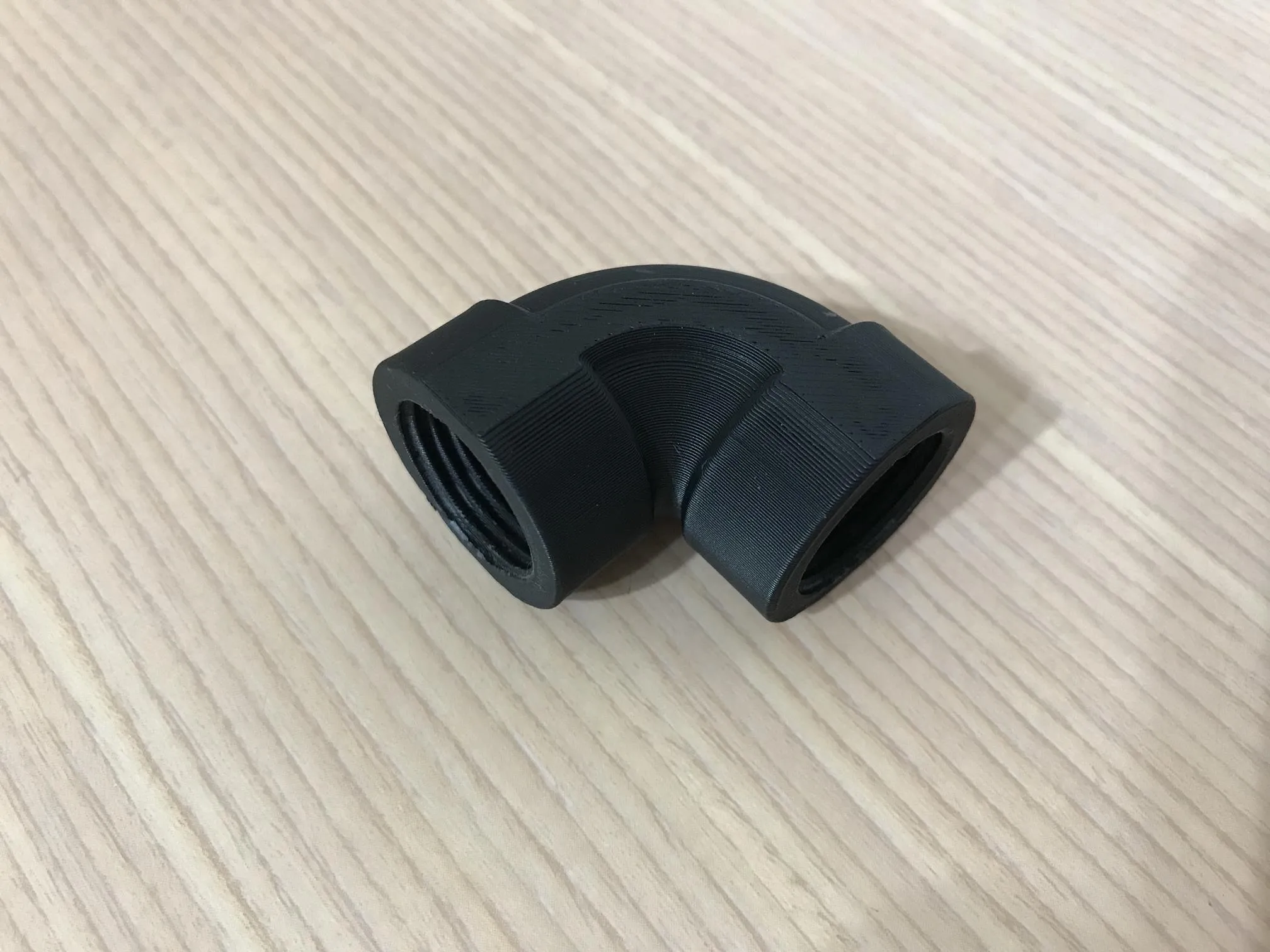

 | Elbow 90 degree Dimensions: 42x42x27 |

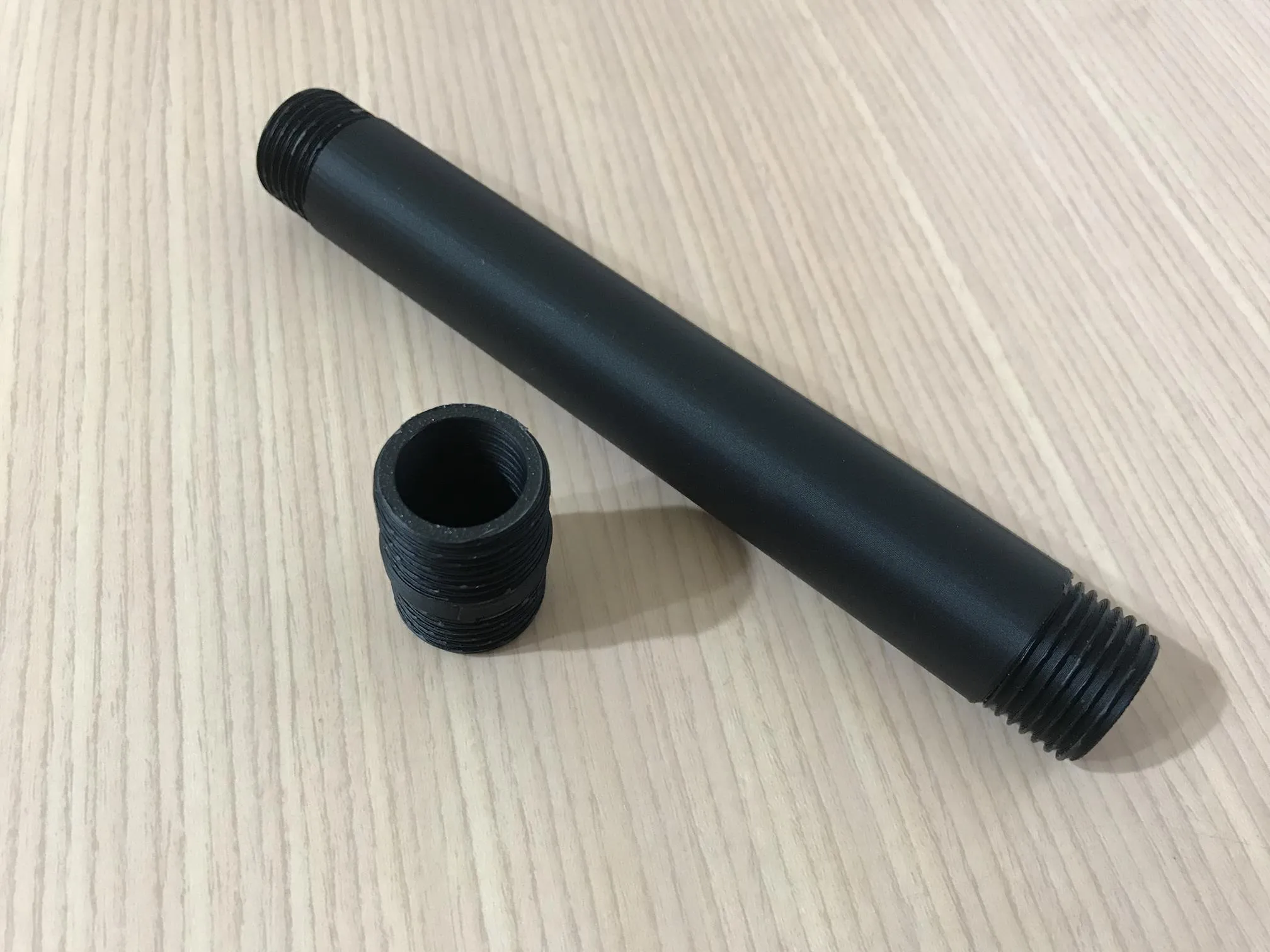

 | Nipple Outer Diameter 21.3, Inner Diameter 15 Threaded Length 13 Length: 150 and 30 |
 | Coupling Outer Diameter 28 Length 32 |

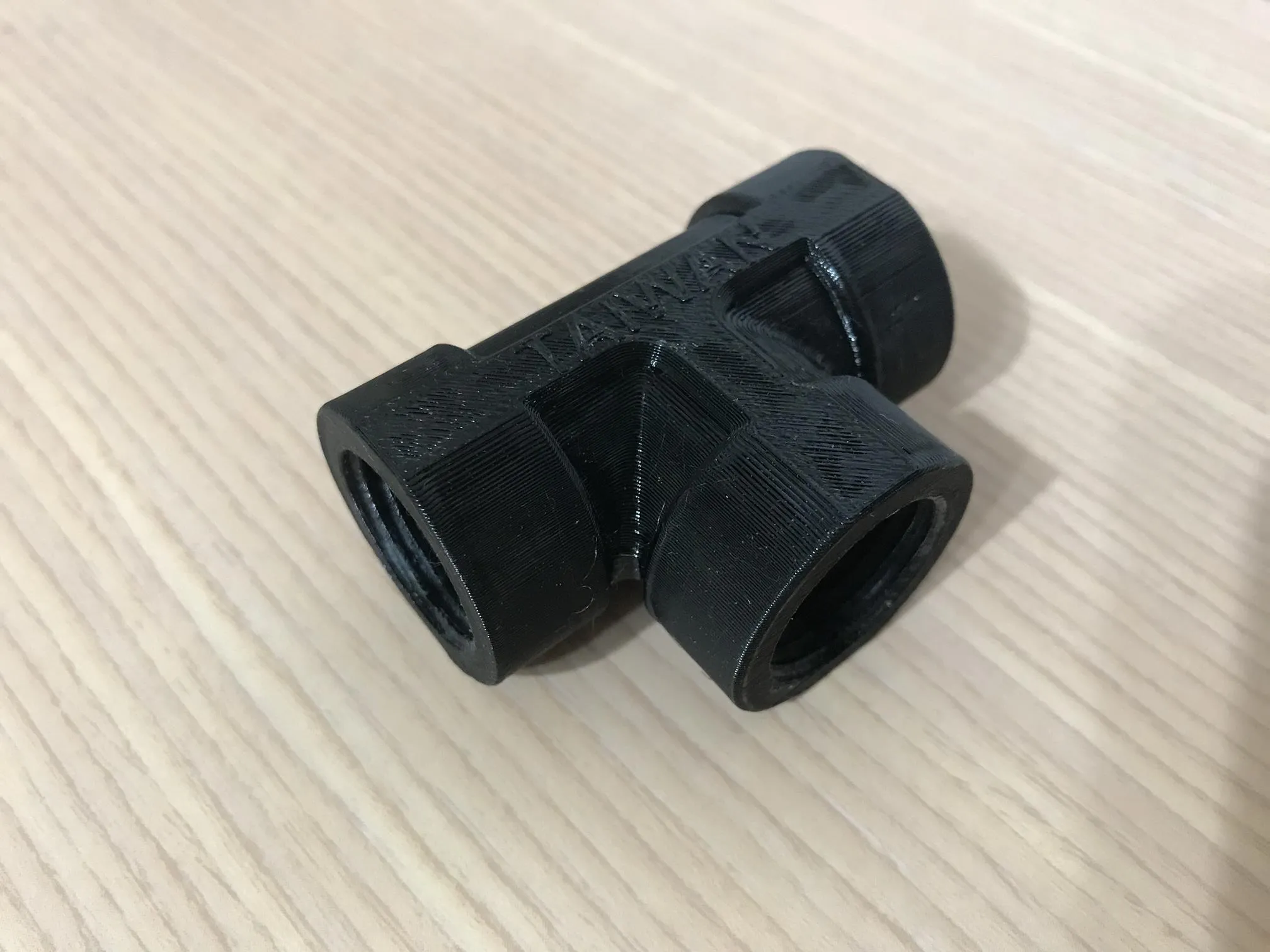

 | Tee Dimensions 55X42X28 |

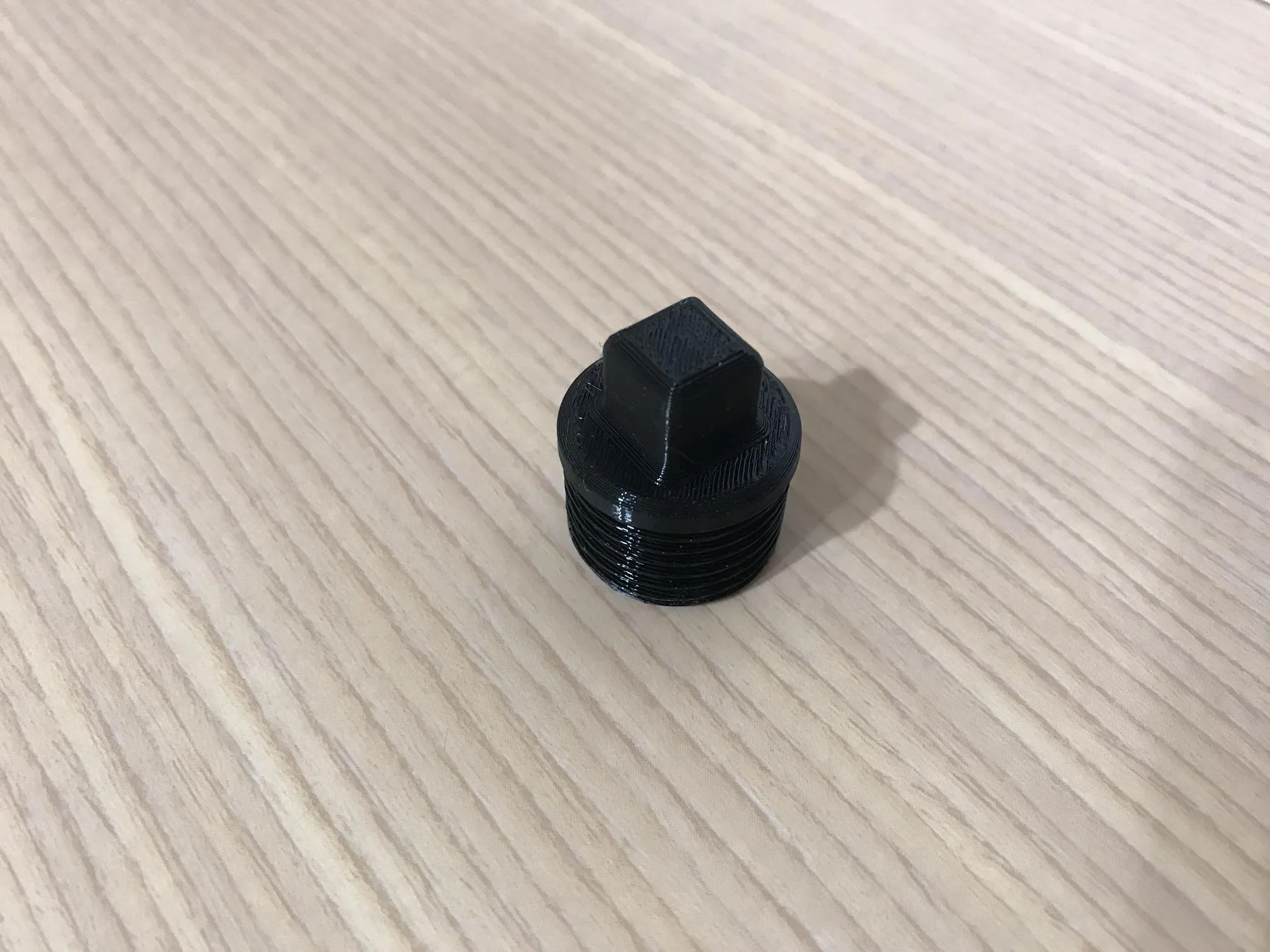

 | Plug Diameter 21.3 Length 25 |

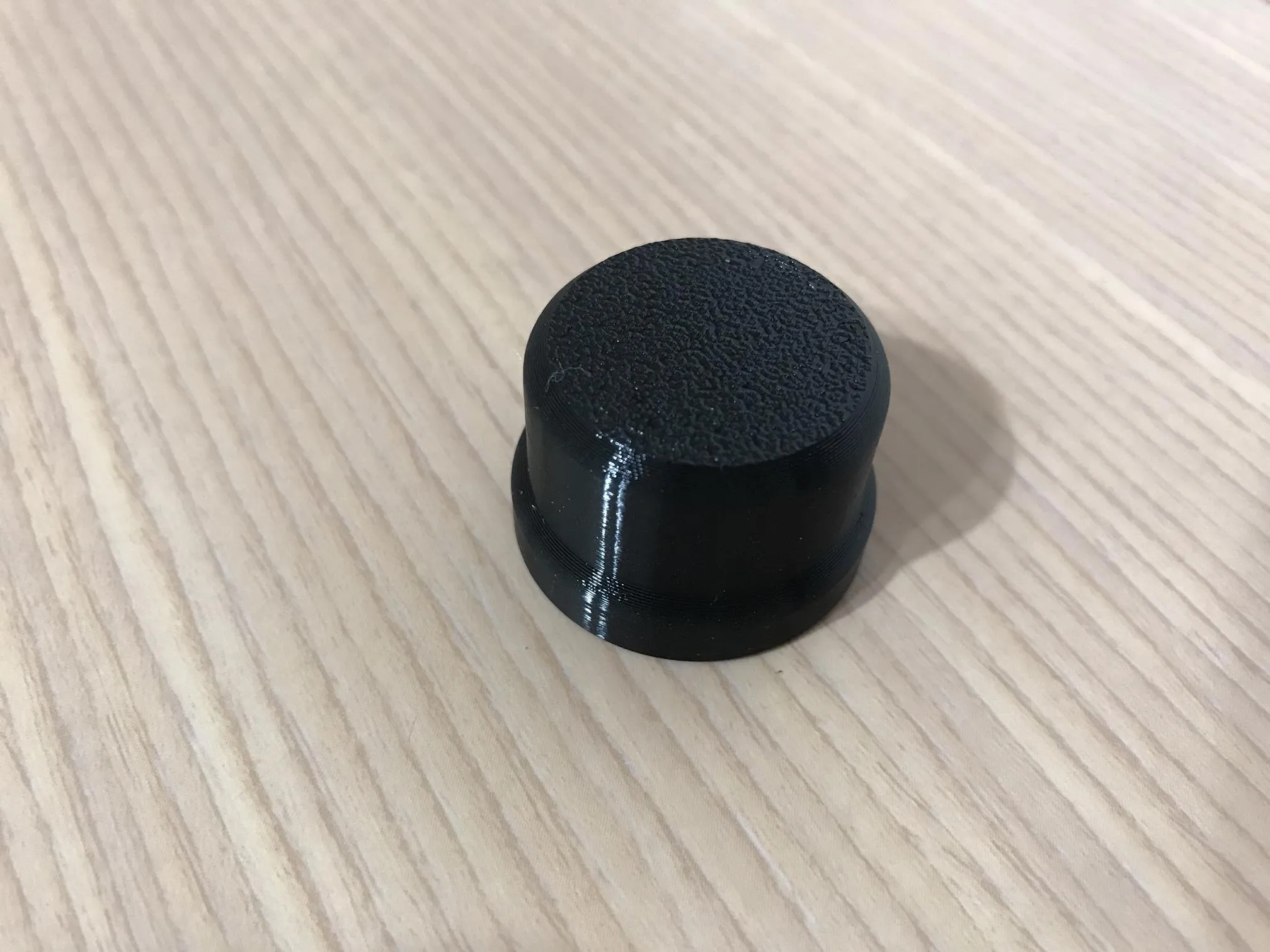

 | Cap Dimensions: Diameter 30 Length 20 |
 | Flange Three Holes Diameter 65 Thickness 6 Overall Height 14 |
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
