NB4+ One-Handed Control Stick Deep Optimization Version
Print Profile(1)
Description
With only 25 minutes and 8 grams of material, you can achieve an experience that surpasses market products. Isn't it worth supporting?
Boost Me (for free)
Your support is the driving force behind my creations!

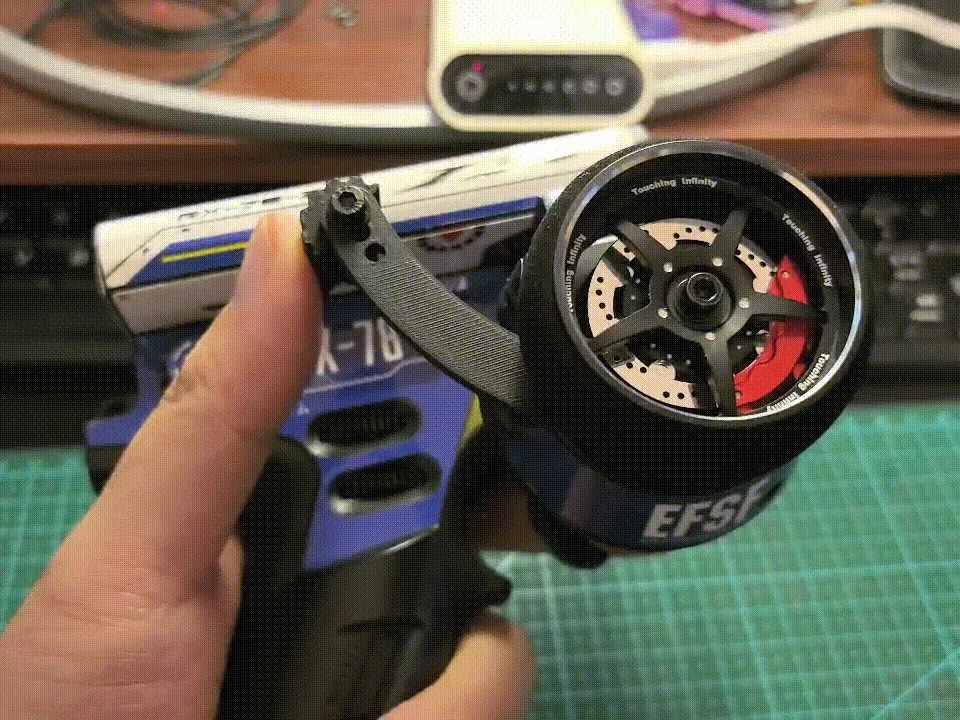

Before buying a 3D printer, I bought a one-handed remote control kit, but it was not easy to use. The main problem was that every time I turned from one direction to another, I needed to readjust my finger position, making it impossible to change back and forth repeatedly.

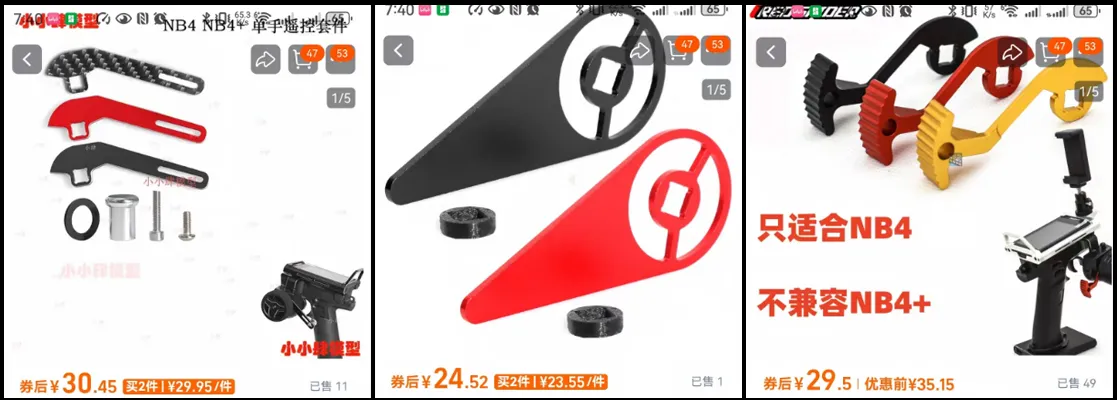

Therefore, I made optimizations based on the following market products:

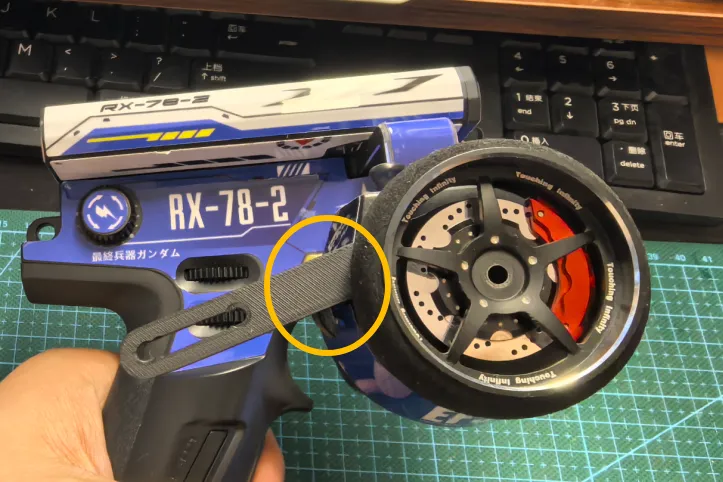

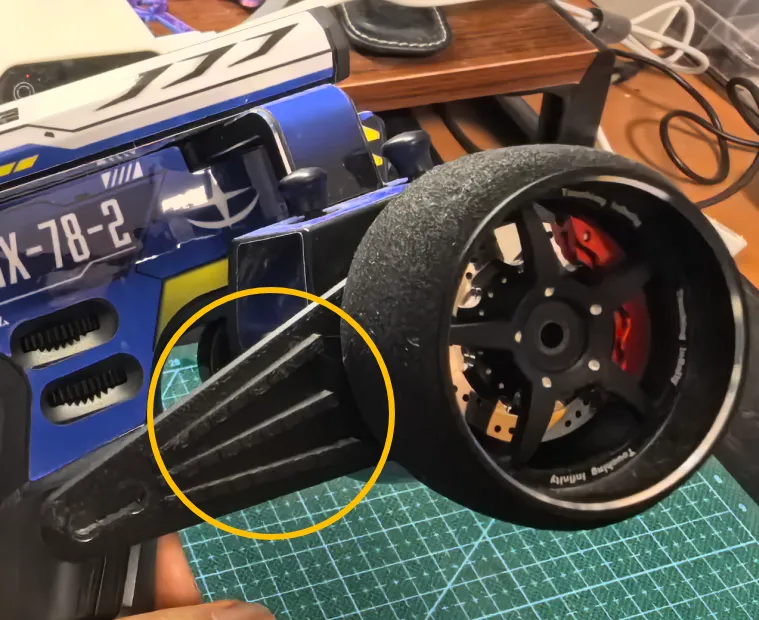

This resolved the issue of the SW2 button being obstructed by previous solutions.

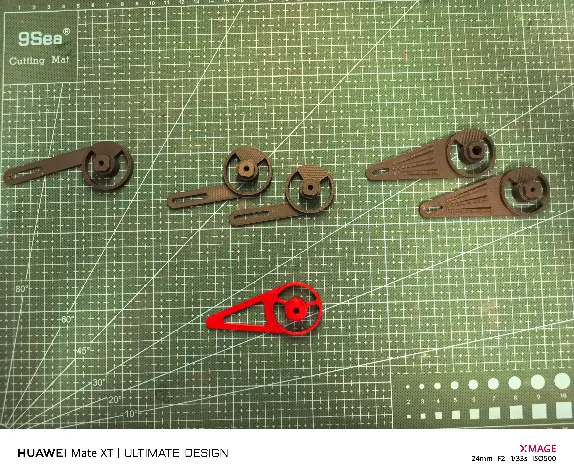

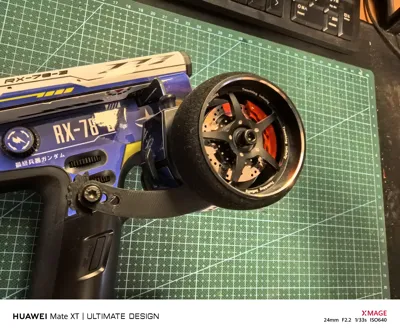

I experimented with many versions to ensure the fit and style of the handle during installation.

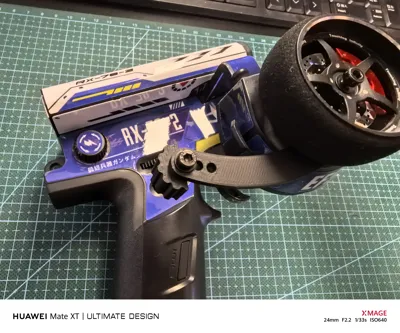

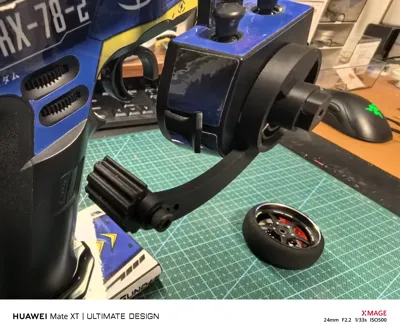

Installation Notes:
1. An M3 screw is required, preferably with a washer.
2. To ensure a snug fit without play, the printed part should be slightly tight when installed on the remote, requiring a little force.

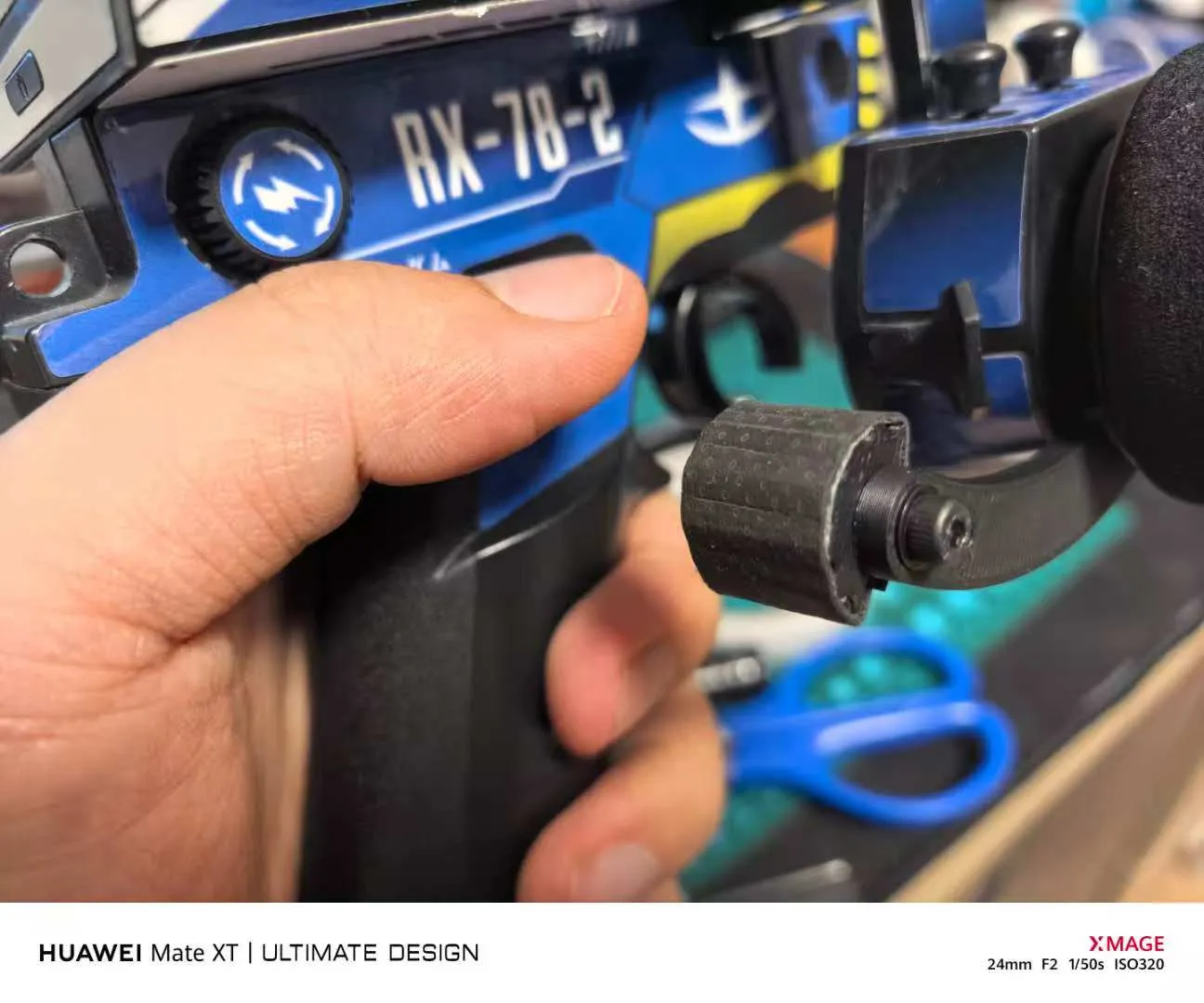

3. Due to the low friction of PETG or PLA materials, wrapping the thumb-operated button with a material like badminton grip tape will improve grip.
