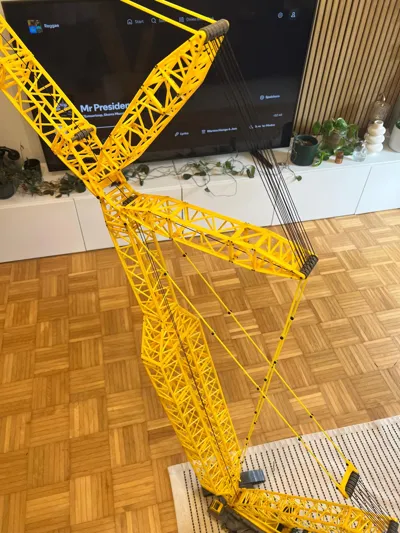

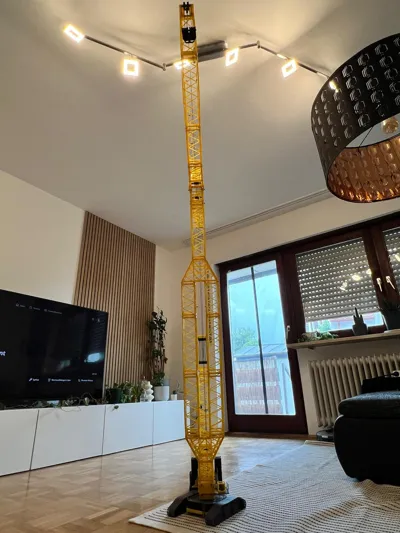

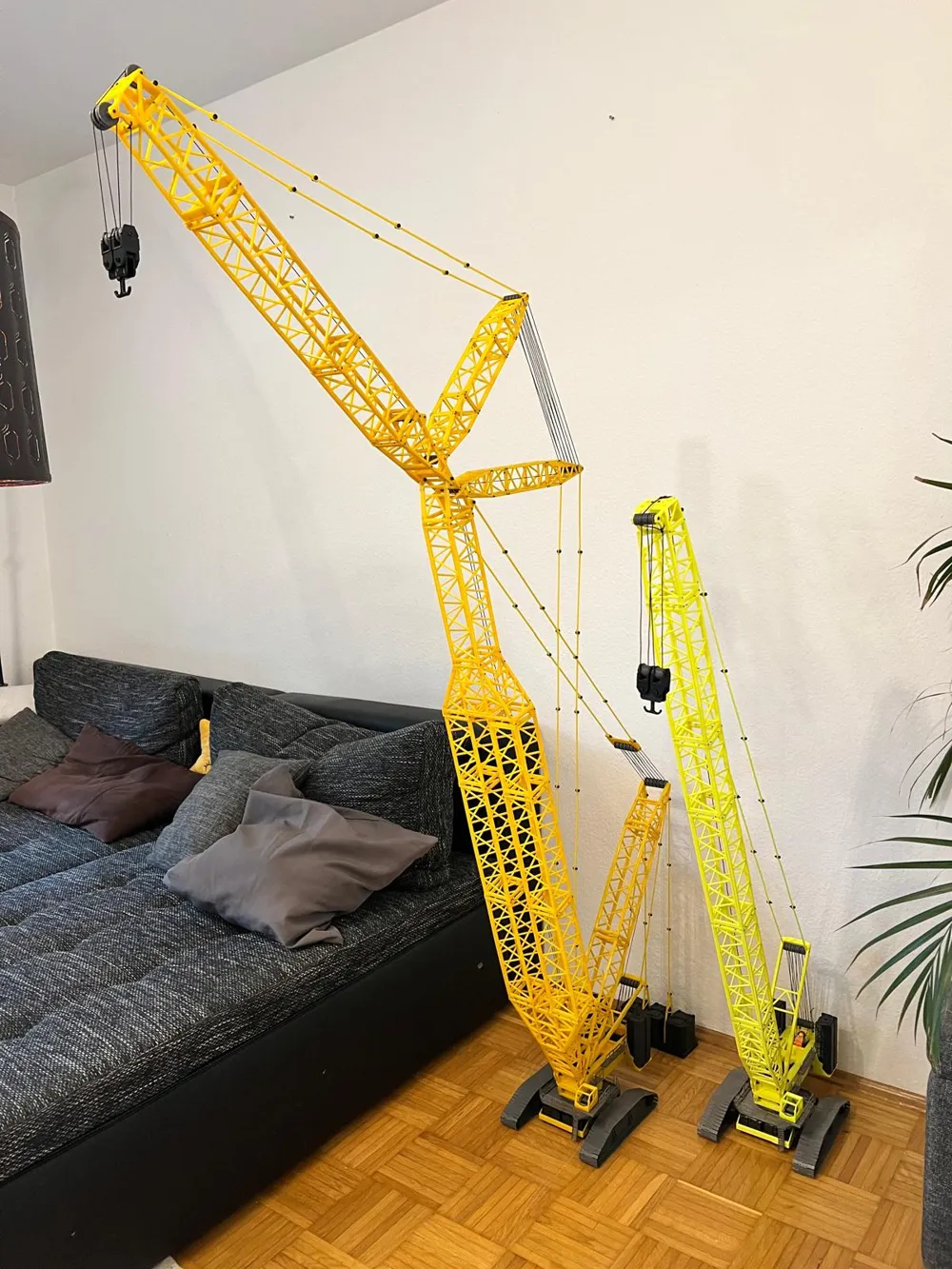

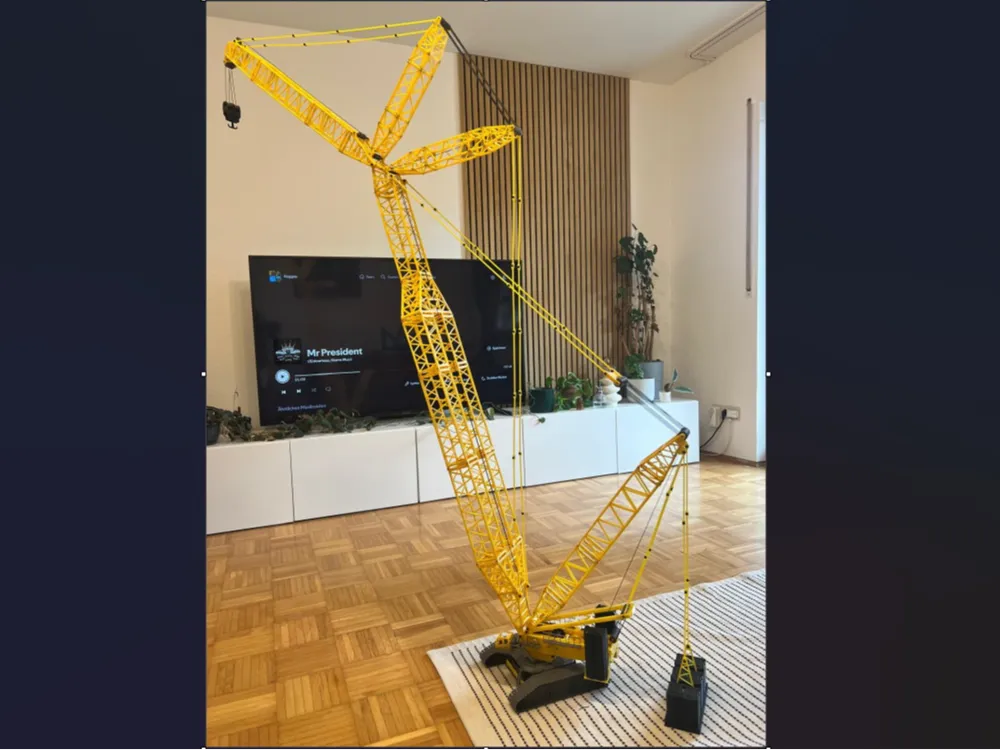

Here is my model of a fully functional LR11000 crawler crane with power boom and luffing jib

I would be very happy if you support me and boost my model

Boost Me (for free)

Boost me if you can ;)

Feel free to send me feedback, suggestions for improvement, and requests for changes :)

As with the first version, the connections are screwed, and you will need the following screw set

1 Box Mix M1 M1.2 M1.4 M1.7 M2 M2.6 M3 M4 Black Steel Mini Micro Cross Phillips Round Pan Head Self-Tapping Wood Screw Set - AliExpress 13

Here is a list of the required screws

Screws
Diameter in mm	Length in mm	Number of self-tapping screws	Number of machine screws
M1.4	4mm	186
M1.4	5mm	88
M1.4	6mm	46
M1.4	8mm	204

M1.7	6mm	8
M1.7	8mm	22

M2	6mm	25
M2	8mm	8
M2	10mm	4
M2	14mm	4

M2.6	8mm	18
M2.6	10mm	4

M3	6mm	16	36
M3	8mm	14	12
M3	10mm	4	4
M3	12mm		6
M3	16mm		8
M3	Nut		62

Don't feel like placing a bulk order?

A ready-to-use Starter Kit/pre-packaged Starter Set is also available here

>>>> Starter Kit <<<<

Contains all necessary screws and ropes, pre-sorted

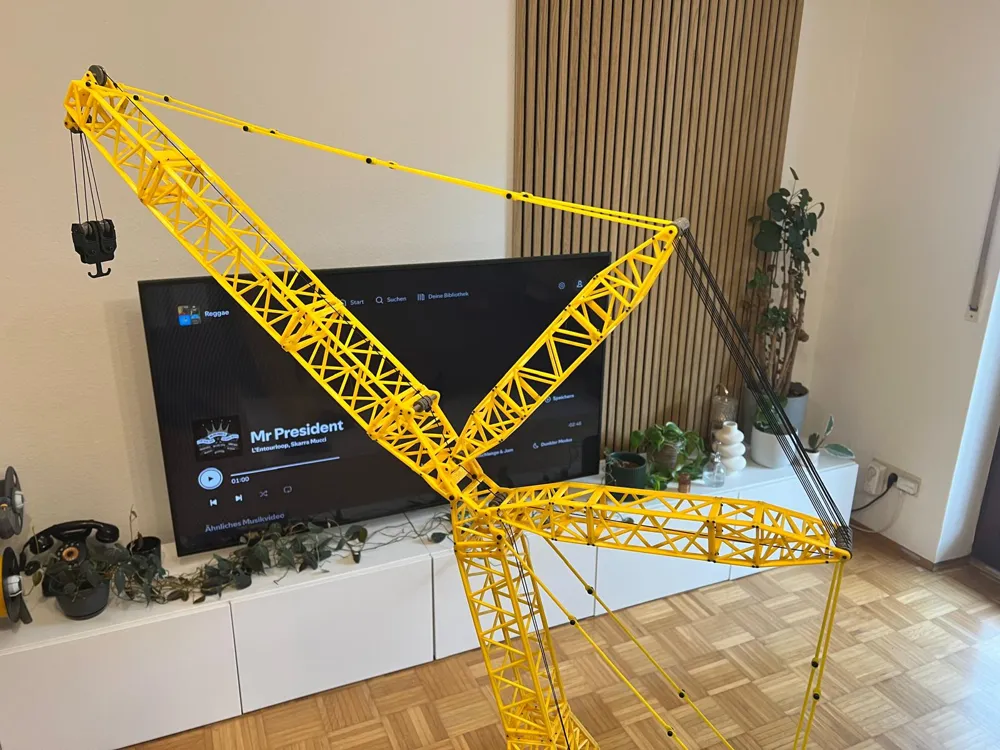

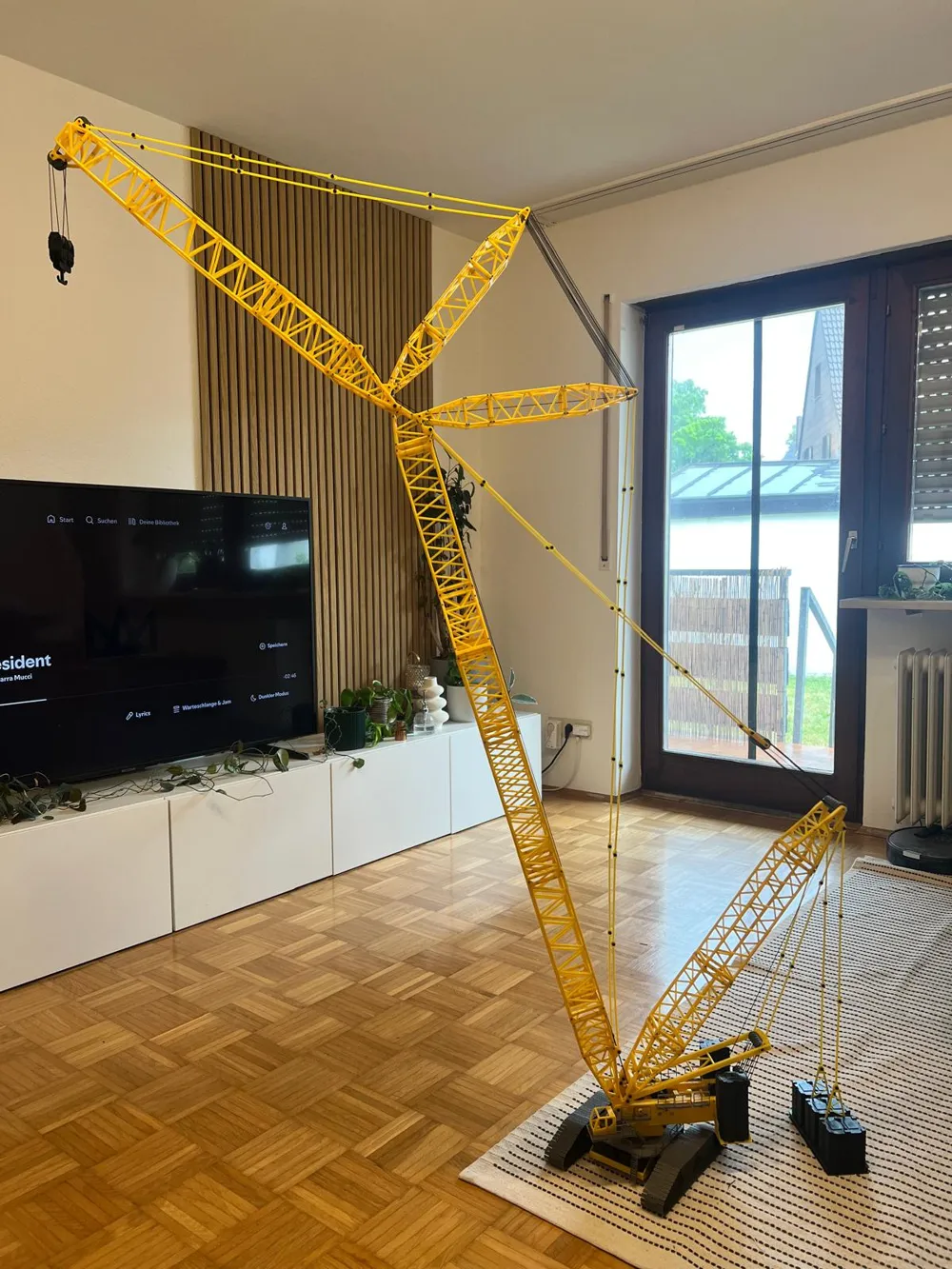

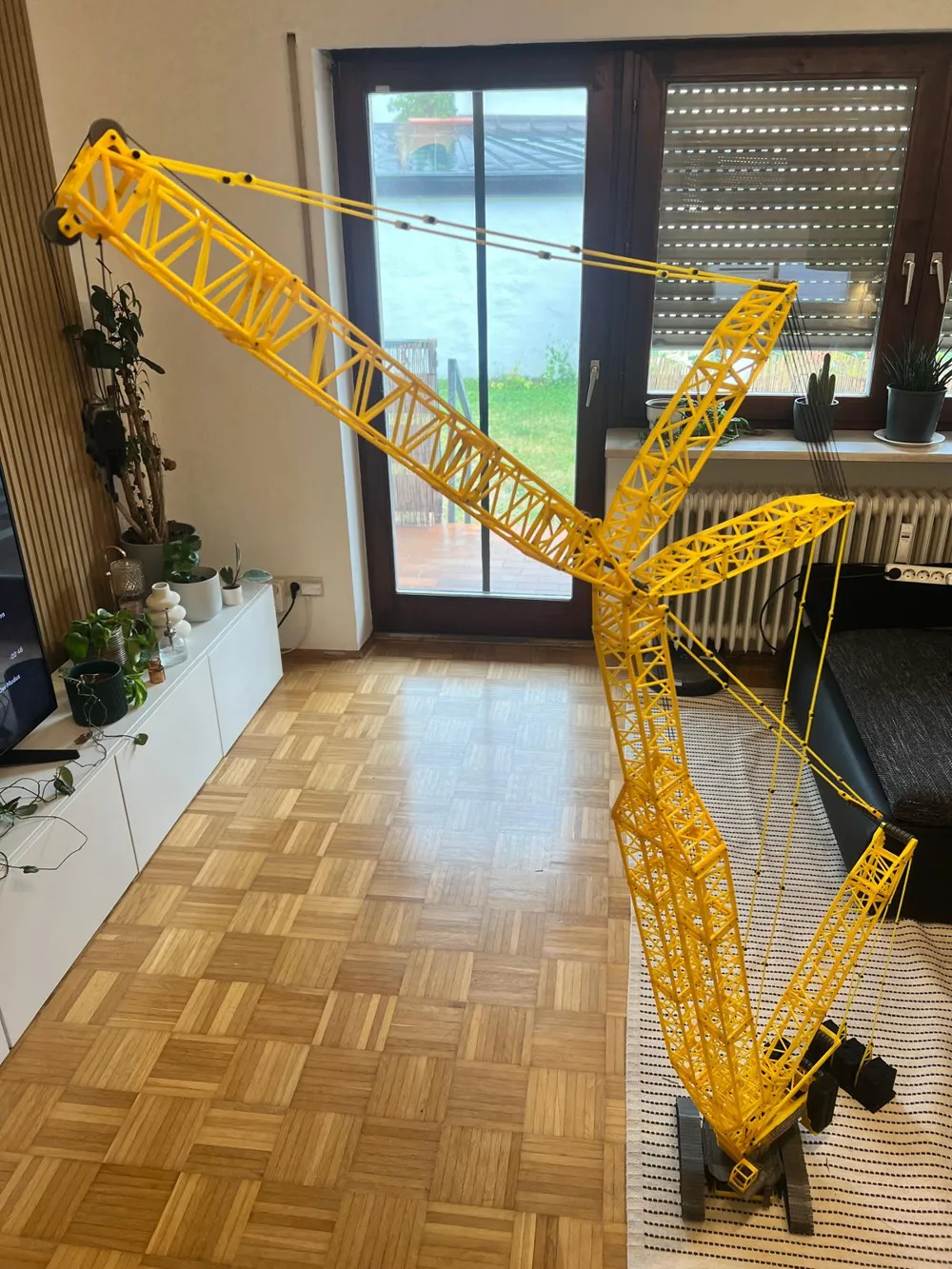

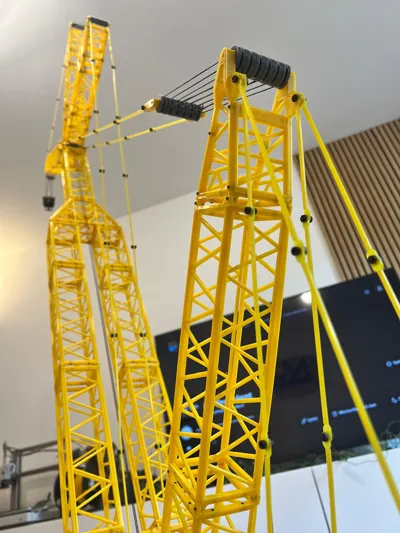

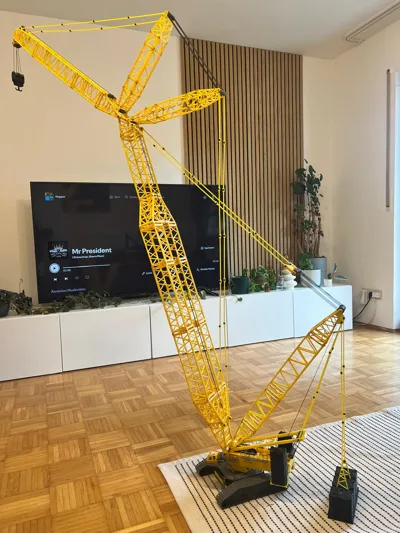

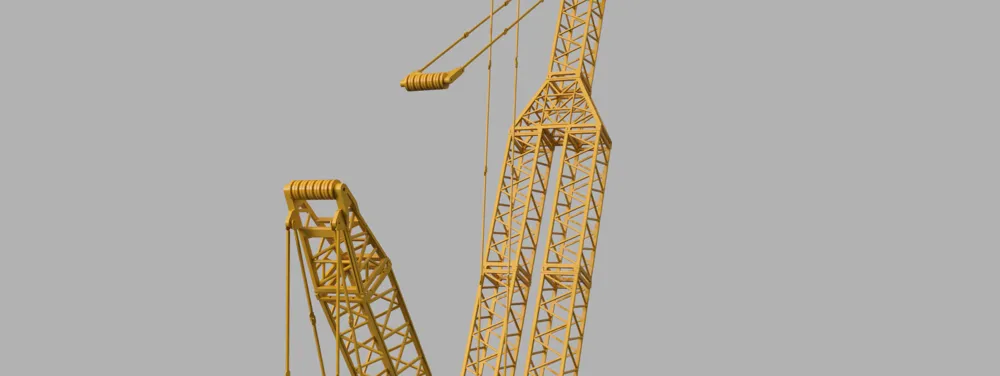

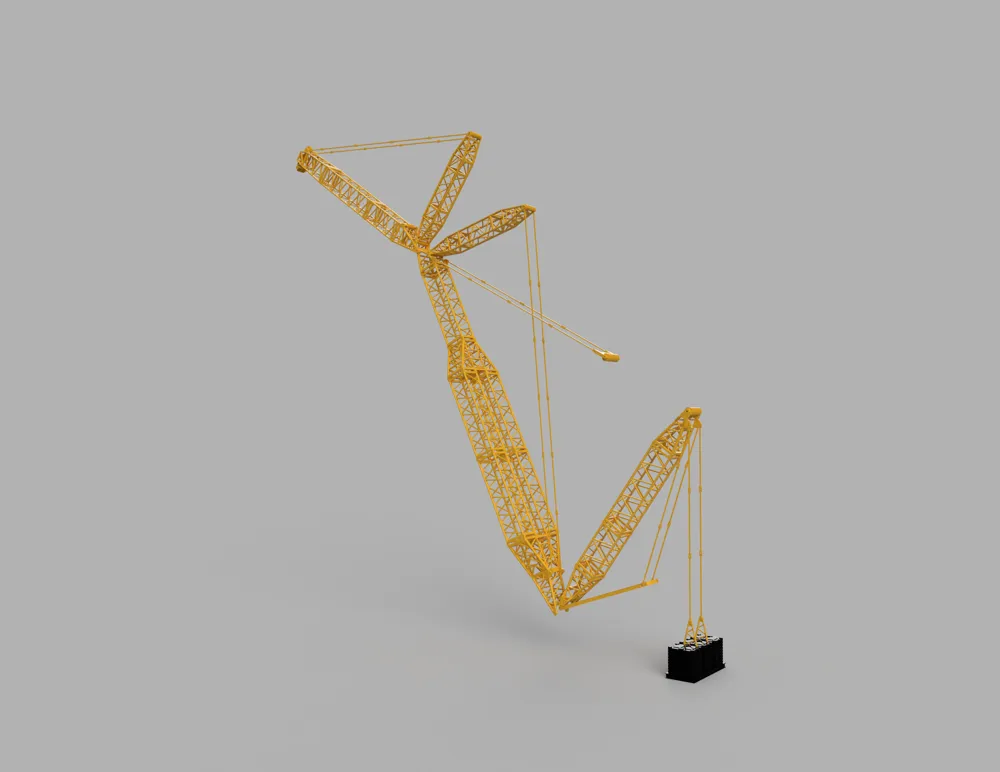

The boom now consists of a main mast with power boom, a back boom with counterweight, and a luffing jib

All joints are fully functional and can be controlled via cables on the main crane's pulleys

The new boom comprises 240 printed parts

Instructions /User Manual:

>>>> User Manual <<<<

New features:

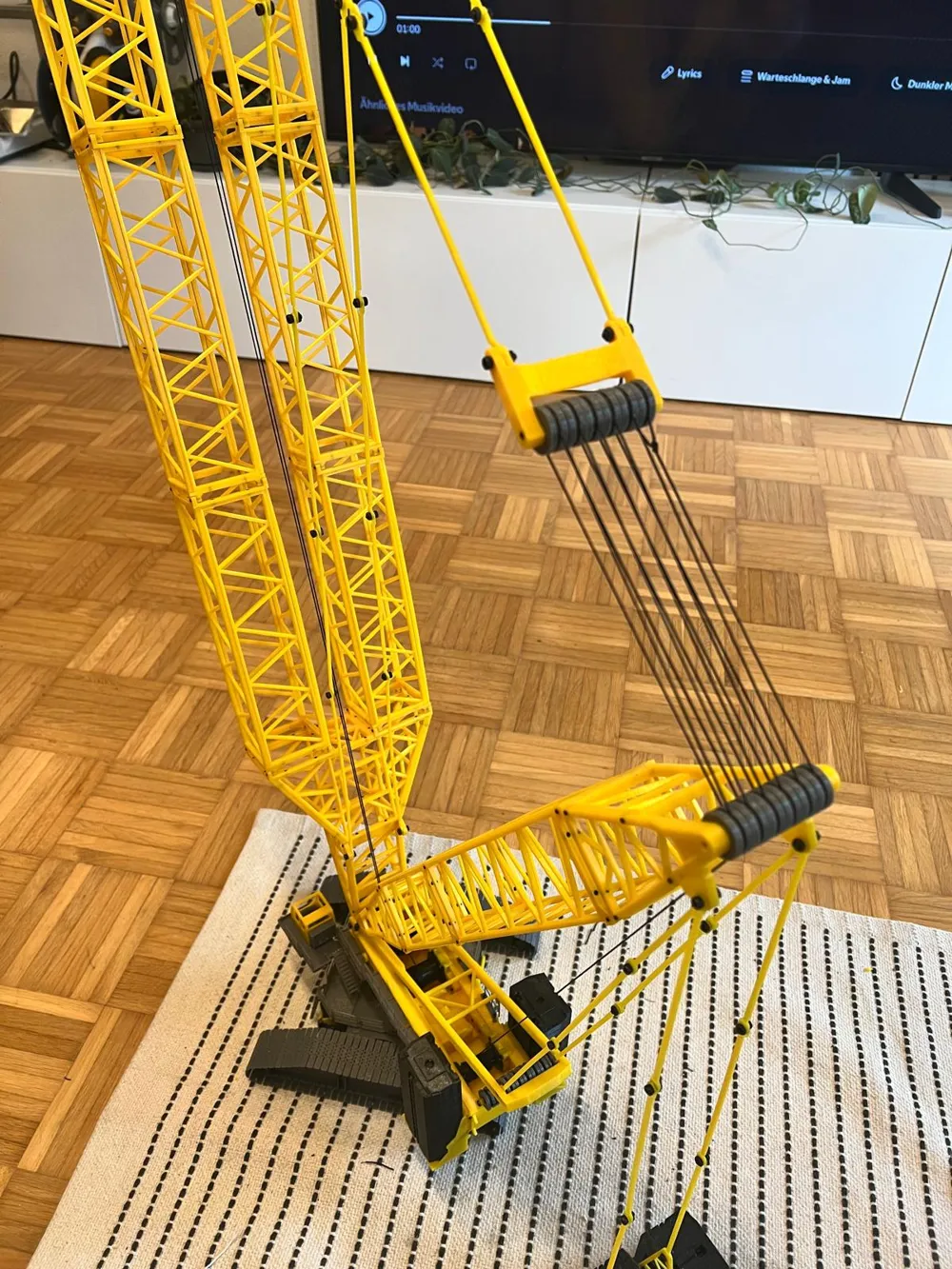

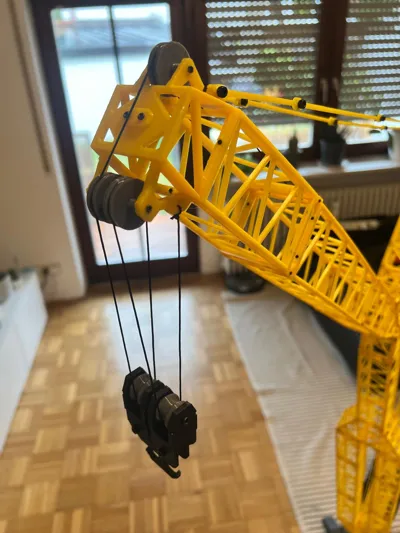

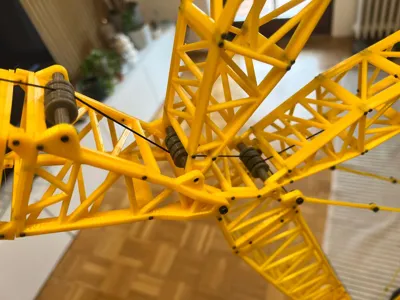

Rollers are individually mounted and the block and tackle systems work better
Functional luffing jib

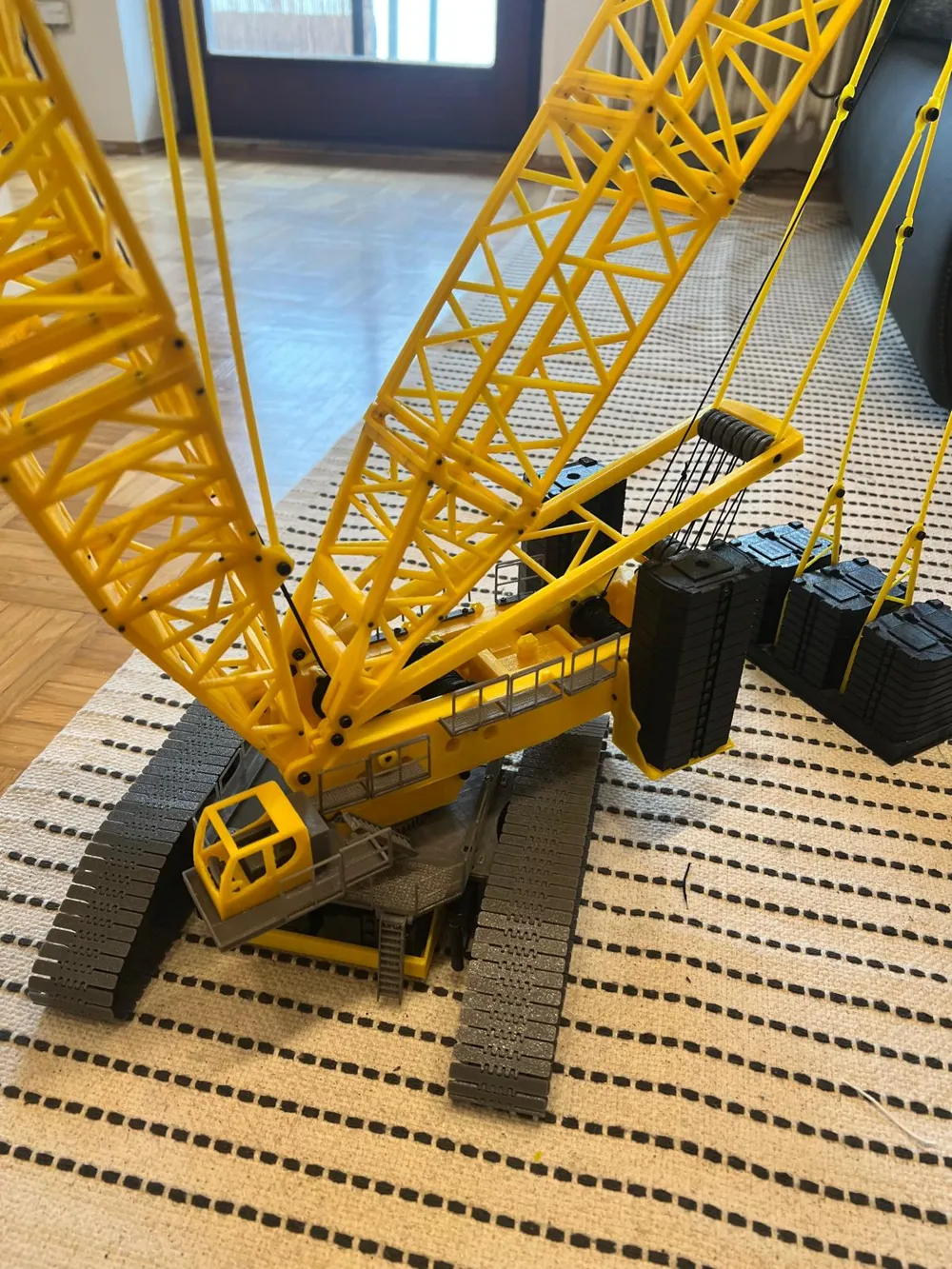

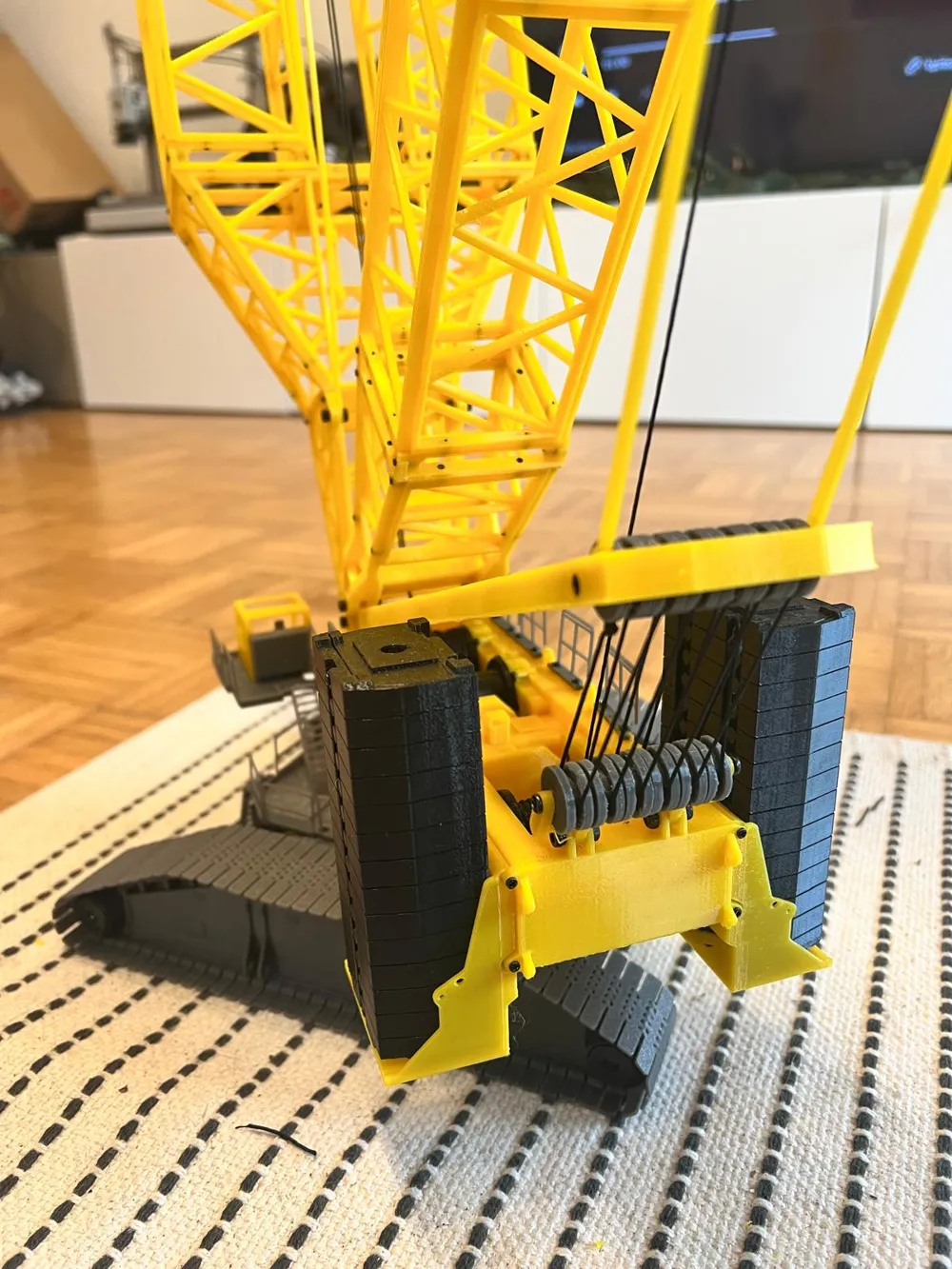

Counterweight that can be filled with sand, for example
Back boom
Connection holes have been processed and screws can be used more easily
Connecting pieces have been processed and no longer break as easily
Rope guidance via pulleys so that the rope no longer rests on the booms and friction is reduced
