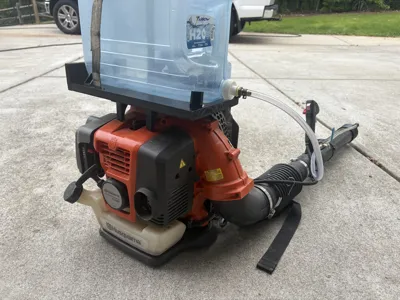

Husqvarna Mosquito Fogger Build

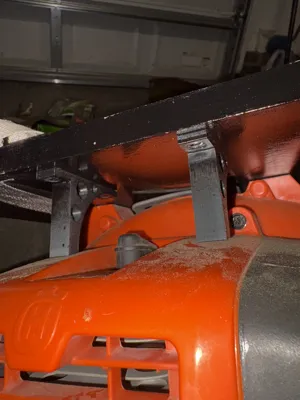

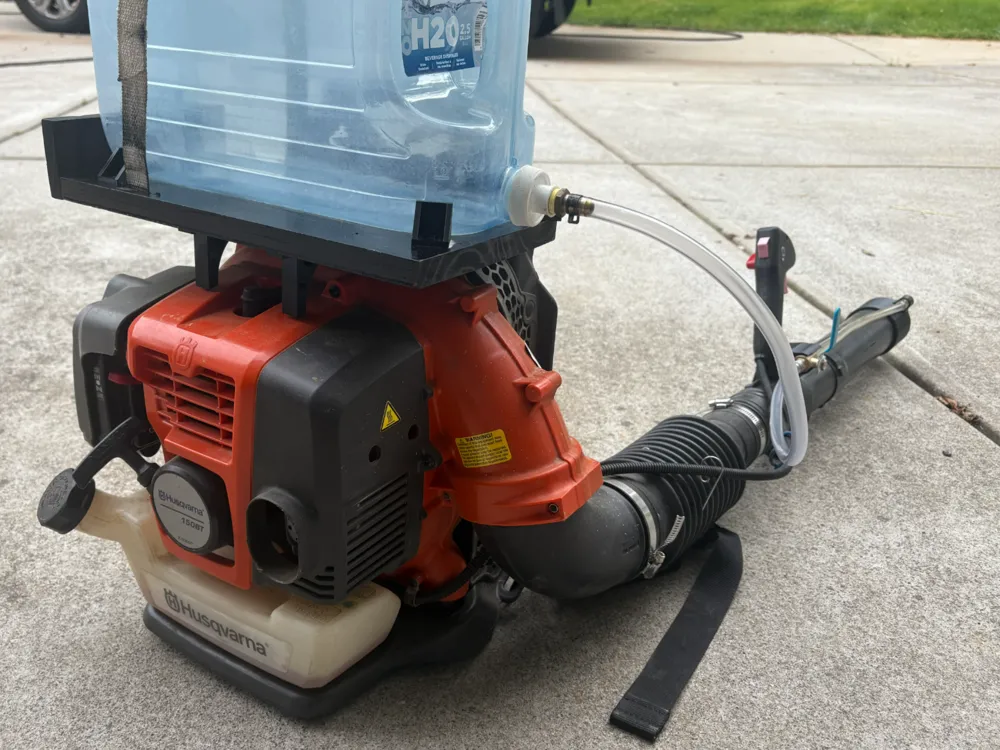

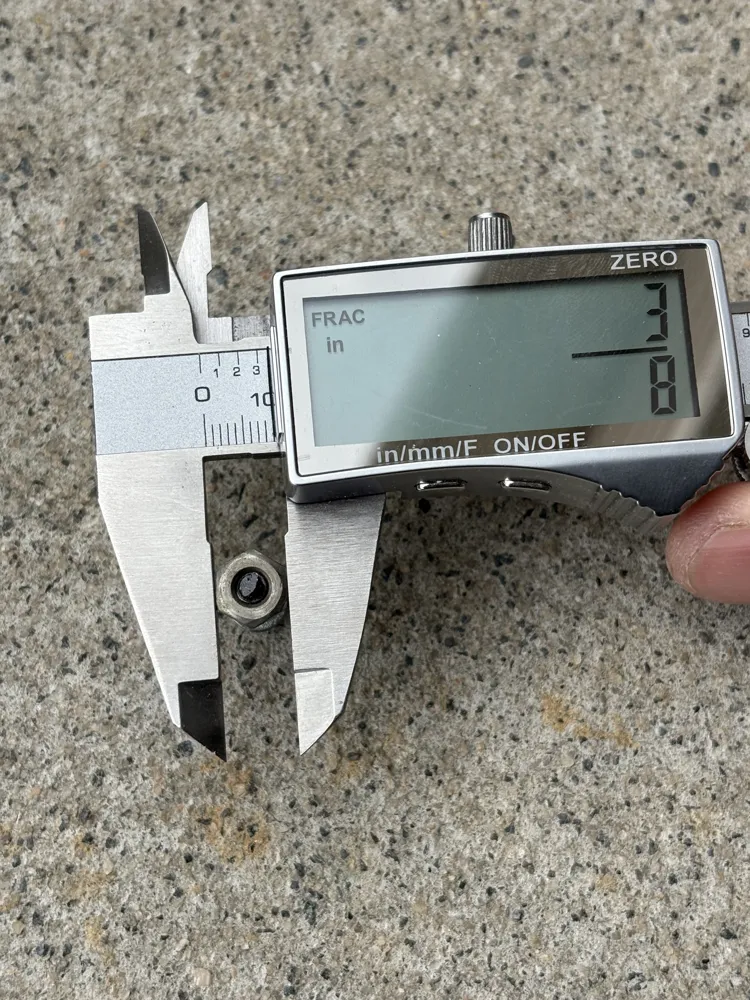

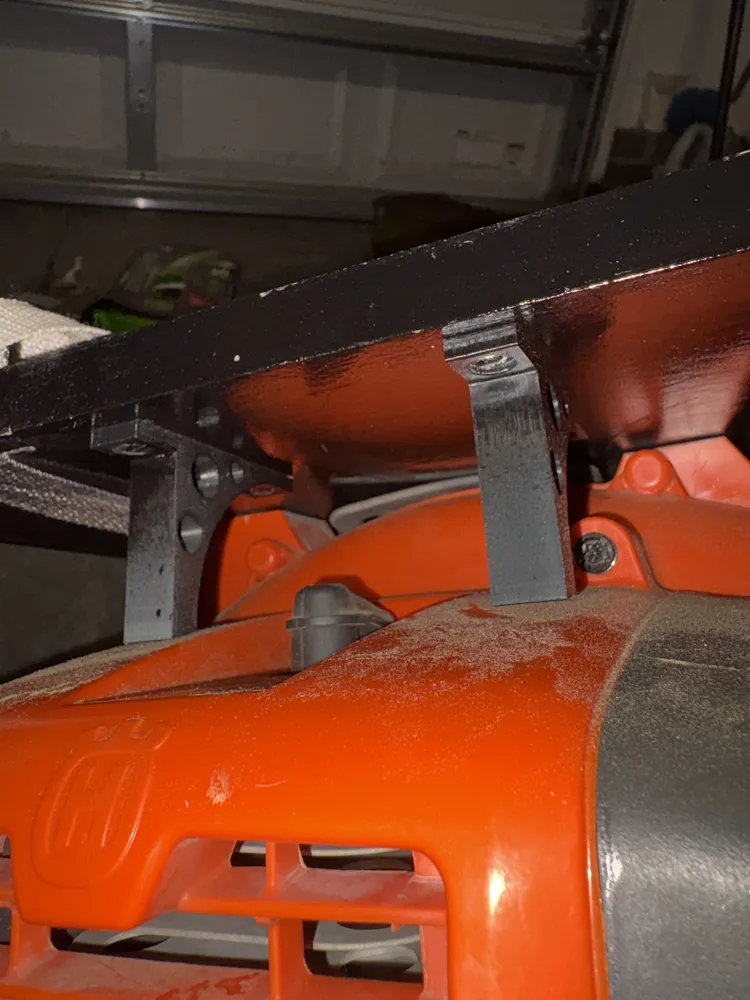

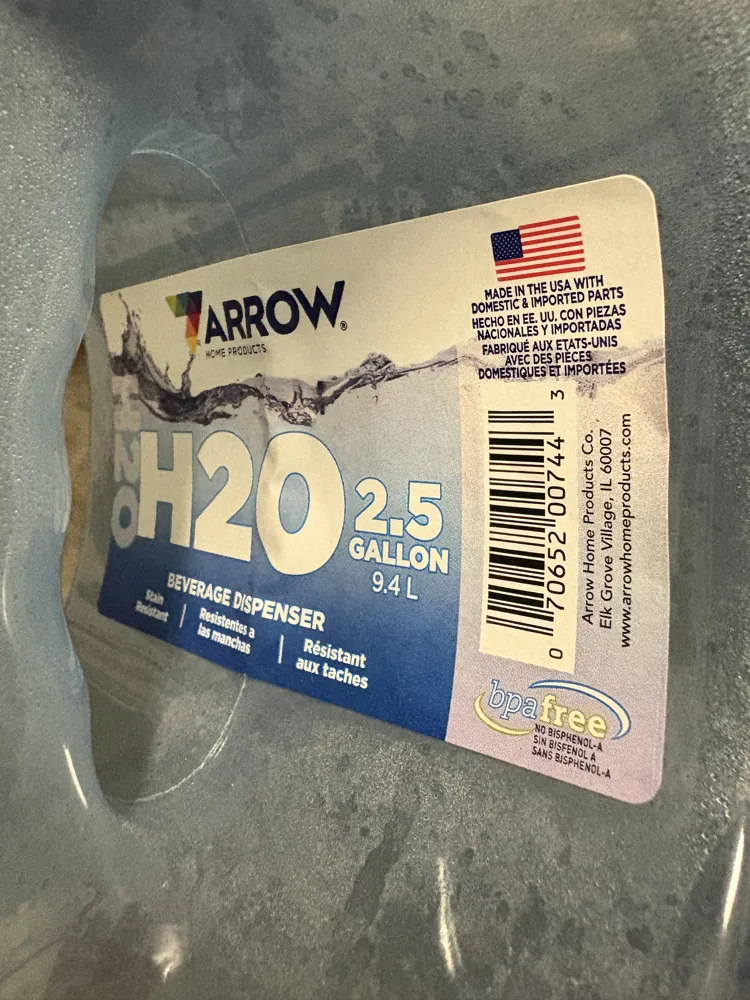

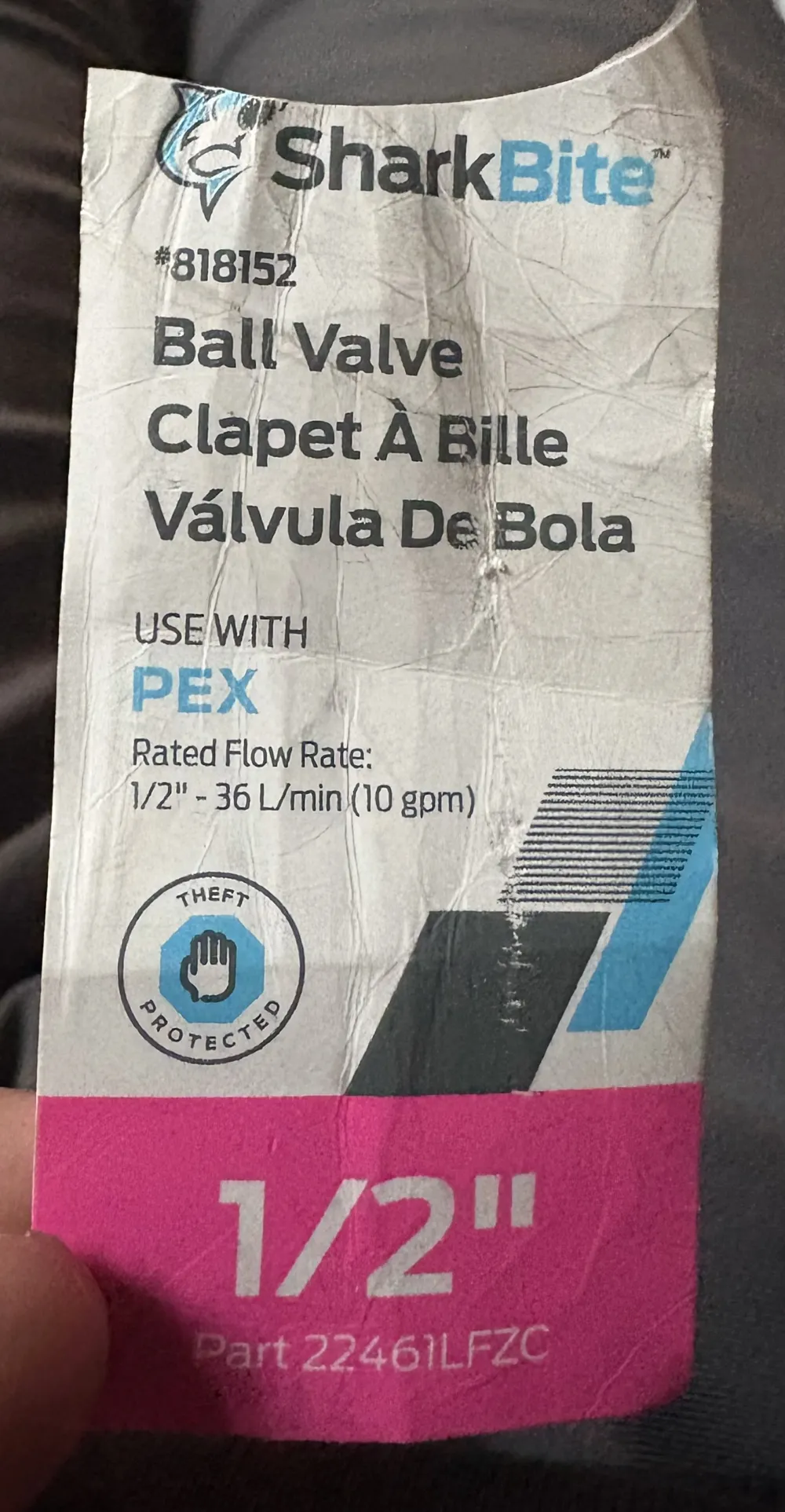

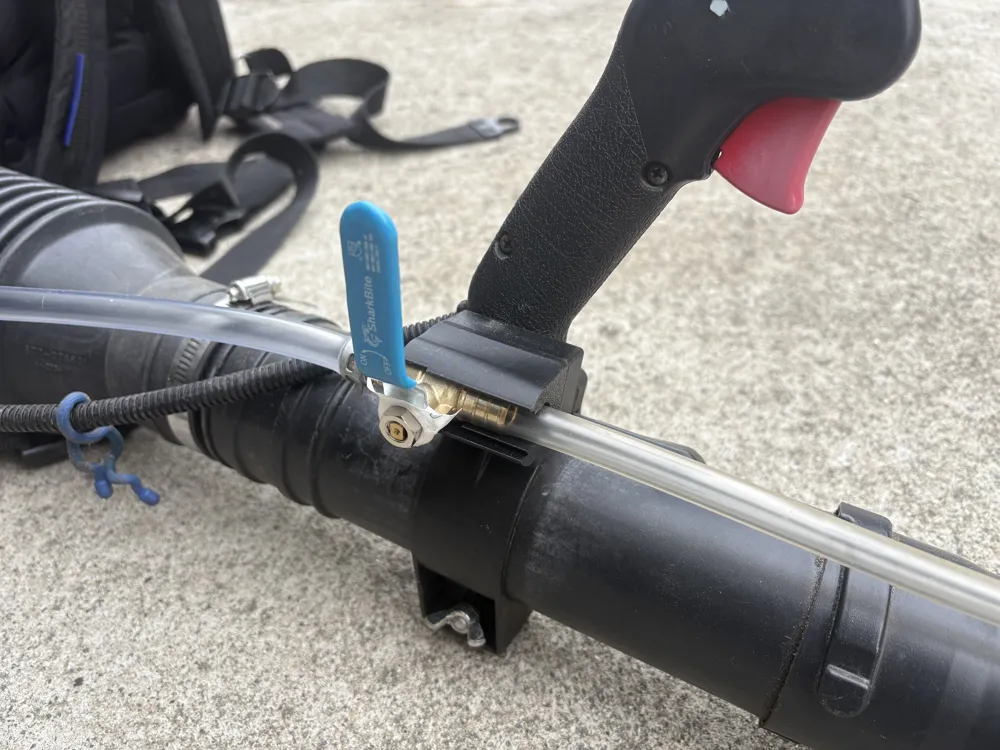

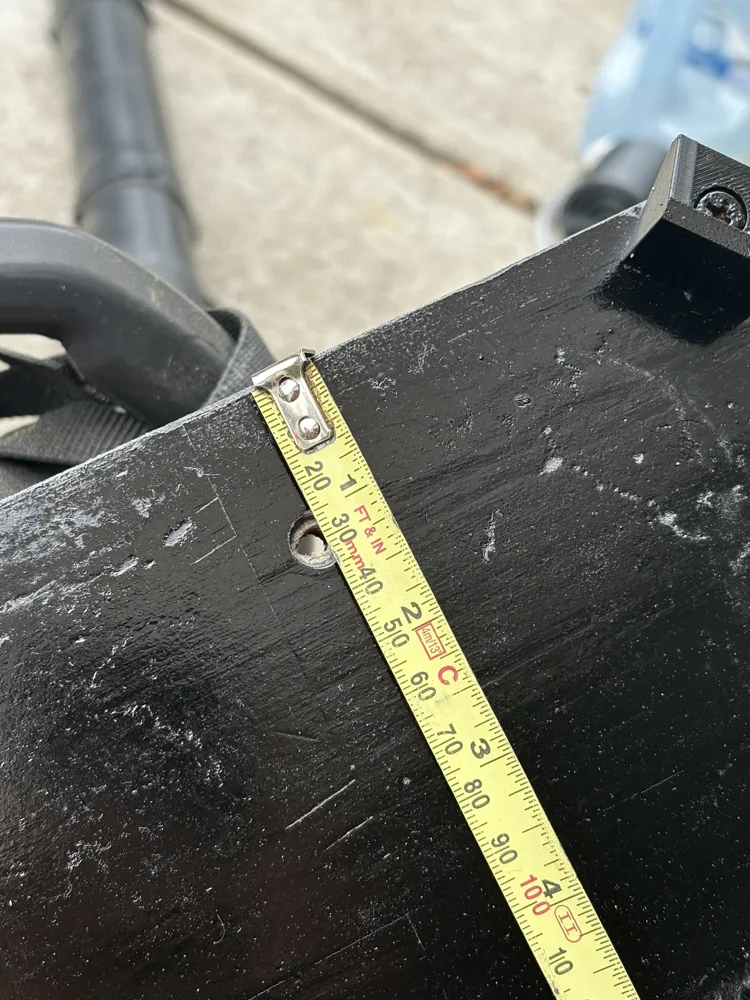

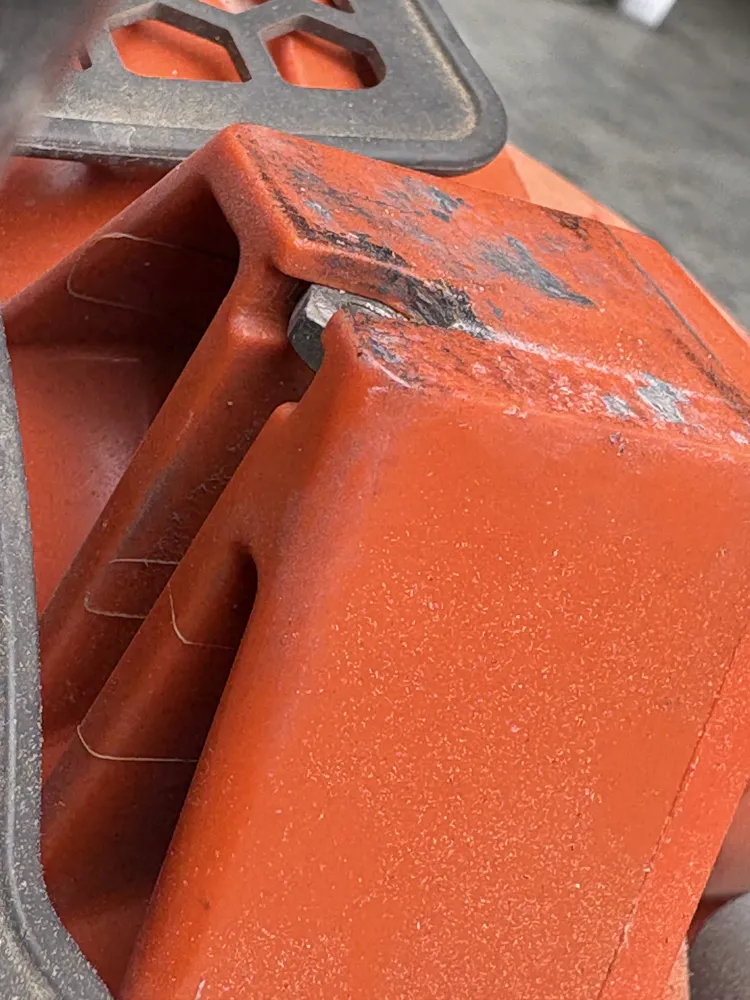

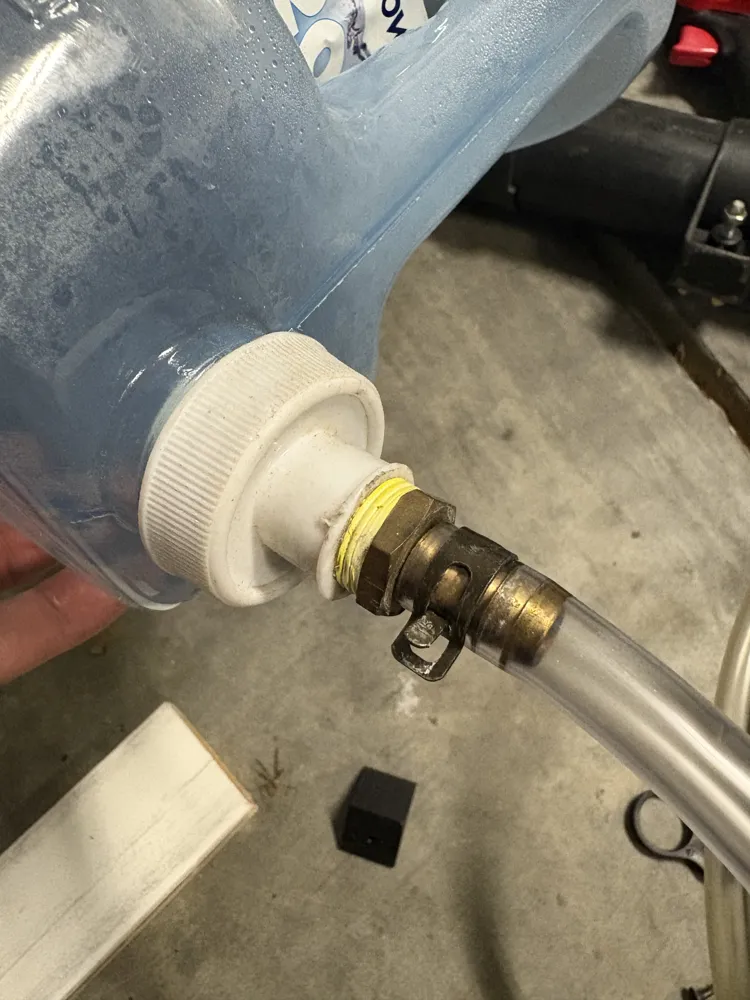

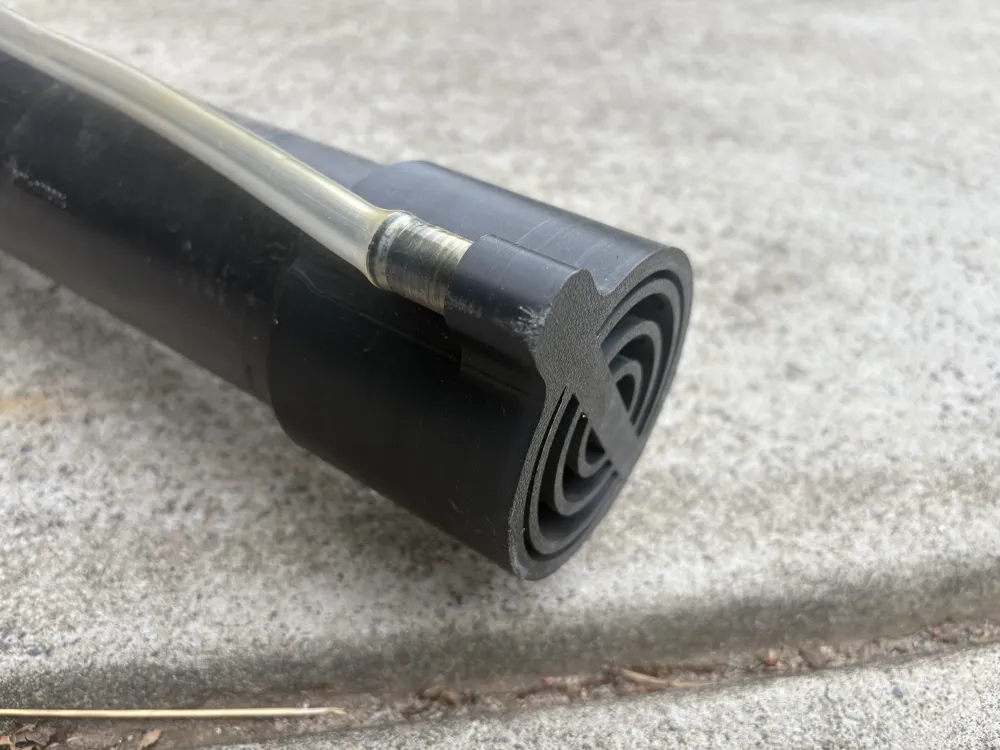

I used a ¾x8x15 inch piece of wood for the base.  You will need 2 holes drilled in the wood to be able to mount it to the blower.  The holes need to be 6 ½ inches apart and 1 1/8 from the edge, try to center these holes left to right.  The nuts need to be 3/8 inch flat to flat and will fit in the slots on the top of the blower.  Once you get the wood mounted you can slide the supports under the wood until they contact the blower and mark the holes where you need to screw them down.  You can get the 2.5 gallon water jug from walmart for around 10 bucks.  i cut the valve off of the end of the water container and added a 3/8 barb fitting to the end by heating up the threaded side of the barb fitting enough to force thread it into the hole where the water valve was.  The valve holder is made specifically for a Shark Bite brand fitting with item number 818152.  The tubing you will need is 3/8 ID and ½ OD.  If you have any questions feel free to reach out to me and ill help as i can.
