ECOVACS GOAT CERAN Cutting Disc
Print Profile(1)
Description
Hey Maker! Welcome to my MakerWorld page 👋
Here you'll find my 3D printing files designed with passion
I hope they inspire you and bring you as much joy when printing
as they did for me when creating them. Happy Printing! 🚀

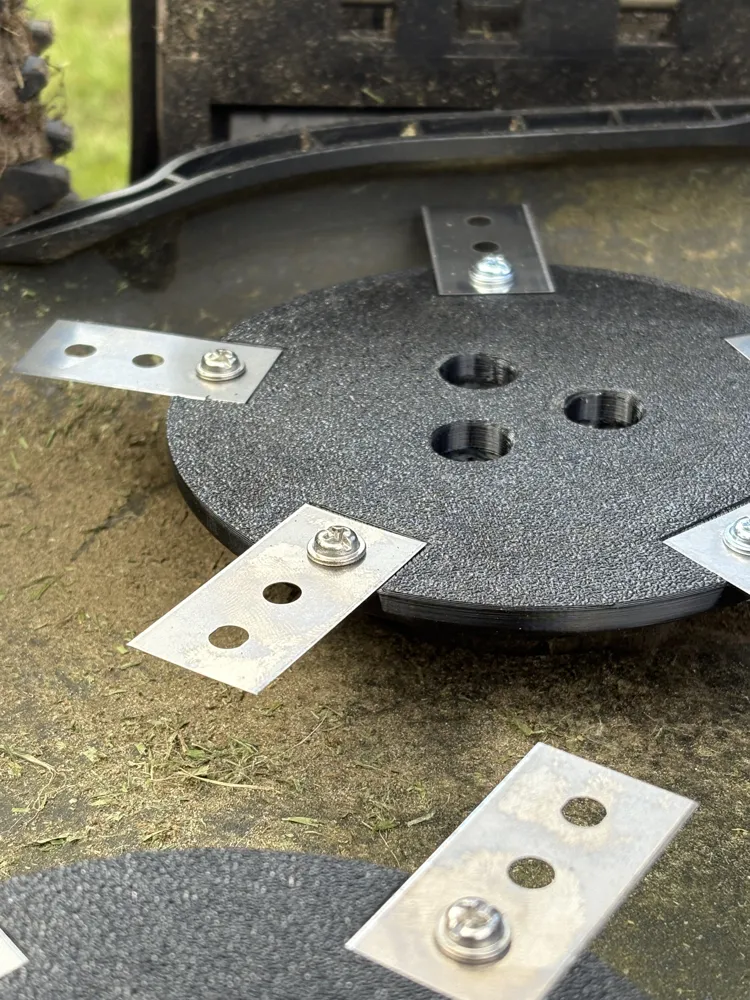

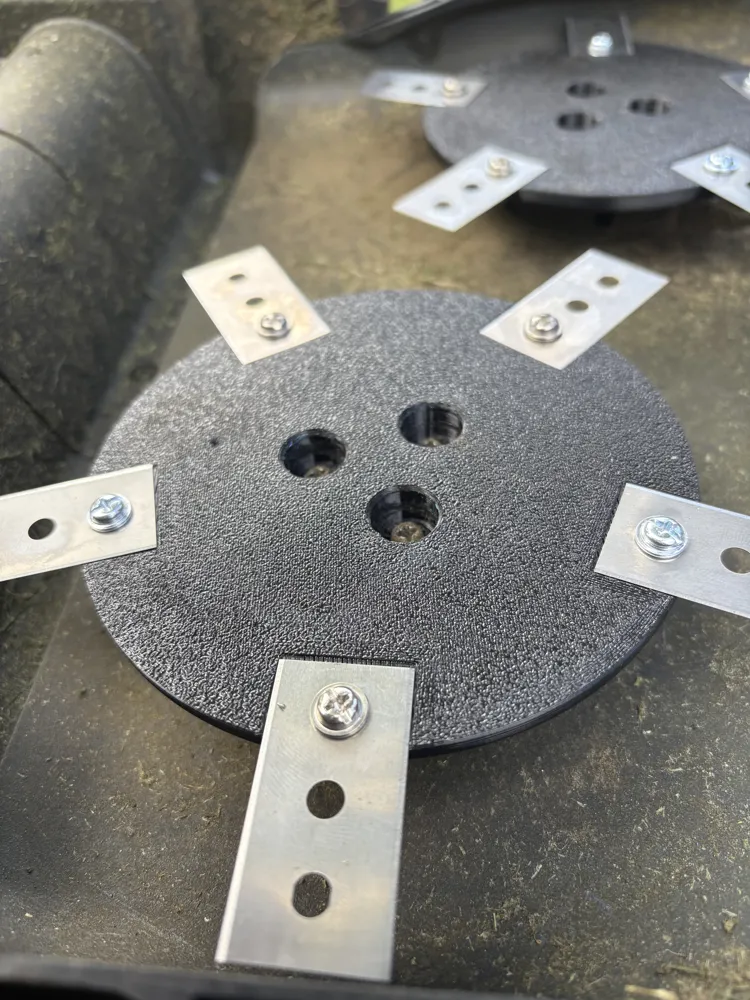

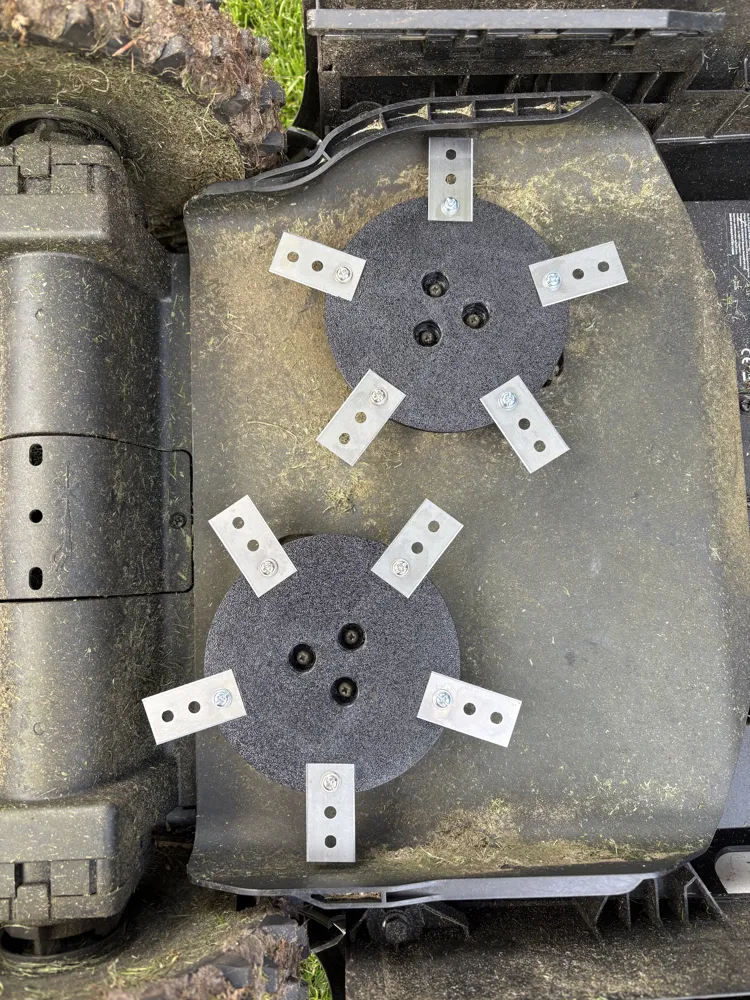

Cutting disc with 5 blades compatible with ECOVACS GOAT (See dimensions in the last images!)
Super sharp blades and a superb cutting image! These blades are available in 0.2, 0.4 and 0.6mm. All fit into the disc. Amazon sells Ceran hob scraper blades (see images).

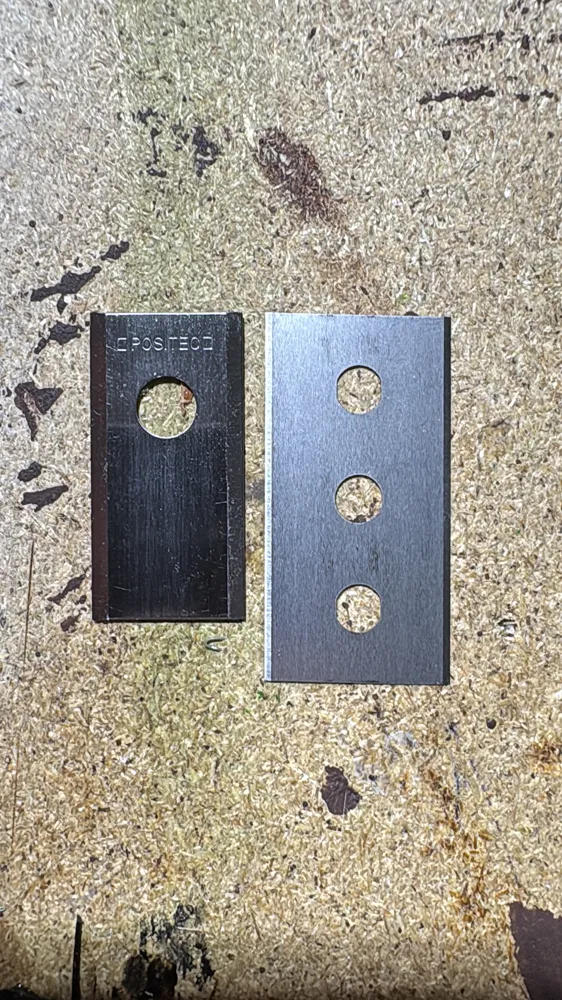

The blades are larger than the standard blades, making the disc smaller, but the cutting width has increased by 4mm.
Easy to print using PLA supports (all already in the profile!)
2 Versions
- Version 1 Fixed Blades
- Version 2 Movable Blades (coming soon @11.5.2025)
A pause is included in Layer 27 so that the nuts (NON self-locking!) can be inserted, then simply press play again.
The nuts fit very snugly, yet still go in easily, preventing later breakage. Simple standard M4 DIN nuts that are available everywhere.
Absolutely easy to print, NO supports needed, as everything is included in the profile!
Diameter and overall height correspond to the standard cutting disc.
- 118mm disc diameter
- Almost double cutting width due to larger blades!
- 32mm hex socket

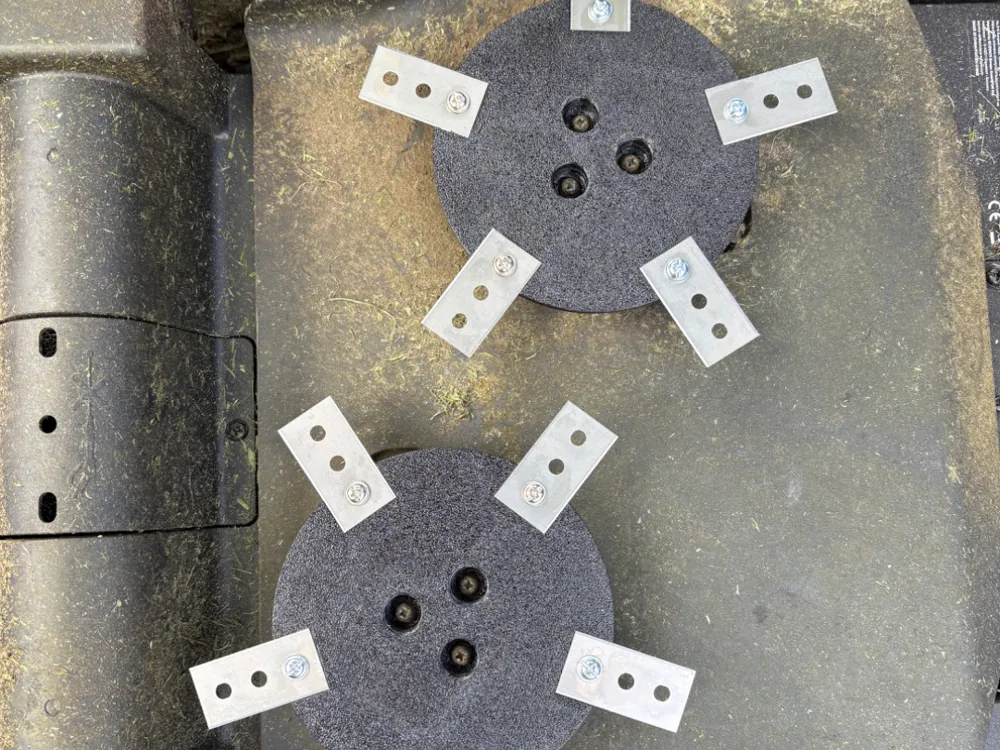

- Number of blades increased to 5
- For 0.2mm, 0.4mm and 0.6mm CERAN blades etc.
- Standard height
- Perfect fit
If a different size is required, please contact me!
As always…
HAVE FUN
