HLK-LD2450 and ESP32-C3 supermini case - REMIX
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
25 min
1 plate
Open in Bambu Studio
Boost
30
94
15
4
241
122
Released
Description
Boost Me (for free)
Boosting helps me create additional models or modify them!
It costs nothing and it helps.
Thank you once again for downloading and boosting.
This is a remix of a case designed for the ESP32-C3 Supermini and the HLK-LD2450 Human Presence Sensor.
Changes & Improvements:
- Better Fit: I adjusted the model so the devices sit slightly lower. This makes it much easier to plug in cables and access the USB port.

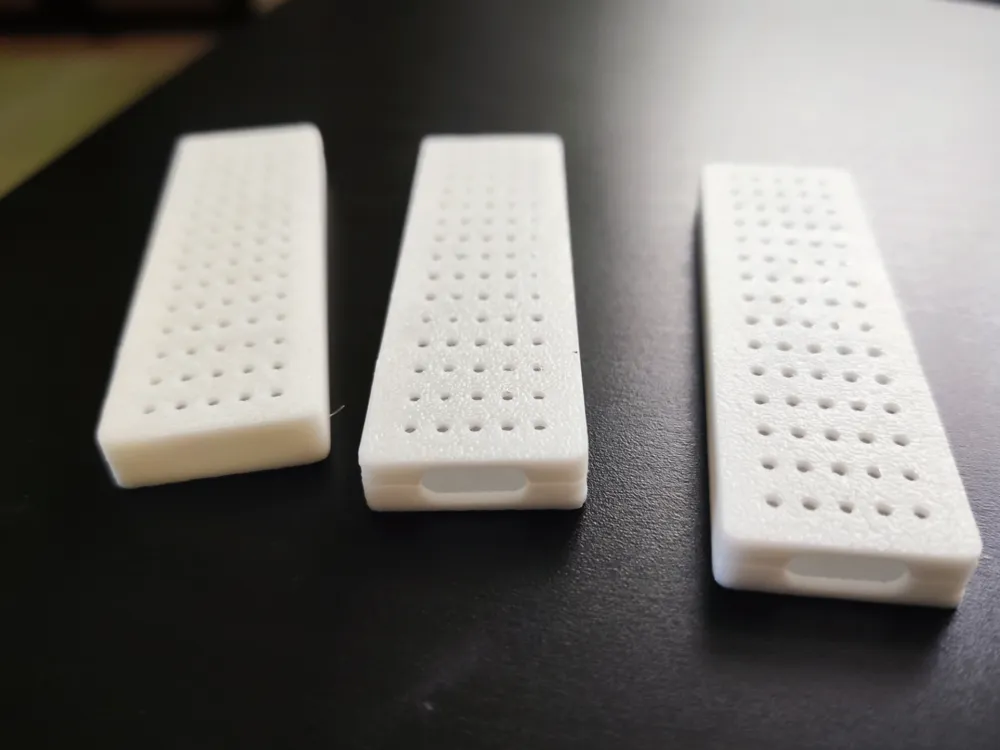

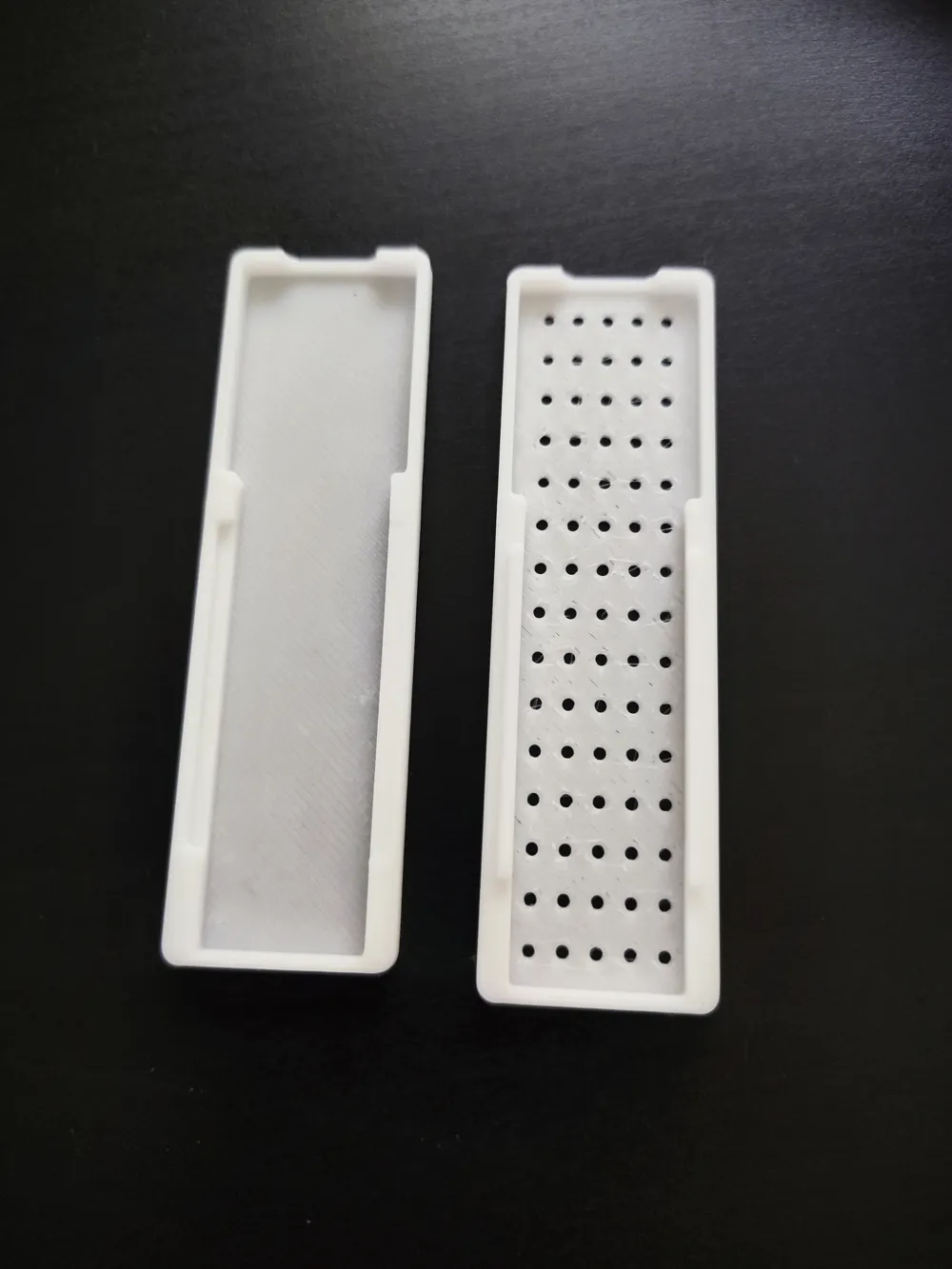

- Cooling: Added a grid of 1.5mm holes to improve airflow and keep the components cool.

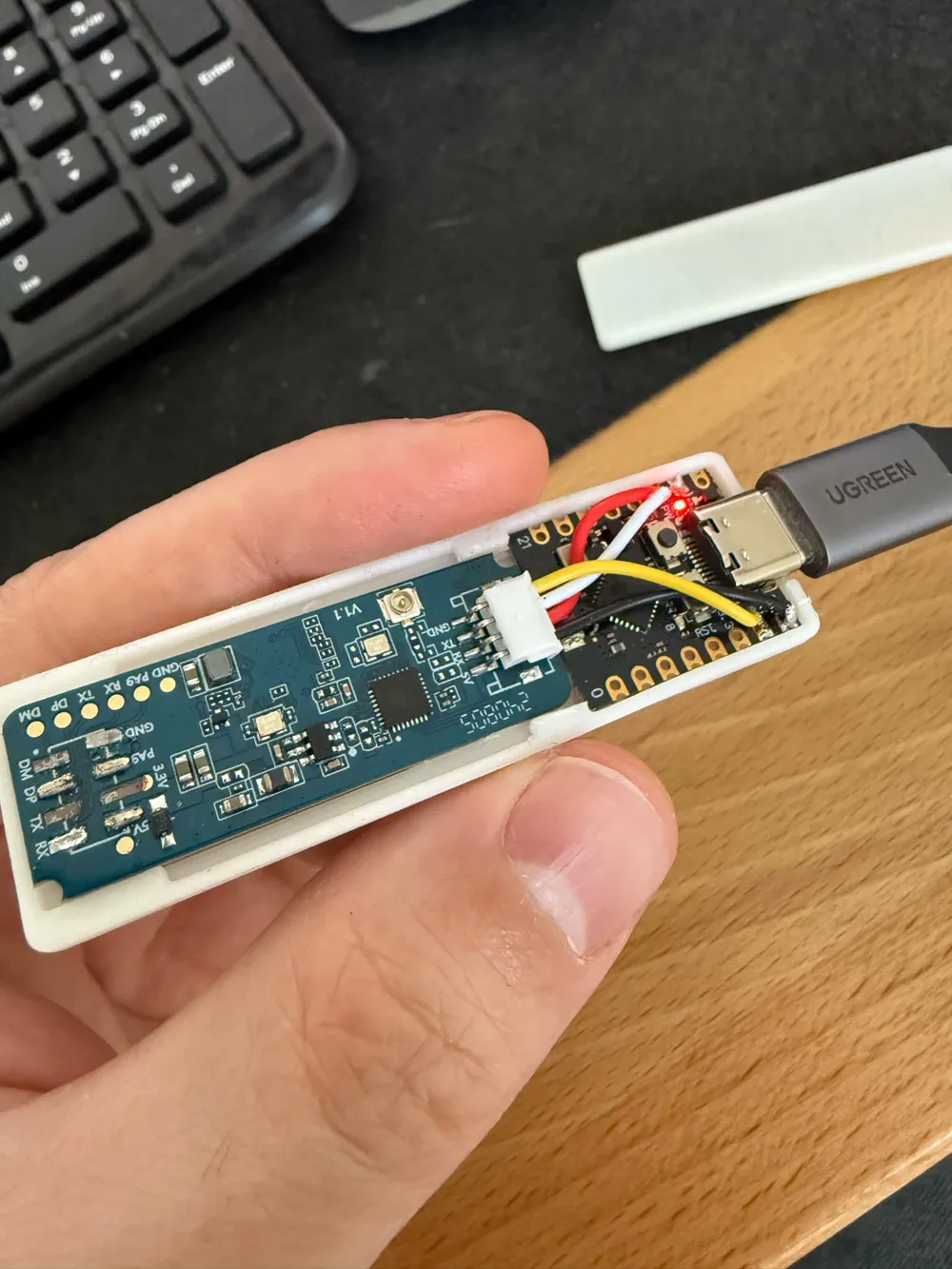

Assembly Note: To fit the sensor into this compact case, you will need to cut off the pin headers/connectors and directly solder wires to the exposed pads.
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
