X1C External Spool Holder Spacer
Print Profile(1)
Bill of Materials
Description

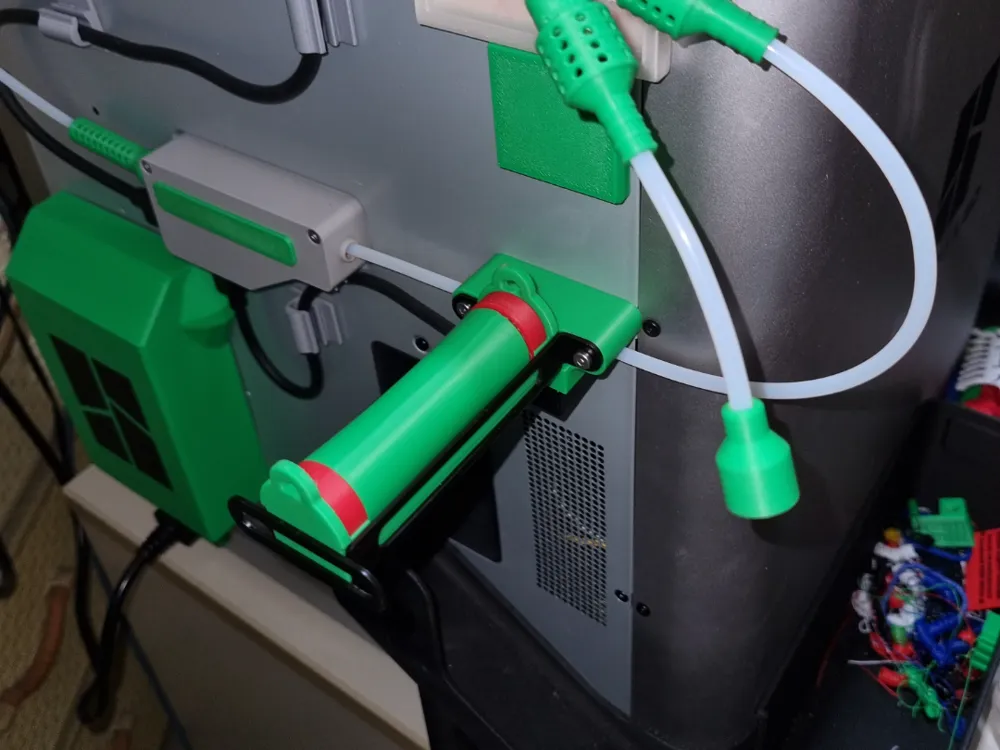

To improve the smoothness of filament feeding from the external spool on the X1C, I reversed the mount according to the model from suit1337 and added its modeling.
enhanced with bearings from the model of Tassesin.
https://makerworld.com/fr/models/473167-608z-6000z-roller-bearing-v2#profileId-383170
However, the spool was rubbing against the AMS hub, and the PTFE tube exit from the AMS hub was no longer perfectly aligned.

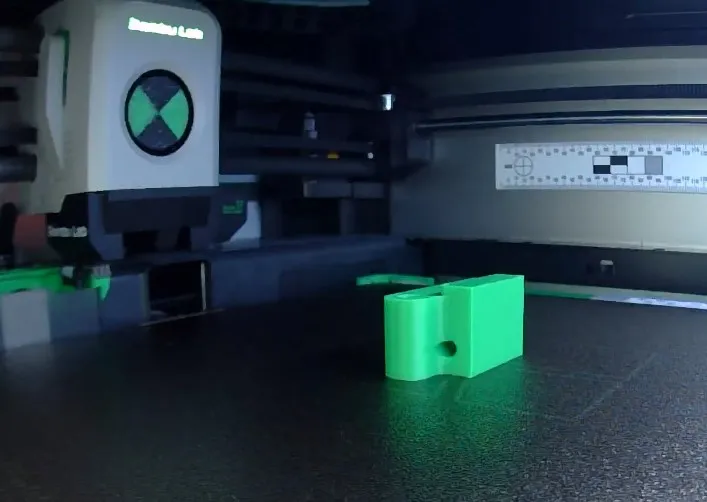

Therefore, I modeled this spacer to:
- prevent the spool from rubbing against the AMS hub
- reinforce the support of the mount on its lower part, which was unsupported
- add a passage to guide the PTFE tube exiting the AMS hub axially
https://www.tiktok.com/@philippemagre/video/7502818896035007766
Boost Me (for free)
This small research and modeling effort to improve the smoothness of external filament feeding took me some time, and I invite you to reward me with a like or boost to motivate me in further improvements to share with you.
Send me your comments, improvements and photos in a constructive approach.
Thanks in advance
