Mammotion blade guide
IP Report
Print Profile(2)
ABS, 0.12mm layer, 5 walls, 25% infill
Designer
4.6 h
1 plate
0.16mm layer, 3 walls, 20% infill
2.8 h
1 plate
Open in Bambu Studio
Boost
198
673
46
22
670
378
Released
Description
Use to sharpen mower blades for Mammotion robot mowers (Luba and Yuka models).

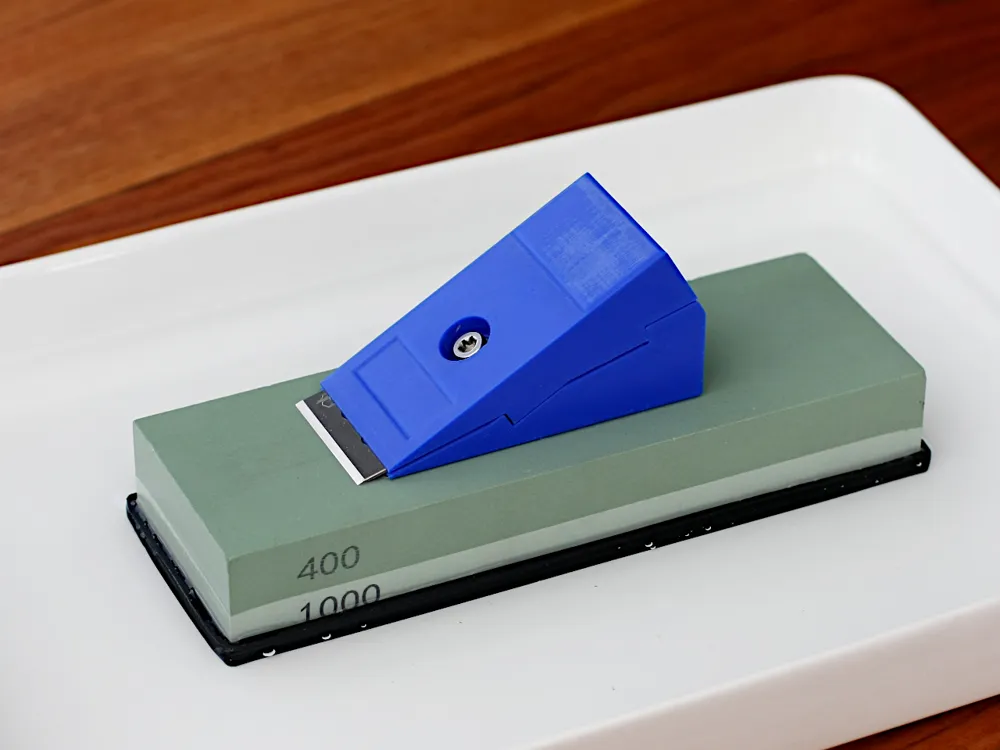

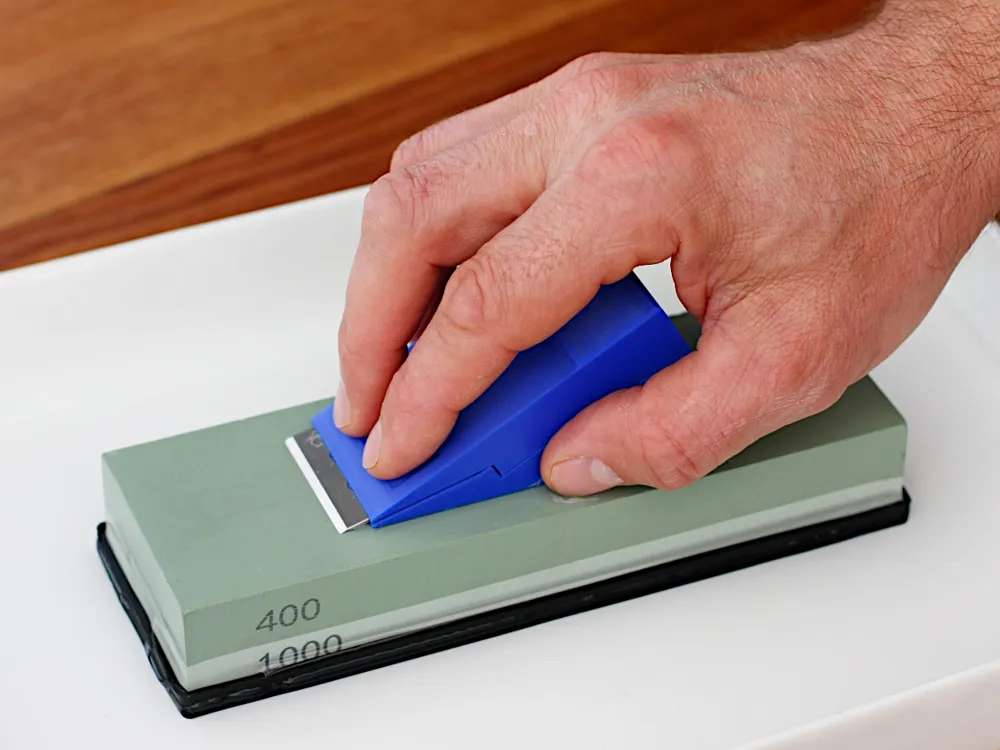

Loosen the screw an insert a worn blade, and then tighten the screw lightly. Sharpen the blade using a flat sharpening stone, and put slight pressure at the front of the guide. Both sides can be sharpened without loosening the screw. Works for left- and right-handed persons ;-)

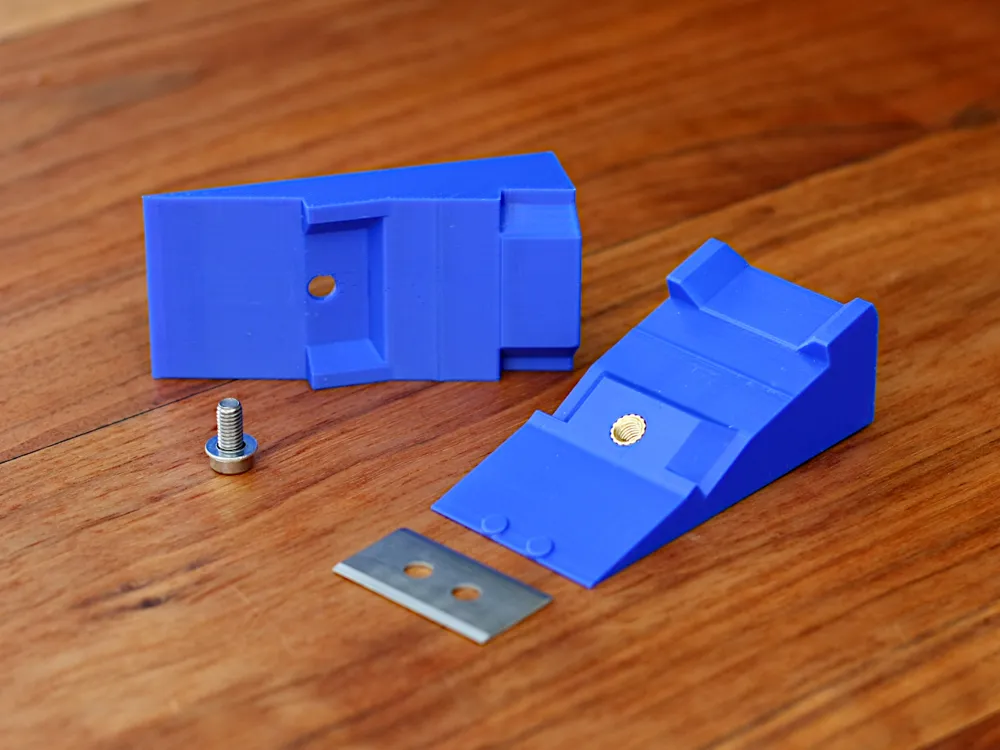

The guide is designed with a fifteen degree angle. A M5x10mm screw + inset is used in this design, and the step file is attached if you want to change something.
I printed in ABS, but other materials should work fine as well. I printed really slow to get fine details around the front end of the guide. The 3MF file is also attached.
//Henrik
