Creality K2 Plus Dual CFS Riser

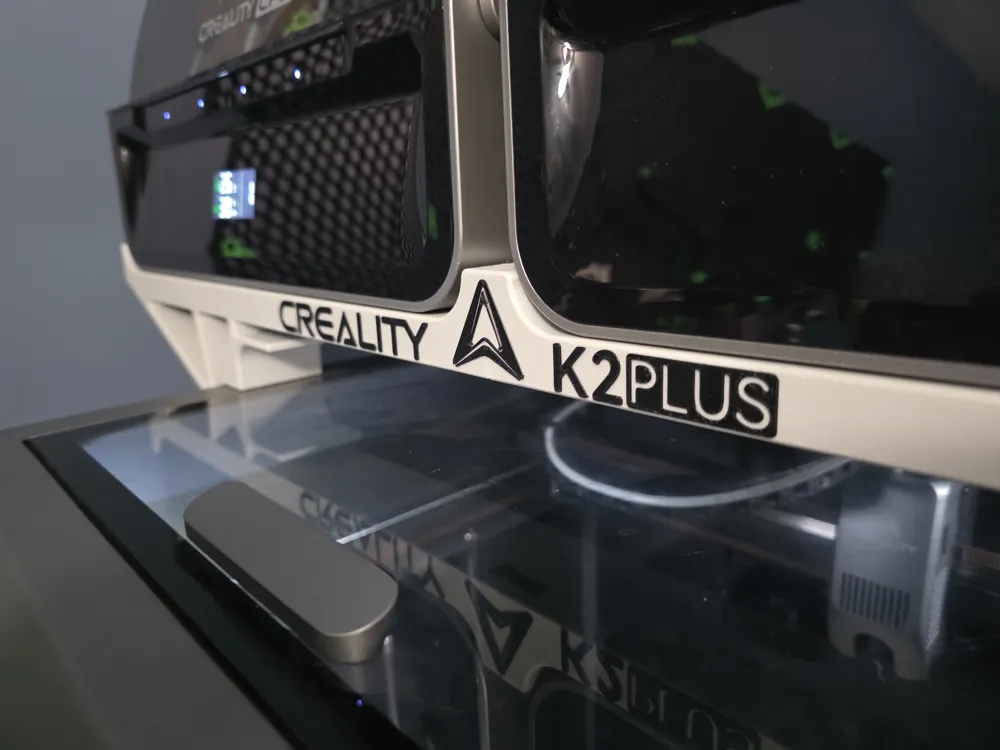

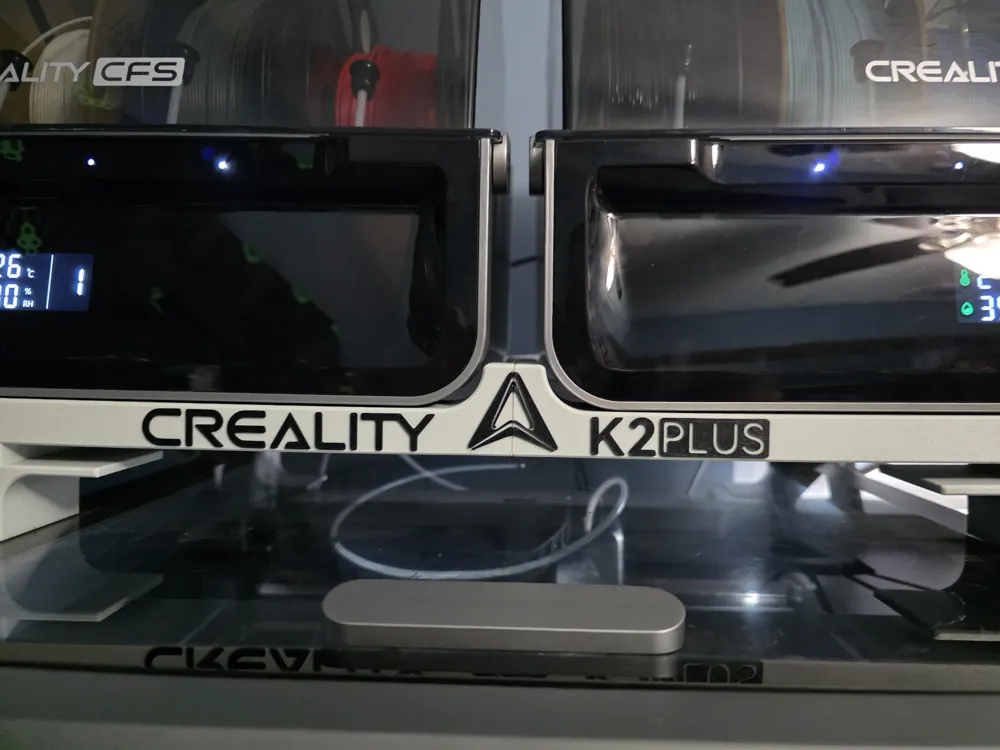

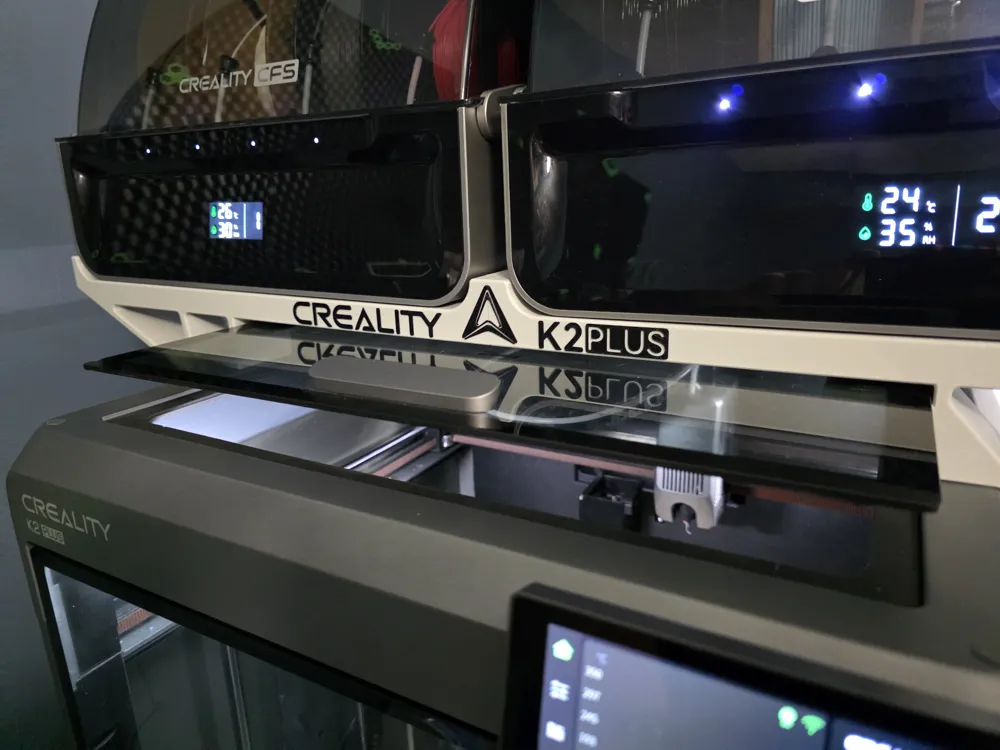

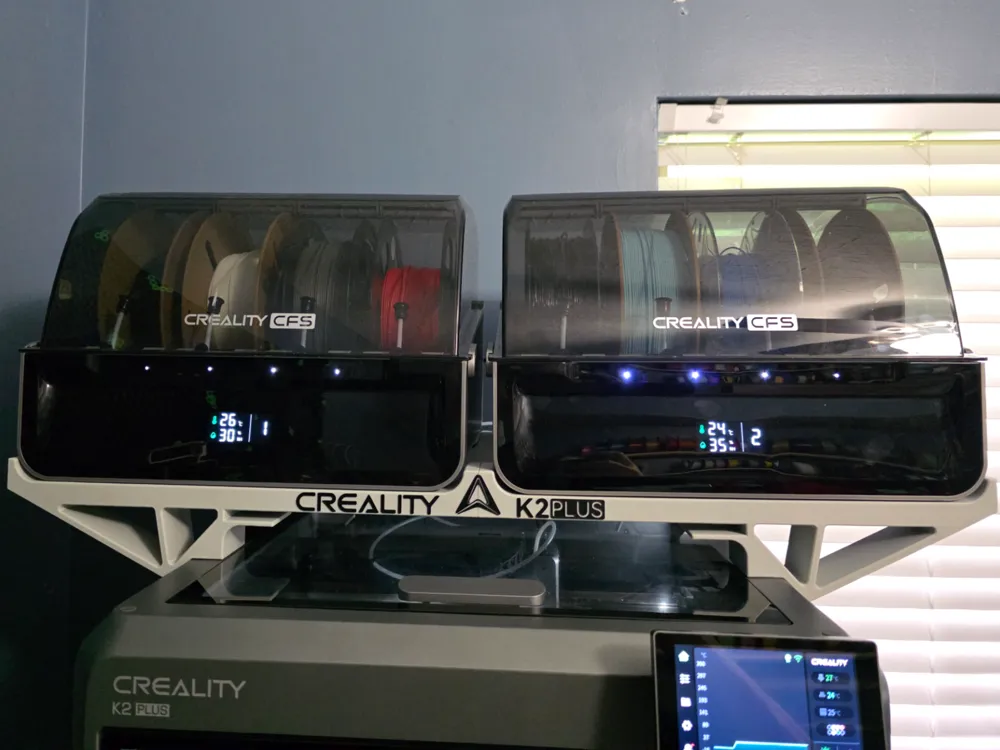

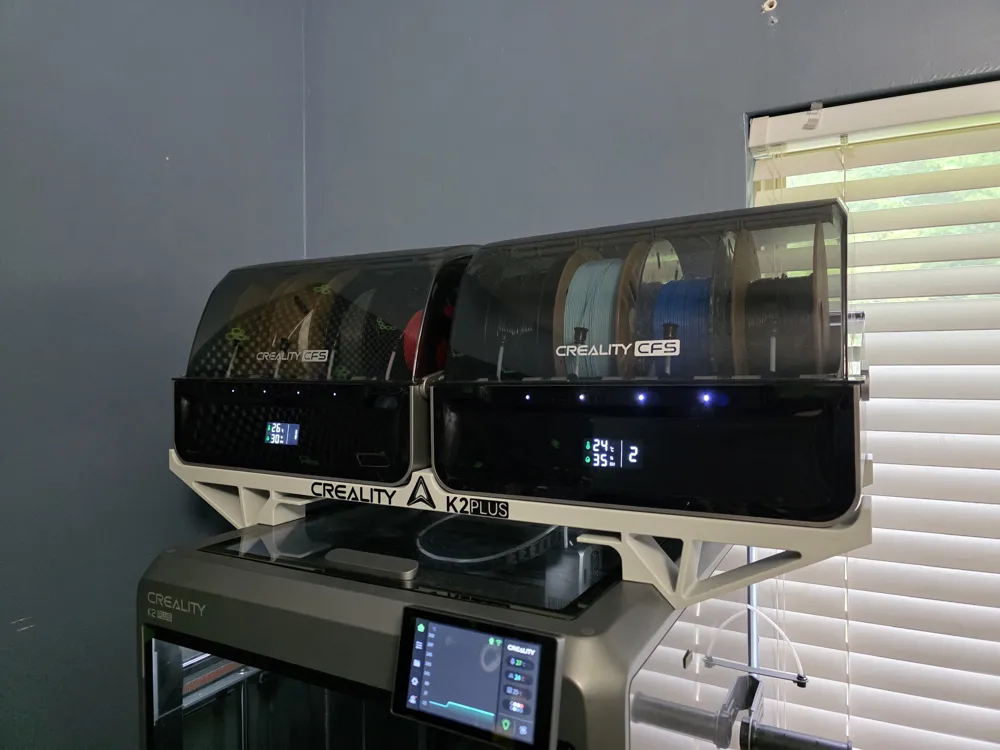

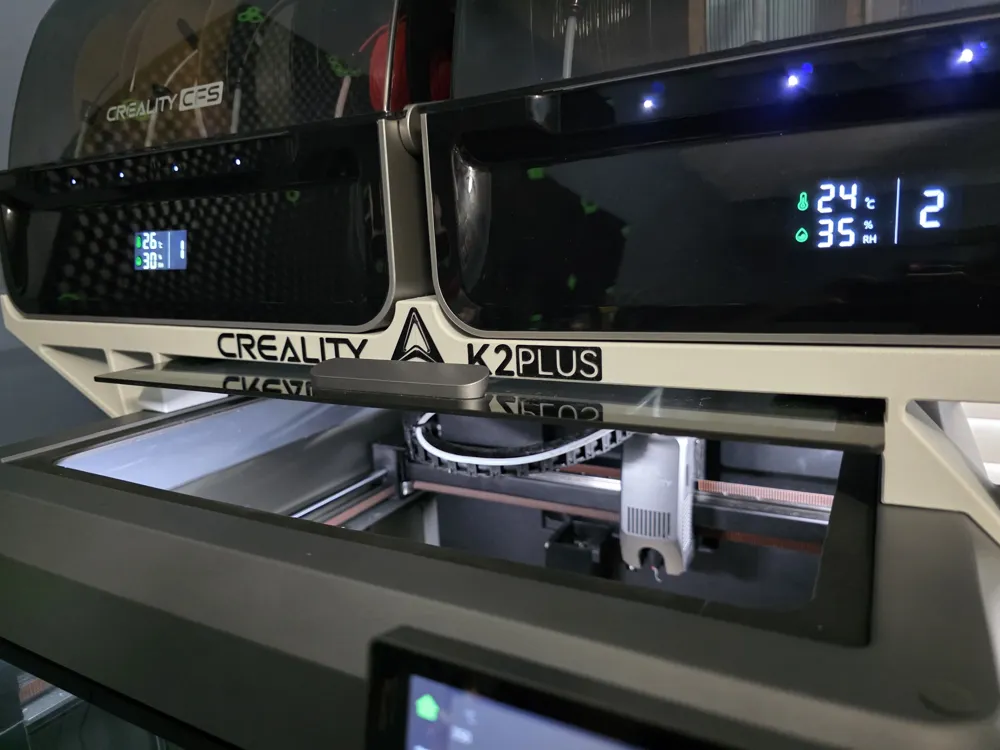

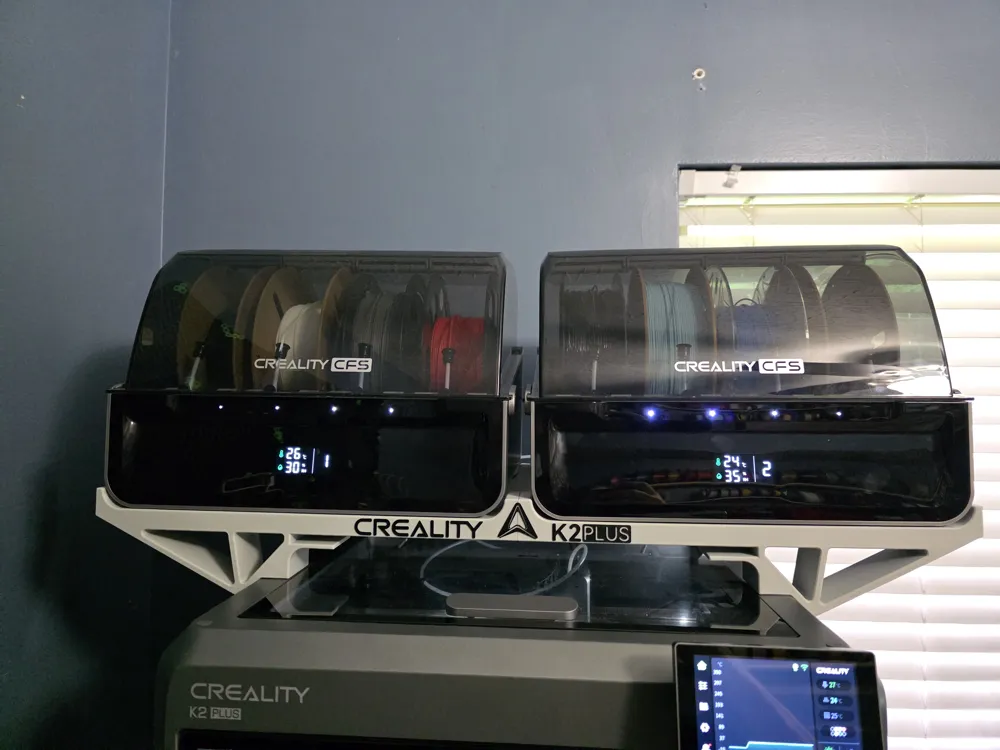

This is a dual CFS riser for the K2 Plus. I started to mark this model as a remix, but I believe mashup would be a better way to describe it. After printing this dual AMS for my H2D, I found there were several things I could implement into a Dual CFS Riser for my K2 plus. I left behind the things I didn't like from each model and pulled my favorite ideas from both. This is a ground up design in Fusion for a dual CFS riser for the K2 Plus. I borrowed ideas from the H2D riser, and the front profile from the K2 Plus riser listed below. This design does not implement either the bed plate holder, or the drawers from the other designs as I didn't require them, and wanted maximum space for the top glass while keeping a fairly short profile.

I have been running this CFS riser by INFINITY 3D PRINTS and it is a nice model, but had some room for improvement. Mine sagged some in the middle. This could have been my fault, or the model. I can't say for certain.

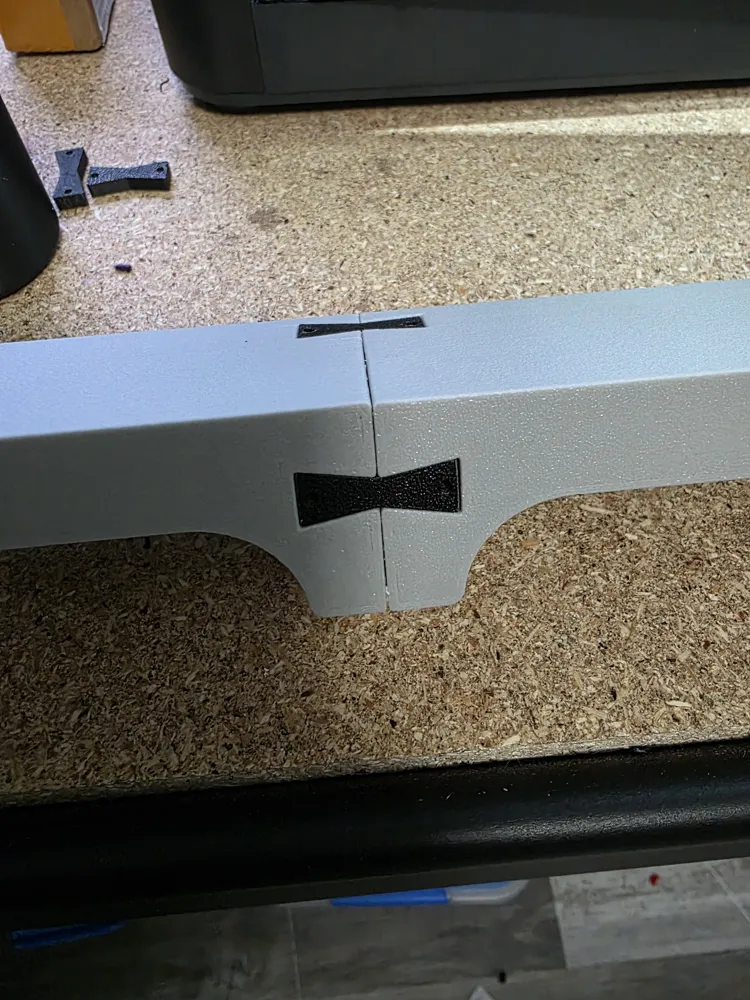

As I said, I used this dual AMS riser for my H2D by fay3dlab. It is a lovely model, and the only thing I found lacking is the inability to remove the top glass. That said, That would be a really tough task to implement on the H2D, so my hat is still off to this model as being by far the best H2D dual riser. I used his ideas for the 8mm support rod, as well as the bowtie style joining locks.

For this project, you will need the following 8mx300mm steel rods. I am sure that aluminum or similar would work fine as well. You could even try printing the rods, although I was not willing to trust that method.

https://www.amazon.com/dp/B0BNLDZ6Y5?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 (This is NOT an affiliate link)

I have now printed this model in PLA+, PETG and ABS-GF. All work and are plenty sturdy. If you print anything using the heated chamber, I would not suggest PLA for a long term solution though. This will print on an H2D as well as the K2 Plus and any other larger bed printer. It won't print on standard Bambu 256 beds.

UPDATE: I have added a single CFS model that was requested by someone. It uses the same rods as the dual above. It has the added benefit of modeled in supports, so turn supports off for the single. I will work on getting the dual to use no supports as well.
