Description

This set of parts is based on standard files from flyfish, but modified for best compatibility with my components.

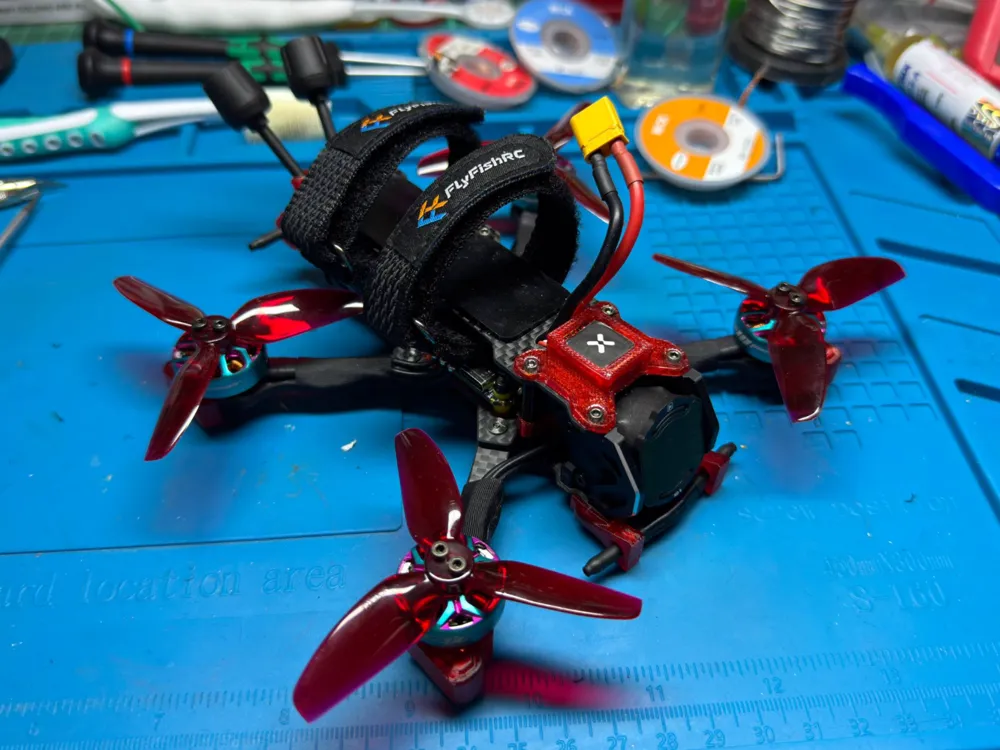

My set of accessories for this drone:

  • Frame - flyfish volador vx3
  • ESC - speedybee f405 AIO 40A
  • Motor - Rcinpower gts v3 1804 3450kv
  • Props - HQprop 3x3x3
  • Receiver - Geprc dual 2.4GHz
  • GPS - Foxeer m10Q-120
  • VTX - DJI O4 pro

So I changed each of the complete tpu parts or created a new one from scratch. What has been done compared to the standard parts:

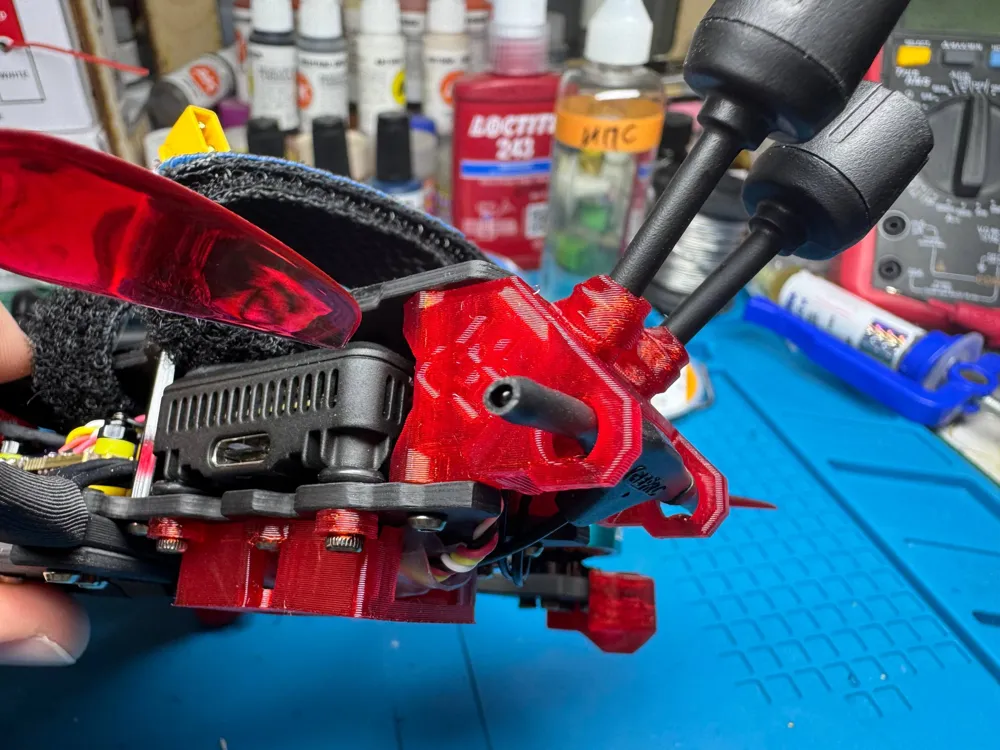

  • DJI o4 pro Antenna mount: I increased the distance between the holes of the elrs antenna mount and also moved the o4 pro antenna mounts by half a centimeter because the standard mount did not have enough space and was breaking the coaxial cables of the antennas.

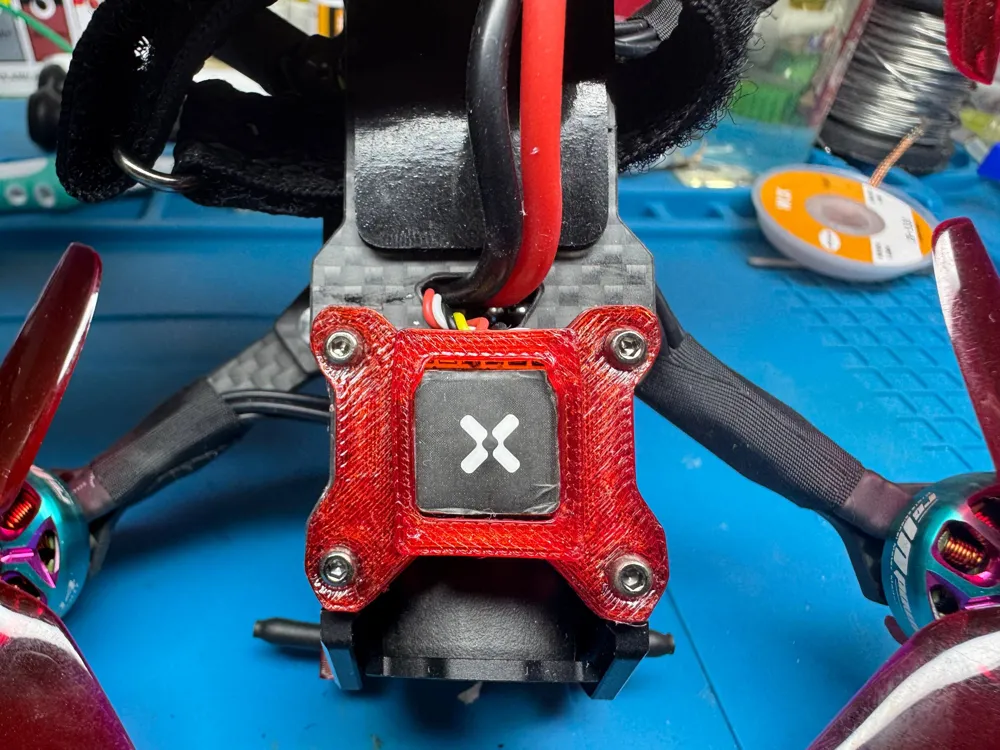

  • GPS: adapted for foxeer 120

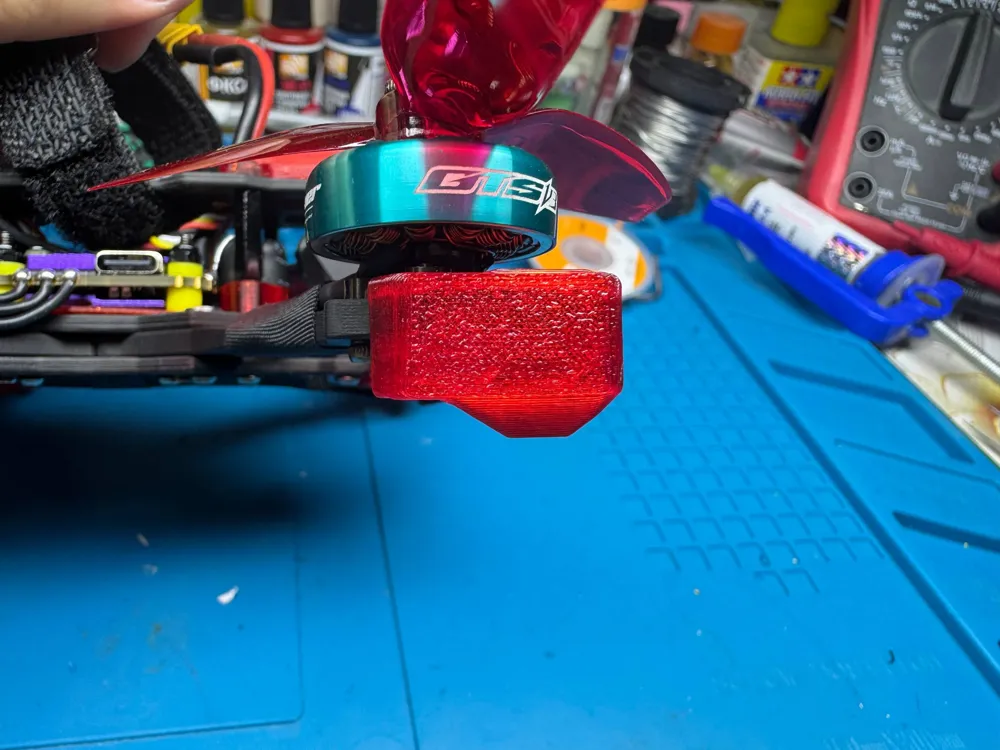

  • Pads: increased height so that the drone does not touch the ground with the bottom of the frame and the elrs mount

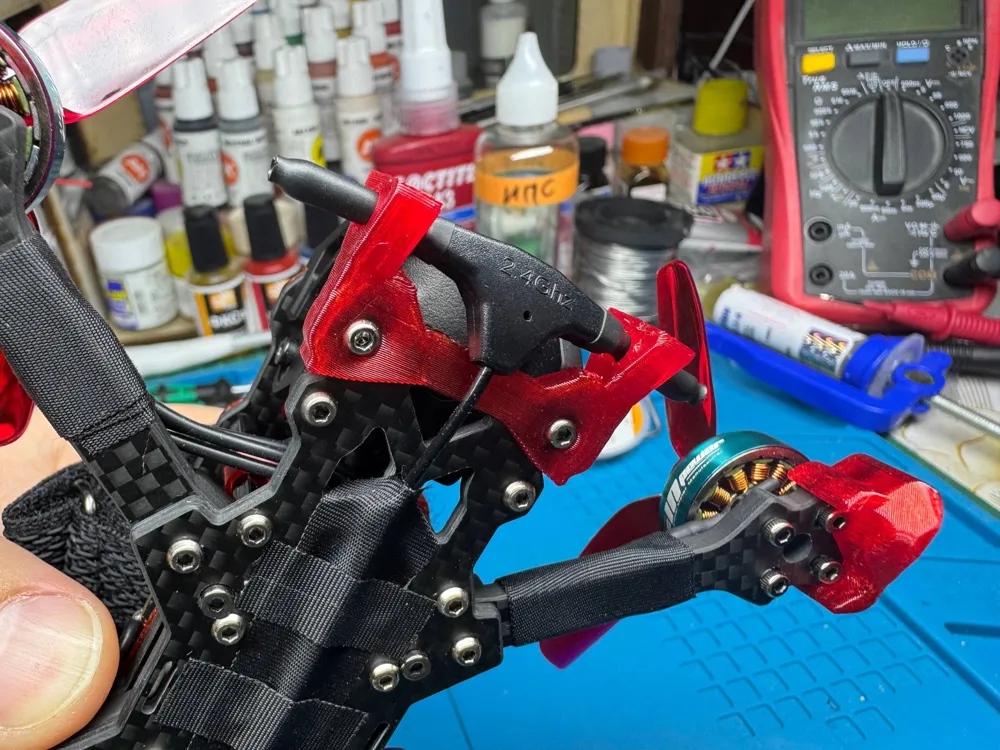

  • Front bumper: Added a second antenna mount for GEPRC dual (this is a receiver with diversity)

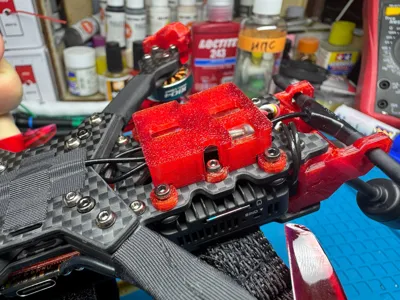

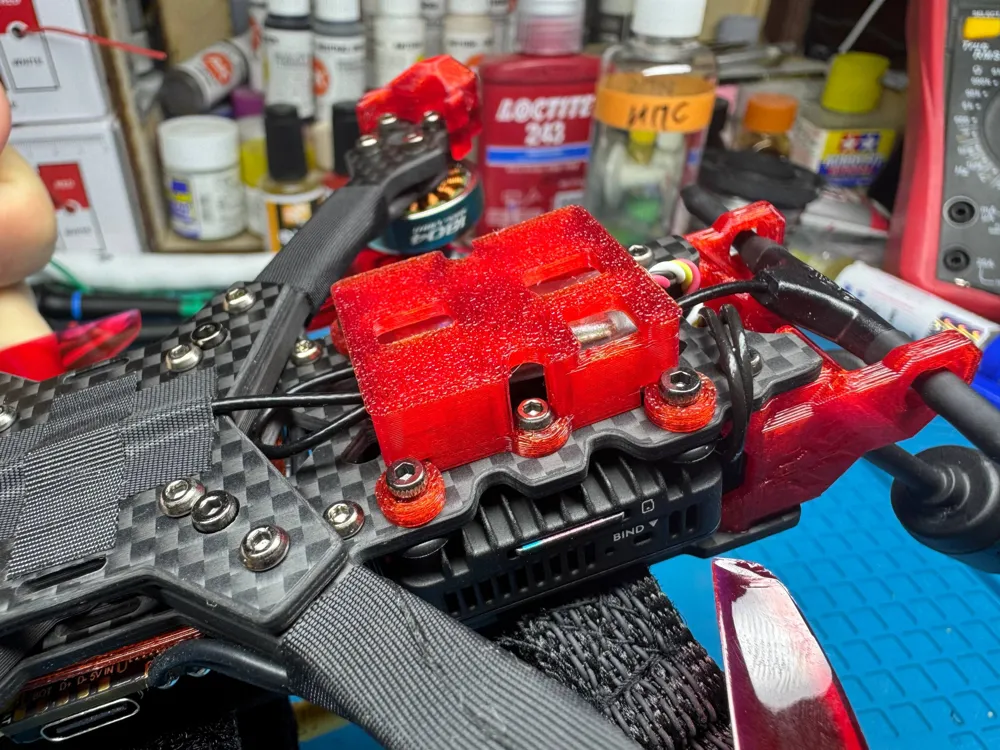

  • ELRS: New enlarged mount to fit two antennas and receiver inside

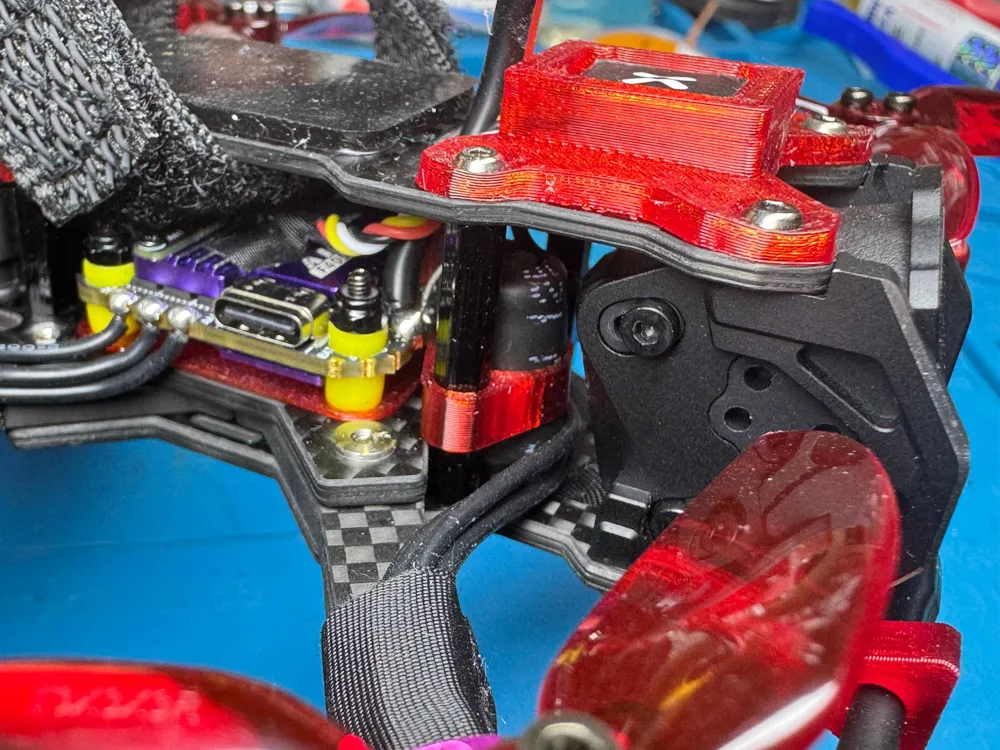

  • Additional gaskets for esc and air unit, as well as the o4 pro cable holder on the frame posts
  • Condenser holder on frame stand
