Currently the most refined (June 2, 2025, Version 3.2) 0.2mm layer height, 2 walls, 15% infill

Designer

3.8 h

3 plates

4.8(210)

Heavier flywheel

Designer

29 min

1 plate

4.6(18)

(20250516 Version 3.1) 0.2mm layer height, 2 walls, 15% infill

Designer

3.8 h

4 plates

4.4(7)

(20250510 Version 3.0) 0.2mm layer height, 2 walls, 15% infill

Designer

4 h

4 plates

4.7(15)

Click to see more

Open in Bambu Studio

Boost

2075

5092

355

188

6.5 k

3.8 k

Released

Description

Content has been automatically translated.

Show original

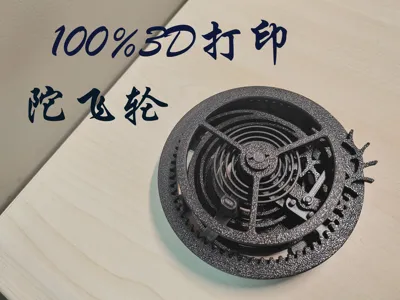

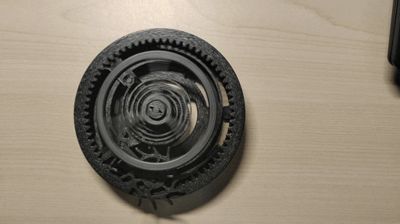

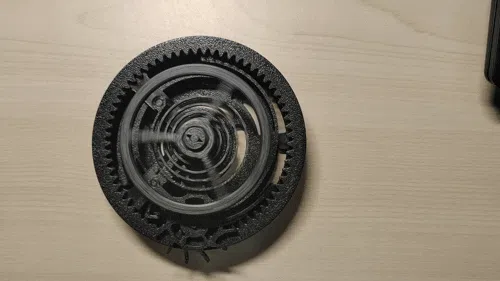

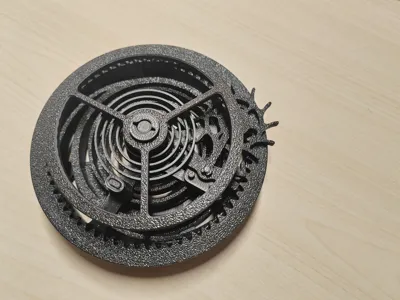

100% 3D printed, no supports needed (some lubricant may be required)
Print parameters are pre-configured for one-click printing. It is recommended to use the author's uploaded print profile for optimal part quality
Video installation tutorial:
Further optimizations are forthcoming. If you appreciate this model, please continue to follow for updates
2025/5/11 Update: Modified flywheel dimensions to increase run time to approximately 60 seconds
2025/5/16 Update: Modified the mainspring, base, hairspring, and escapement frame to address looseness issues in the mainspring and hairspring
2025/5/21 Update: Improved interference between the hairspring and other components, and the engagement of the escape fork and flywheel shaft (the cam on the flywheel shaft jumping out of the escape fork after several runs)
Only the escapement base, flywheel shaft, flywheel, escape fork, and flywheel shaft locking ring were modified; other parts are identical to version 3.1
For users who wish to avoid printing duplicate parts, the components differing from version 3.1 are listed separately in the print profile (third plate)

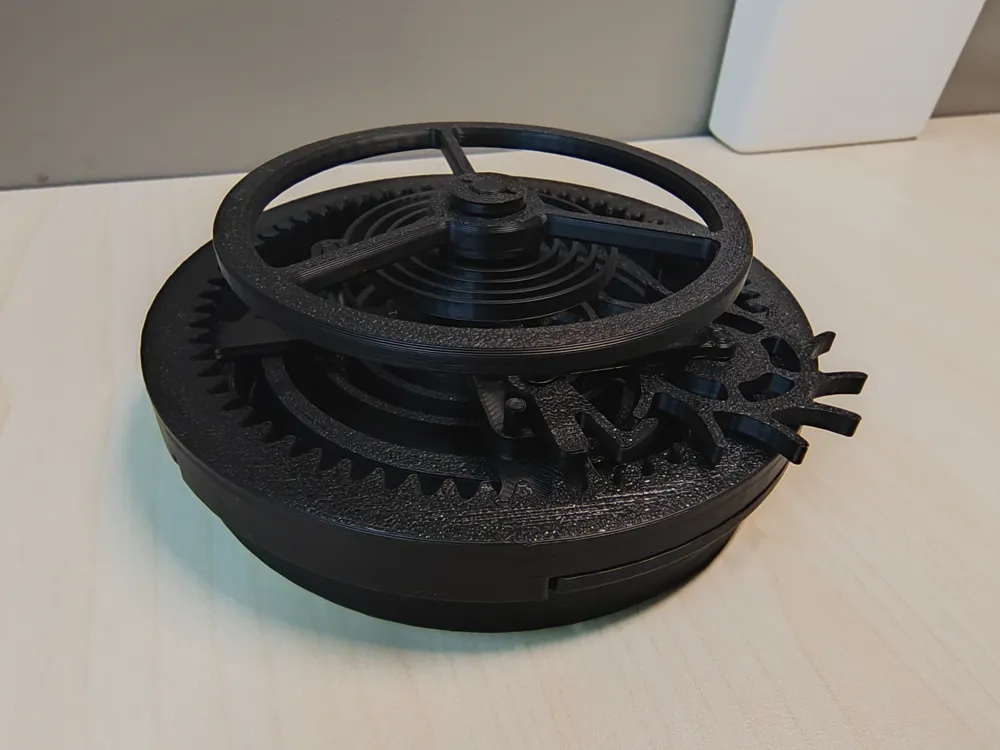

2025/06/02 Update: Increased flywheel weight. Addressed escape wheel and locking ring interference based on user feedback
