Anker Prime TB5 Dock Under-Desk Mount

Print Profile(1)

All
A1
P1P
X1
A1 mini
P1S
X1E
X1 Carbon
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
3.4 h
1 plate
5.0(2)

Open in Bambu Studio
Boost
20
44
4
2
71
50
Released

Description

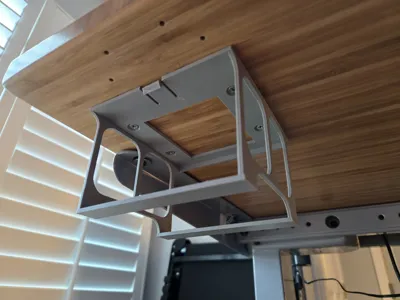

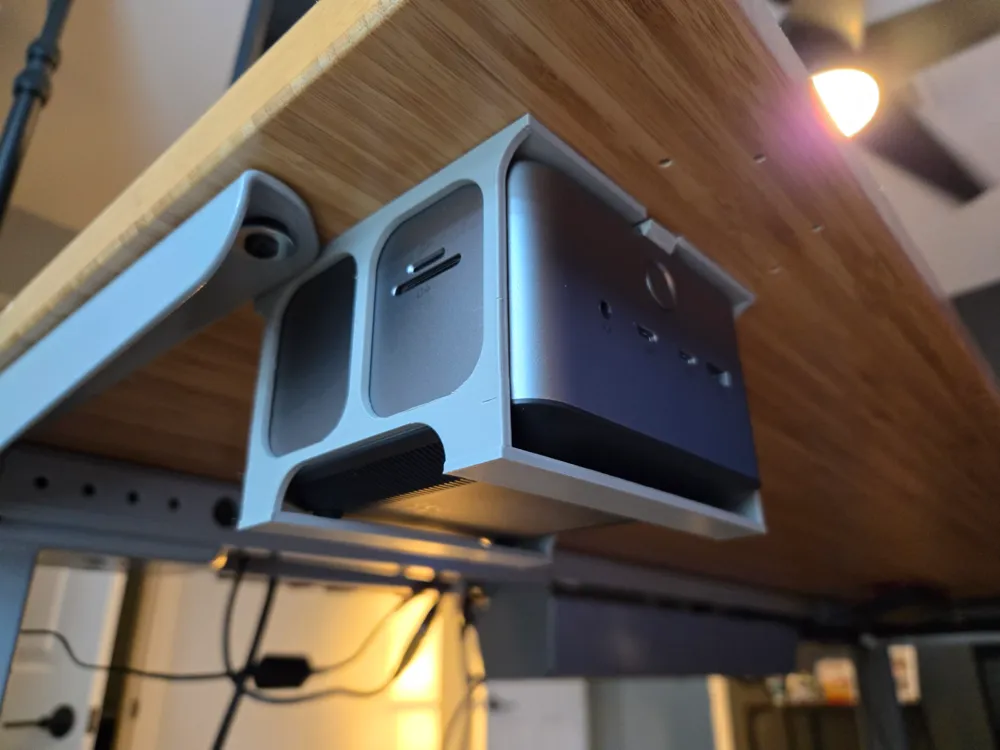

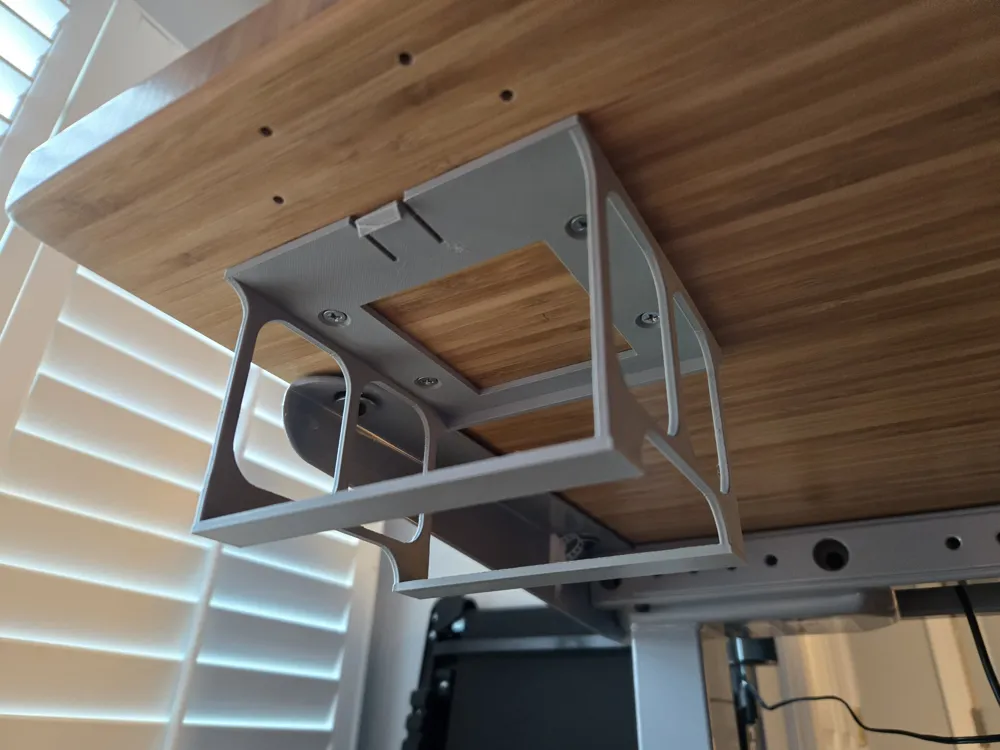

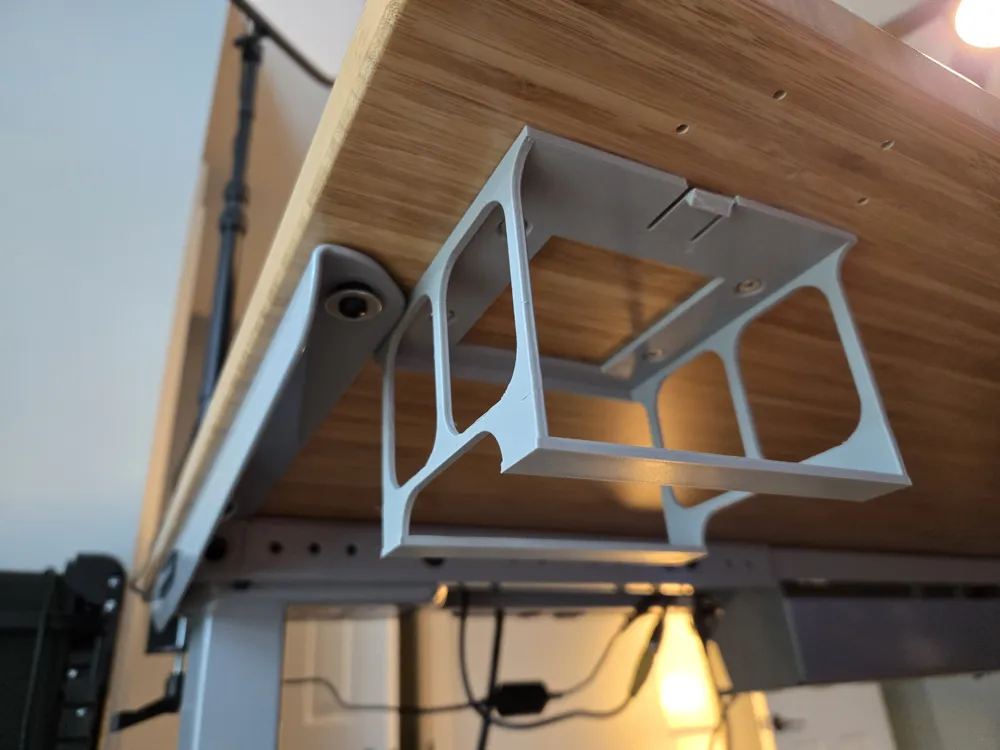

This print will allow you to mount an Anker TB5 dock (https://www.amazon.com/dp/B0DSVVJXK5?ref=ppx_yo2ov_dt_b_fed_asin_title)  under a desk.   It has cutouts to allow airflow at both the intake and exhaust ports.  It also has access to the poorly-chosen side access to the SD and micro SD ports.  It also has countersunk screw holes that allow countersunk screw heads from interfering with the dock.

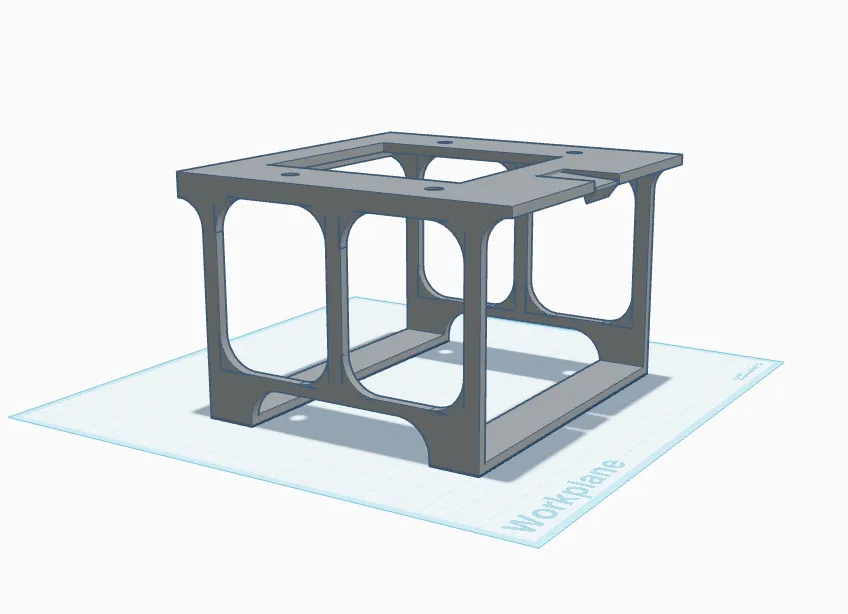

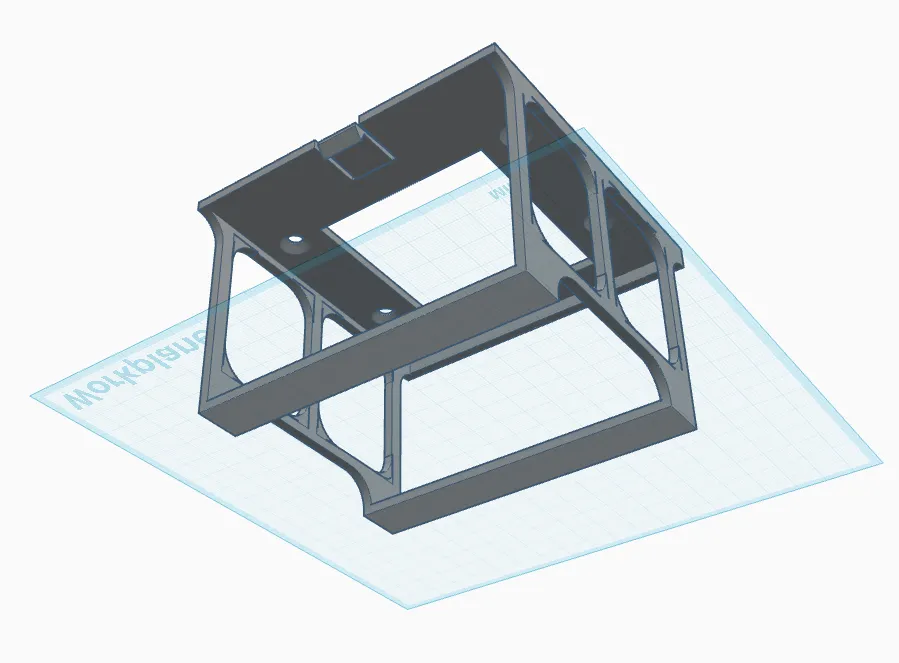

Note: I chose to orient the dock on the print bed vertically to help with the retaining clip.  My first draft was printed with the top flat on the bed but the supports needed for the retention clip were difficult to remove.
