h2d PTFE dual-interface connector
Print Profile(2)
Description

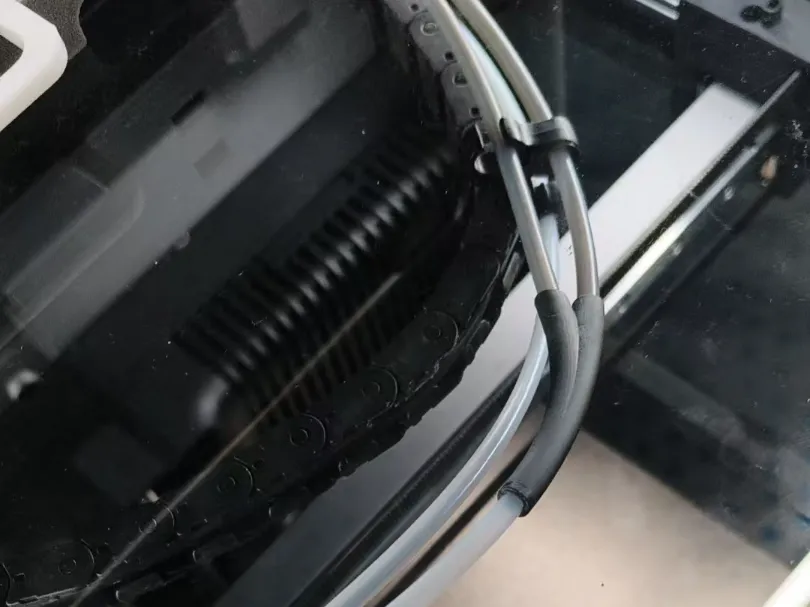

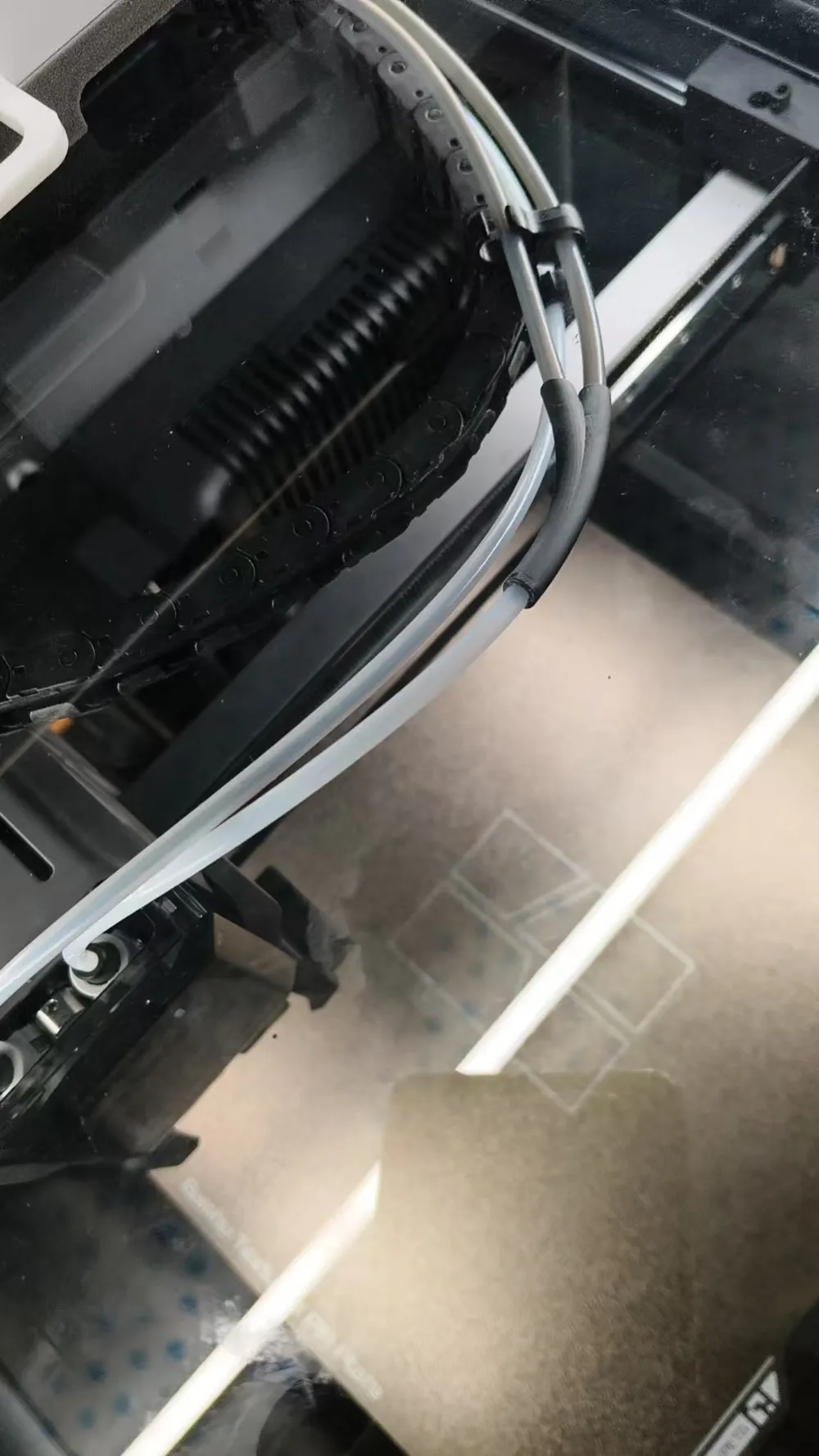

Only compatible with factory default PTFE tubes with an outer diameter of 4mm and an inner diameter of 2mm. For printing super-soft filaments like TPU, connect to the right nozzle, the large arc connector to the AMS, and the small arc connector to the external TPU port for external TPU printing. For printing super-hard filaments like PP-CF, connect to the left nozzle, the large arc connector to the external TPU port for external PP-CF printing, and the small arc connector to the AMS. The installation method is simple: just firmly insert it 8mm until it reaches the bottom. This file is only suitable for production using high-temperature resin photopolymerization printing. It cannot be produced using FDM or laser sintering methods, as the inner walls would be too rough and create excessive resistance.
Those who own a 3D printer and high-temperature resin can download and print this themselves. Others can easily find this "h2d PTFE dual-interface connector" on Xianyu (a popular Chinese online marketplace).
