Small Wind Turbine MK3– Long Blade Edition (Remix)

This is a "Quick and Dirty" remix of the fantastic Small Wind Turbine MK3 by @rosch8. If you are looking for more surface area and a more imposing look, this is for you!

The Remix:

• 50% Longer Blades: I have extended the original blade length by 50%.
• Compatibility: Only the blade surface was resized, not the attachment point.
  • Advantage: If you already have the original windmill, you only need to reprint the second build plate three times. The rest of the model remains identical.
  • Note for A1 mini users: Due to the length, these blades will push your build plate to its limits!

Important "Quick & Dirty" Note: ⚠️ Because only the blade itself was scaled and not the connection point, the area where the blade meets the attachment is a bit more fragile than the original. Please handle with care during assembly. Once mounted, it works perfectly fine.

Tail Extension:

I have also included an 80mm extension for the tail. This helps with directional control, as the increased pressure from the longer blades requires more leverage to keep the turbine pointed into the wind.

Print Settings

• Nozzle: 0.4 mm
• Layer Height: 0.2 mm
• Supports: Required

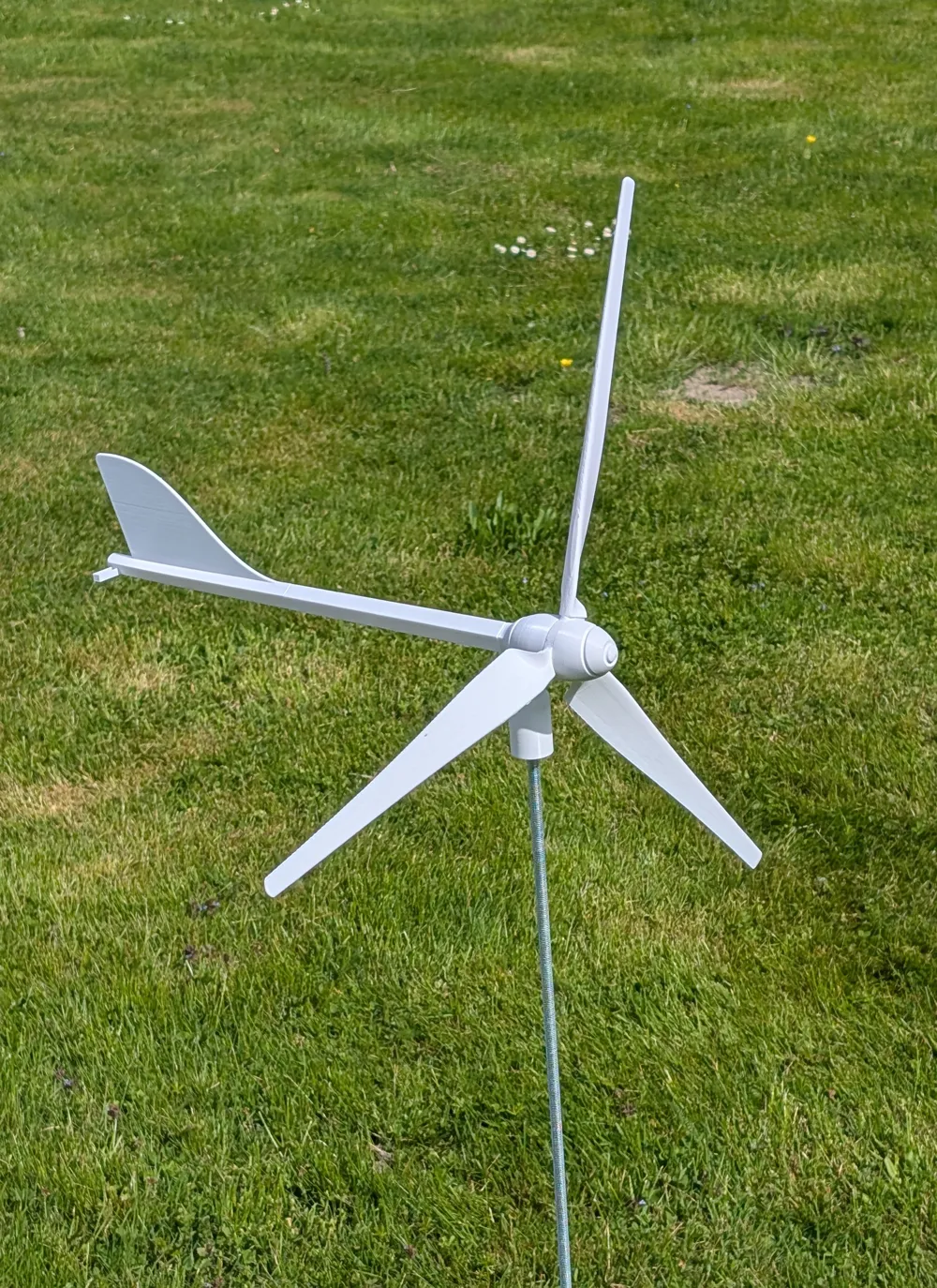

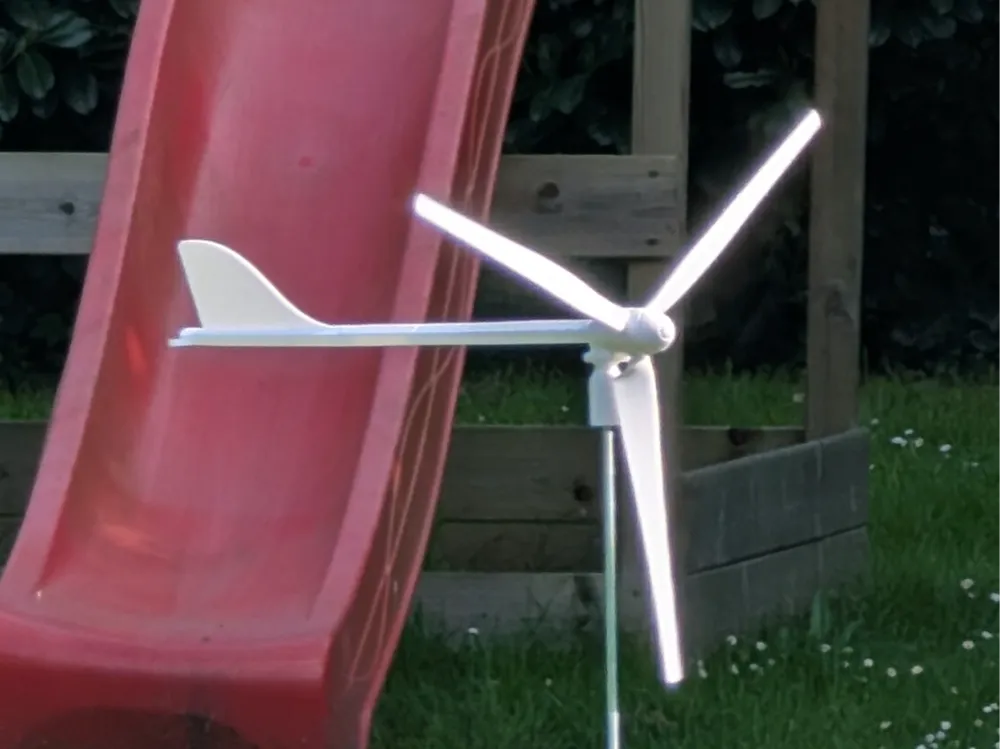

• Materials used in photos: ABS with HIPS as support. However, any UV-resistant material (ASA, PETG) is highly recommended for outdoor use.

Required Hardware (BOM)

To make it easy for you, here is the hardware list (quoted from the original design):

• DIN912: 6x M3x15mm (or 16mm), 2x M4x20mm
• DIN933: 1x M5x100mm (or M5 threaded rod L=105mm)
• DIN 934 (Hex Nut): 5x M5, 3x M8
• DIN 125 Washer: 5.3mm
• Pole: Threaded rod M8 (as vertical pole)
• Bearings: * 2x 625 2RS or ZZ (5x16x5mm)
  • 2x 619 (698) 2RS or ZZ (8x19x6mm)

Disclaimer: This is a remix. Please support the original creator @rosch8 as well!
