Swamp Dog (Windmill Boat) Final Version
Print Profile(3)
Description

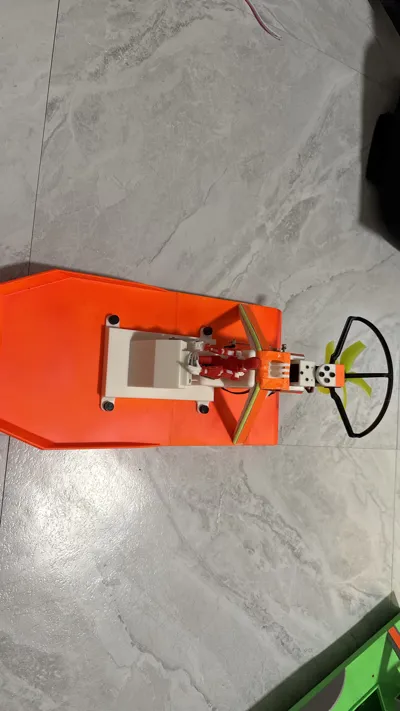

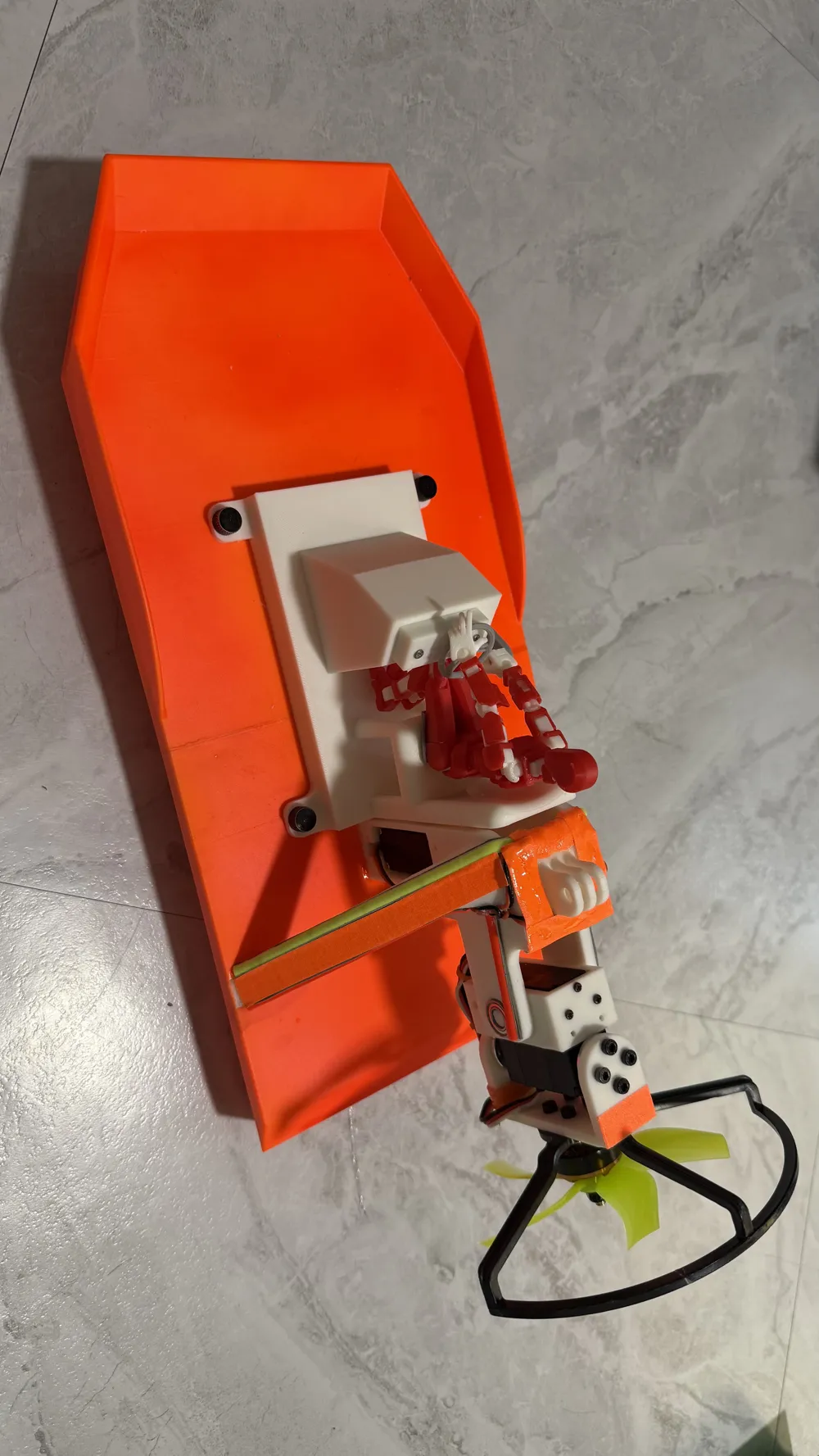

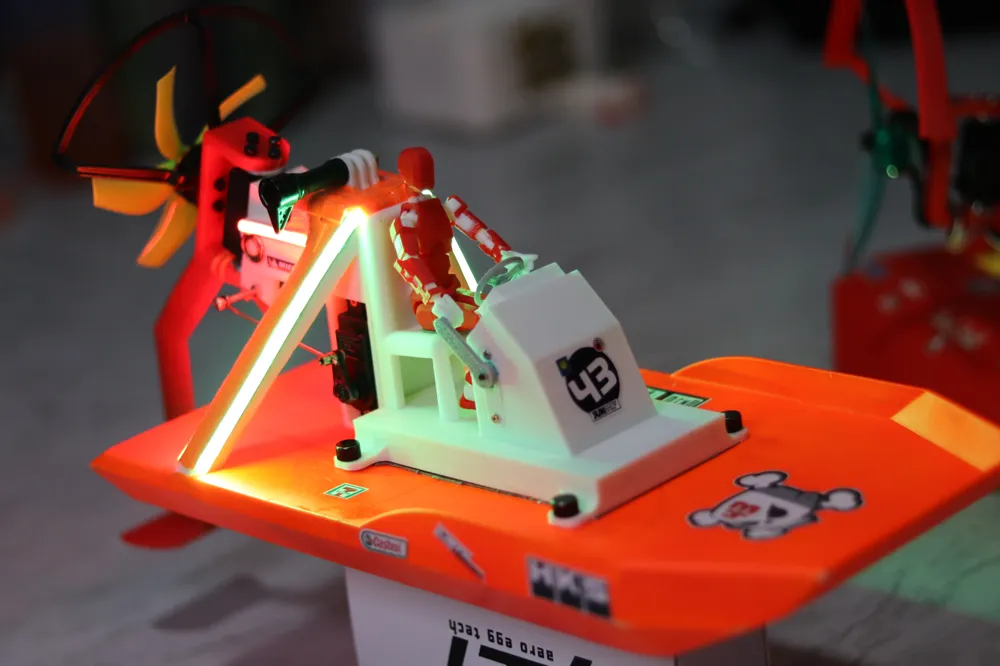

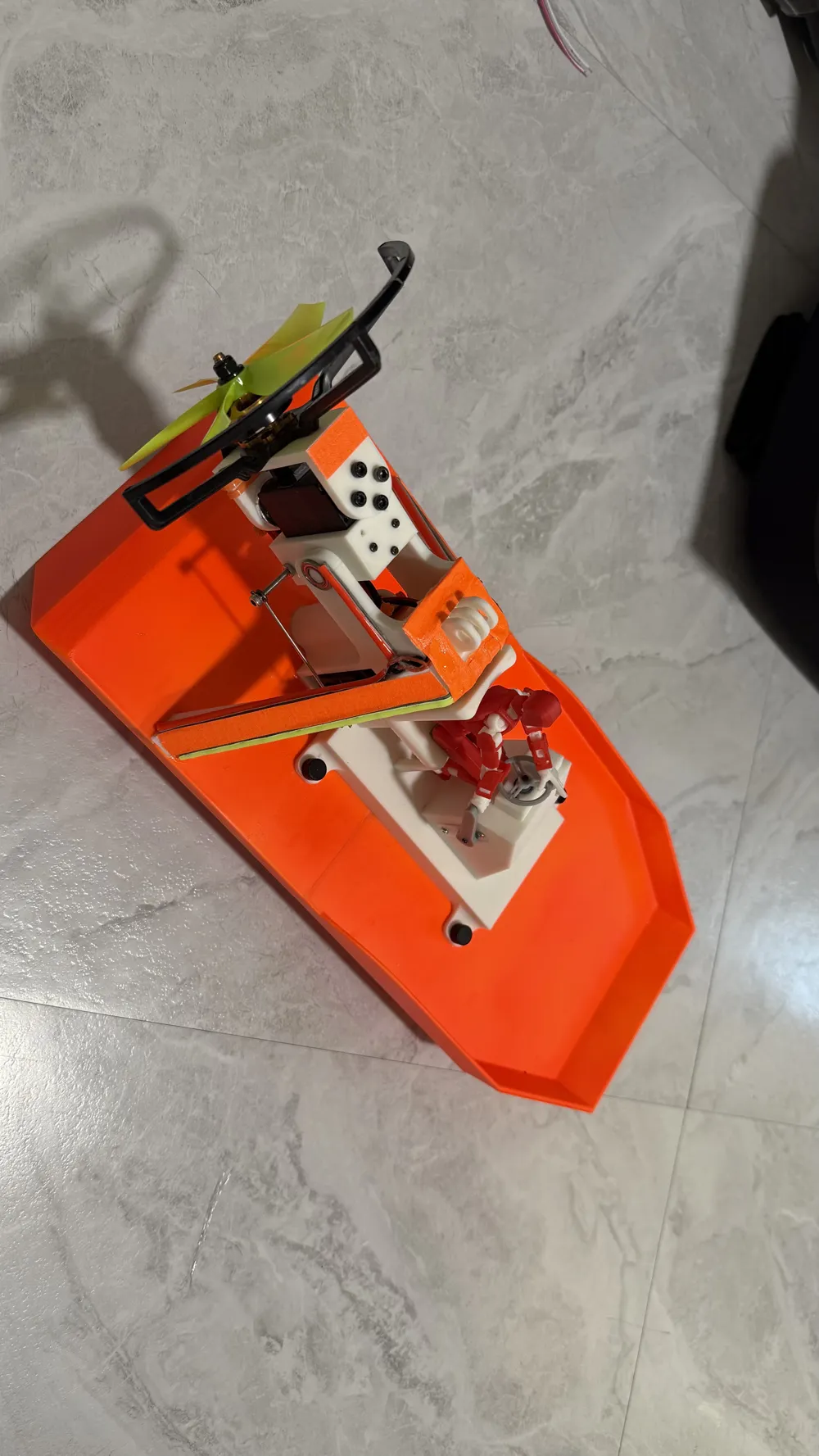

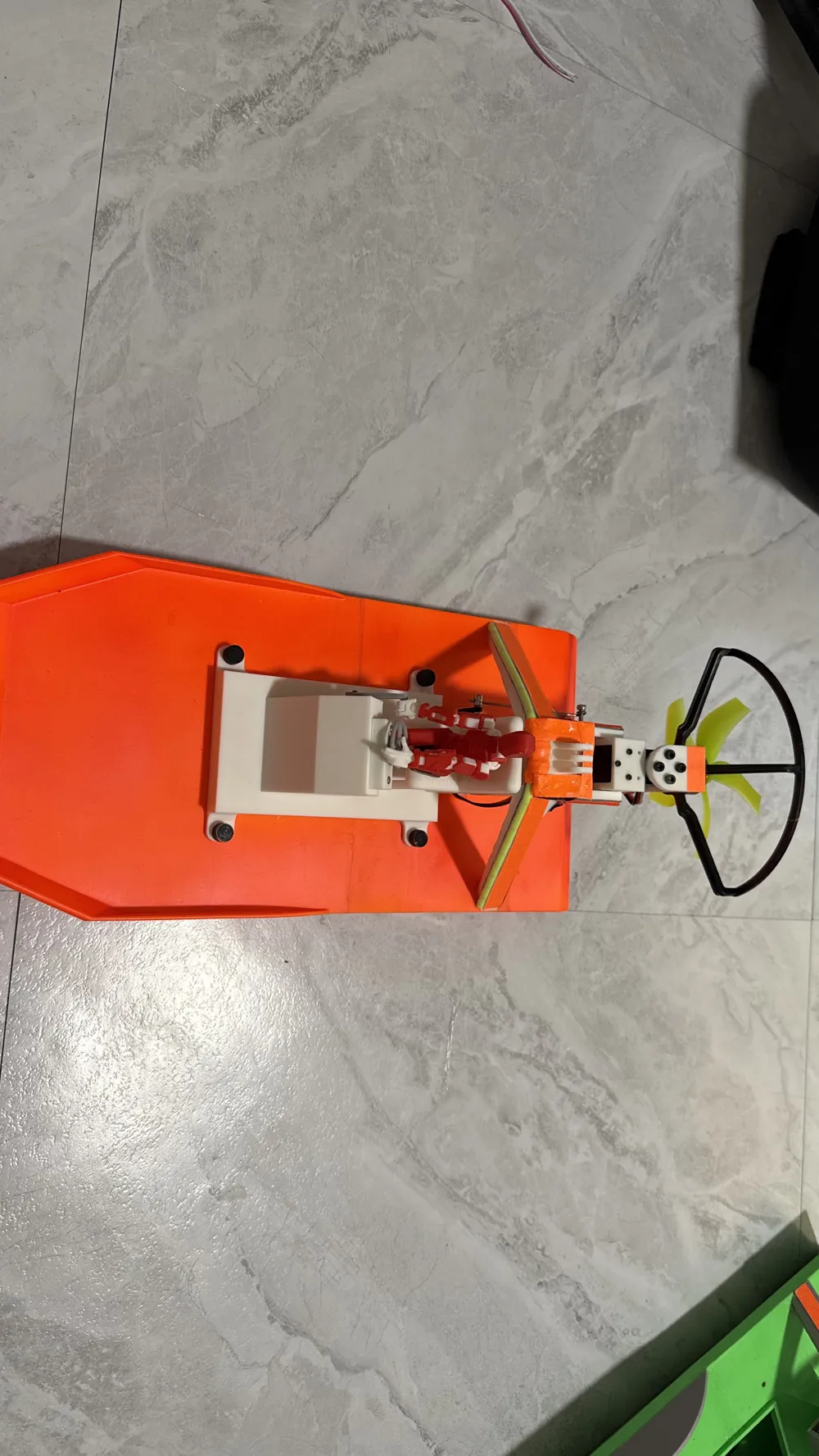

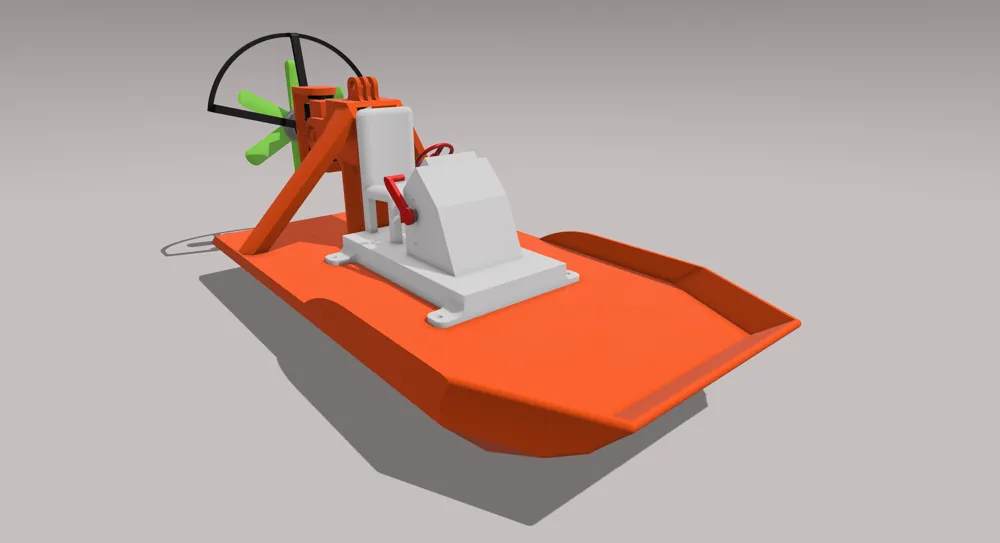

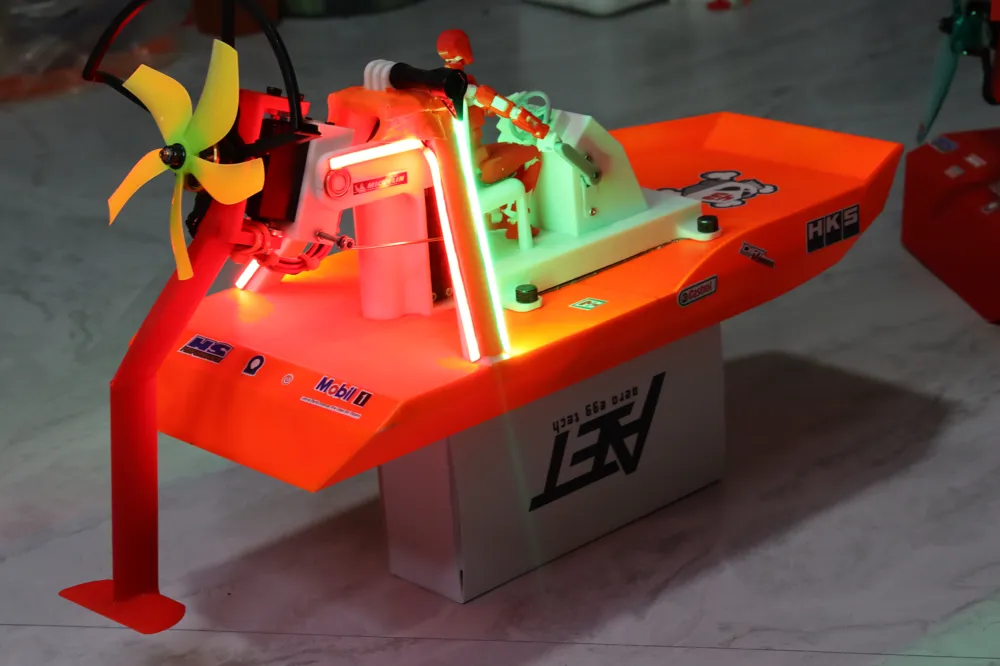

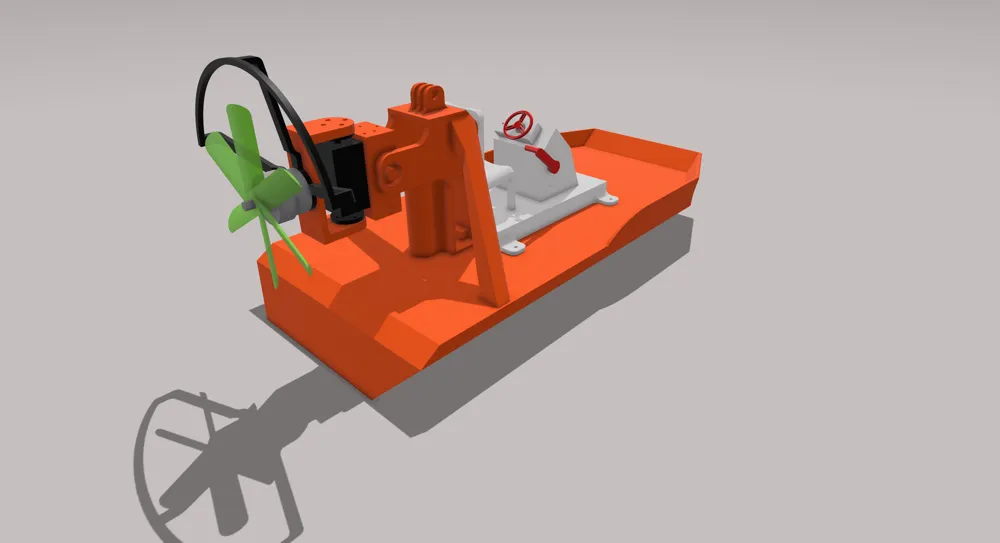

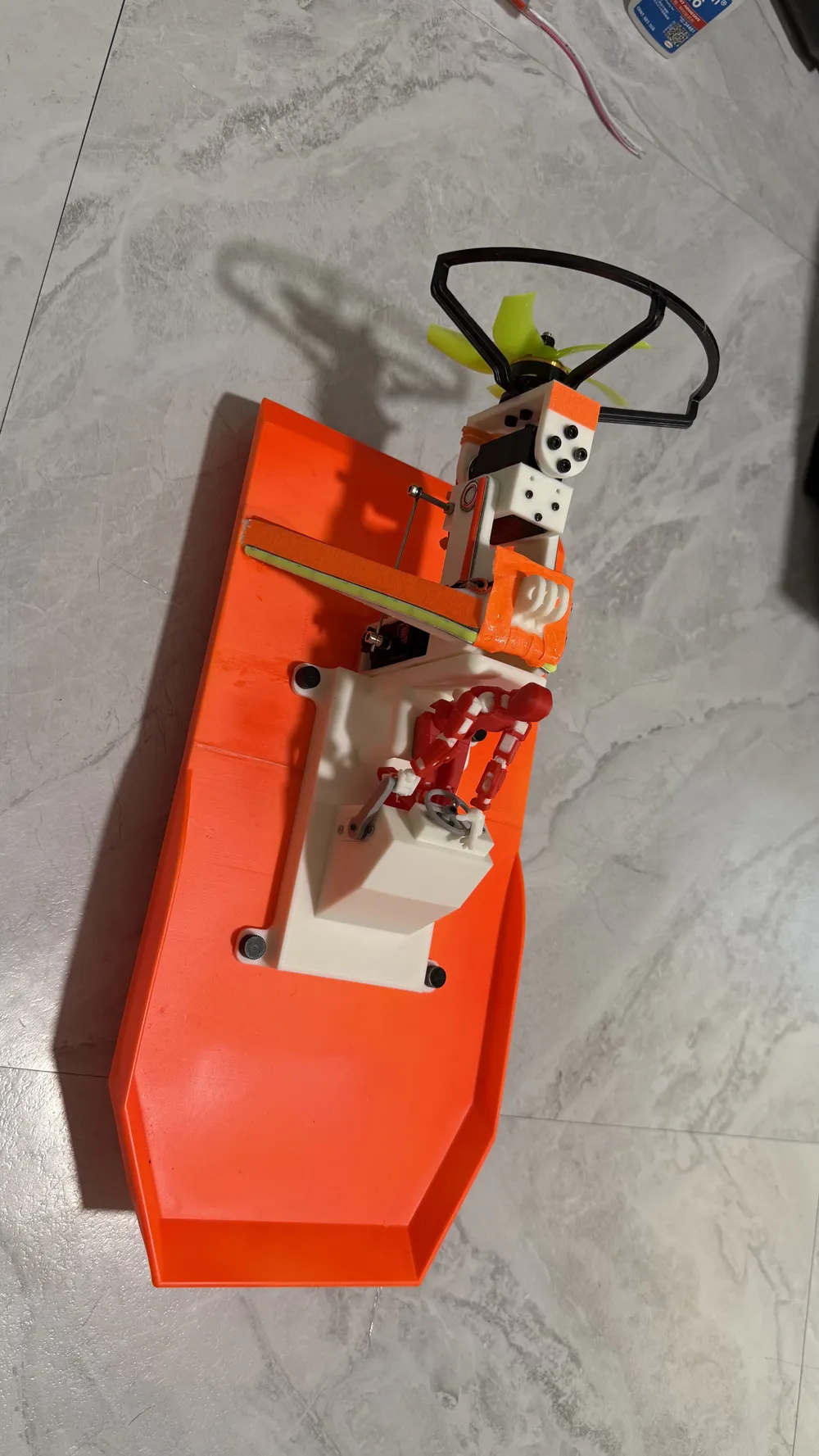

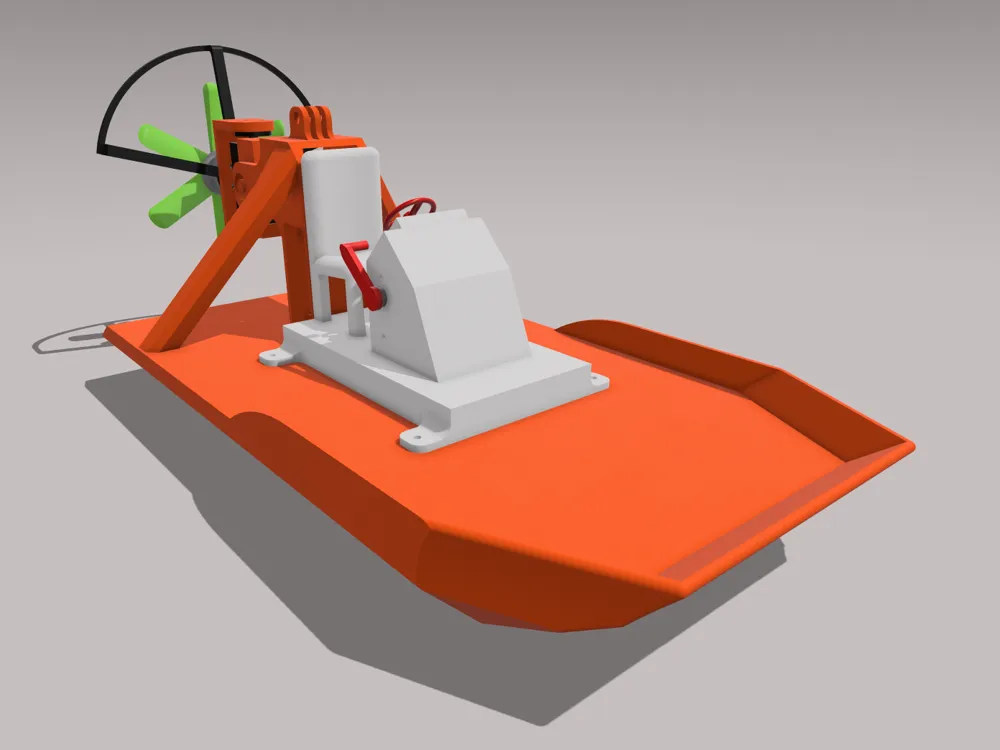

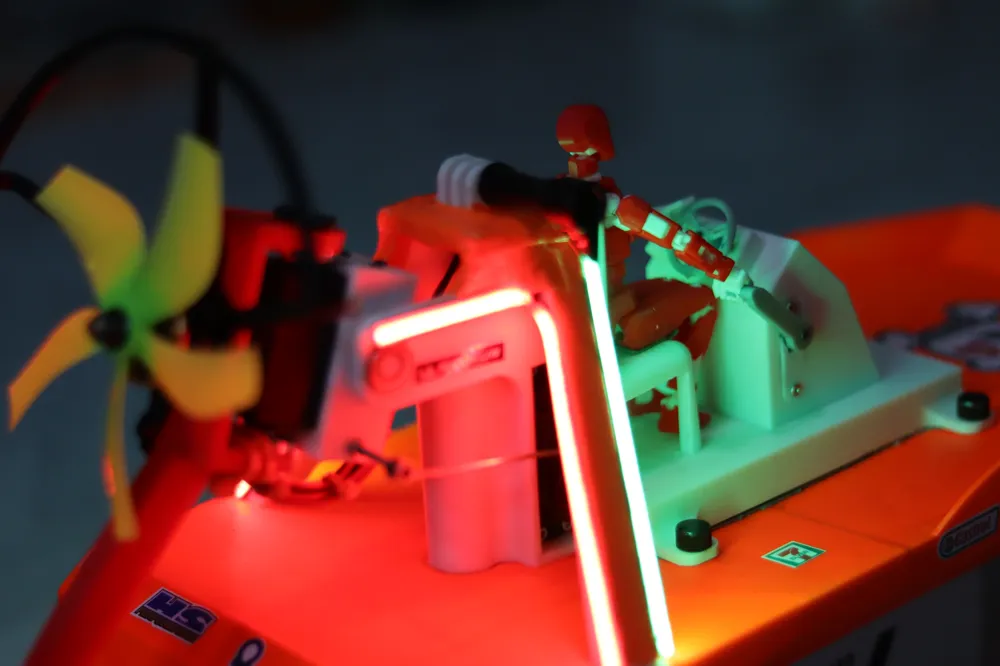

This vessel represents the final iteration, exhibiting exceptional stability. Details regarding the components are provided below.
Motor: 2205
Rudder Servo: Zhongling Technology 15KG 90° Dual-Axis Servo
Pitch Servo: MG995 Servo
Steering Wheel/Throttle Servo: 3.7g Servo
Accessories: 3*10 Hand-tightened Screws, M3*4*4.1 Embedded Nuts, (3*8 Screws, 8 pieces), (3*10 Screws, 4 pieces), (2*16 Self-tapping Screws, 4 pieces), 687ZZ Bearings *2
I utilized 416 adhesive. Application of waterproof sealant around the servo and motor wire feedthroughs is recommended; hot melt adhesive is not required.
