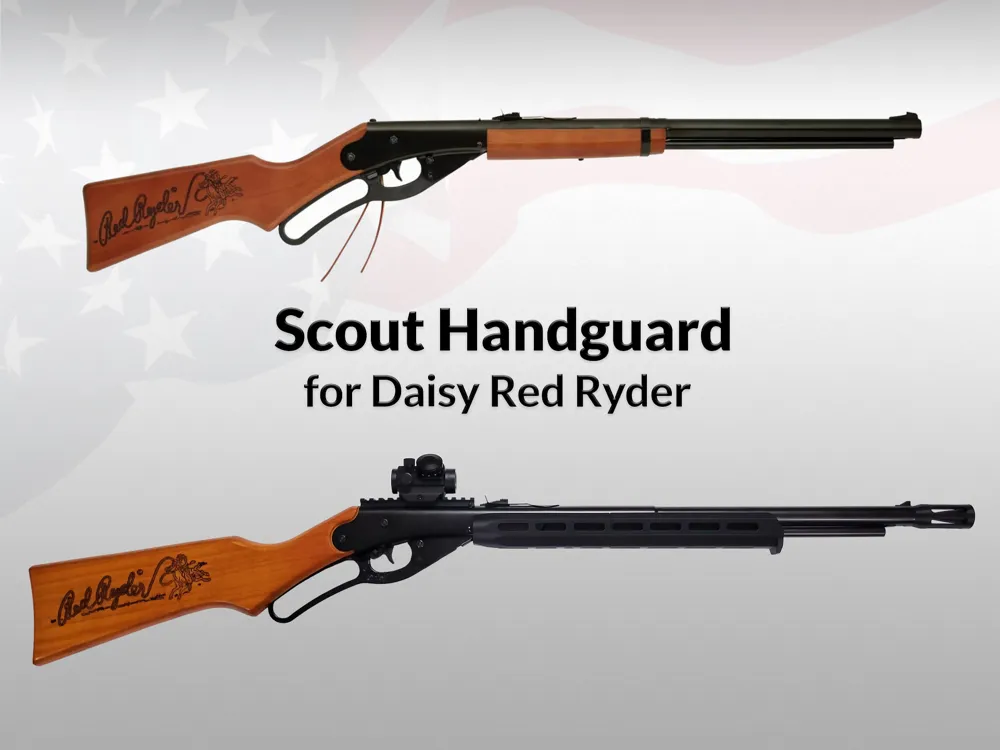

Daisy Red Ryder M-Lok Handguard - Scout

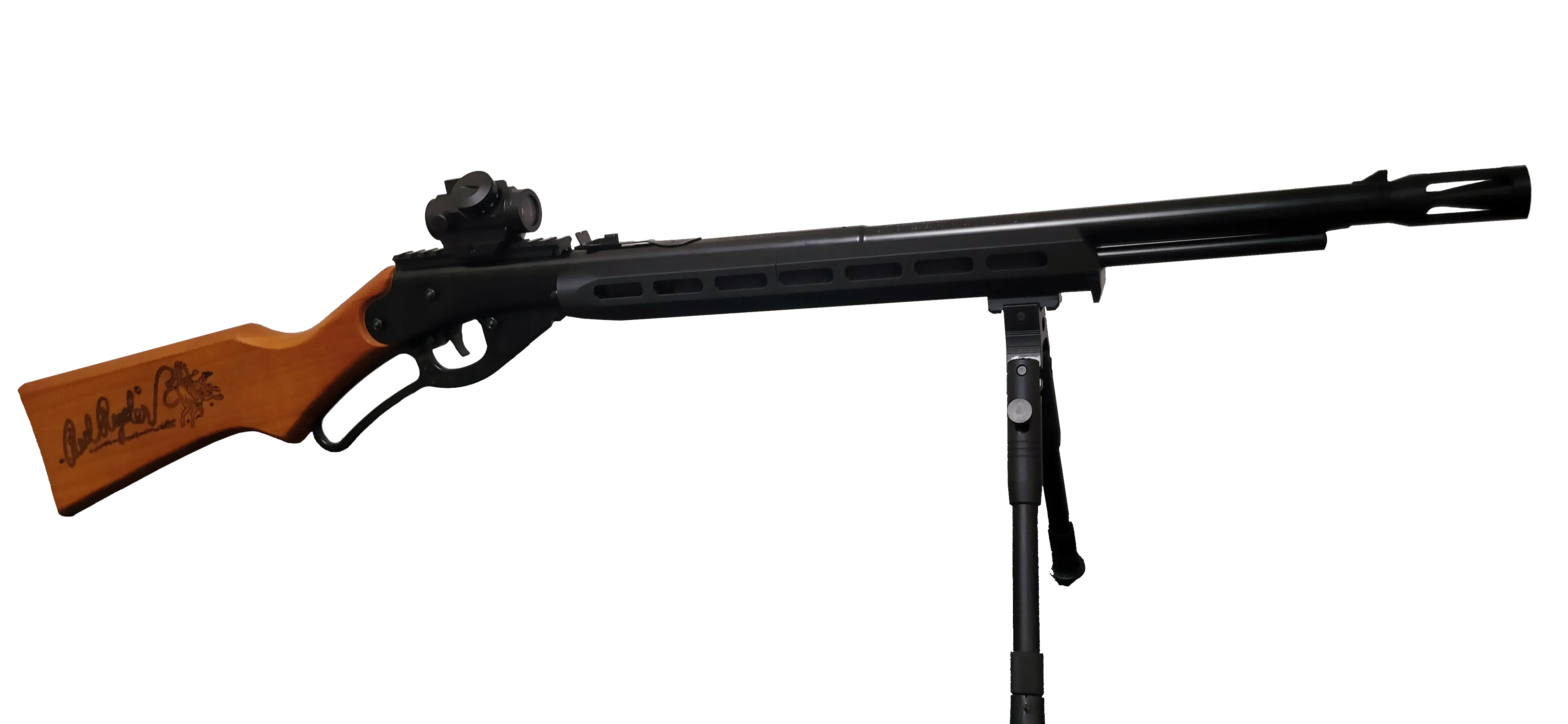

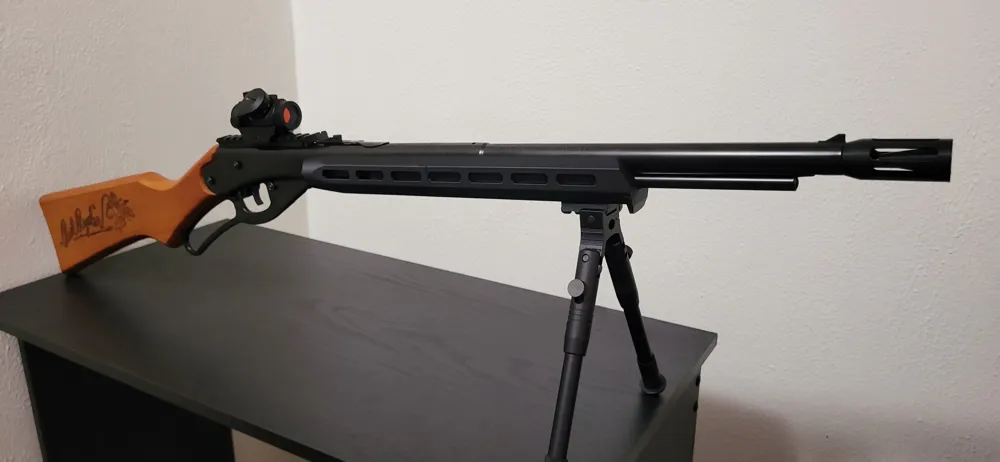

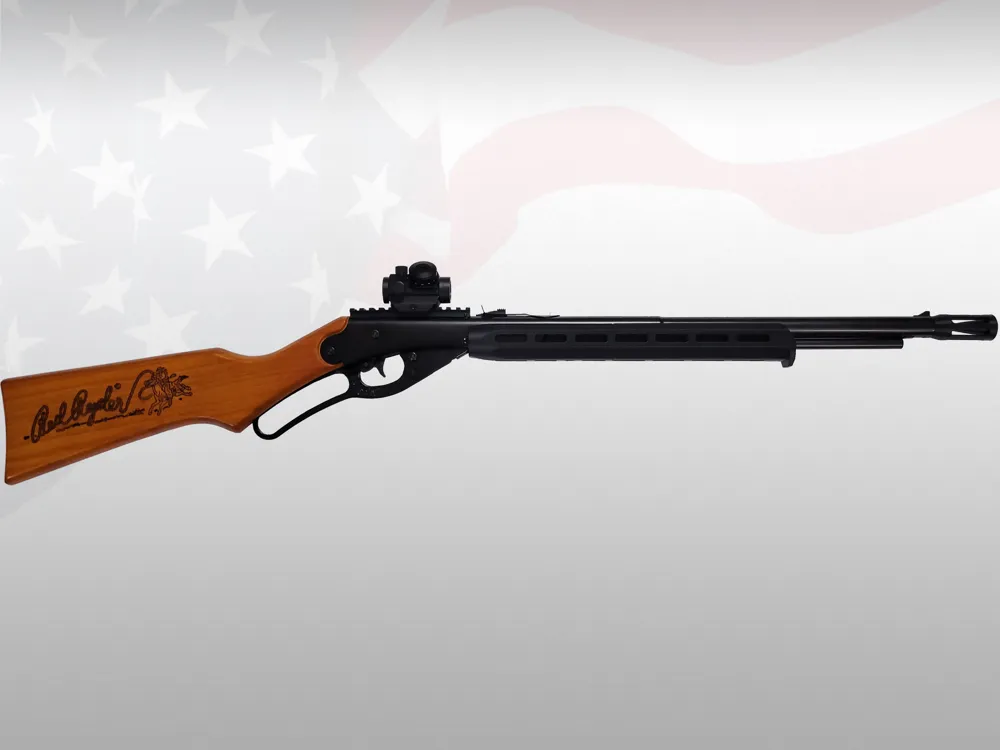

This is an extended length M-LOK handguard for the Daisy Red Ryder air rifle.


Features:

• M-LOK slots along the sides and bottom for mounting accessories.
• A full 13 inches of length, giving you a much larger grip area and more room to customize.

Designed to install with no permanent modifications to your rifle.

I printed my own prototypes in PLA+ and they have held up very well.

Glue is not required, but can be used to permanently attach the two handguard halves together.

Installation Instructions

⚠️ Safety First ⚠️
Before starting any modification:

• Make sure the airgun is unloaded
• Engage the safety


Tools Needed:

• Phillips screwdriver
• Super glue or epoxy (optional)

Step 1: Assemble the Handguard

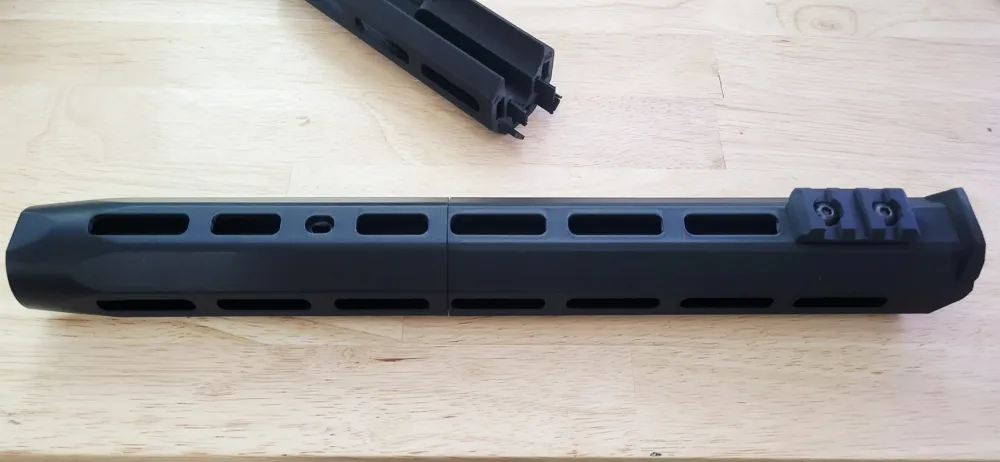

• Connect the two halves of the handguard using the four included connector pieces.
  Each half has four slots near the end—apply a drop of glue into each slot on both halves.
• Insert the connectors into one side, then carefully align and slide the second half into place.
  Allow the glue to fully cure before moving to the next step.

Step 2: Remove the Original Handguard

• If your handguard has a metal collar, slide it forward toward the muzzle and off the barrel.
• Next, remove the Phillips screw from the bottom of the stock handguard.
  The original handguard should slide off easily with no resistance.

Step 3: Install the New Handguard

• Position the new handguard on the rifle—it should snap into place and feel snug.
• Slide it rearward toward the trigger to ensure a tight fit.
• Reinsert the Phillips screw through the bottom of the handguard to secure it.

The handguard should also fit an Umarex Marlin BB rifle, I do not have one to test fitment.
